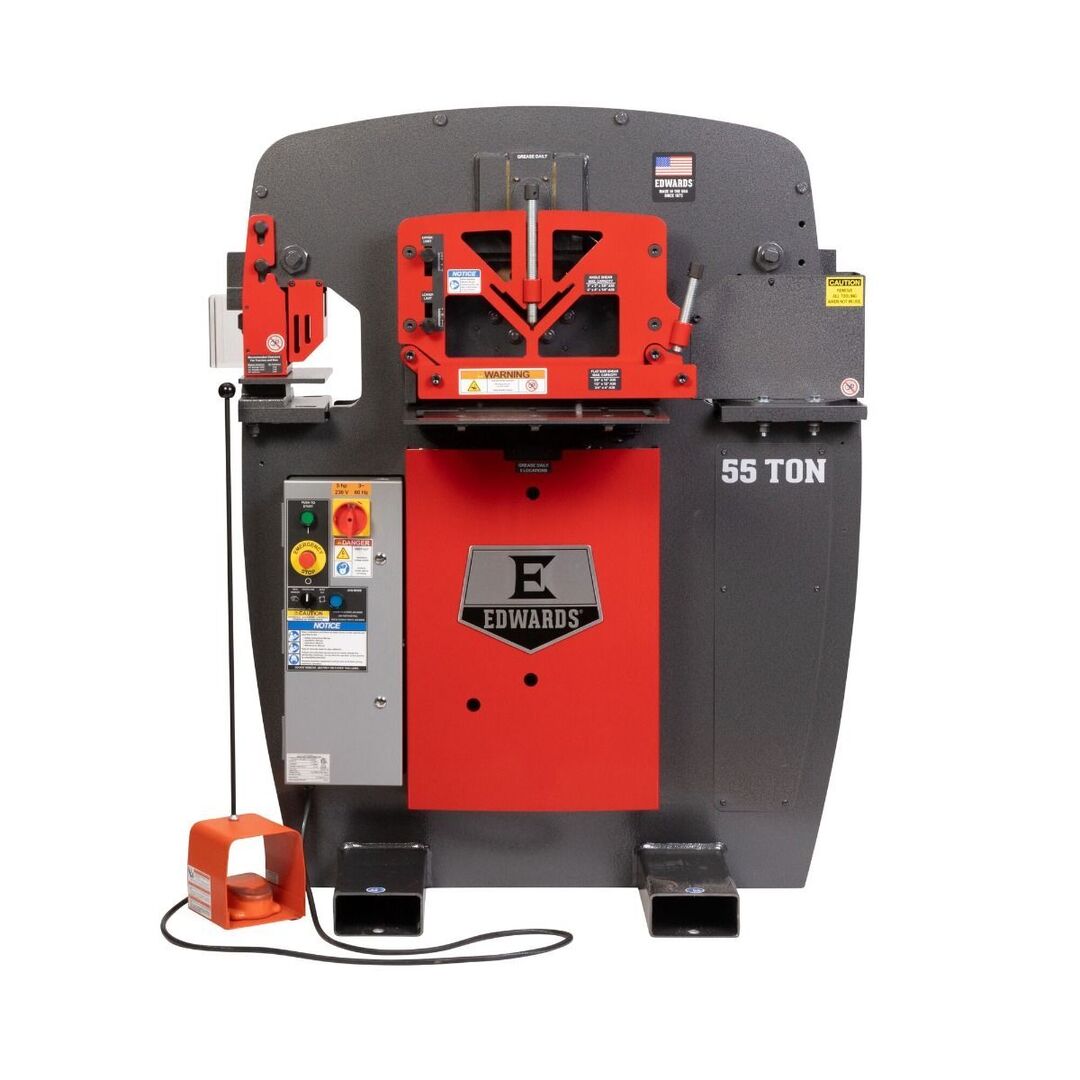

4" x 4" x 1/4" Edwards #ED9-IW55-3P230, ironworker, 55 ton, 230 V., 3 phase, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 142970
Model: ED9-IW55-3P230
Condition: New
Electrical Specifications:
Voltage: 230 volts
Phase: 3-phase
General Specifications:
Tons: 55 ton
Dimensions: 62.00 (H) x 51.00 (W) x 45.00 (L) inches
Additional Description:
Amps: 14
Angle Shear Max Capacity 1/4": 4 x 4
Angle Shear Work Height: 39-7/8"
Flat Bar Shear Max Capacity 1/2": 12
Flat Bar Shear Max Capacity 3/4": 4
Flat Bar Shear Max Capacity (In.): 3/8 x 14, 1/2 x 12, 3/4 x 4
Flat Bar Shear Max Round: 7/8"
Flat Bar Shear Max Square: 7/8"
Flat Bar Shear Rating: 55 tons
Flat Bar Shear Work Height: 34-1/2"
Hydraulic Pump: 3-1/2 gpm
Hydraulics: 3-1/2 gpm
Hydraulics: 2500 psi
Motor Amps: 14 A
Motor: 5 HP 3 - 230V
Motor Speed: 1725 rpm
Open Station Open Height: 8-1/8"
Open Station Shut Height: 6-7/8"
Open Station Stroke: 1-1/4"
Open Station Throat Depth: 11-3/16"
Open Station Work Height: 34-1/2"
Open Workstation Throat Depth: 11-3/16"
Open Workstation Work Height: 34-1/2"
Optional Coper Notcher Work Height: 39-1/2"
Overall Dimensions (L x W x H) (In.): 36-1/8 x 44-3/8 x 55-1/4
Product Dimensions (In.): 44-3/8 x 36-1/8 x 55-1/4
Punch Max Capacity (In.): 1-1/16 diam. in 5/8 mild steel
Punch Open Height: 8-1/8"
Punch Rating: 55 tons
Punch Shut Height: 6-7/8"
Punch Stroke: 1-1/4"
Punch Throat Depth: 7-1/2"
Punch Work Height: 36-9/16"
Reservoir: 7 gal.
Shipping Dimensions (L x W x H): 45" x 51" x 62"
Valve Pressure: 2750 psi
Gross Weight: 2480 lbs
Net weight: 2430 lbs
