4.75" Dake #Technics-350SA, Semi-Automatic Cold Saw, 14" Blade Size, 36.75" Work height, 3.5 HP, 20-105 RPM, 220/440 V, new

Description

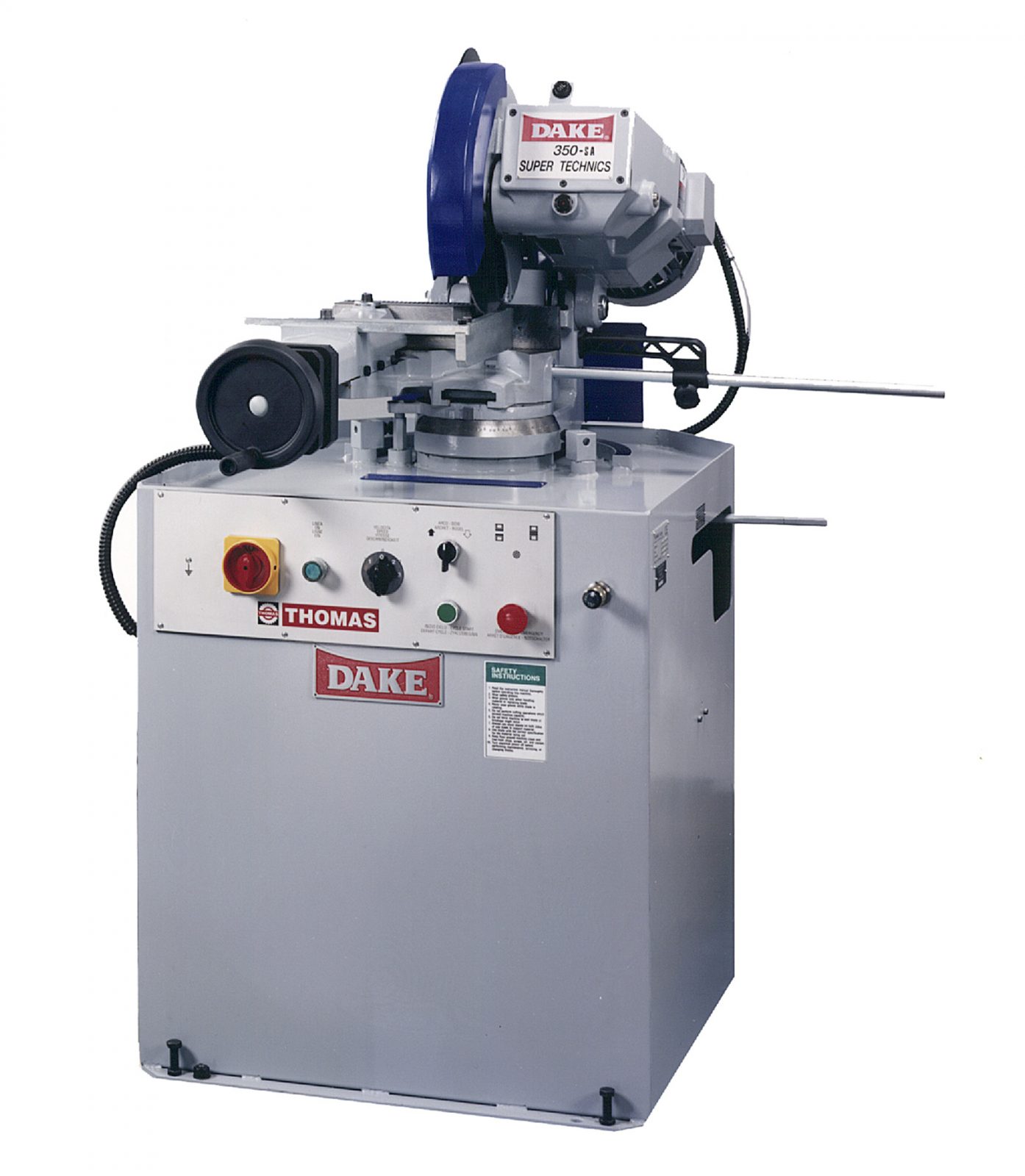

Dake 14″ Semi-Automatic Cold Saw, Technics 350SA

Inventory # 6209

Model: Technics 350SA

P/N: 974355

Specifications:

Max. Cutting Capacity:

Round:

@ 90°: 4 3/4″

@ 45°, Left: 4″

@ 45°, Right: 4″

Square:

@ 90°: 4 1/8″

@ 45°, Left: 3 3/8″

@ 45°, Right: 3 3/8″

Flat:

@ 90°: 6 1/4″ x 3 1/2″

@ 45°, Left: 3 3/8″ x 2 3/4″

@ 45°, Right: 3 3/8″ x 2 3/4″

Max. Blade Size: 14″

Spindle Speed: 20 – 105 RPM (Variable)

Head Feed: Air Over Oil Power Feed

Vise: Pneumatic

Max. Vise Opening: 6 5/8″

Controls: CE Certified 24-Volt with Foot Start Switch

Work Height: 36 3/4″

Motor: 3.5 HP / 220v OR 440v / 3ph (Please Specify Desired Voltage at Time of Order)

Standard Features:

Push button or foot-switch activation to avoid operator fatigue

Shroud enclosed head feed cylinder with sliding cams for fast cutting stroke adjustment

Additional ball bearing support of hardened and ground spindle shaft to prevent failure

Adjustable pneumatic vise with sliding gib to true up clamping under blade with 1/4 stroke

Oversized pedestal base to reduce vibraiton

Head rotates 45° right and 60° left of center for easy miter cutting

Removable hardened, serrated vise jaws faces

Ability to add a programmable feed system to make fully automatic with wide range of capabilities

Standard Equipment:

Blade

Coolant

Saw Blade Selector Calculator

Tools Kit for Changing Blades

Instruction and Service Manual

Adjustable Positive Stop

Mechanical Specifications:

Dimensions: 50″ x 33″ x 60″ H

Weight: approx. 890 lbs.

FOB Factory – Contact us for Availability

Optional Equipment:

440-Volt Motor
