196 KV, ABB, O Plus C, 800 Amps., bushings (Style 196W0800XA) (3 available)

Quantity: 3

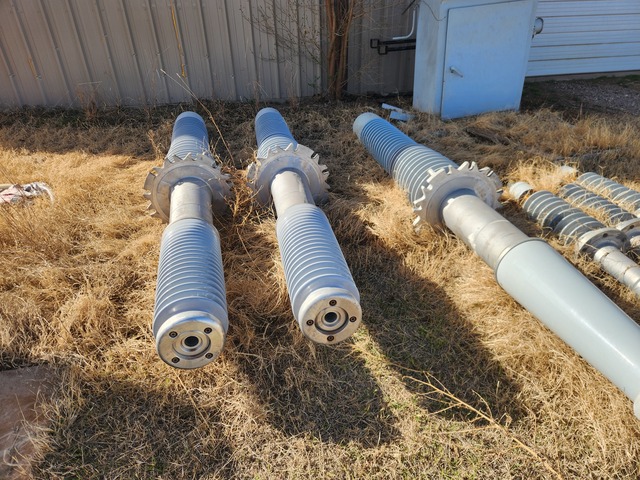

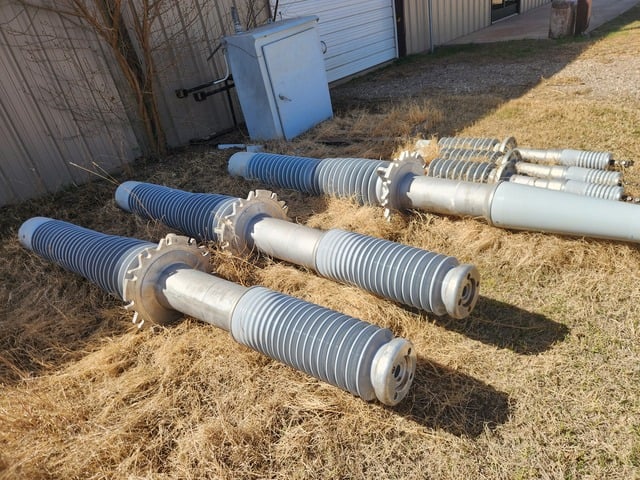

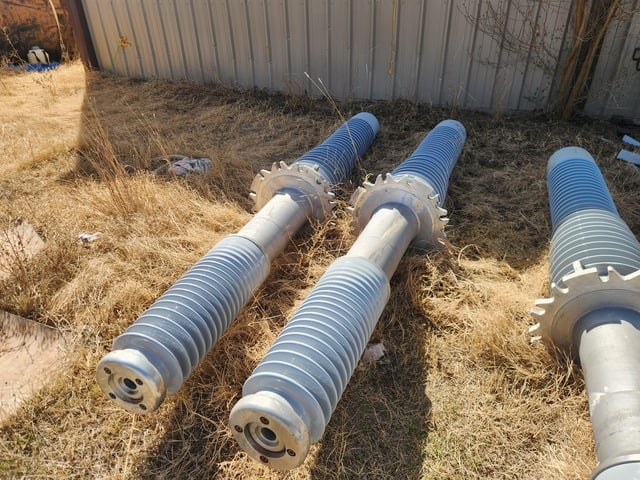

​Description: For sale are three (3) used ABB Type O Plus C condenser transformer bushings. These were carefully removed from a functioning 60/80/100 MVA 230/69kV Federal Pacific Electric autotransformer (City of Lubbock, TX) that was recently decommissioned. These are 196kV rated, which is the standard line-to-ground rating for 230kV systems.

​Specifications: * Manufacturer: ABB

​Bushing Type: O Plus C (TBI / Convertible - Draw Lead)

​Style Number: 196W0800XA VER 1

​System Voltage (SYS): 196 kV

​BIL: 900 kV

​Current Rating: 800 Amps

​L Dimension: 60.0

​Capacitance: C1: 440 pF / C2: 3551 pF

​Year of Manufacture: 1999

​Terms & Location: Used surplus, sold as-is. Ships via freight from Lubbock, TX. Buyer is responsible for shipping arrangements. Call 1(806)213-9670 for additional photos or to schedule an on-site inspection.
