.394" -3.94" Simec #MEC-120, CNC Automatic Tube Cut Off Machine, 0.4"-1.6" bar, 118" max. cut length, 9.84"-13.78" blade diameter, 3000 RPM, 2019

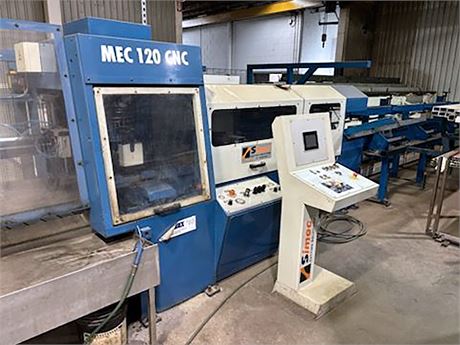

Simec Tube Saw MEC 120 CNC (2019)

Description

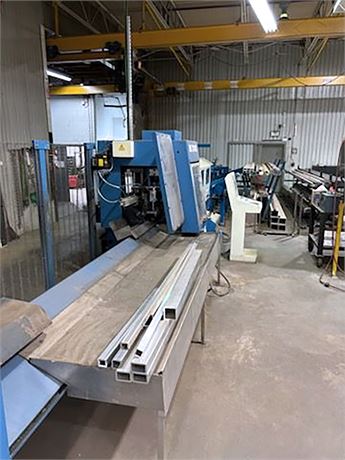

Simec Automatic Tube Cut Off Machine MEC 120 CNC (2019) w/ Auto Feed and Exit System, Round capacity of 3.94", 3000 rpm, Max length 118"
Automatic cutting machine capable to miter cutting maintaining a high production rate. Capable of cutting ferrous and non ferrous materials with round, square or rectangular section.
Round Tube: from 10mm to 100mm (0.394" - 3.94")
Square Tube: from 10 x 10mm to 90 x 90mm (0.394" x 0.394" to 3.54" x 3.54")
Rectangular: from 10 x 10mm to 120 x 80mm (0.394" x 0.394" to 4.7" x 3.15")
Bar: from 10mm to 40mm (0.394" - 1.58")
Minimum cut length: 10mm (0.394")
Maximum cut length: up to 3000mm (up to 118")
Cutting tolerance: +/- 0.2mm (0.008")
Angle cut: +/-60
Blade diameter: from 250mm to 350mm (9.84" - 13.78")
Cutting speed: from 30rpm to 3000rpm, depending on the material
Feeding speed of the gripper: 1.5m/s (4.9 ft/sec)
Blade motor: 2.25/ 3kw (or 4kw with inverter)
Cutting plane height: 900mm (35.4")
Maximum vice opening: 130mm (5.12")

Equipped With

-Straight or angle cut of tubes from minimum 10mm to max 100mm (0.394" - 3.94")

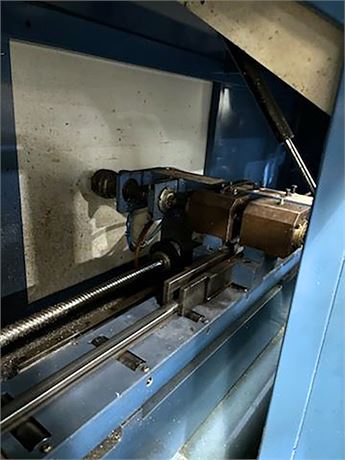

- Step by step feeding of the gripper: stroke 2000mm (78.74") through ball screw and Motor Brushless
- Automatic positioning of the feeding gripper length
- Quick release vice jaws for rapid tooling changes

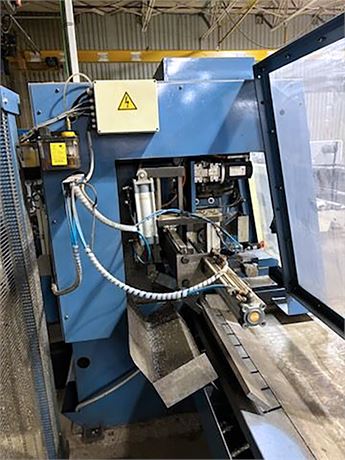

- Double clamping vices, on both sides of the saw blade
- Hydraulic clamping vice and gripper

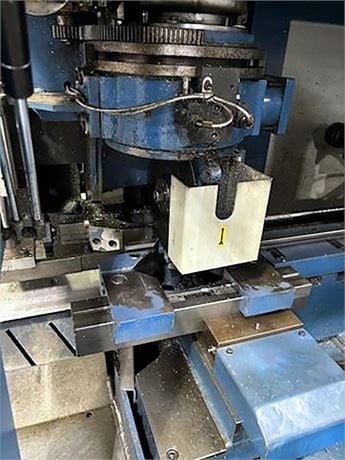

- Vertical cutting descending from above saw head mounted on prismatic guides tempered and ground
- Discharge systems with unloader cylinder plus deflector

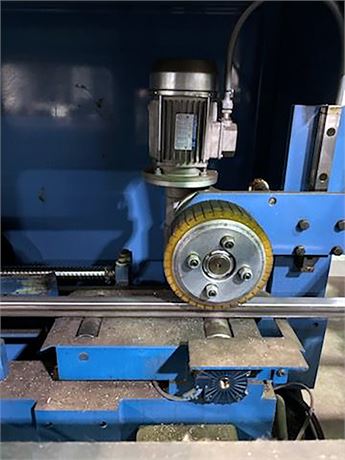

Auto Feed

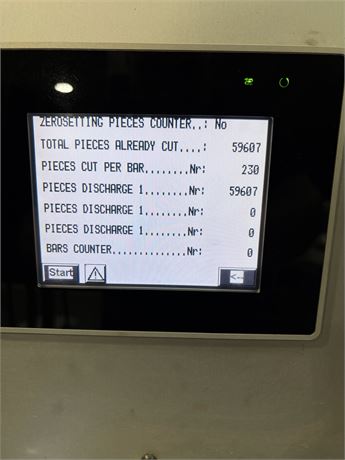

CNC Control
Tooling

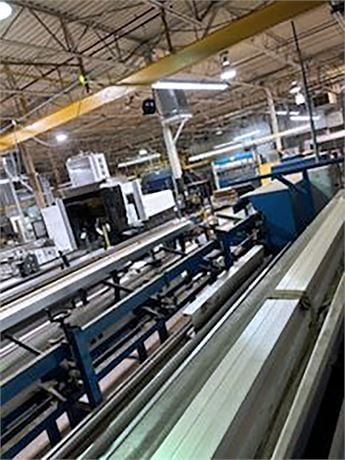

Exit System
Less than 1000 hours total of usage
