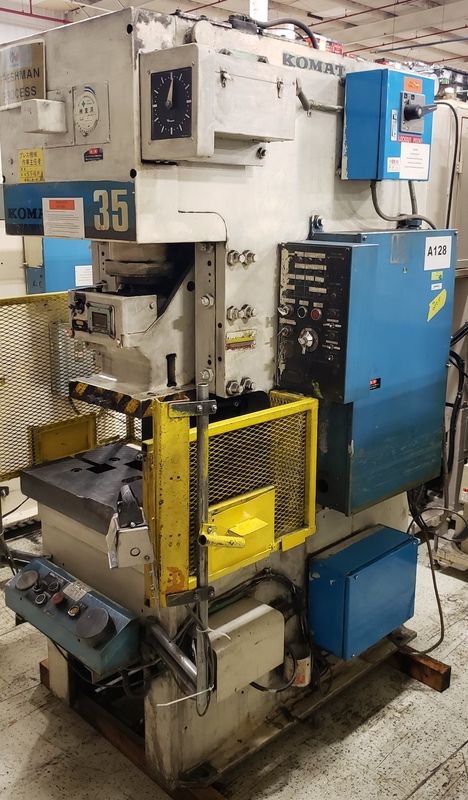

Manufacturer: Komatsu
Model: OBS-35-2
Year: 1986
Ton: 39.0
Stroke: 3.15
Air Clutch: Yes
Stock # 6373
Click to zoom in
For Sale by Alma Machinery Co-Columbia TN
Surplus Record Dealer Since 1960
Location: Columbia, TN
Contact Ken King
Phone Number: 615...> Show Phone Number 615-369-7788
Let the seller know you found their listing on Surplus Record!
Description
| CAPACITY | 39 US TON | STROKE | 3.15" | MAX DIE HEIGHT | 8.3" SDAU OVER 3.4" H BOLSTER | BED AREA | 27.6" X 15.8" (rl x FB) | SPEED | 100 SPM | SLIDE ADJUSTMENT | 2.2" - MOTORIZED | SLIDE AREA | 13.8" RL X 11.8" FB | BOLSTER PLATE | 3.4" H X 27.6" RL X 15.8" FB | DISTANCE BETWEEN UPRIGHTS / FLOOR TO BED | 17.25" / 28" | CLUTCH | KOMATSU AIR CLUTCH / BRAKE COMBINATION | ELECTRICS | 5 HP 1750 RPM MOTOR & KOMATSU RELAY PRESS CONTROL | APPROX DIMENSIONS | 8' H X 3.5' RL X 5' FB | APPROX WEIGHT | 5,750 LBS | Equipped With | floor standing, single back geared design, PLUNGER GUIDE SYSTEM, HEAVY-DUTY SLIDE CONSTRUCTION, HYDRAULIC OVERLOAD PROTECTOR | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
