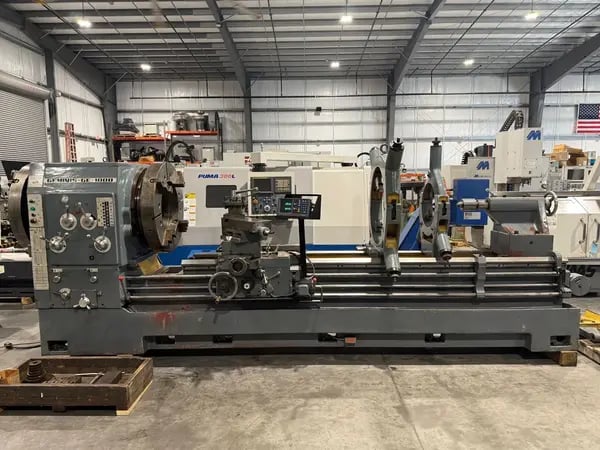

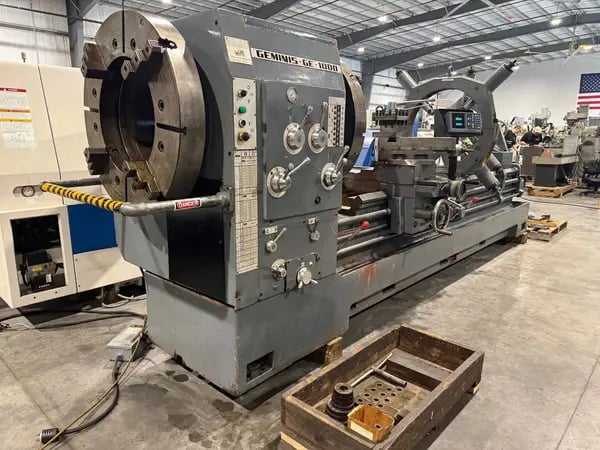

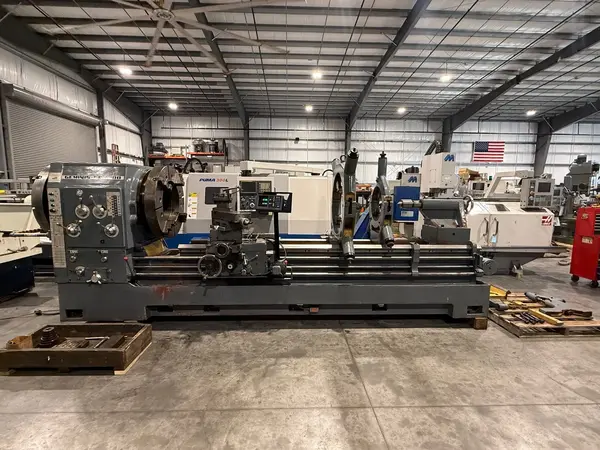

Description GEMINIS Republic Lagun GE-1000 39”/48” x 120”cc Hollow Spindle Lathe 20” BORE #7566 Specifications
GEMINIS Republic Lagun GE-1000 39”/48” x 120”cc Hollow Spindle Lathe 20” BORE #7566 Reference # 7566 Model # GE-1000 Serial # 4885 Year of manufacture- 1988’ Swing over bed ways- 39-3/8” Swing in Gap- 48-3/4” Swing over cross slide- 28-3/8” Length of gap- 13-3/8” Distance between centers- 120”cc Spindle bore- 20.25” Spindle speeds- 5 – 340 R.P.M. Bed width-21-5/8” Tailstock quill travel- 12” Tailstock quill taper- #6 Morse Inch threading- 1 – 56 T.P.I. MM threading- .5 – 30 mm

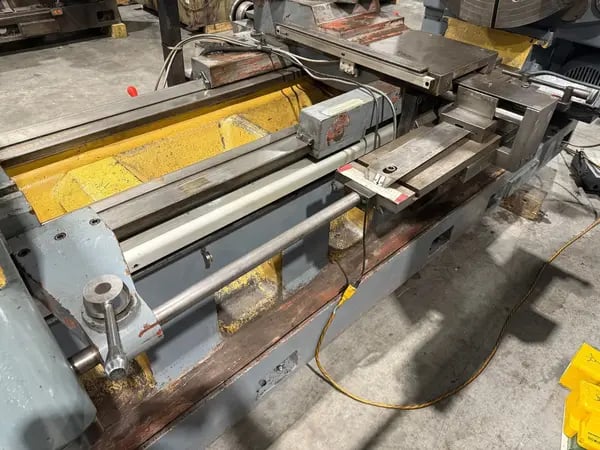

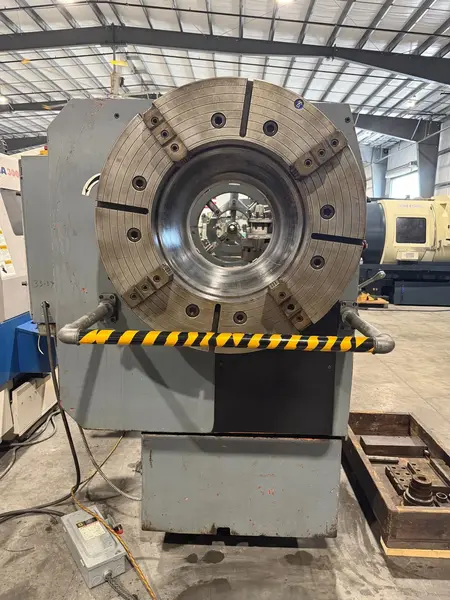

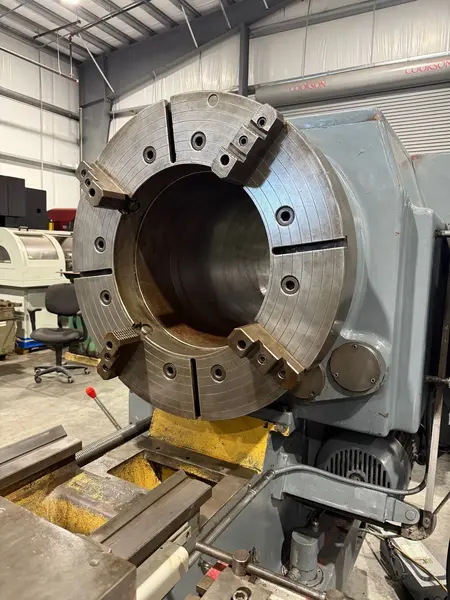

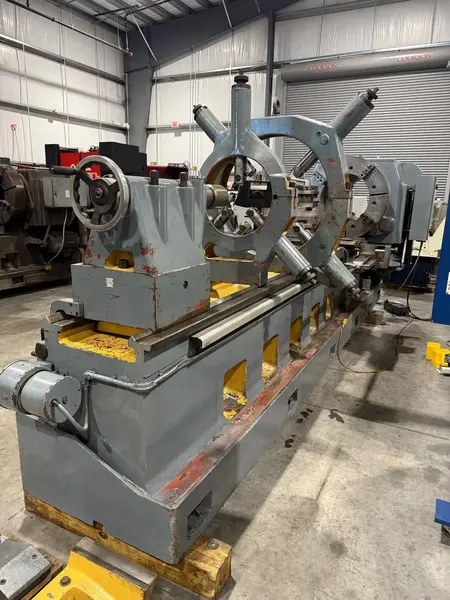

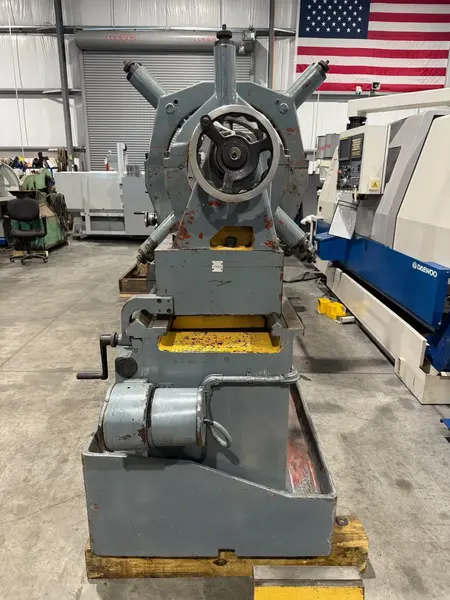

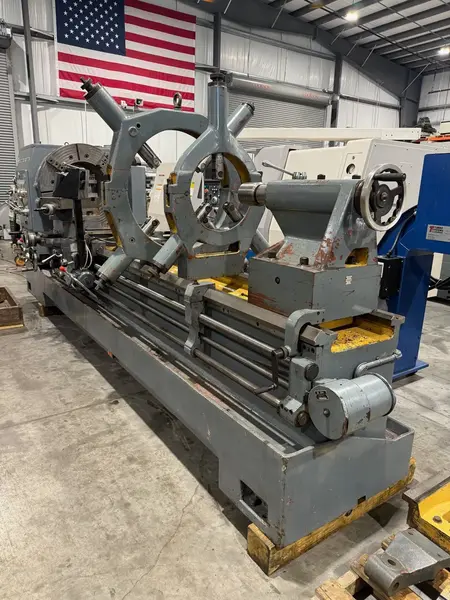

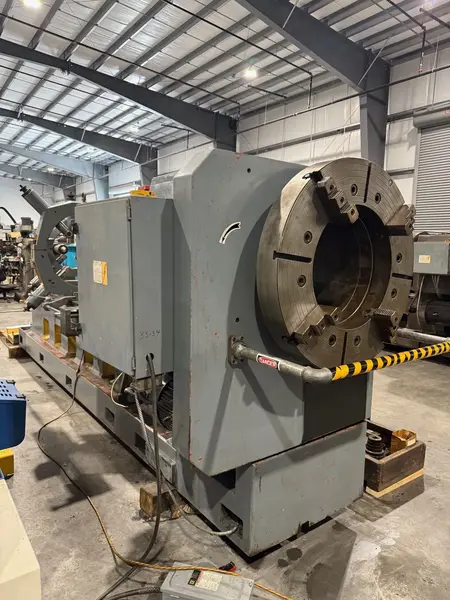

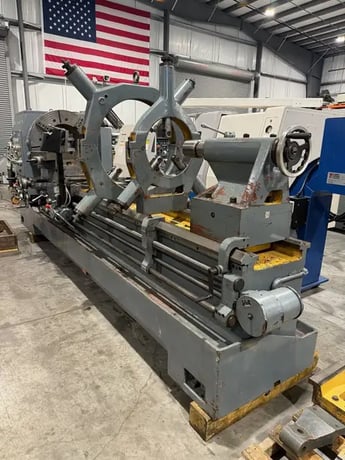

Equipped With Republic Lagun Geminis 20-1/4” Big Bore (2) 35” 4 Jaws Chucks 30-1/2” Capacity Steady Rest 17” Capacity Steady Rest Follow rest Power rapids on carriage Taper attachment & Extra guide block Live Center 4 way tool post Change gears Coolant pump with built in reservoir ACURITE 2 axis DRO Digital Read Out 30 H.P. Motor Machine is wired for 460 volt / 3 phase / 60 H.Z. Machine weight- 20,000 Lbs. Machine dimensions- 220” x 85” x 90” H Machine location- F.O.B. Sarasota, Floirda
