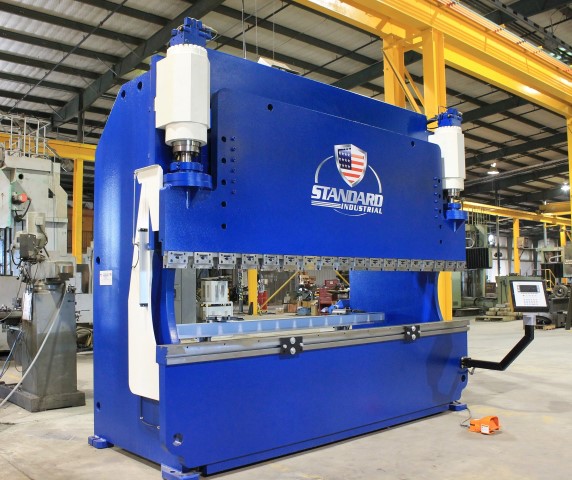

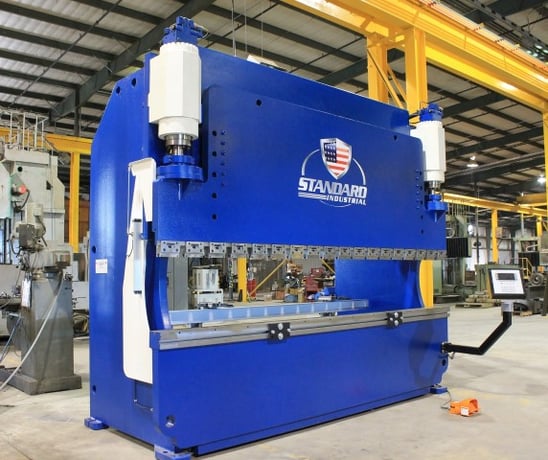

350 Ton, Standard Industrial #EV350-12, hydraulic press brake, 144" bed & ram length, 10'-5 between housing, 10" stroke, 20" max height, 2026, new

STANDARD INDUSTRIAL EV350-12 Servo Y1-Y2 Precision Press Brake Custom order to your requirements. 5 Year Warranty with life-time operator support!Specifications: -- Capacity 350 Tons -- Bed and Ram length 144" -- Distance between housings 10'-5"; -- Adjustable stroke 10"; -- Maximum open height 20"; -- Closed Height 10"; -- Throat (gap) 10" -- Three working speeds: Fast Approach 250 IPM Pressing speed 24 IPM Return speed 200 IPM -- Approx. dimensions 156" x 70" x 138" -- Approx. Weight 46,000 Lbs -- Ram repeatability +/- 0.0004"; -- (2) 24"; T-Slot support arms with imbedded scale. -- T-slot across front edge of brake bed. -- 10"; Deep gaps in side frames for bending longer lengths with larger flanges. -- The parallelism between moving upper beam and fixed lower beam during is ensured by two precision proportional valves. controlled by the CNC control (axes Y1 and Y2). -- (1) 5.5"; lower beam -- Hydraulic drive including complete hydraulic system -- Emergency stop palm button. -- All Components Readily Available From Your Local Suppliers -- Typical 20-30 Year Lifetime -- Manual ram clamps for American style tooling. -- Available with Wila quick-change ram clamping optionally. -- One day onsite training in contiguous US. -- Y1-Y2-Axes +/- .0004"; ram repeatability and programming of the ram position (vertical) as well as tilting +/- .750"; (or more) for tapered bends (cones) control via 640 fully 2D graphical control. -- Front gauging 2 each – 24"; Front support arms with imbedded scales also includes t-slot across front edge -- 5 Year Parts Warranty / 5 Year Limited Labor -- CNC Control Warranty / 1 Year -- Unlimited telephone support -- Frame is an extremely heavy duty, welded fabrication minimizing deflection and crowning. -- Extremely rigid movable beam for minimum deflection -- Machine is flush floor mounted; no pit required -- Built-in overload protection -- The measuring of the ram position is made by two precision linear encoders located on each end of the upper beam. As the reference is always measured in relation to the bed, the ram position on bending depth is independent from the work length.Included options: -- ESA 640 6-AXIS CONTROLLER (<400/16') -- 24" Travel back gauge -- 6-Axis programmability -- Power Y-Axis ram control -- Power X-Axis -- Manual R-Axis -- Include 2 days onsite training
