Description
225 Cubic Foot Crossley Economy Stainless Steel Double Cone Blender Serial No: 93-2327 30HP reliance electric motor, 1765 rpm, 230/460 volt. Foote-jones gear reducer, 38.4:1 ratio. Gear drive with guard. 12" flanged outlet with air actuated bray butterfly valve. Total volume 375 cubic feet. Working Volume 225 cubic feet. The double cone has 36" x 24" pad feet. The footprint of the base is 9'-10" deep x 16'-9" wide. Blender shell has been ultrasonic thickness tested: Cones (both) 0.321" thick; cylinder: 0.620". There is about 1' of clearance below the outlet as it sits. Overall dimensions: 17'-0" wide x 9'-10" deep x 11'-2" high. Final drive speed 6 RPM. Weight = 13,750 LBS

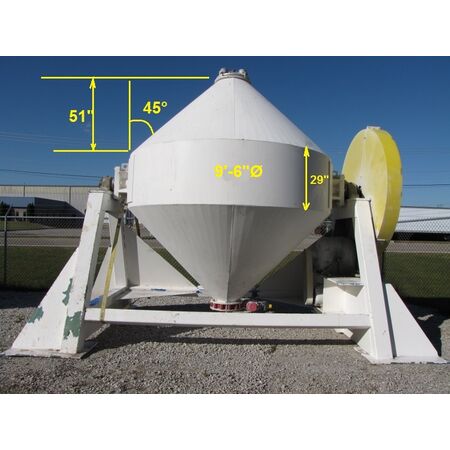

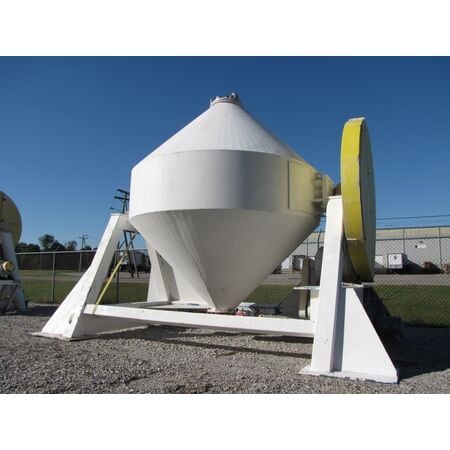

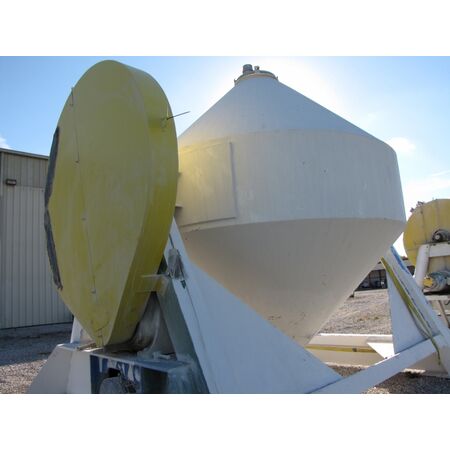

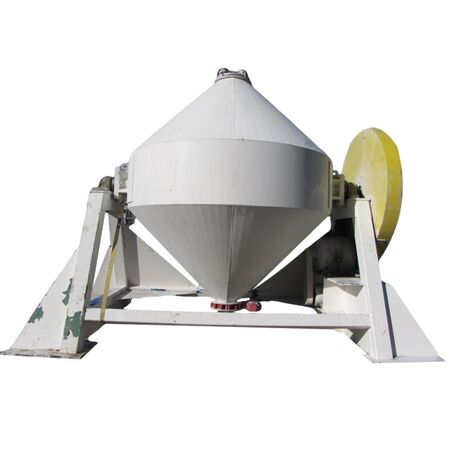

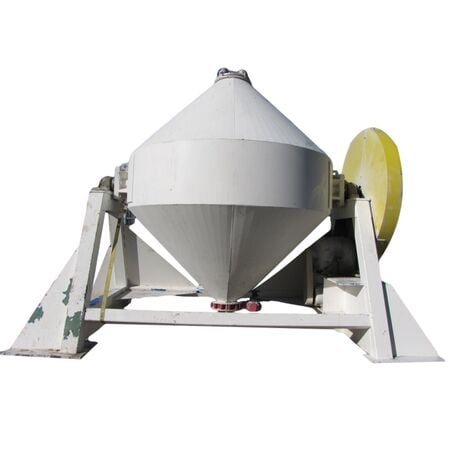

350 Cubic Foot Stainless Steel Conical Mixer, approximately 350 cubic feet working capacity. Chamber measures 9'6" diameter X 24" straight side with 18" diameter discharge and 12" diameter inlet. Unitized on carbon steel A-Frame stand with pillow block bearings. Manufactured by William Boulton. New in 1983, Serial ...more
Used 150 cu ft Patterson Kelley double cone blender, carbon steel cone sections, stainless steel middle section, rated 35#/cu ft maximum density, gear and pinion driven with 15 hp, 220/440 volt motor drive with electric brake, with additional positioning motor with brake, on partial stand, unit requires non drive end ...more
used- gemco slant cone blender, model 120 cubic foot. stainless steel. approximate 30" straight side x 80" diameter. 38" top cone, 54" bottom cone. 18-1/2" manway no cover, 12" center bottom outlet. driven by a 20 hp 3/60/230/460 volt, 1770 rpm motor through a gearbox 16:1. includes a 3 hp motor. mounted on carbon ...more
