Description

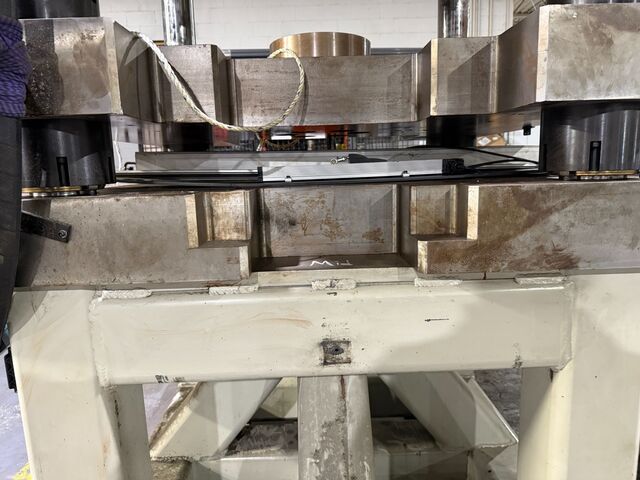

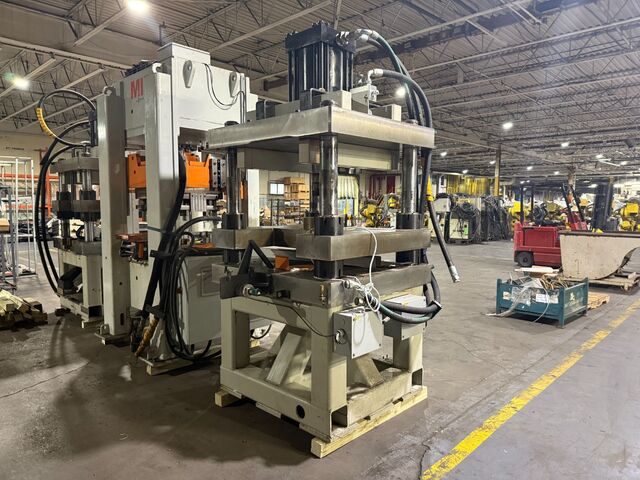

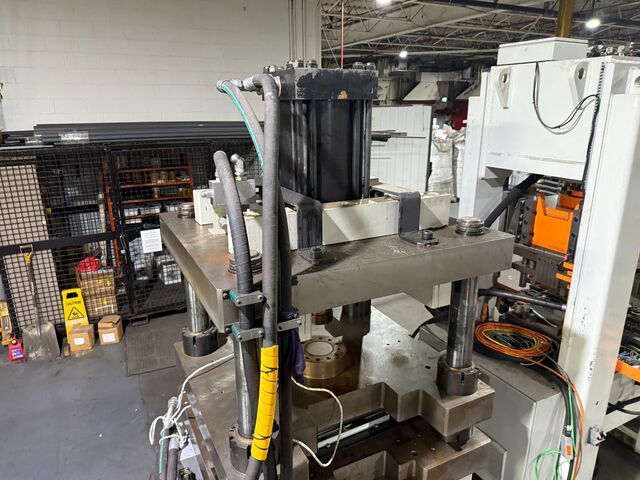

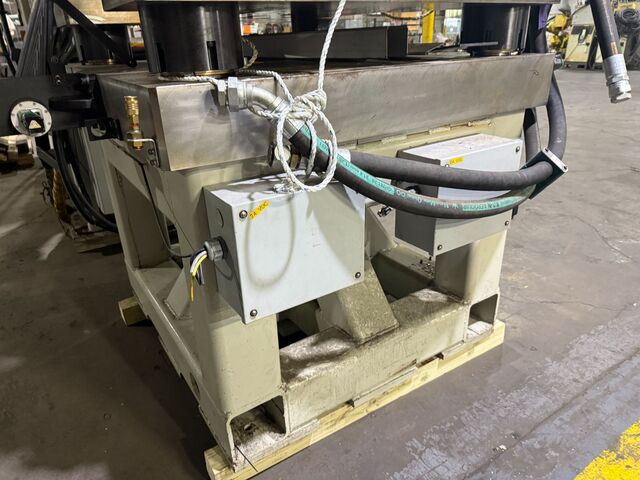

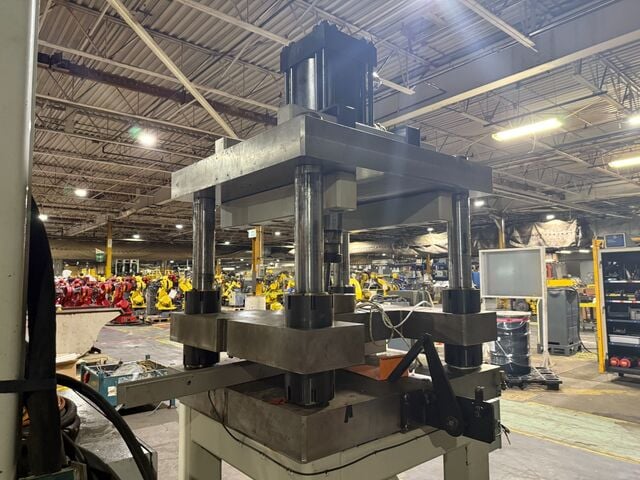

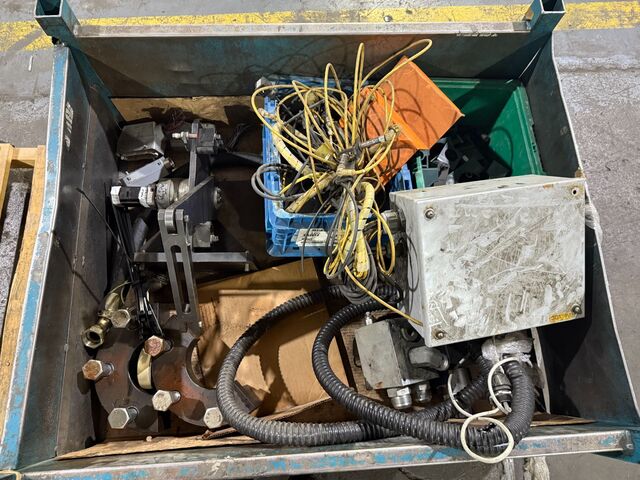

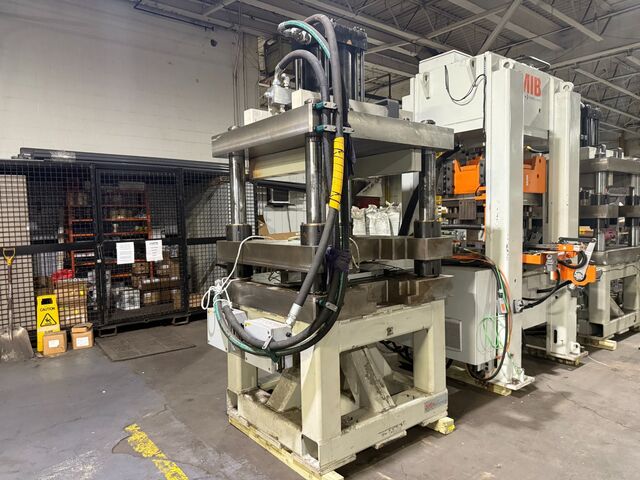

Description The AIM 35 Ton Hydraulic Press* is a used industrial pressing system sold AS-IS, offered with a bin of loose components presumed to complete the unit. While originally understood to be a 35-ton capacity system, this rating cannot be confirmed. Designed with a generous bed size and height clearance, this hydraulic press is ideal for custom tooling setups, forming, stamping, or other manufacturing applications. With a 35" width between cylinders, a 46.5" table length, and 23" vertical clearance under the top plate, this unit is suited for handling sizable workpieces or dies. Spec Sheet AIM Unknown SPECIFICATIONS: Dimensions... 60 x 60 x 120 Weight....... 13,000 lbs

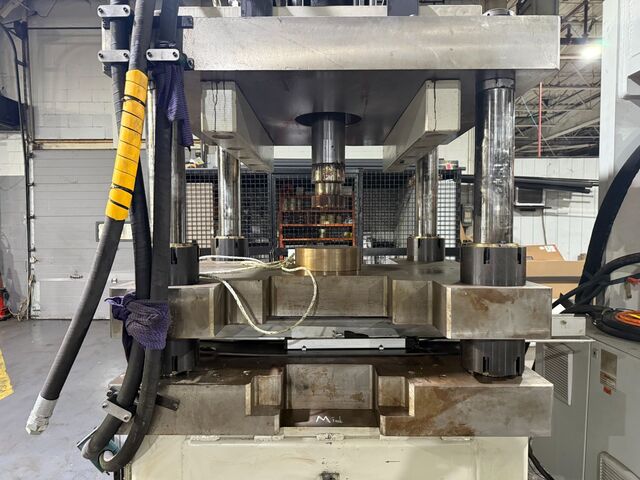

*System is presumed to be a 35 Ton system but can not be confirmed., Bed width is 35" between cylinders and the bed length across the full table is 46.5". The max height clearance under the top plate is 23" allowing for you to load tooling roughly 35" x 46" x 23.", Discover a quality used AIM press in good condition. ...more
Ahaus Tool & Engineering. 45.75" L to R between uprights x 26" F to B overall. 16" F to B clearance between the uprights x 56" L to R overall. There is an open slot in the bed: 48" x 5.5". Cylinder :10" bore; 7" rod; 8" max stroke; double-acting; rated to 3000 PSI. Approx 18" x 12" plate attached to cylinder rod ...more
MODE L#: N/A, SERIAL #: 3904, 35 TONS MAXIMUM CAPACITY, 14" STROKE, 47" LR x 35" FB RAM AND UPPER PLATEN, 36" LR x 24" FB DISTANCE BETWEEN POSTS, 4 POSTS @ 3-1/2" DIAMETER, 30" DAYLIGHT OPENING, 115" OVERALL HEIGHT, 70" DISTANCE FLOOR TO BOTTOM OF UPPER PLATEN, T-SLOTTED LOWER RAM AND UPPER PLATEN, UP ACTING RAM, DUAL ...more
