For Sale by Olympia Technical Services
Surplus Record Dealer Since 2018
Location: Whitby, ON Canada
Contact Scot Samek
Phone Number: 289...> Show Phone Number 289-980-2750
Let the seller know you found their listing on Surplus Record!
Description

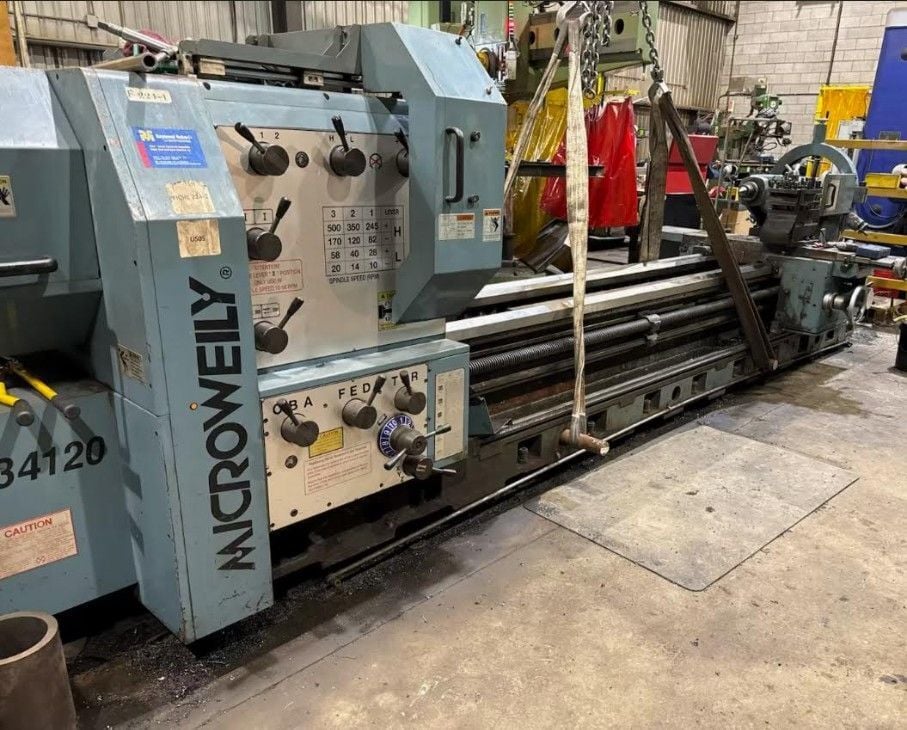

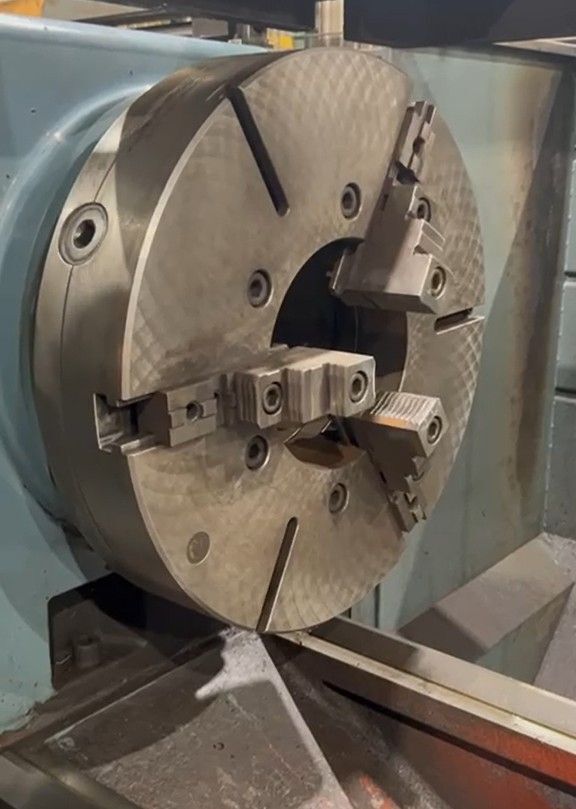

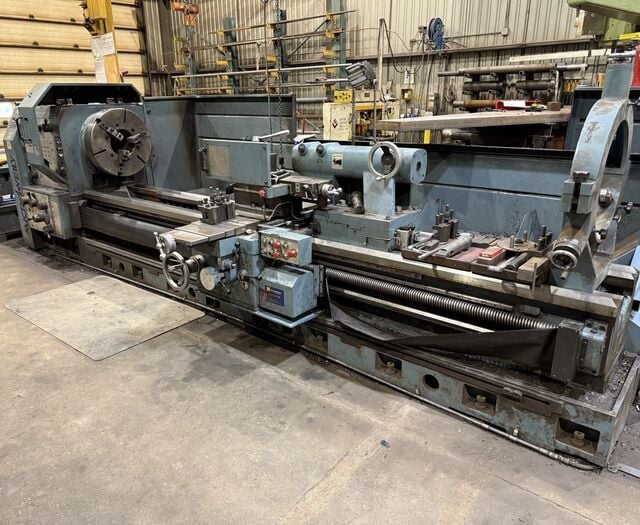

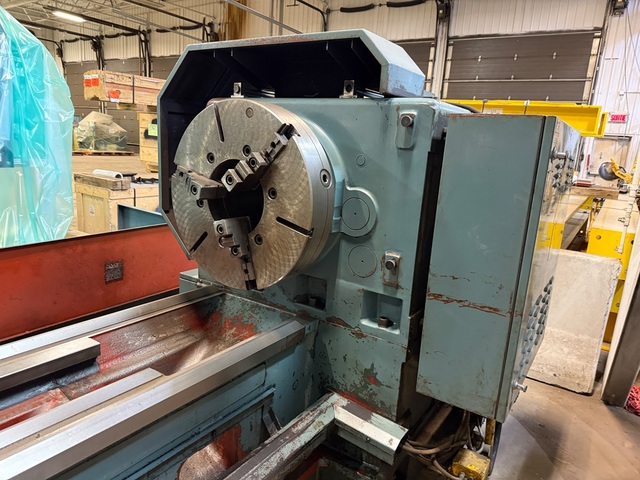

W/ 10" HOLLOW SPINDLE, 4 JAW REAR MOUNTED CHUCK AND ONE STEADY REST
TECHNICAL SPECIFICATIONS:
SWING OVER BED ....................... 34"
SWING OVER CROSS SLIDE ............... 25.10"
CENTER HEIGHT ........................ 17.71"
SPINDLE NOSE CAMLOCK ................. A1-15
HOLE THROUGH SPINDLE ................. 10"
DISTANCE BETWEEN CENTERS ............. 118.1"

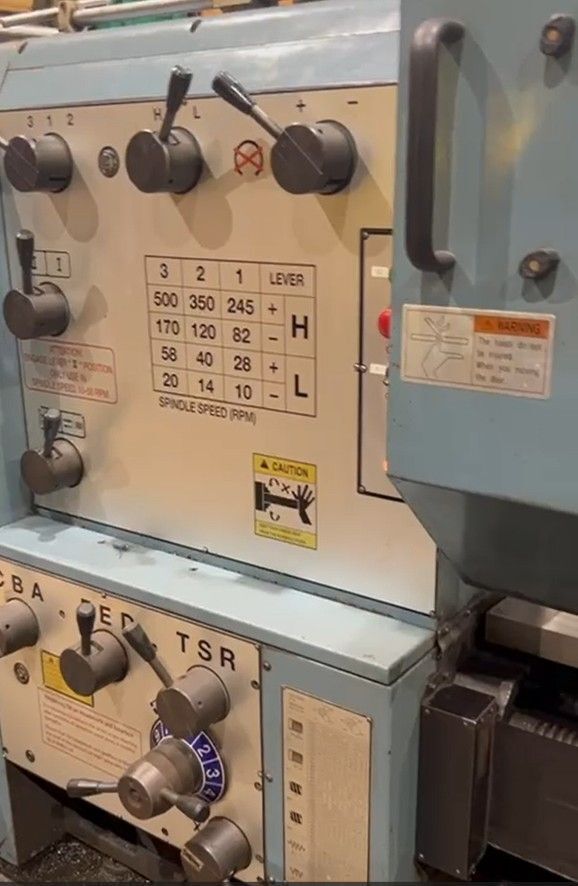

SPINDLE SPEED RANGE (12) ............. 10 - 500 RPM
LONGITUDINAL FEED RANGE (70) ......... 0.0043 - .249 IPR
CROSS SLIDE TRAVEL ................... 21.65"
COMPOUND TRAVEL ...................... 14.17"
INCH THREADING RANGE (55) ............ 0.25 - 30 TPI
METRIC THREADING RANGE (68) .......... 1 - 120 mm
DIAMETRAL PITCH THREAD (70)........... 2-120 D.P.
MODULE PITCH THREADS (45)............. 0.25-30 M.P.
LONGITUDINAL FEEDS ................... 0.05-6.38 mm/rev.
CROSS FEEDS .......................... 0.025-3.04mm/rev.
WIDTH OF BED ......................... 22"
TAILSTOCK SPINDLE DIAMETER ........... 4.90"
TAILSTOCK SPINDLE TAPER .............. #6 MT
TAILSTOCK SPINDLE TRAVEL ............. 9.84"
APPROXIMATE FLOOR SPACE............... 241"L X 87"W x 60"H
APPROXIMATE WEIGHT ................... 24,200 LBS
TECHNICAL SPECIFICATIONS:
SWING OVER BED ....................... 34"
SWING OVER CROSS SLIDE ............... 25.10"
CENTER HEIGHT ........................ 17.71"
SPINDLE NOSE CAMLOCK ................. A1-15
HOLE THROUGH SPINDLE ................. 10"
DISTANCE BETWEEN CENTERS ............. 118.1"
SPINDLE SPEED RANGE (12) ............. 10 - 500 RPM
LONGITUDINAL FEED RANGE (70) ......... 0.0043 - .249 IPR
CROSS SLIDE TRAVEL ................... 21.65"
COMPOUND TRAVEL ...................... 14.17"
INCH THREADING RANGE (55) ............ 0.25 - 30 TPI
METRIC THREADING RANGE (68) .......... 1 - 120 mm
DIAMETRAL PITCH THREAD (70)........... 2-120 D.P.
MODULE PITCH THREADS (45)............. 0.25-30 M.P.
LONGITUDINAL FEEDS ................... 0.05-6.38 mm/rev.
CROSS FEEDS .......................... 0.025-3.04mm/rev.
WIDTH OF BED ......................... 22"
TAILSTOCK SPINDLE DIAMETER ........... 4.90"
TAILSTOCK SPINDLE TAPER .............. #6 MT
TAILSTOCK SPINDLE TRAVEL ............. 9.84"
APPROXIMATE FLOOR SPACE............... 241"L X 87"W x 60"H
APPROXIMATE WEIGHT ................... 24,200 LBS
Get Your Price from Olympia Technical Services!
