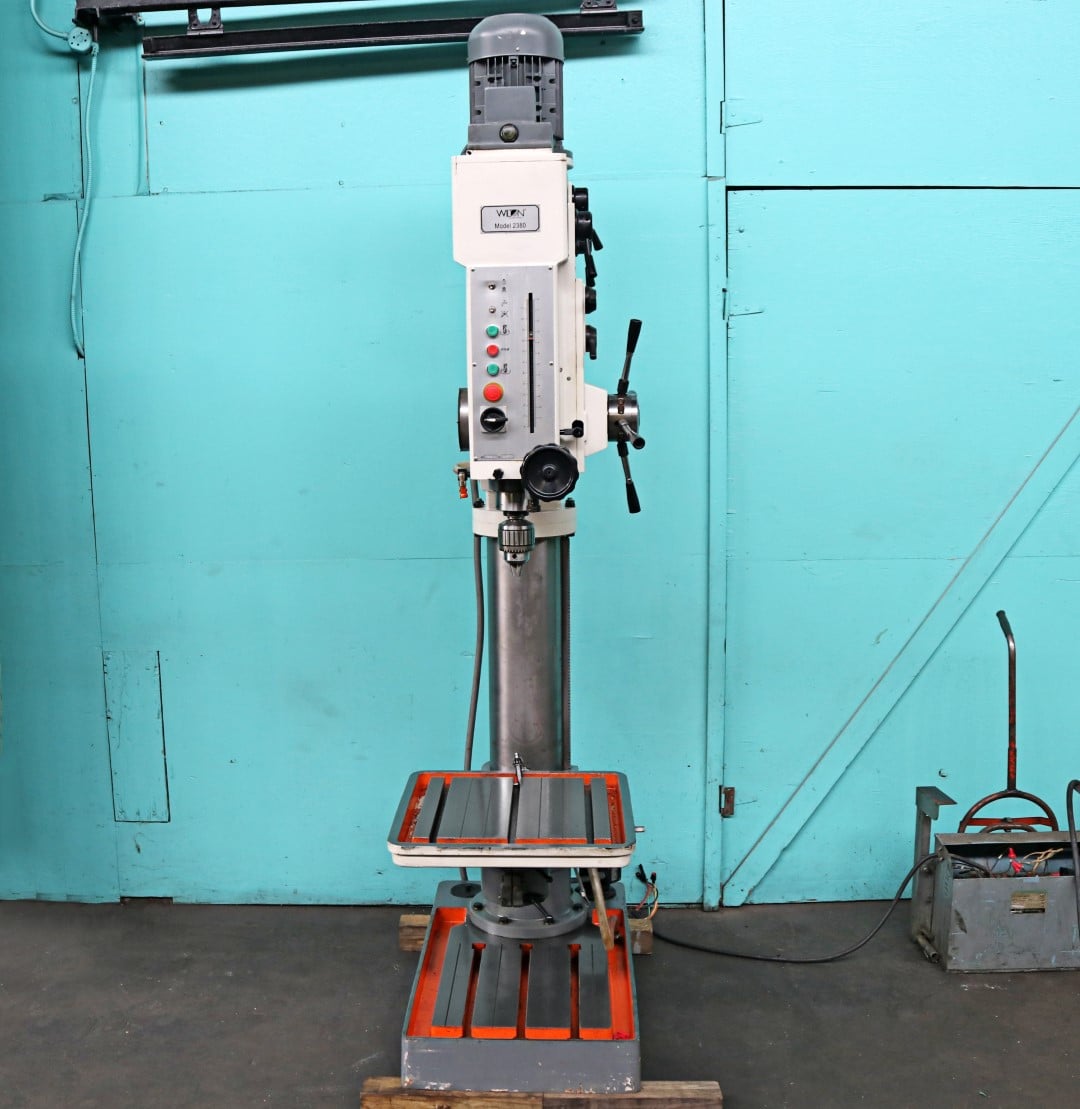

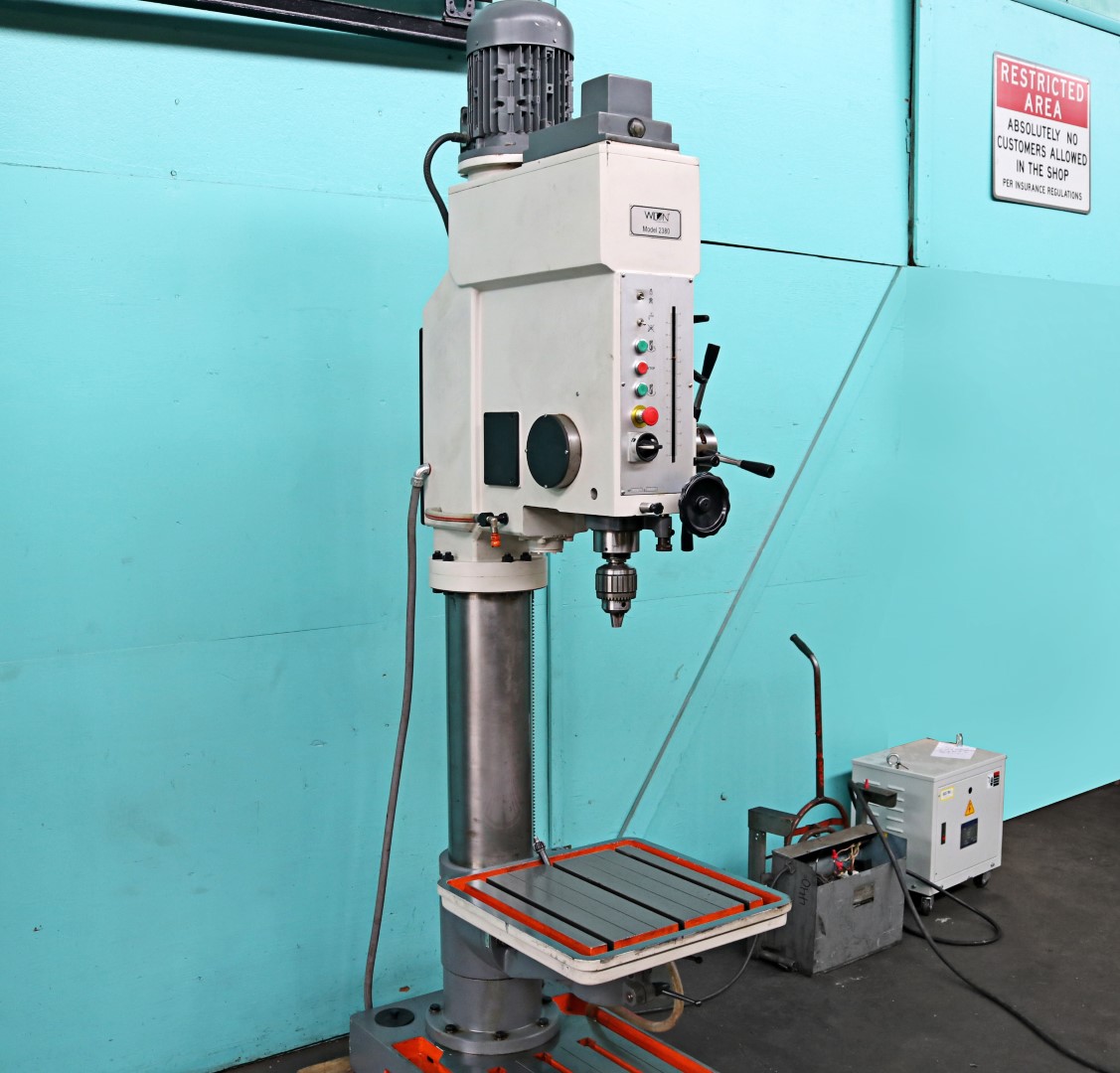

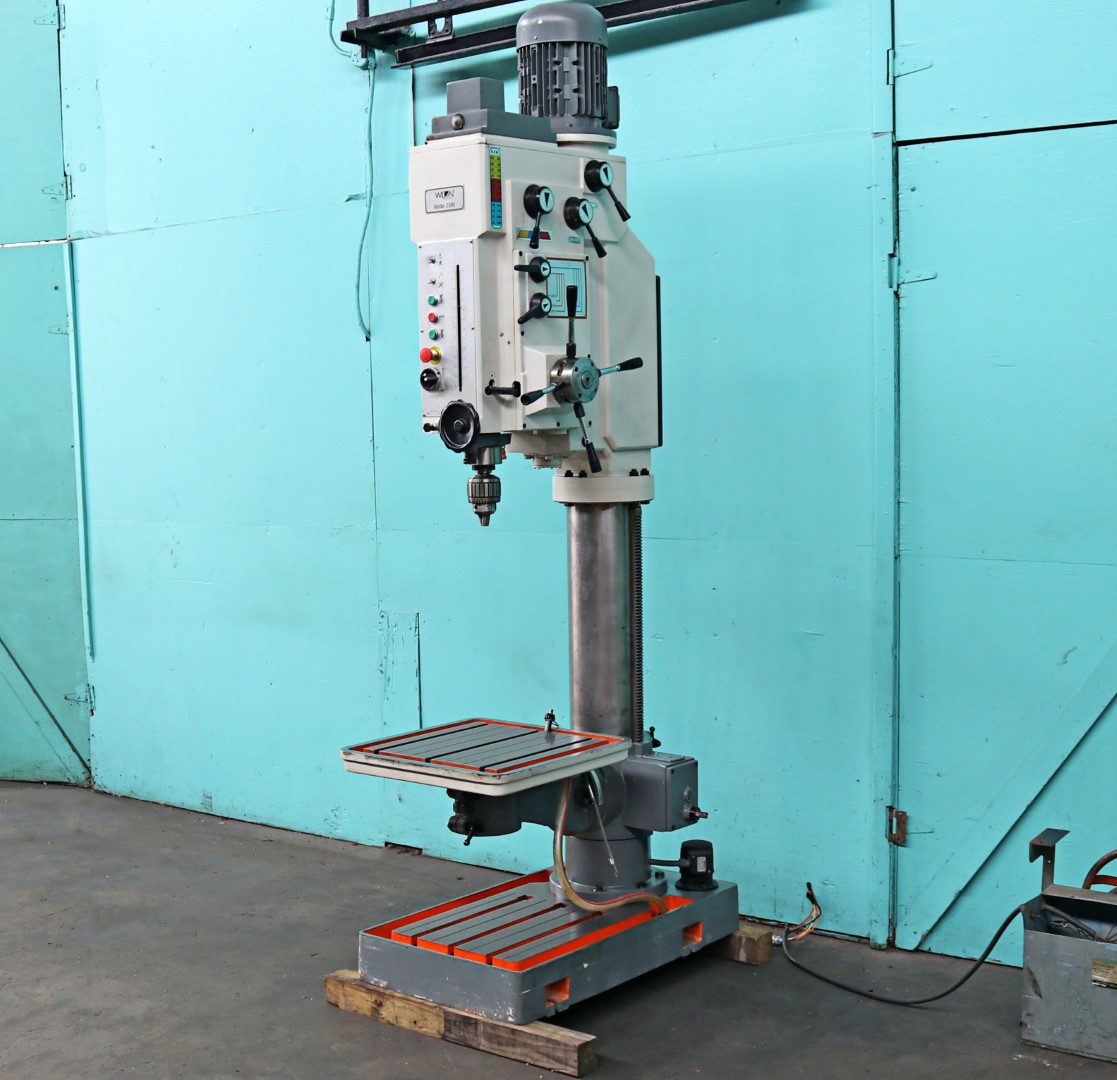

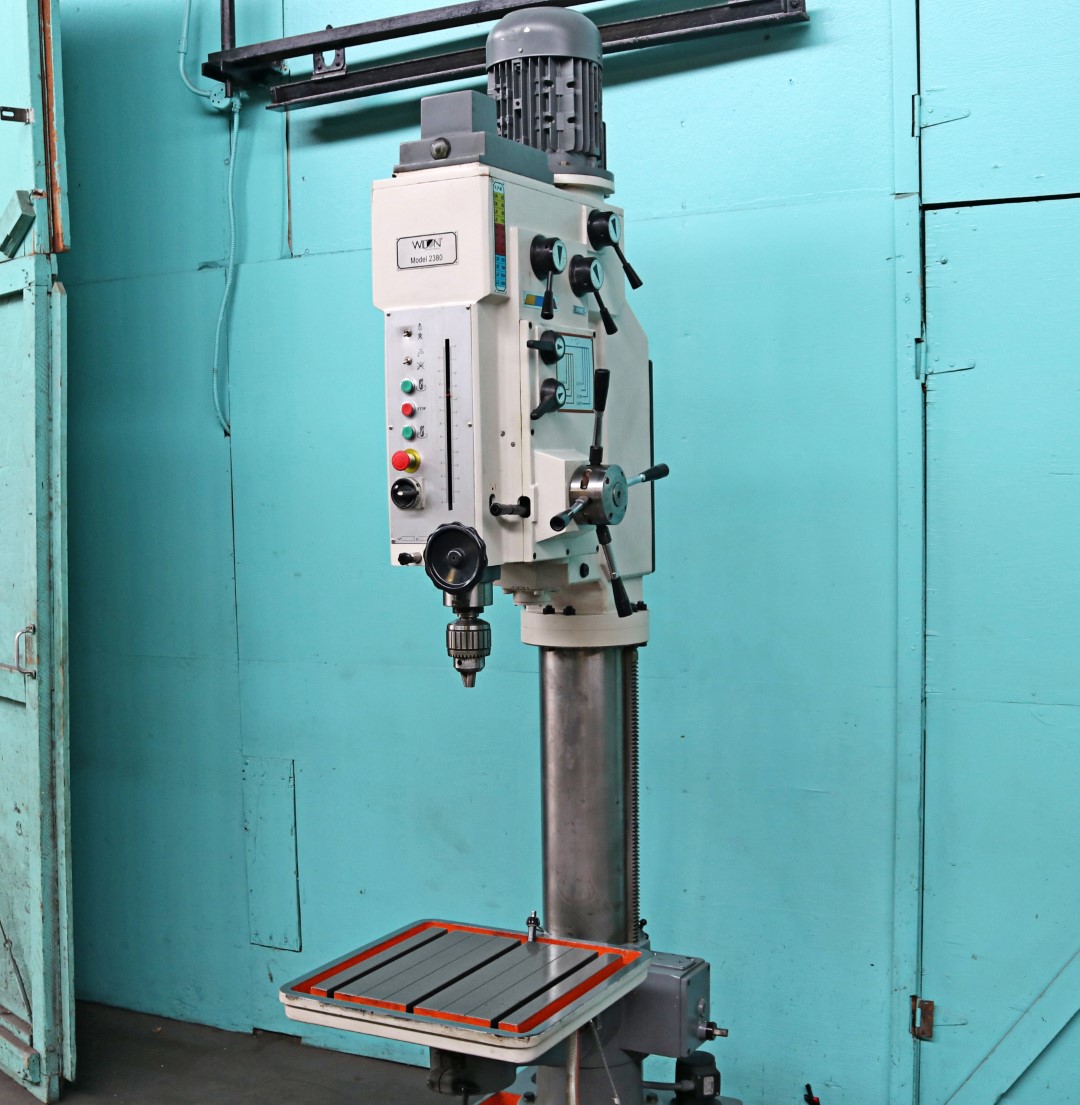

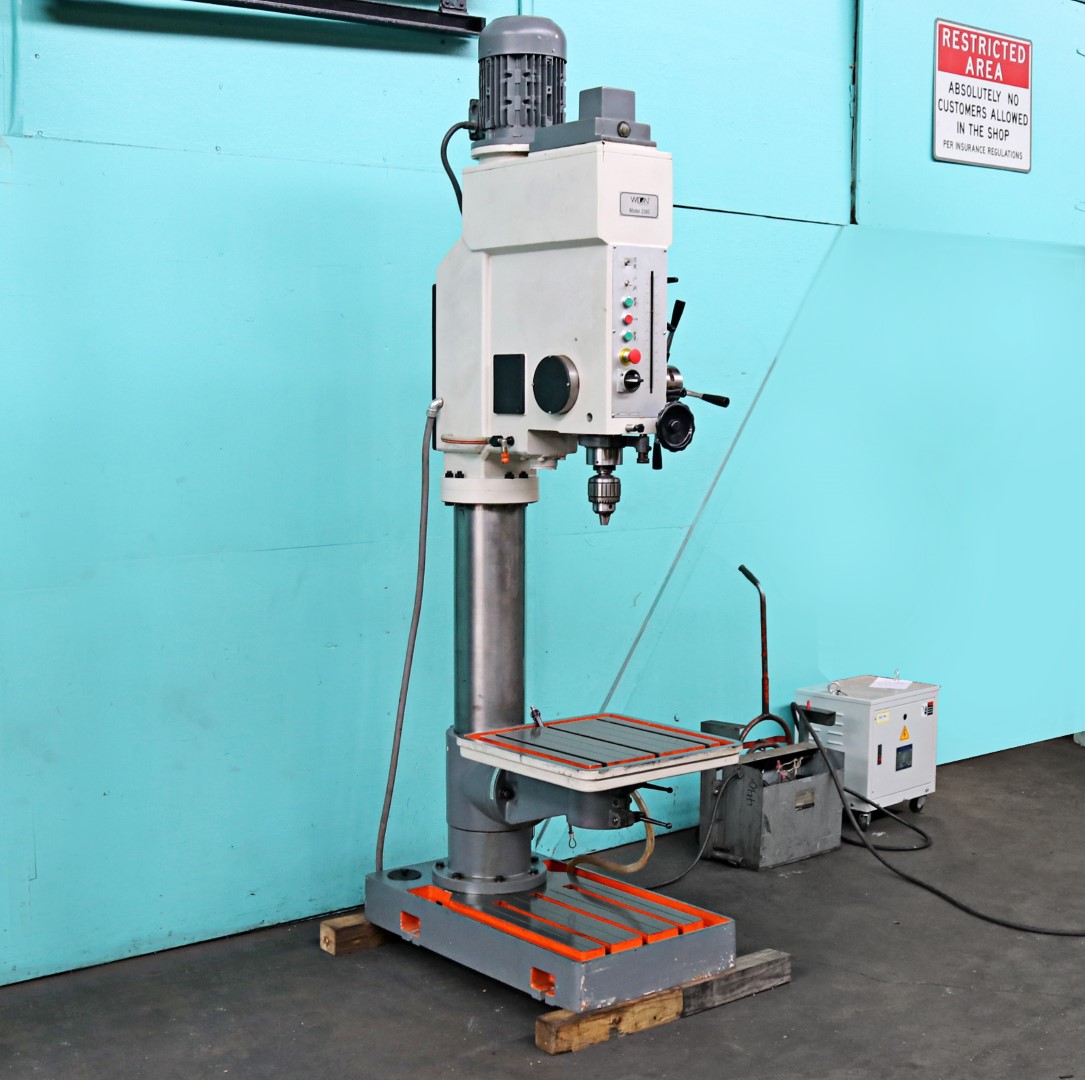

33" Wilton #2380, Round Column Drill Press, Direct Drive w/ Mechanical Clutch, 11" spindle travel, 23.5" x 23.5" table, 7.5 HP, ;V/S, automatic feeds

Description

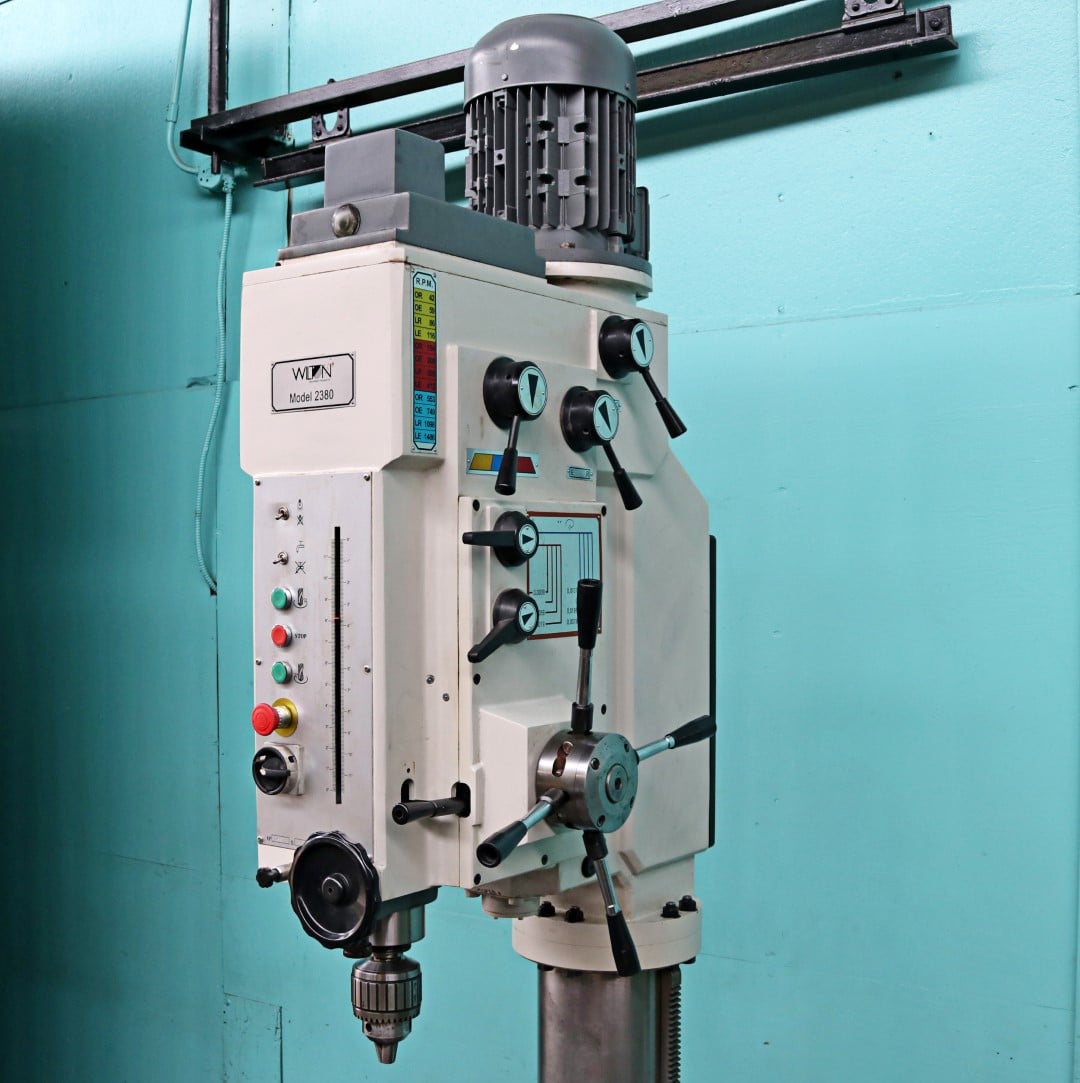

Wilton 33″ Direct Drive Round Column Drill Press with Mechanical Clutch

Inventory # 7938

Model: 2380

S/n: 1487

Specifications:

Capacity: 33″

Spindle to Column: 16 1/2″

Cast Iron Drilling Capacity: 2 7/8″

Steel Drilling Capacity: 2 3/4″

Cast Iron Tapping Capacity: 2 1/8″

Quill Diameter: 3.78″

Spindle Speed Ranges (12): 42, 58, 86, 116, 154, 249, 304, 412, 554, 748, 1,098, 1,458

Automatic Feeds: .002″, .004″, .006″, .008″, .014″, .020″

Spindle Travel: 11″

Spindle to Base: 51″

Spindle to Table: 2 3/4″ min. – 30 1/2″ max.

Table Size: 23 1/2″ x 23 1/2″

T-Slot Size: 5/8″

Max. Work Capacity: 400 lbs.

Spindle Taper: #5 MT

Motor: 7.5 hp / 440 v / 3 ph

Standard Features:

Two speed forward and reverse switch

Mechanical Powerfeed clutch engagement

Heavy duty quill and spindle

Tempered, ground spindle with internal taper mounted in precision bearings for maximum accuracy, minimizing deflection

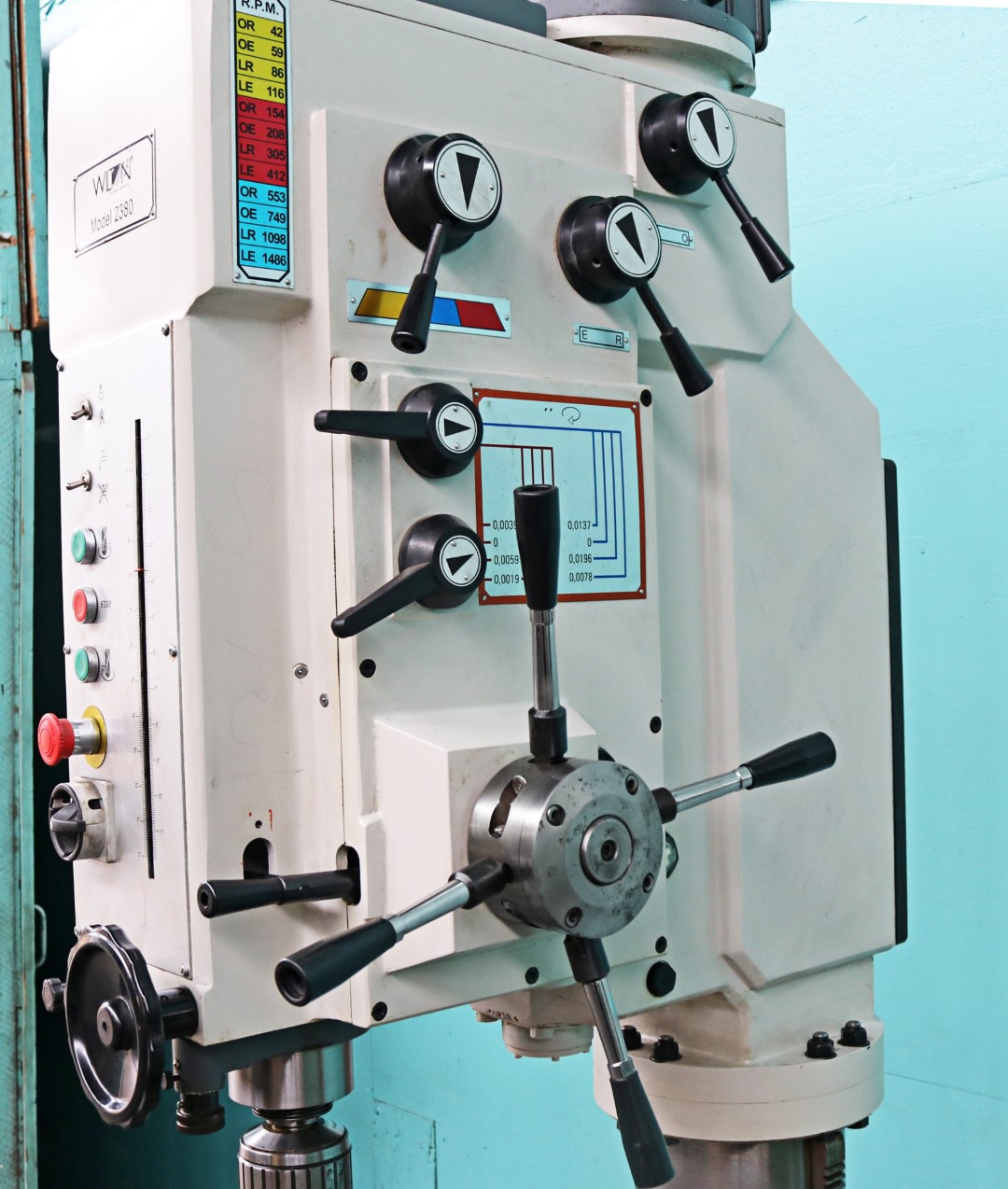

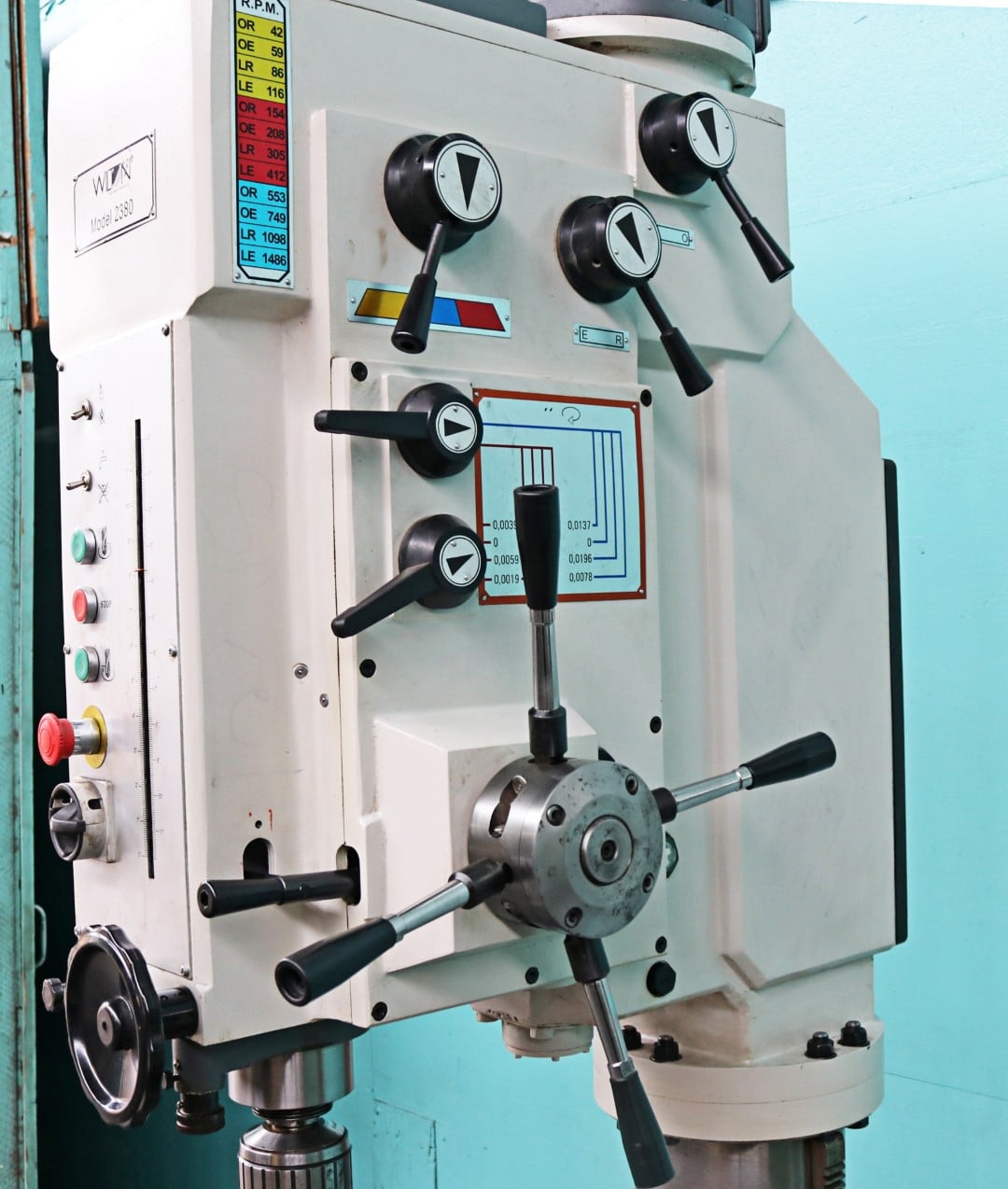

Speed and feed selectors are located on one side of the drill head for convenience and ease of operation

Oversized base is precision ground with T-slots for added versatility and stability

Spindle gear box is equipped with steel hardened, ground, shafts and gears

Spindle gear box is internally lubricated in a continuous oil bath for long term smooth operation

Tilting table, 45° left and right

Powerfeed can be disengaged manually

Mechanical Specifications:

Overall Dimensions: 50″ L x 33″ W x 115″ H

Overall Weight: approx. 3,065 lbs.

FOB Our Baltimore, MD Warehouse
