30000 lb. Cooper Weymouth Peterson, Servo Coil Feed Line, 72" coil width, 1999

30000 pounds

72 inches

.125 inches

Cooper, Weymouth, Peterson (CWP)

"Conventional" Servo Coil Feed Line

72 inch Wide x .125 inch Capacity

30,000 lbs. Maximum Coil Weight at Full Width
72" Maximum Coil O.D.
.125" x 72" Stock Thickness
.285" x 24" Wide Stock Thickness Capacity
19.5" - 24.5" Mandrel Expansion Range
Line Speed 75 FPM
SN/ C8223-1/3

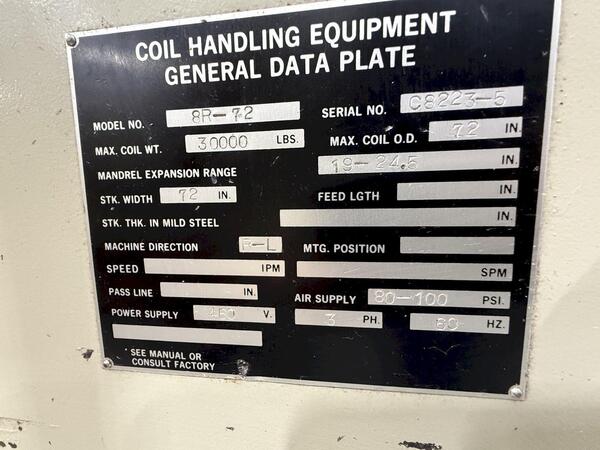

CWP Coil Reel Model No. 8R-72
Three leaf mandrel
Hydraulic mandrel expansion
Air brake (adjustable tensioning)
Jog forward and reverse
Traveling coil load car
Powered lift and travel

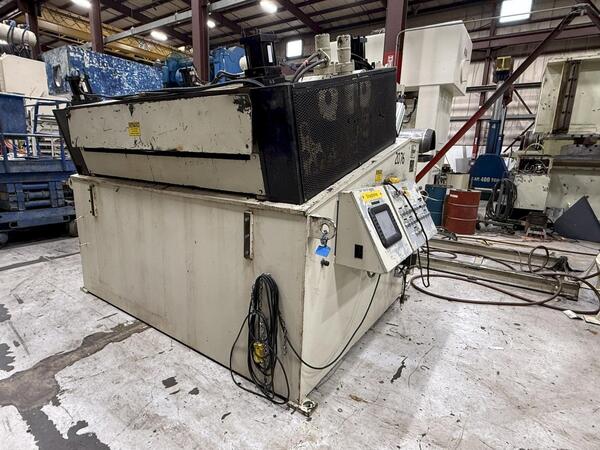

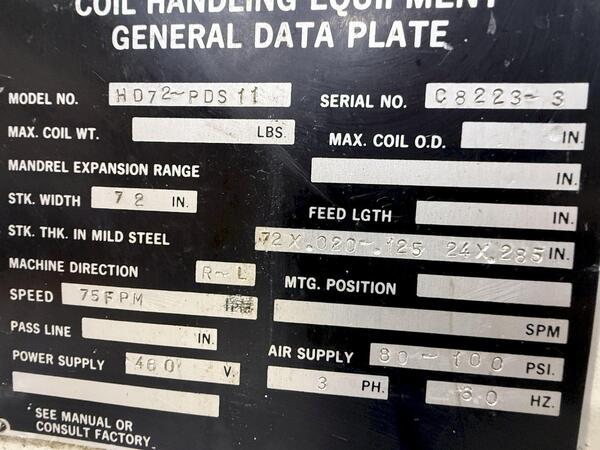

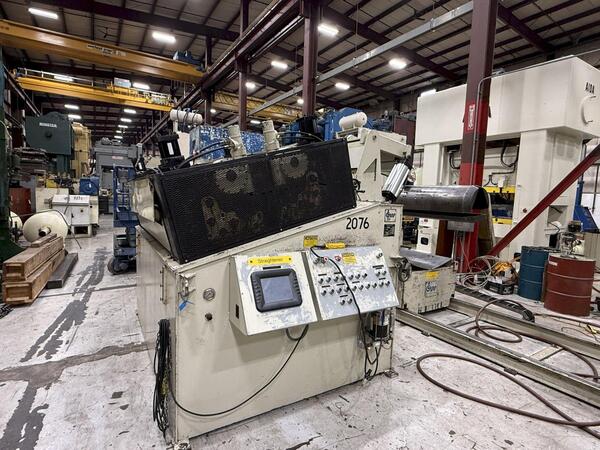

CWP Powered Coil Straightener Model No. HD72-63PDS11
Eleven straightening rolls x 3" diameter
Back ups on upper and lower straightening rolls
Motorized upper roll adjustments
Coil hold down arm with motorized end wheel
Stock peeler table
AC Variable speed drive and control system
Operator's controls
Loop control

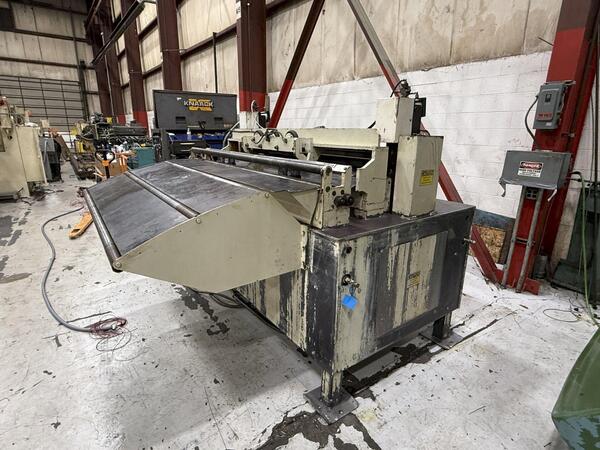

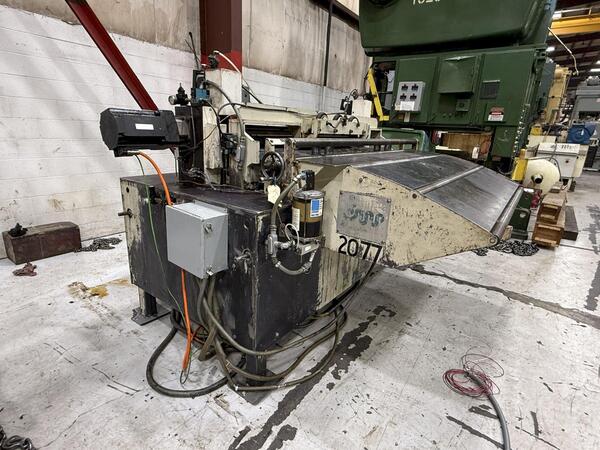

CWP Servo Roll Feed Model No. SMX72-H6-RET
Six inch diameter upper and lower feed rolls
Piloting upper feed roll
Entry cascade loop support rollers
Adjustable stock width edge guides
Heavy duty cabinet base
Adjustable pass line 50" +/- 6"
Automatic lubrication
AC Servo Controls SE Series

Maximize your stamping productivity with this heavy-duty CWP (Cooper Weymouth Peterson) Conventional Servo Coil Feed Line. Designed for high-volume operations, this 72" wide coil line features a 30,000 lbs. capacity and handles stock thicknesses up to .125" at full width and .285" at 24" widths.

The system includes a CWP 8R-72 Coil Reel with a traveling load car, a Model HD72-63PDS11 Straightener featuring 11 backed-up rolls for precision flatness, and a SMX72-H6-RET Servo Roll Feed with 6" diameter rolls and SE Series AC servo controls.

Built for durability and precision, this CWP feed line offers a 75 FPM line speed and automated lubrication. Contact S&G Press today to secure this high-capacity used coil processing equipment for your facility.
