Manufacturer: Delta
Year: 1999
kVA: 30000.0 - 40000.0 - 50000.0
Primary Voltage: 230000 - 132791
Secondary Voltage: 13800
Stock # JVT-3556
1 / 4
Click to zoom in
1 / 4
For Sale by Belyea Company Inc
Surplus Record Dealer Since 1926
Location: Easton, PA
Contact Shepard Belyea
Phone Number: 610...> Show Phone Number 610-515-8775
Let the seller know you found their listing on Surplus Record!
Description
JVT-3556

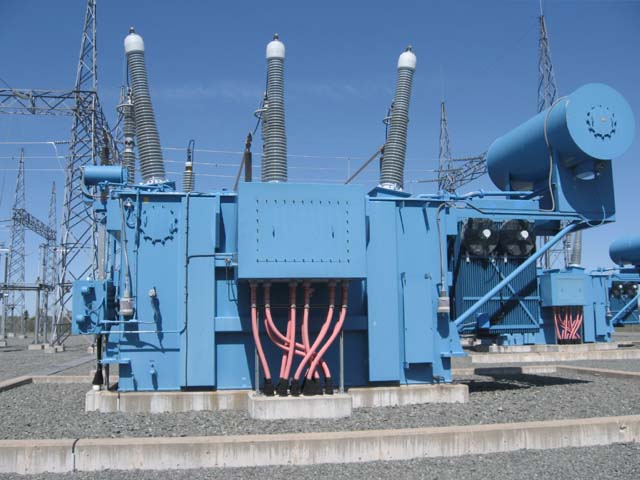

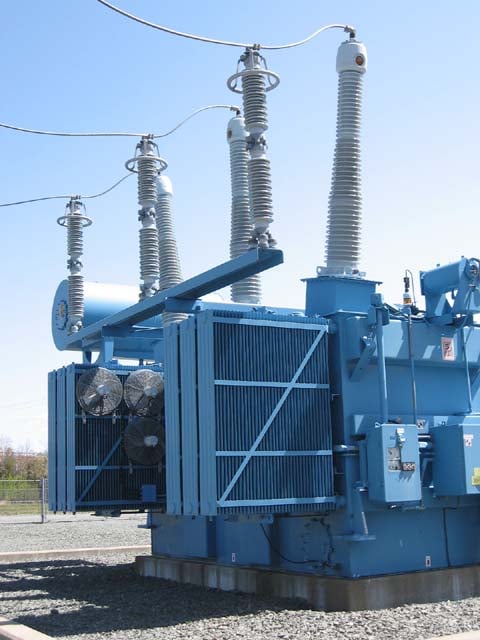

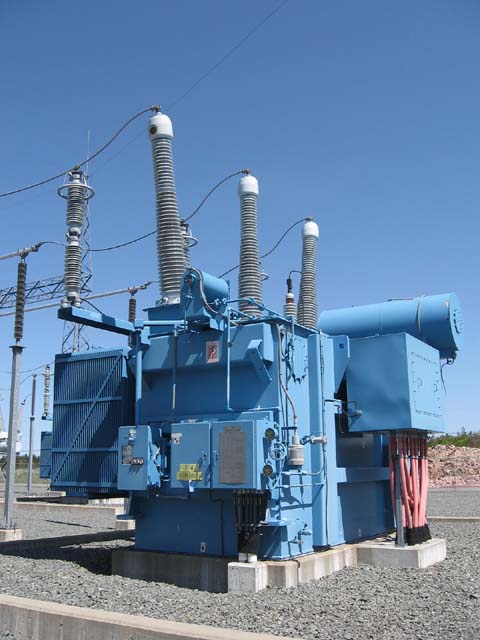

ONE (1) 30/40/50 MVA FERRANTI-PACKARD TRANSFORMER
3 PHASE, 60 HERTZ, CLASS ONAN/ONAF/ONAF, 65 DEG. C
RISE, 9.74% IMPEDANCE, COPPER WINDINGS, TOP MOUNTED HV BUSHINGS,
SIDE MOUNTED LV BUSHINGS IN ATC, LIGHTNING ARRESTERS, 3 X HV MRCT'S
(1200:5, C800), 1 X LV MRCT (600:5, C200), NEUTRAL COV., MFG. 1999,

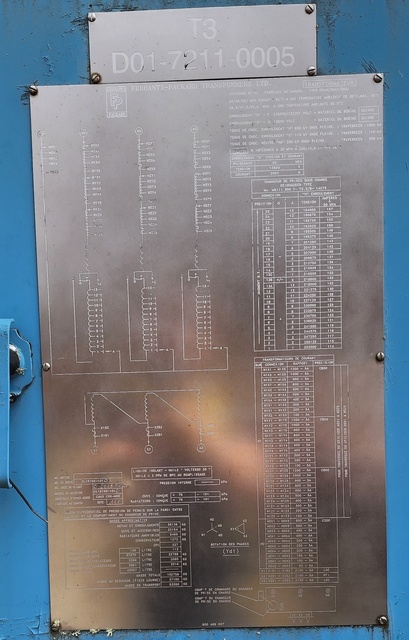

S/N CL19169-10101
HIGH VOLTAGE: 230000Y/132791 BIL: 950 KV
LOW VOLTAGE: 13800 DELTA BIL: 110 KV
HV LTC: 184000 TO 253000 IN 25 STEPS
TOTAL WEIGHT: 102,758 KG. 226,543 LBS.
CORE & COILS: 36,136 KG. 79,666 LBS.
TANK & FIT.: 22,154 KG. 48,841 LBS.
REMOVABLE RADS: 5,466 KG. 12,050 LBS.
CONSERVATOR: 1,273 KG. 2,807 LBS.
CPC: 227 KG. 501 LBS.
CPC LIQUID: 113 KG. (130 L) 249 LBS.
TRANSFORMER LIQUID: 32,788 KG. (37,670 L) 72,285 LBS.
RADS. LIQUID: 2,085 KG. (2,396 L) 4,597 LBS.
CONSERVATOR LIQUID: 2,516 KG. (2,891 L) 5,547 LBS.
TOTAL LIQUID: 43,087 L 10,669 GALS.
DIMENSIONS: 7140 MM H X 5570 MM W X 10140 MM L
SHIPPING: 4084 MM H X 3578 MM W X 10058 MM L
DIMENSIONS: 281 7/64"H X 219 19/64"W X 399 7/32"L
SHIPPING: 160 25/32"H X 140 55/65"W X 395 63/64"L
ONE (1) 30/40/50 MVA FERRANTI-PACKARD TRANSFORMER
3 PHASE, 60 HERTZ, CLASS ONAN/ONAF/ONAF, 65 DEG. C
RISE, 9.74% IMPEDANCE, COPPER WINDINGS, TOP MOUNTED HV BUSHINGS,
SIDE MOUNTED LV BUSHINGS IN ATC, LIGHTNING ARRESTERS, 3 X HV MRCT'S
(1200:5, C800), 1 X LV MRCT (600:5, C200), NEUTRAL COV., MFG. 1999,
S/N CL19169-10101
HIGH VOLTAGE: 230000Y/132791 BIL: 950 KV
LOW VOLTAGE: 13800 DELTA BIL: 110 KV
HV LTC: 184000 TO 253000 IN 25 STEPS
TOTAL WEIGHT: 102,758 KG. 226,543 LBS.
CORE & COILS: 36,136 KG. 79,666 LBS.
TANK & FIT.: 22,154 KG. 48,841 LBS.
REMOVABLE RADS: 5,466 KG. 12,050 LBS.
CONSERVATOR: 1,273 KG. 2,807 LBS.
CPC: 227 KG. 501 LBS.
CPC LIQUID: 113 KG. (130 L) 249 LBS.
TRANSFORMER LIQUID: 32,788 KG. (37,670 L) 72,285 LBS.
RADS. LIQUID: 2,085 KG. (2,396 L) 4,597 LBS.
CONSERVATOR LIQUID: 2,516 KG. (2,891 L) 5,547 LBS.
TOTAL LIQUID: 43,087 L 10,669 GALS.
DIMENSIONS: 7140 MM H X 5570 MM W X 10140 MM L
SHIPPING: 4084 MM H X 3578 MM W X 10058 MM L
DIMENSIONS: 281 7/64"H X 219 19/64"W X 399 7/32"L
SHIPPING: 160 25/32"H X 140 55/65"W X 395 63/64"L
