Description

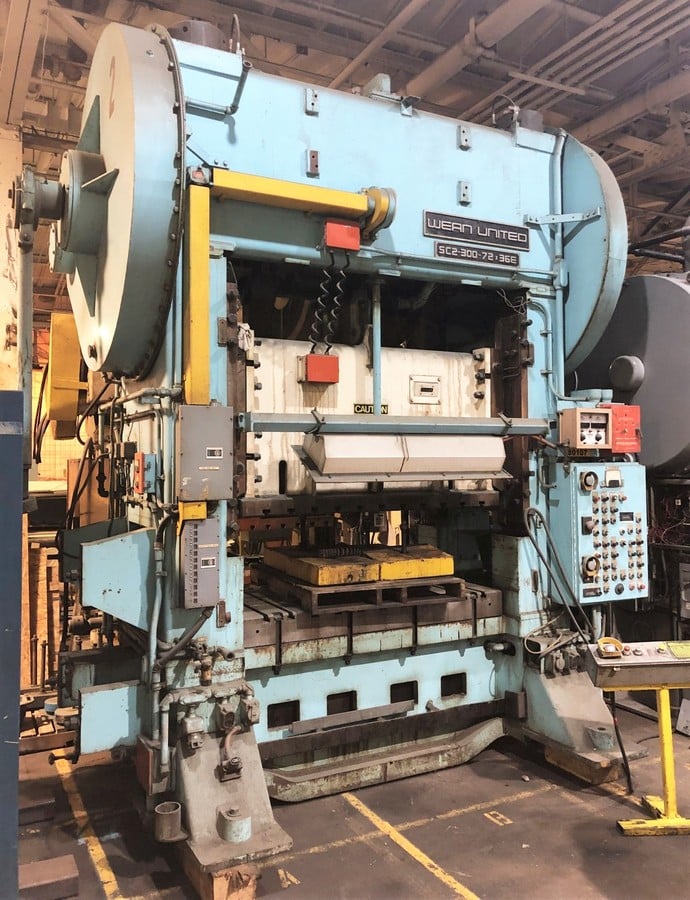

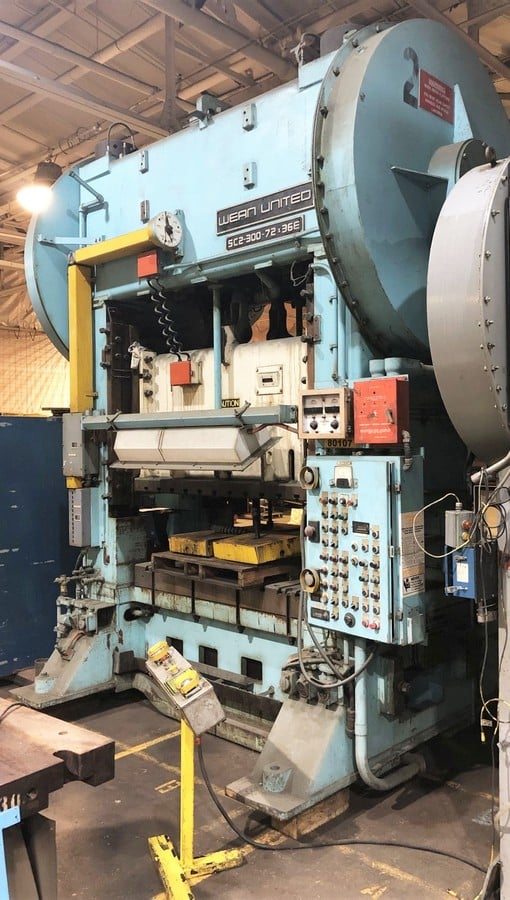

CAPACITY 300 TON AT 1/4" STROKE 6" MAX. SHUT HEIGHT TO BED APPROX. 36" SDAU BED AREA 72" RL X 36" FB (36" FLOOR TO BED) SPEED 30-60 SPM (VARIABLE) RAM AREA(W/8 PT. GIBBING) 72" RL X 36" FB T-SLOTTED RAM ADJUSTMENT 6" MOTORIZED ADJUSTMENT BOLSTER SIZE 6-3/4" X 72" RL X 36" FB T-SLOTTED WINDOW SIZE 25" WIDE DISTANCE BET. UPRIGHTS/GIB 82" RL-UPRIGHTS/76" RL-GIBS CLUTCH AIR CLUTCH AND BRAKE ELECTRIC MOTOR 220/440 VOLT EATON EDDY CURRENT VARI-DRIVE PRESS CONTROLS PEDESTAL CONTROLS APROX. DIMENSIONS 13'10" X 9'6" (RL X FB) X 16' HIGH APPROX. WEIGHT 78,540 LBS.
FLOOR STANDING BASE TWIN DRIVE(IN OIL)-SINGLE BACK GEARED RECIRCULATING LUBRICATION SYSTEM HYD.TIE RODS-STEEL FRAME CONSTRUCTION LINK BRAKE MONITOR
__
Inquire Further with Alma Machinery Co-Ann Arbor MI!
6" Stroke, 6" Ram Adjustment, 32" Shut Height, 0-120 Spm, 60" x 36" Ram, 60 x 36" Bed, Air Clutch, Air Brake, Air Counterbalances, 23" Windows, Floor Standing, Palm Buttons, T - Slotted Ram And Bolster, 6" Extra Bolster Plate, 129" LR x 98" FB x 209" Tall, Estimated Weight 90,000 LBS.
CAPACITY:300 TON STROKE6" SHUT HEIGHT TO BED26" (SDAU) BED AREA120" X 30" (RL X FB) SPEED25 - 50 SPM (VARIABLE) SLIDE ADJUSTMENT6" motorized SLIDE AREA120" X 30" (RL X FB) (T-SLOTTED) BOLSTER PLATE6" H X 120" RL X 68" FB (T-SLOTTED) DISTANCE BETWEEN UPRIGHTS129.5" DISTANCE FLOOR TO BED30.25" WINDOW SIZE30" W X 15" H ...more
