Description

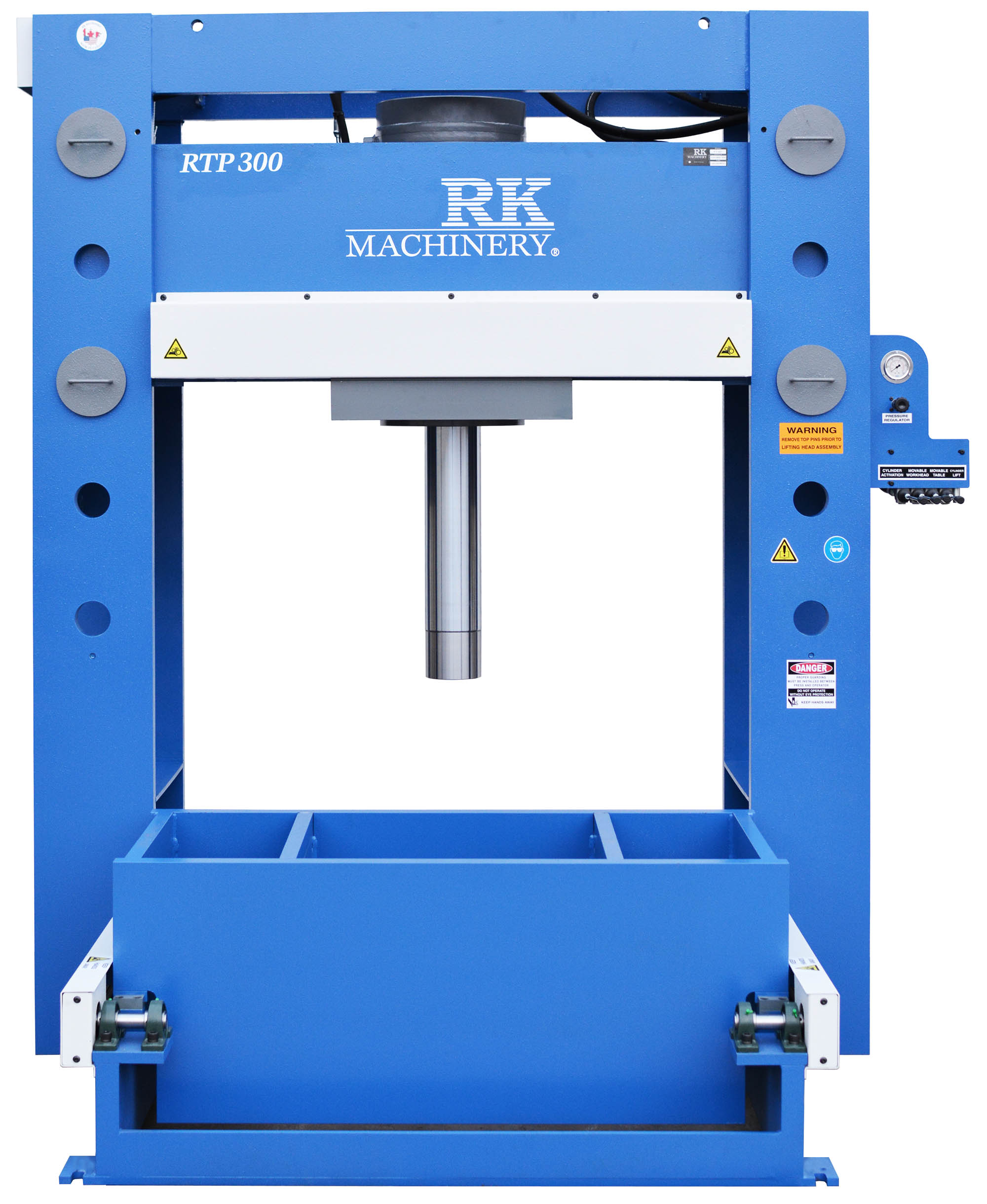

300 TON PRESSMASTER ROLL-IN TABLE
FULL 4 AXIS POWERED STRAIGHTENING PRESS
MODEL RTP-300… NEW…
RATED CAPACITY ........................″00 TONS
WIDTH BETWEEN UPRIGHTS ................ 60"
DEPTH BETWEEN POSTS ................... 24-1/4"
MAXIMUM RAM TO TABLE ..................″1.6"
STROKE ................................ 20"
LEFT TO RIGHT CYLINDER TRAVEL ......... 27-3/4"
TABLE TRAVEL ..........................″3"
FLOOR TO TABLE TOP .................... 26-3/4"
CYLINDER BORE SIZE .................... 14"
PRESSING SPEED ........................ 4 INCH/MIN
ADVANCE SPEED ......................... 18 INCH/MIN
RETURN SPEED .......................... 22 INCH/MIN
WEIGHT ................................ 16,000 LBS.
SHIPPING DIMENSIONS
LENGTH ............................... 84"
WIDTH ................................ 98"
HEIGHT ............................... 114"
MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE
(OTHER VOLTAGES AVAILABLE)
STANDARD FEATURES:
- POWERED MOVABLE TABLE FOR EASE OF LOADING… POSITIONING WORKPIECE UNDER CYLINDER
- POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER
- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY
- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK
- PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
- FULL ONE YEAR WARRANTY ON ALL PARTS
AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $2,200
- STOP / START… EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $… 750
- FOOT PEDAL ................................. $4,500
- PRESS PLATE ................................ $5,700
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,500
- HANDHELD REMOTE CONTROL .................... $9,500
