Description

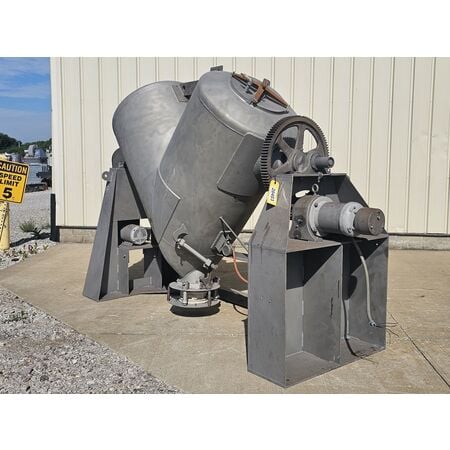

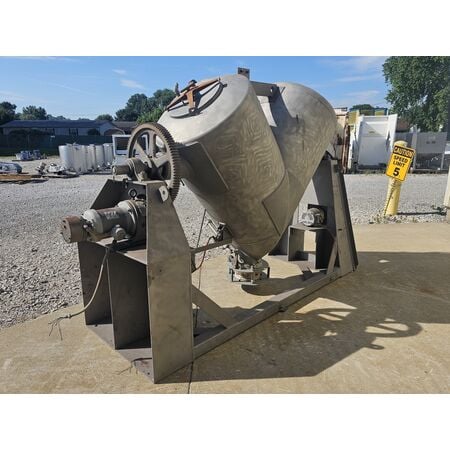

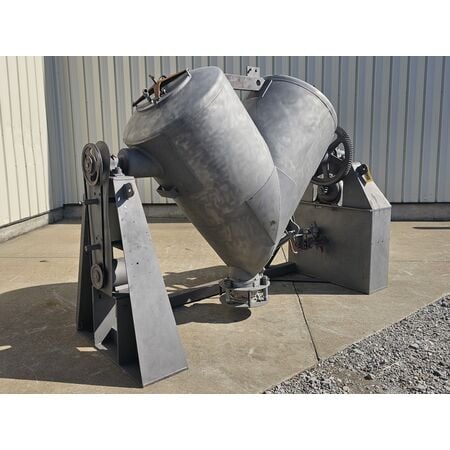

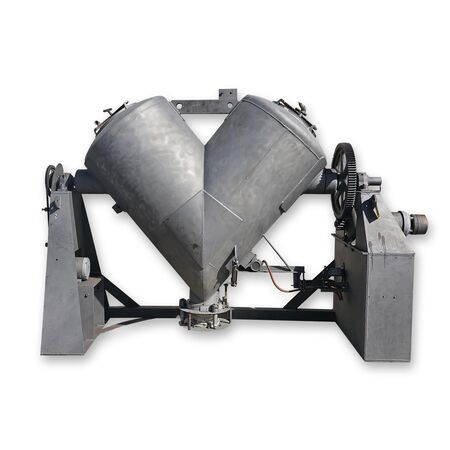

Used Stainless Steel V-Cone Mixer Blender Twin Shell w/ Intensifier - 30 Cu/Ft Stainless steel vessel with a diameter of 36". Required minimum clearance for swing radius: 107" from base elevation. Twin top hatches, 18" diameter. Discharges through a 10" pneumatic butterfly valve. Max. Working Speed: 16RPM Unknown HP gearmotor drive with brake (wired for 480 Volts). Required area for base mounting: 42" X 117" Unit will require guards for the gears and belt drives. Defective agitator motor noted. Overall dimensions: 128x45x91" H Weight = 2,660 LBS.
30 cu ft 316 S/S Vacuum rated, Jacketed 30 cu ft "V" blender with maximum density of 100 pounds per cubic foot. Full vacuum @ 15psi internal rating. Jacket rated to 30 psi and maximum temperature of 250 degree F. (Test pressure: Internal full vacuum to 23 psi, jacket 75 psi). Two 18" diameter charge ...more
Used 30 cu. ft. Gemco twin shell blender, 304 stainless steel construction, high speed intensifier bar driven by 20 HP 230/460 volt motor, 3 HP 230/460 volt main drive, 18" feed ports with covers, 10" diameter discharge, with stands.
Patterson Kelly, 30 ft³, 304 stainless steel, twin shell mixer. (2) 18" ID product ports with bolt down covers, (2) 57" long side V-Walls, (2) 22" long inner V-Walls and liquid solids bar powered by a 10 hp drive. 10"ID butterly valve discharge with 11" ground clearance. Shell powered by ...more
