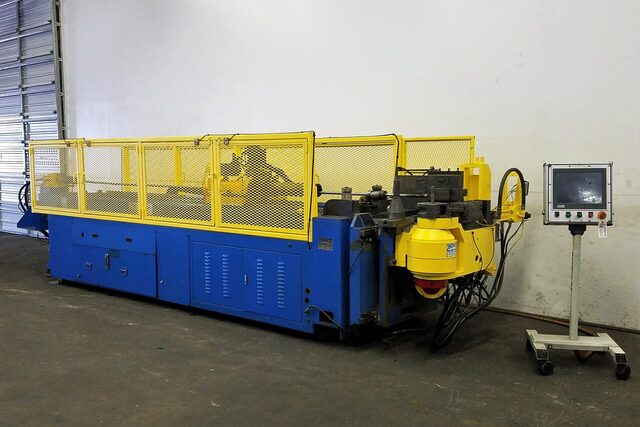

3" Horn #80TMRE-RBE, CNC tube bender, mandrel extractor, carriage boost, BendPro G2, stack tooling & cutoff option, 2011

Horn Machine Tools CNC 5-Axis heavy duty hybrid boost type tube bending machine

• Model: CNC 80 TMRE-RBE
• New in 2011!
• Maximum Bending Capacity (per mfg. literature):
  • Round tube (mild steel): 3.150″ OD x .098″ WT
  • Round tube (non-ferrous): 3.150″ OD x .177″ WT
  • Round tube (stainless): 3.150″ OD x .063″ WT
  • Square tube (mild steel): 2.362″ OD x 0.98″ WT
  • Solid bar (mild steel): 1.378″
• Maximum tube length over mandrel approx: 144″ end chucked, 194″ through carriage
• Maximum degree of bend: 180° + Springback
• Bending Rotation: Right-Hand (Clockwise)
• 3-Stack bending capability with cutoff option
• Head shift for Z & X movement to allow for Multi-stack tooling shift

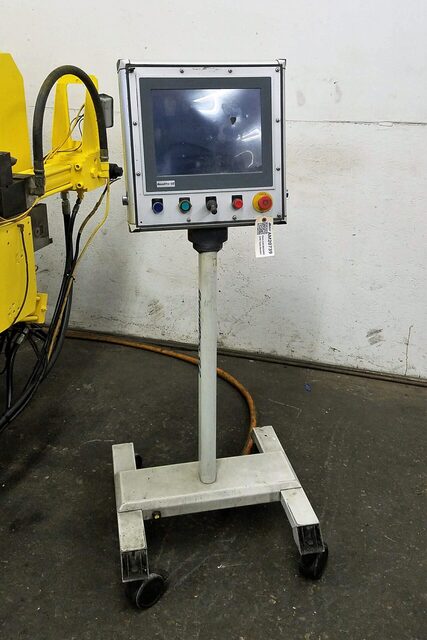

• BendPro G2 CNC Operator Control – Touchscreen – Windows Based
• Electric servo driven collet (B-axis)
• Electric servo driven bend-arm (C-axis)

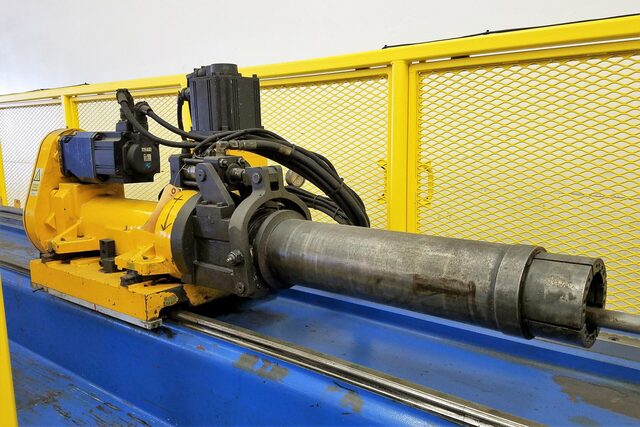

• Electric servo driven carriage (Y-axis)
• Boost carriage for tight radius bending
• Roll capability for large radius bending
• Pressure die assist
• Drop away clamp die
• Mandrel extractor
• Automatic mandrel lubrication
• Automatic tube support
• Overhead tie bar
