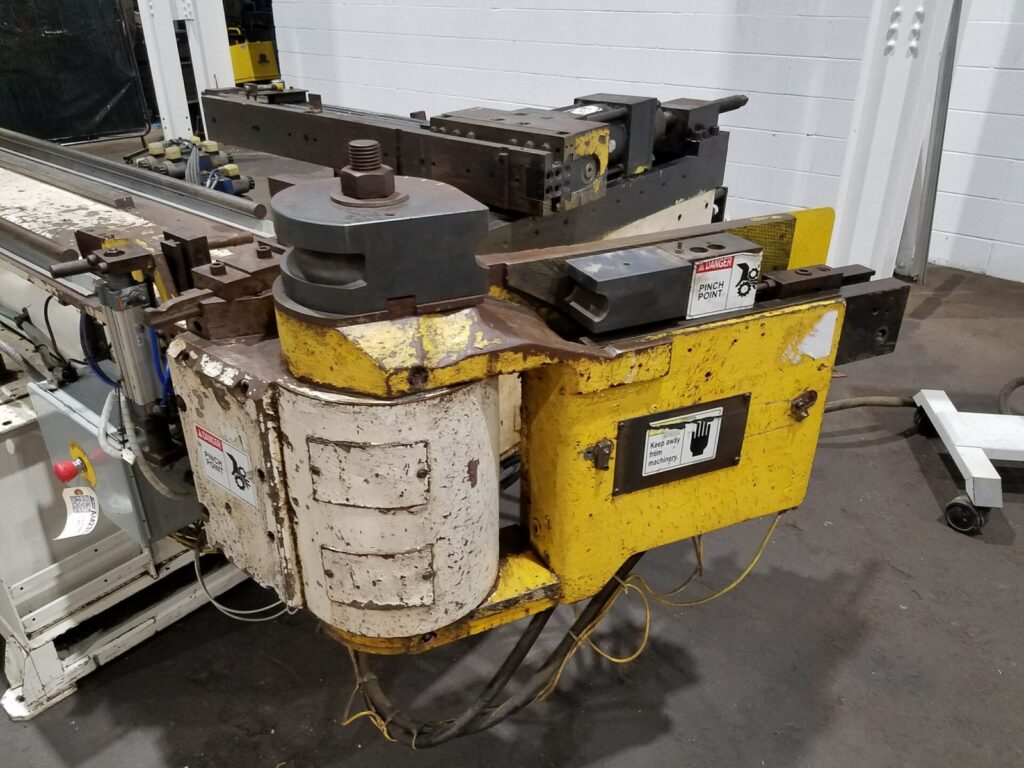

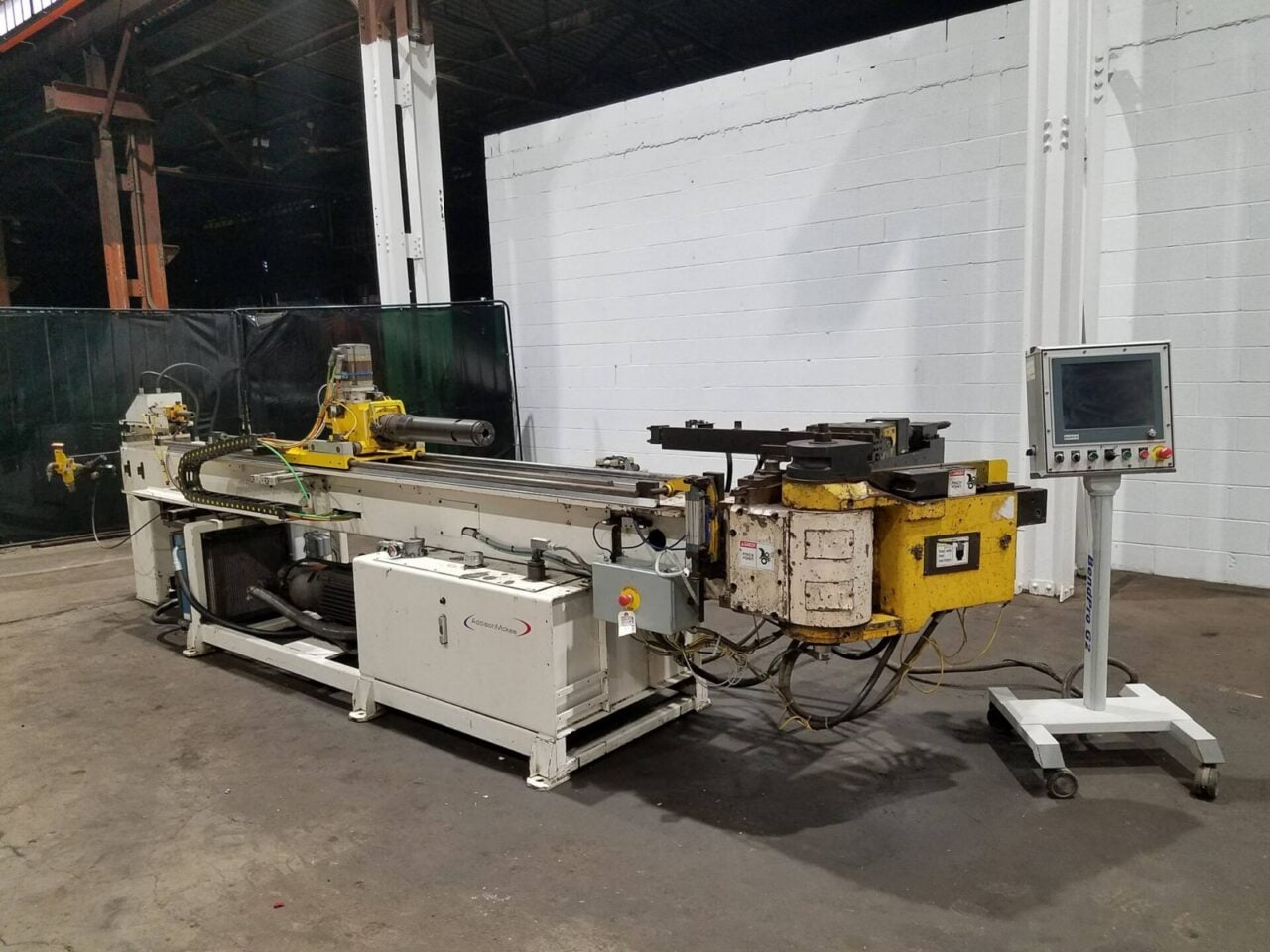

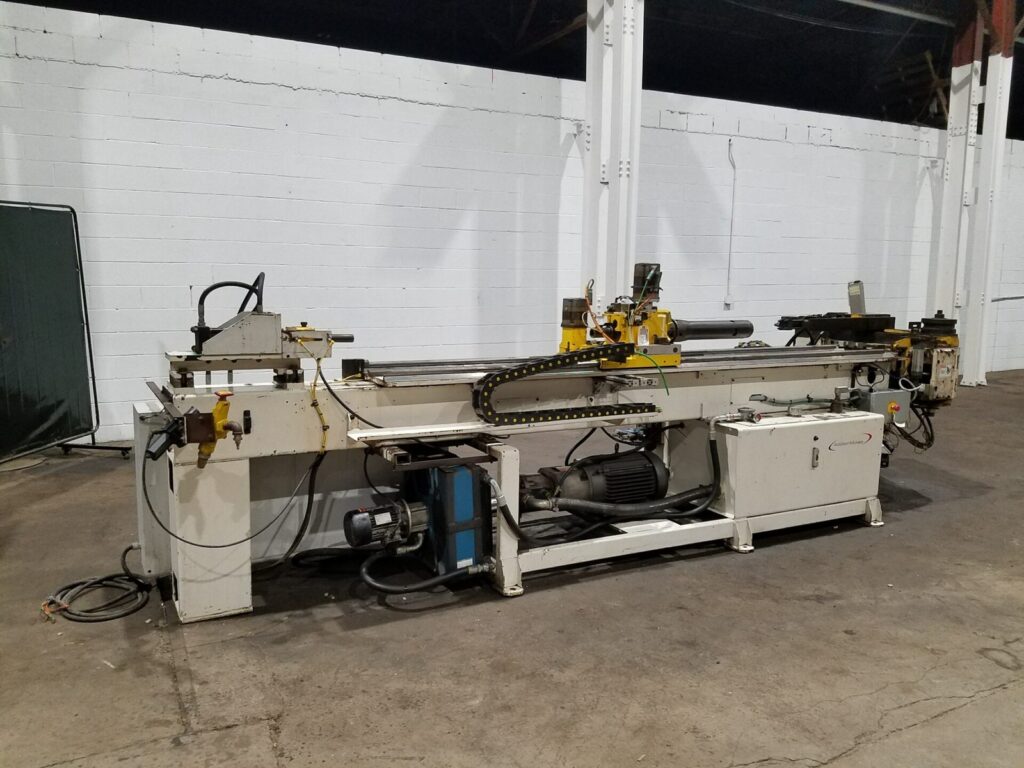

3" Addison McKee #EL300/DB76, 3-Axis CNC tube bender, Bendpro G2 Control, clock wise rotation, hydraulic mandrel extractor

Estimated monthly payment valid upon approved credit.

Request Formal Quote

General Info
Stock #: 163260020
Brand: Addison Mckee
Model: EL300/DB76
Location: OH
Loading Fee: Free Loading
Specifications
Minimum Tube Diameter: 3/8″ OD (approx.)
Maximum Tube Diameter: 3" OD x .120" wall (Mild Steel)
Maximum Pipe: 2″ sch 80
Maximum Degree Of Bend: 180° + springback
Maximum Bend Centerline Radius: 12"
Maximum Tube Length Over Mandrel: 144"
Bending Rotation: Right-hand (clockwise)
Equipped With

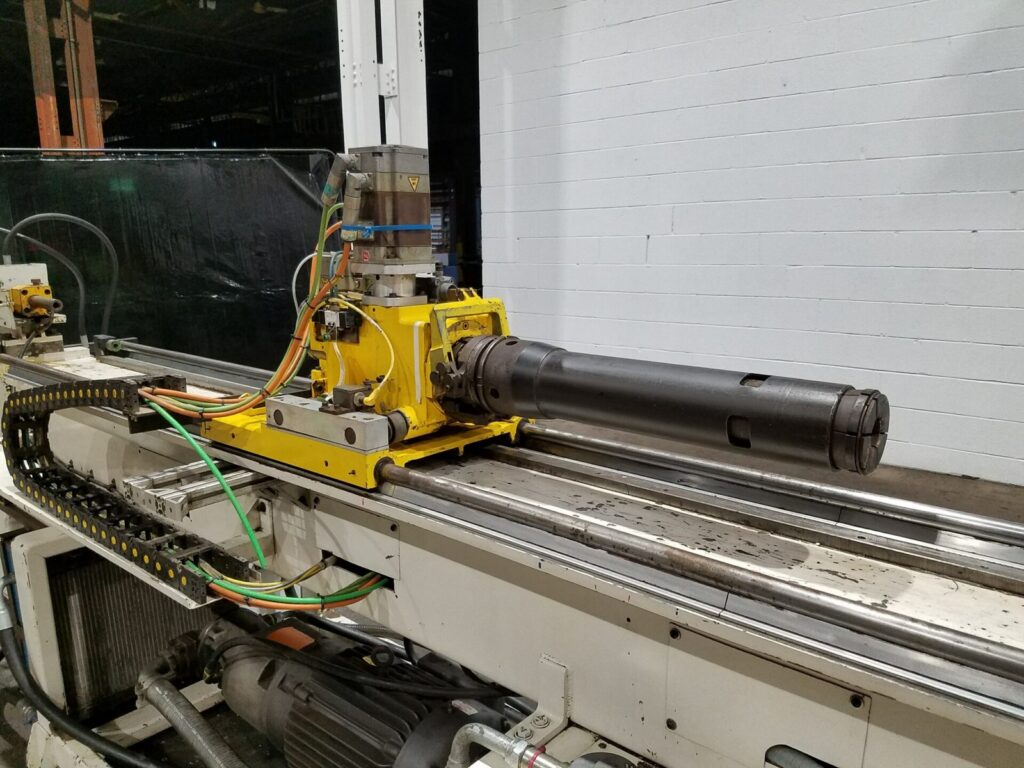

Bendpro G2 Control, Hydraulic Mandrel Extractor, Hydraulic Pressure Die Assist, Direct Acting Pressure Die, Drop Away Type Clamp Die, Pneumatic Collet Closer – OD Type, Automatic Lubrication System, Fan-Powered Hydraulic Oil Cooler
Additional Info
This machine can be inspected under power upon request.

General Info

• Stock #: 163260020
• Brand: Addison Mckee
• Model: EL300/DB76
• Location: OH
• Loading Fee: Free Loading

Specifications

• Minimum Tube Diameter: 3/8″ OD (approx.)
• Maximum Tube Diameter: 3” OD x .120” wall (Mild Steel)
• Maximum Pipe: 2″ sch 80
• Maximum Degree Of Bend: 180° + springback
• Maximum Bend Centerline Radius: 12”
• Maximum Tube Length Over Mandrel: 144”
• Bending Rotation: Right-hand (clockwise)
