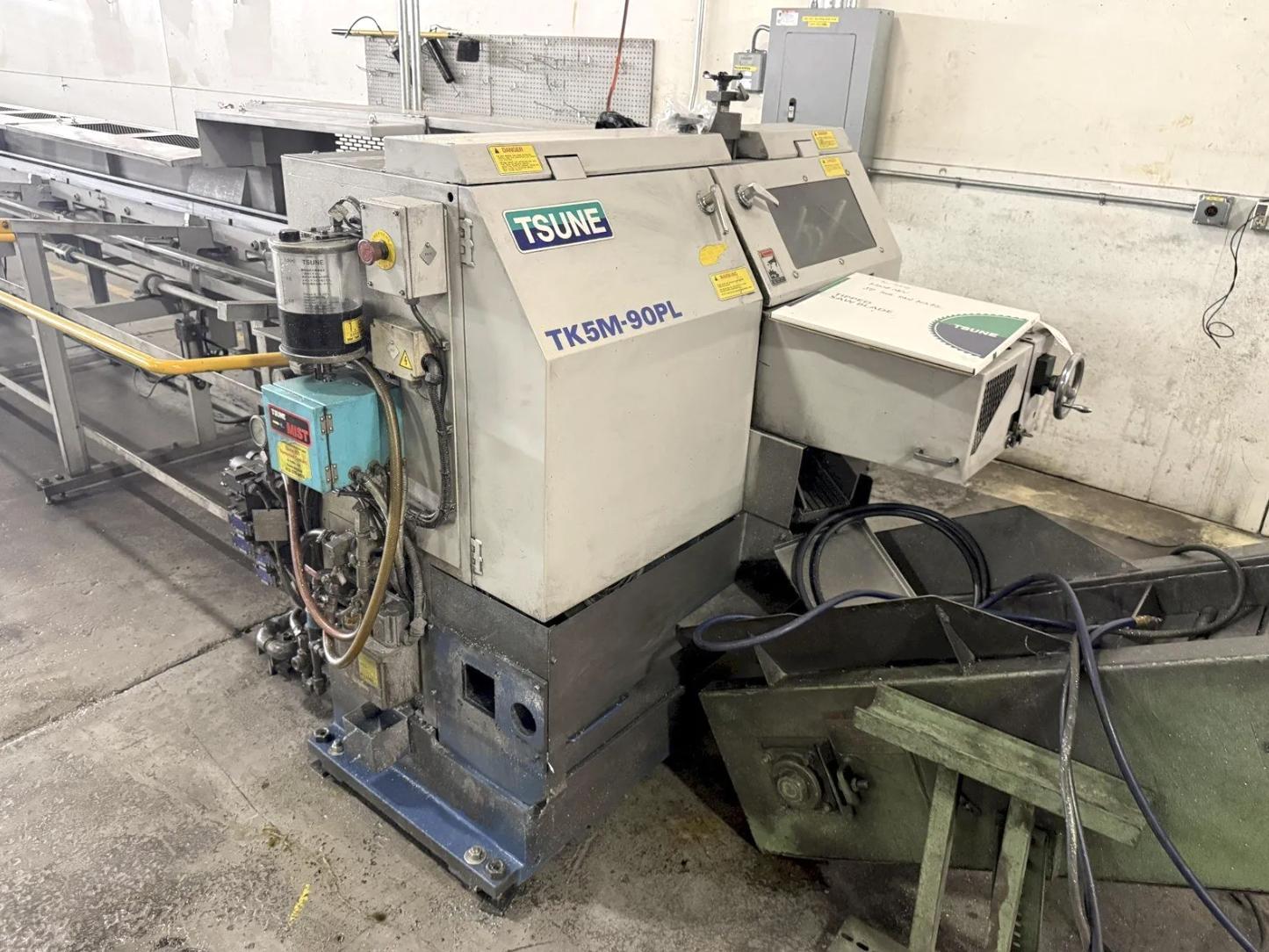

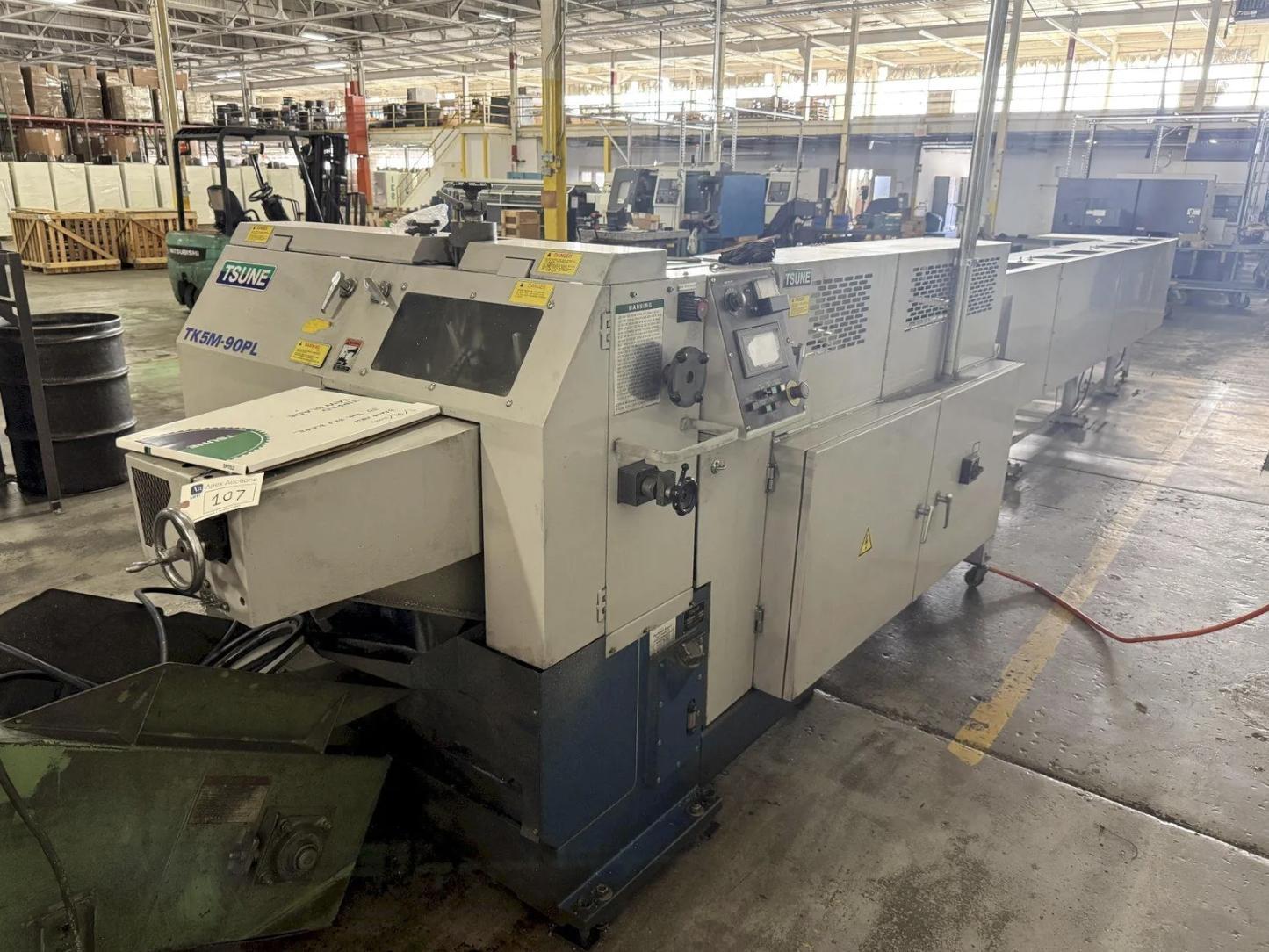

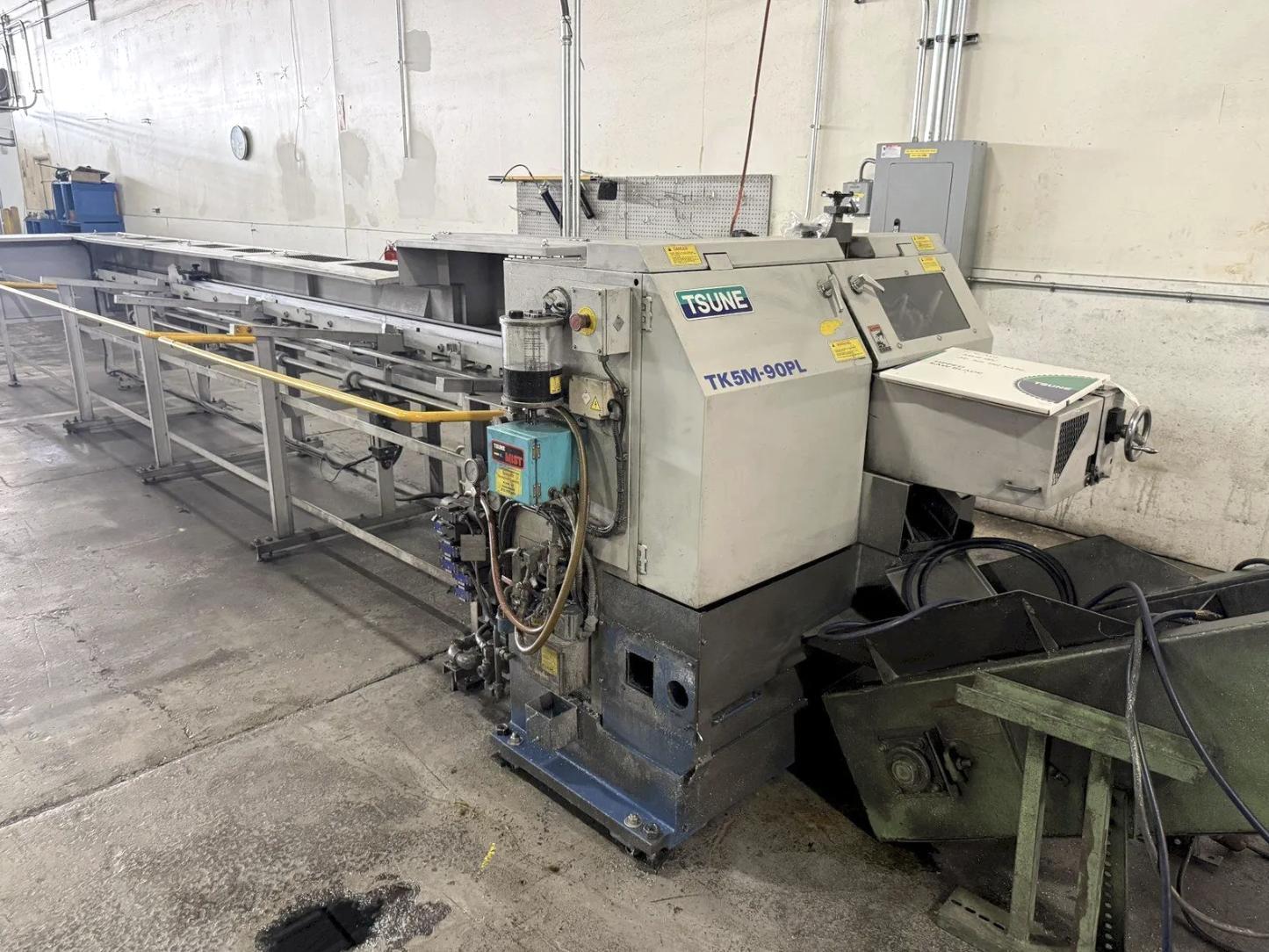

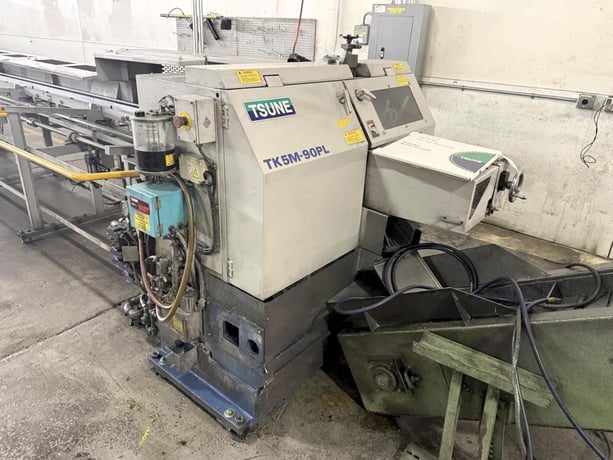

3.5" Tsune #TK5M-90-PL, automatic CNC cold saw, 2.75" square capacity, 1535-4000 RPM, 15 HP, automatic infeed, PLC Control, 2015

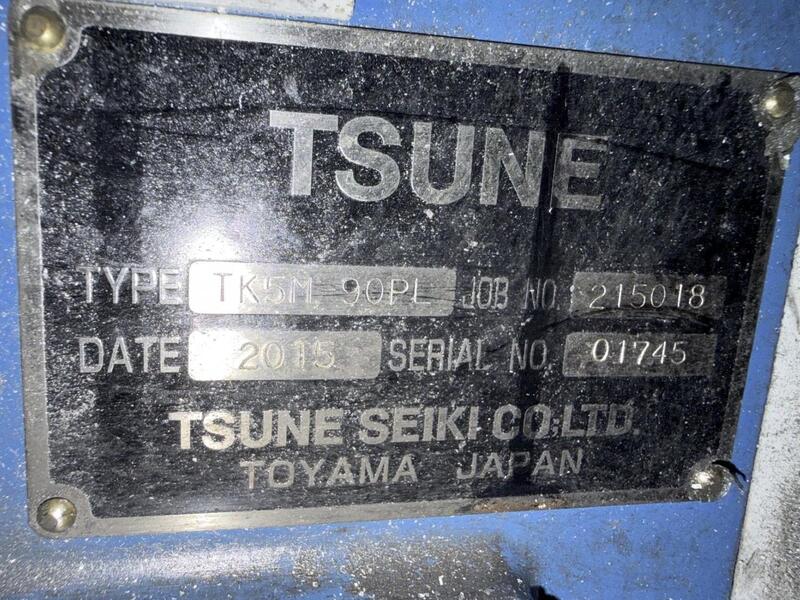

Serial ..................... 01745
Model ...................... TK5M-90PL
Year New ................... 2015

Capacity:
Rounds ..................... 3.5″
Square ..................... 2.75"
Saw Blade Speed ............ 1535 – 4000 RPM
Head Feed .................. 0.047″ – 4.134″/Second
Return Speed ............... 8.268″/Second
Material Feed .............. 16.404 Ft. – 32.808 Ft.
Pusher Return Speed ........ 231.255 Ft./Minute
Cut Off Length ............. 0.197″ – 7.874″
Crop Cut Off Length ........ 0.394″ – 2.363″
Remnant End Length – Min ... 2.165″
Remnant End Length – Max ... 2.165″ + Cut Off Length
Material Length Capacity ... 5.249 Ft. – 19.685 Ft.
Width of Magazine System ... 26.38″
Hydraulic Pump Motor ....... 3HP/2.2kW/3 Phase
Hydraulic Tank Capacity .... 23.776 Gallons
Saw Motor .................. 15 HP

EQUIPPED WITH:
- Auto Feed

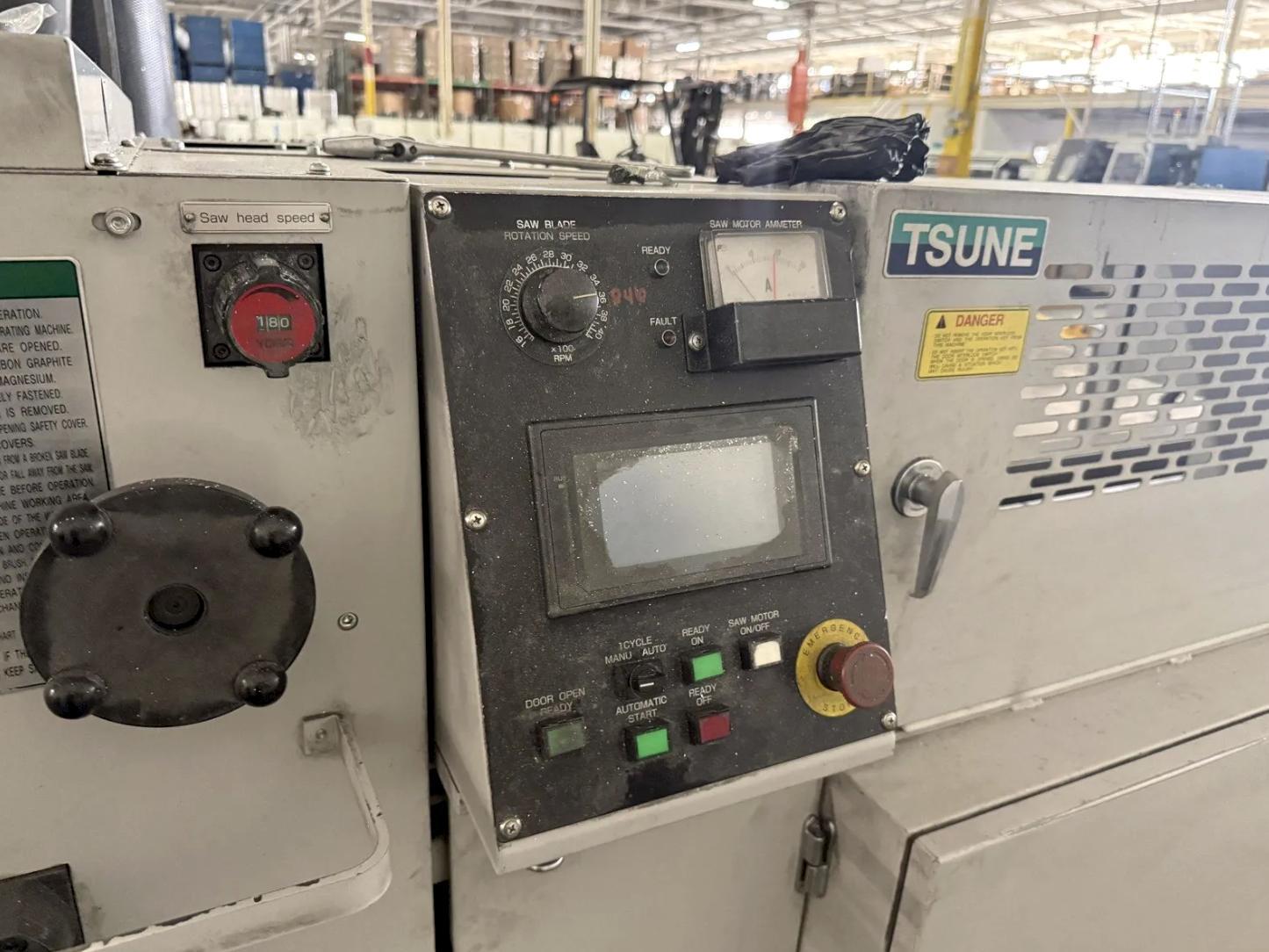

- PLC Control
- De-Bundler
- Auto Length
- Carbide Tipped Saw Blade
