Description

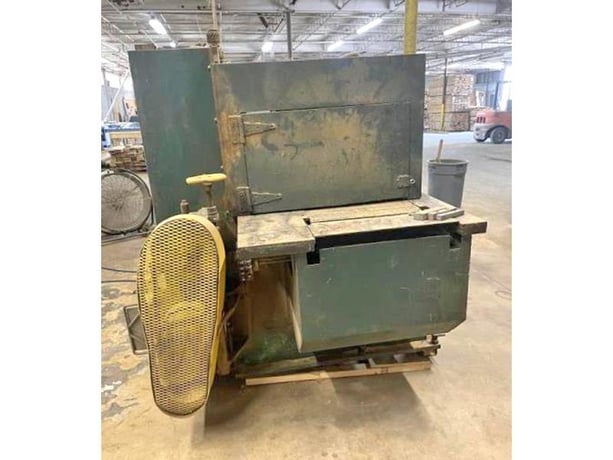

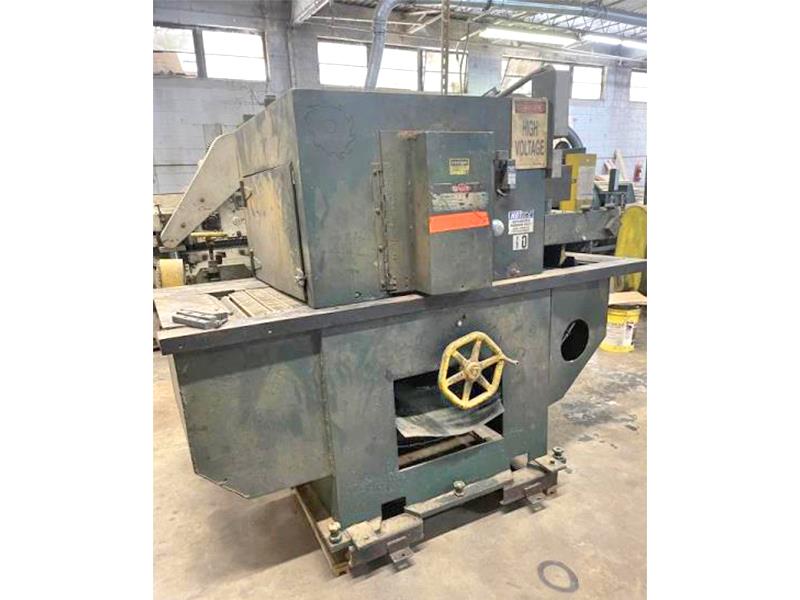

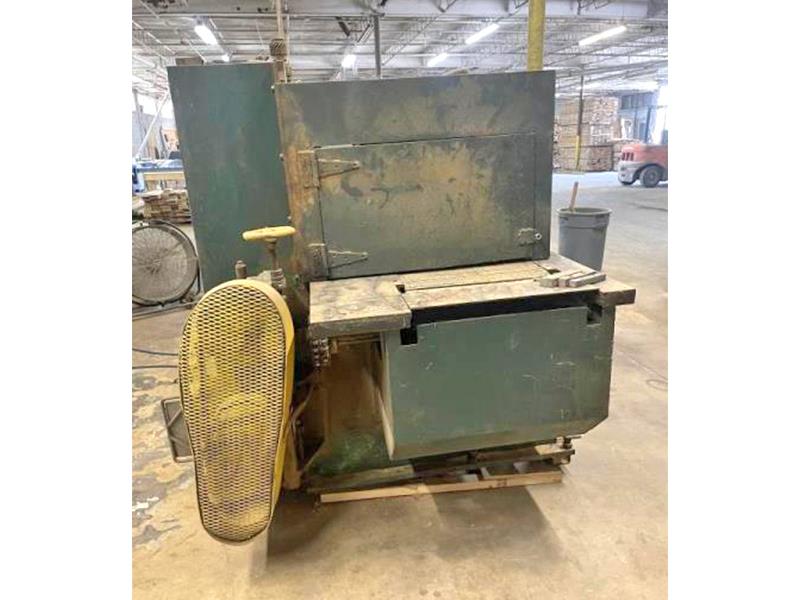

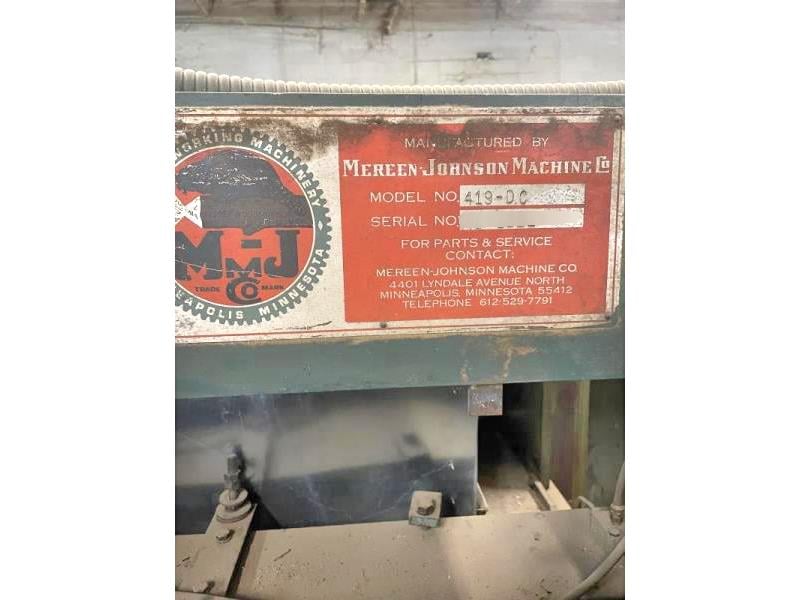

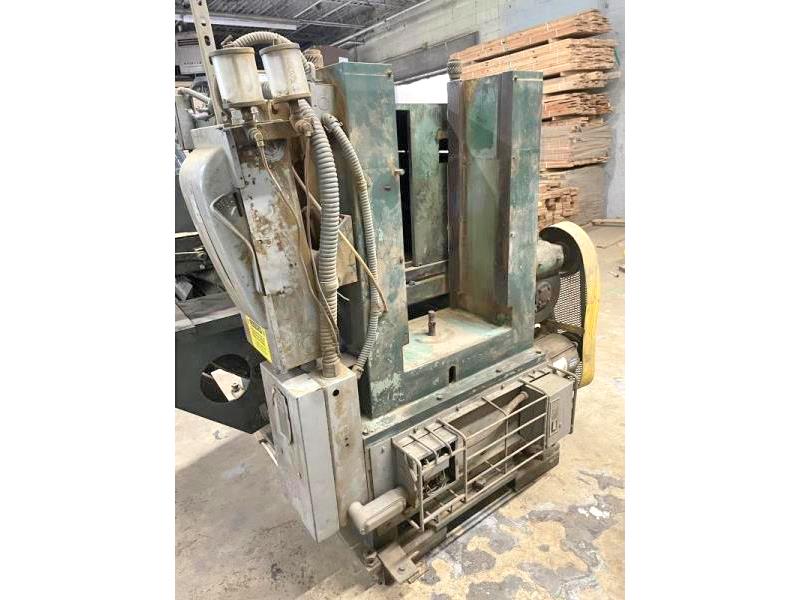

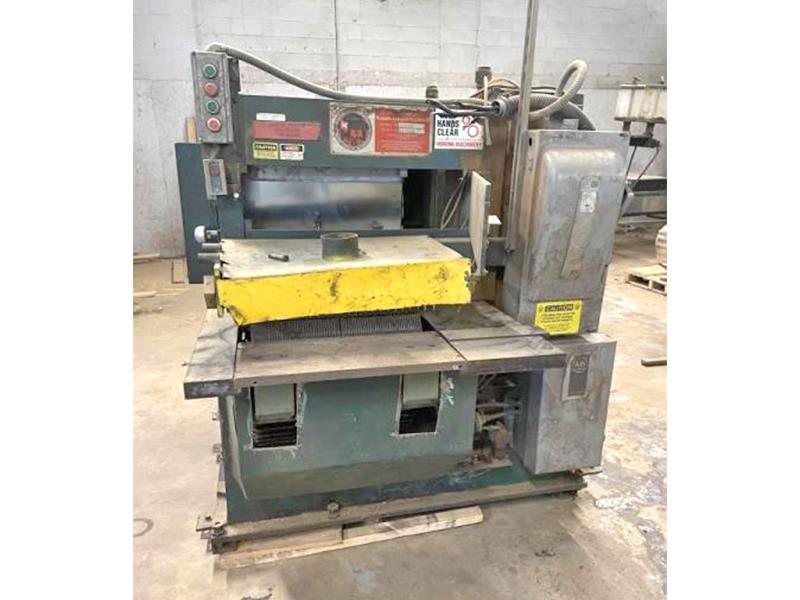

MEREEN-JOHNSON 419-DC Gang Rip SawSpecifications: -- 19" Arbor cap., -- 14" max. dia. tooling, -- 3-1/2" max. manual thickness adjustment, -- 29" min. length for glue joint accuracy and 22" min. for busting only, 6" throat.Equipped with & Features: -- 75 HP - 3,600 RPM drive motor with direct drive to arbor. -- Feed & chain: 3 HP Variable feed speed 30 to 150 FPM, -- M-J "Posi-Feed" dip bed carried on 5" pitch hardened double-V chain, hardened dip cams, extruded structural aluminum feed bed slats with replaceable steel backed rubber insert strips, and chain oiler. -- (4) 3" Dia. spring loaded overhead pressure rolls (with new springs); full width spring loaded overhead bed plate, pressure rolls and bed plate unit with scale & pointer thickness reference; anti-kickback finger system , -- (1) lower & (2) upper on infeed (kickback fingers are newly replaced). -- (2) Upper dust hoods (1) 10" & (1) 5" dia., and (1) lower 4" dia. hood; requires 3,820 CFM; (2) 19" saw sleeve with mics. spacers. -- New Laser Light Array complete with (5) Lasers and Mounting Hardware, --. Spare parts including extra saw sleeve, short stock holddown plates, a few sawblades, etc. -- Notice the feed chain - it's in exceptional condition!Note From The Seller Arbor motor burnt out, needs repair
MEREEN JOHNSON 424 DC Gang Rip Saw -- 24" Arbor cap., 14" max. dia. tooling, 3-1/2" max., 22" min. length, 6" throat. -- 75 HP - 3,600 RPM TEFC Direct drive motor, arbor with disc brake. -- Feed & chain:3 HP Variable feed speed from 50 to 150 FPM, & s -- M-J "Posi-Feed" dip bed carried on 5" pitch hardened ...more
MEREEN JOHNSON 424 DC Multiple Blade Rip Saw:: -- 24" Arbor cap., 14" max. dia. tooling, 3-1/2" max., 22" min. length, 6" throat. -- 75 HP - 3,600 RPM TEFC Direct drive motor, arbor with disc brake. --Feed & chain:3 HP Variable feed speed from 50 to 150 FPM, M-J "Posi-Feed" dip bed carried on 5" pitch hardened ...more
Mereen-Johnson Model 524-DDCSR 2+4 Double Arbor First Arbor Arranged with Two (2) Independently Adjustable Select Saw Assemblies for Mounting Hogging Blades Second Arbor with Four (4) Independently Adjustable Select Saw Assemblies Arbor Space 24" Thickness Capacity to 1-3/4" with 12" Tooling and 2-3/4" Using 14" ...more
Serial# 185, 14”+ max width adjustment of fence, Table size: 27” wide x 48” long, adjustable saw with collars, adjustable infeed speeds, We have videos of it running, freight rates available, shipping dimensions: 52” wide x 60” long x 60” tall, Weight: 1,700 LBS., $3,900.
