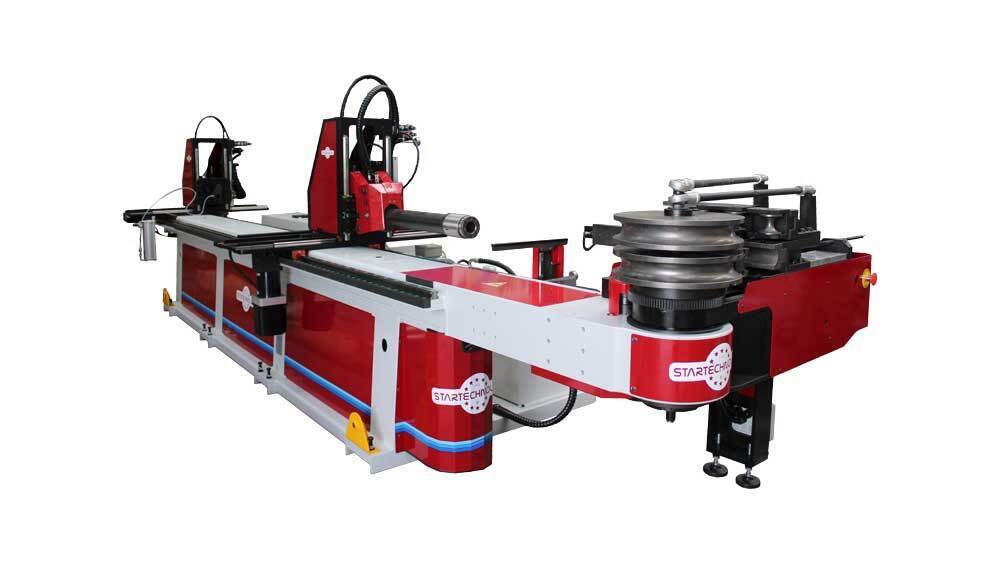

3-1/8" Star Technology #Full-Bend-800-Series, CNC Tube and Pipe Bender, fully electric, 400mm radius, 400/480 V.

Spec

Specifications & Configurations May Vary Depending on Full Bend 800 Model & Automation Level
Maximum Mild Steel Tube Capacity: 80 x 5 mm
Maximum Stainless Steel Tube Capacity: 70 x 4 mm
Maximum Aluminum/Copper Tube Capacity: 90 x 5 mm
Maximum Bending Radius: 400 mm
Useful Length on Clamp: 4,500 mm
Useful Length on Mandrel: 6,000 mm
Maximum Bar Passage Diameter: 76 mm
Head Clearance Radius: 220 mm
Power Supply: 400/480 V
Operating Frequency: 50/60 Hz
Maximum Power: 35 kW
Approximate Machine Weight: 5,500 kg
Fully Electric CNC Bending Technology
Left or Right Bending Capability
Integrated 3D Part Simulation
File Import Programming Capability
Brushless Servo-Controlled Axes
Made in Italy
ISO 9001:2008 Certified System

Description

The Full Bend 800 Series from Star Technology is a fully electric CNC tube and pipe bending solution engineered for large-capacity bending, advanced automation, and high-production manufacturing environments. Manufactured in Italy, the Full Bend 800 Series offers multiple automation levels and configurable machine layouts to support demanding industrial tube fabrication applications.
