Manufacturer: Armstrong
Model: IW66D
Year: 2004
90° Angle Shear Capacity" L: 3.50
90° Angle Shear Capacity" W: 42.00
Shear Capacity: .375
Ton: 66
Stock # 30618
1 / 6
Click to zoom in
1 / 6
For Sale by Blumberg Machinery Co
Surplus Record Dealer Since 1971
Location: Bannockburn, IL
Contact Jerry/ Ryan
Phone Number: 847...> Show Phone Number 847-580-6800
Let the seller know you found their listing on Surplus Record!
Description

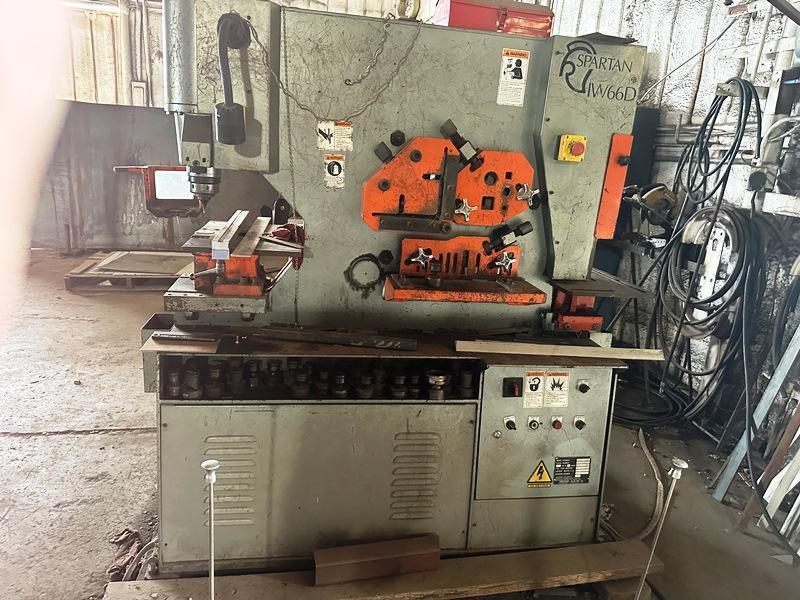

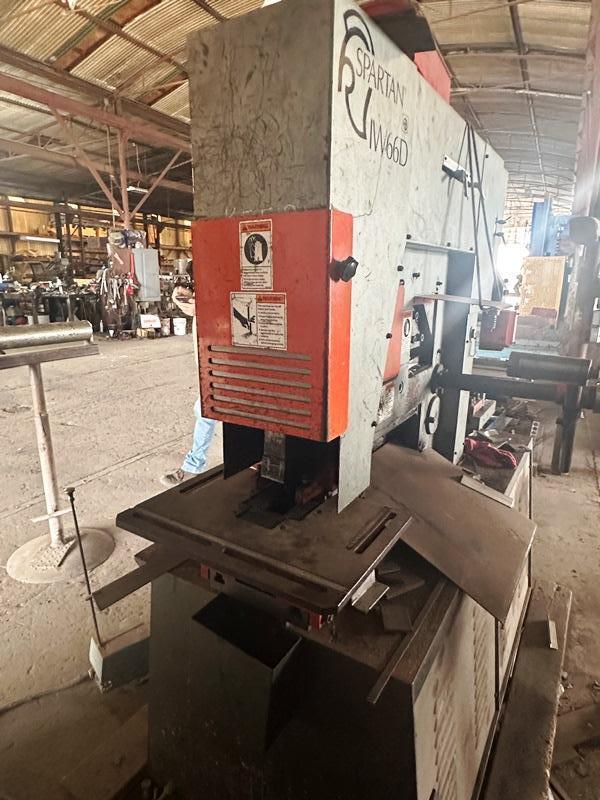

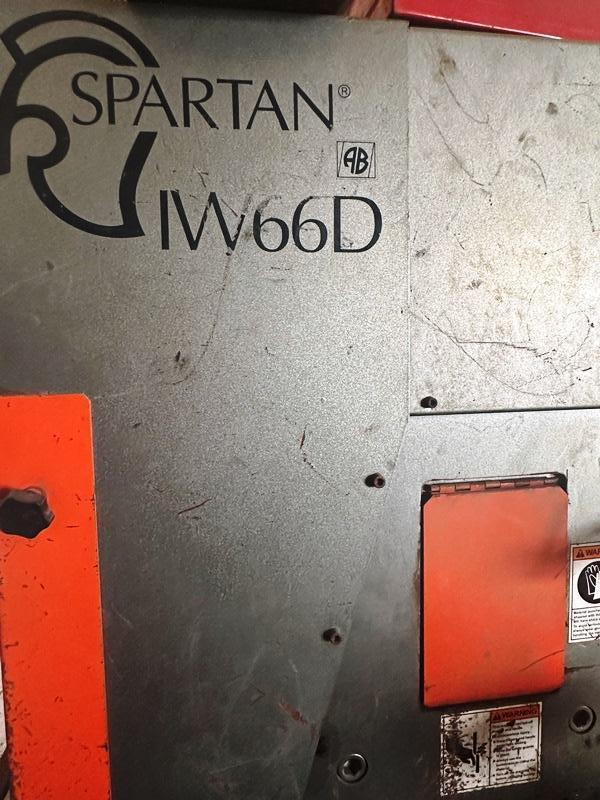

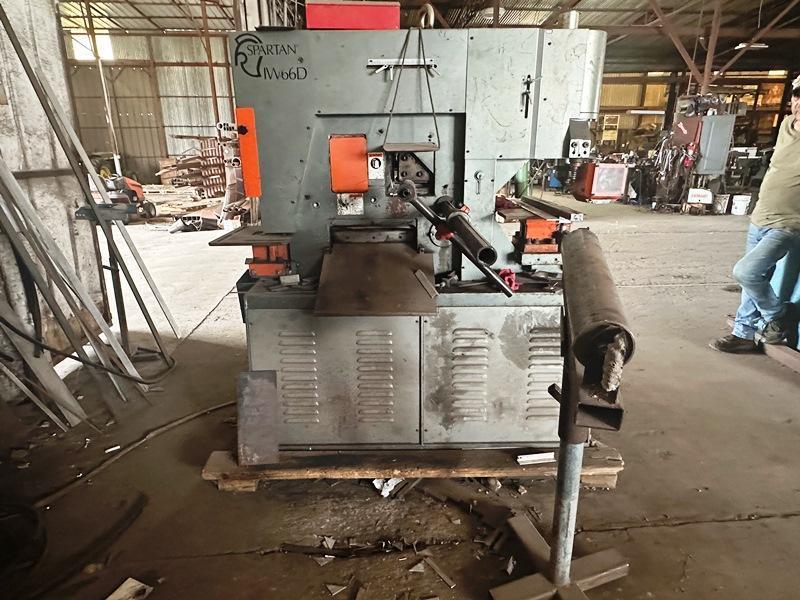

66 TON MARVEL SPARTAN (ARMSTRONG-BLUM MFG) MODEL IW66D IRONWORKER
New 2004
SPECIFICATIONS:
PUNCHING CAPACITY
Capacity 66 Tons
Punch Diameter x Plate Thickness 1-1/16" x 3/4"
With Special Tooling 6" in 1/8"
Depth of Throat 12"
Stroke 0.60 IPM
Adjustable Stroke Depth
Adjustable back Stop
Two Piec Gauging Table
SHEARING CAPACITY
Blade Length 14"
Flat Bar Shear 14" in 9/16"
New 2004
SPECIFICATIONS:
PUNCHING CAPACITY
Capacity 66 Tons
Punch Diameter x Plate Thickness 1-1/16" x 3/4"
With Special Tooling 6" in 1/8"
Depth of Throat 12"
Stroke 0.60 IPM
Adjustable Stroke Depth
Adjustable back Stop
Two Piec Gauging Table
SHEARING CAPACITY
Blade Length 14"
Flat Bar Shear 14" in 9/16"
12" in 3/4"
Angle Fange Trim 4"
ANGLE SHEAR: at 90 degrees 9" x 5" x 1/2" at 45 degrees 2½" x 2½" x 5/162" ROUND and SQUARE BAR SHEAR: Round thru ½" Squares thru 1½" x 1½" Channels and H-Beams 5" RECTANGULAR NOTCHER CAPACITY:
90 degree Notcher 3½" x 3½" x 3/8" Pipe Notcher 1½" – 40 Squaring Guide SPECIAL TOOLING: “CAPACITY ONLY" V-Press Brake 10" x " Multi Vee 20" x 3/16" Pipe Notcher 4",
Angle Bending 4" x ¼
MOTOR DRIVE:
Wired 230 volts, 3-phase Hydraulic Pump 7½ HP CONTROLS:
Wired Low Voltage Two Full Controls Foot Pedals. Pump Start/Stop Buttons. Auto Manual Switch. Normal / Jog Switch. Shear / Notch Switch. Main On/Off
Approximate Dimensions 68" L x 31" W x 67" H
Approximate Weight 3,969 Lbs.
