27 sq.ft., 300 psi, Alfa-Laval Contherm 6 x 9, Alfa Laval vertical, scrape surface heat exchanger system

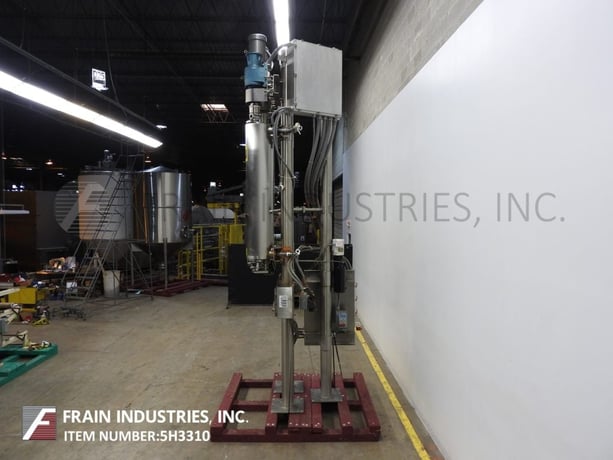

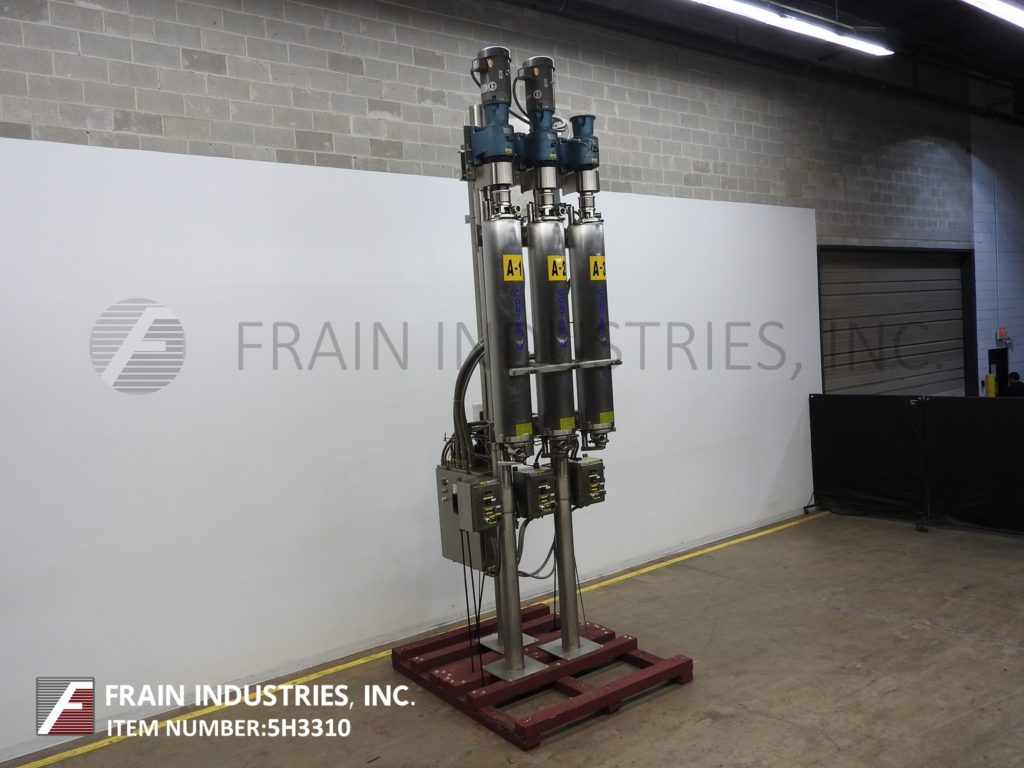

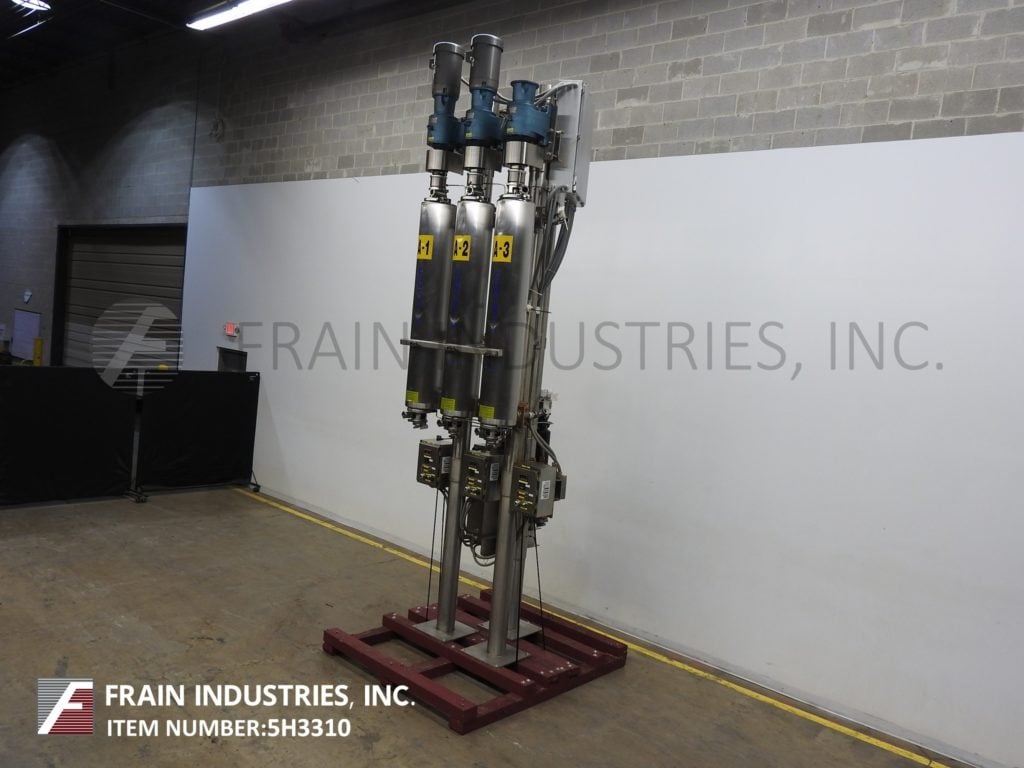

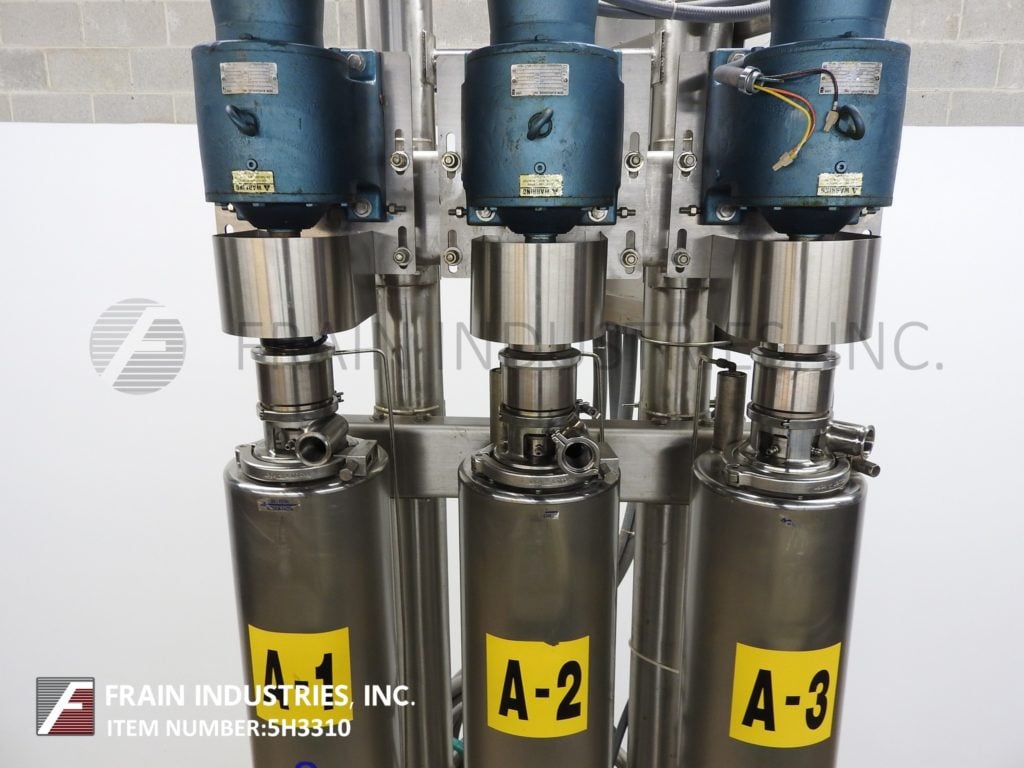

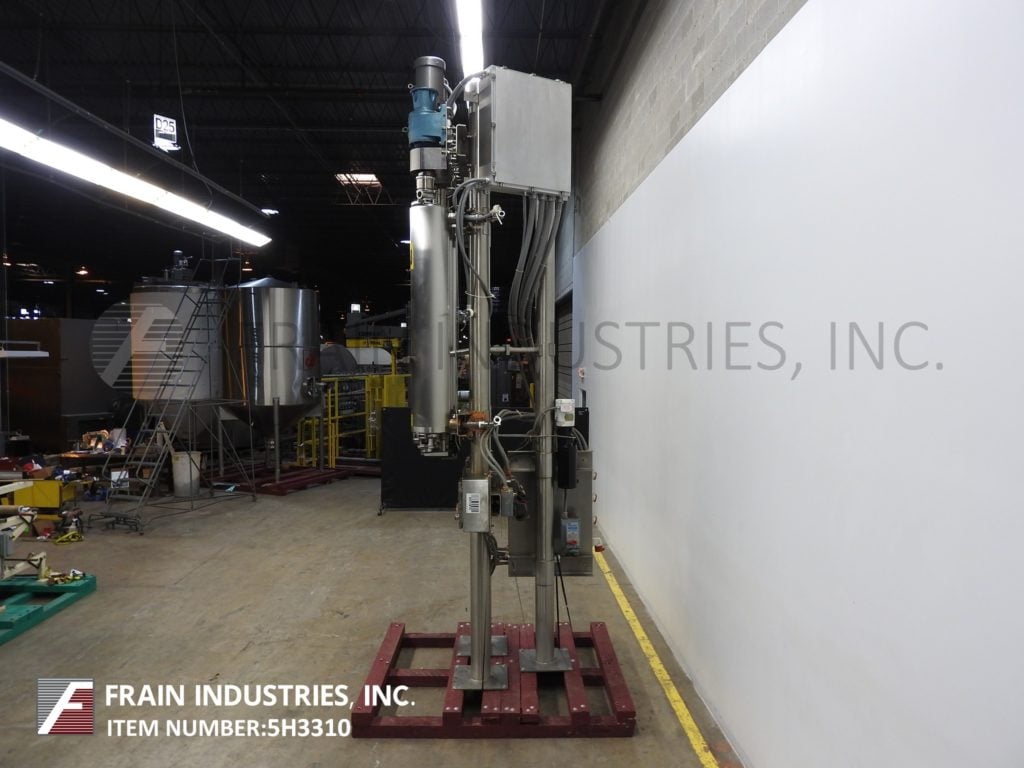

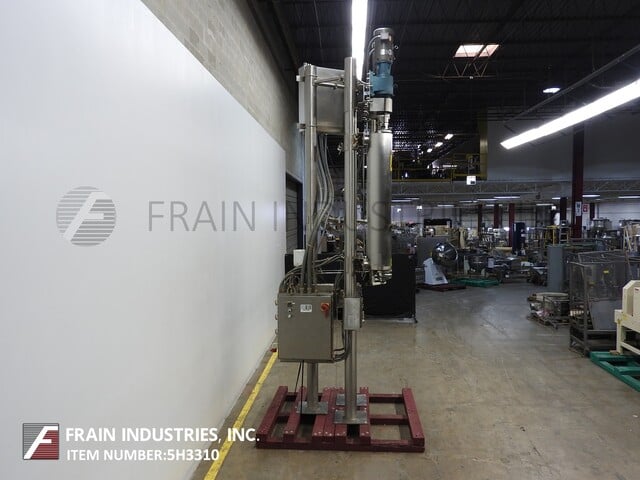

Alfa Laval, Model 6 x 9 Contherm, Vertical, (3) concentered, scrape surface heat exchanger system has (3) 72" x 9" stainless steel tubes, with amount of product per hour each tube – depending on materials and application. Equipped with 9 ft² of heat transfer area each tube, working temperature range of -30 to +300 Deg F, with top mounted motor drives and 2-1/2"OD / 1-3/4" ID product inlet and outlet ports each cylinder. Main top mounted control panel with individual controllers for each tube has motor, speed and temperature start, stop controls with readout and CIP system controller with start, stop and e-stop controls. Each mounted on individual pedistal style stainless steel stands. Product enters the cylinder through the lower port and flows upwards through cylinder simultaneously and media travels in a countercurrent flow through the narrow channel and rotating blades remove product from cylinder wall to ensure uniform heat transfer to the product and is ideal for food products as well as other applications.

Product Chamber: MAWP: 300 psi @ 300°F
Media Chamber: MAWP: 250 psi @ 300°,
MDMT: -30°F @ 100 psi

OAD: 80" L x 72" W x 209" H
