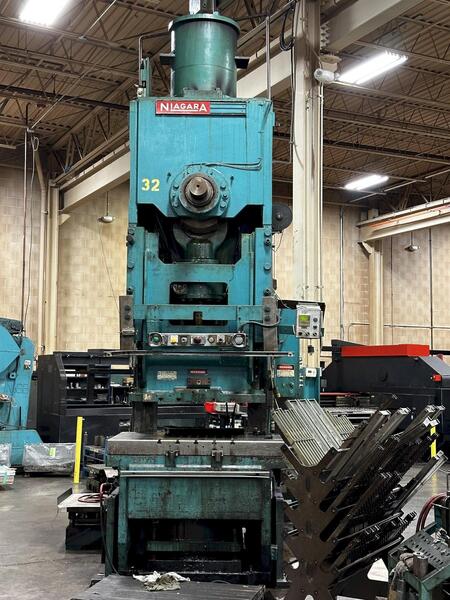

250-ton Niagara Single Point Gap Press
Niagara Press Model E-250
Rebuild in Process 2025
Serial Number 50447
250-ton Capacity
10" Stroke
22" Shut Height
6" Adjustment
58" LR x 34" FB Bed Area
36" LR x 28" FB Slide Area
32 SPM
Equipment and Features
Air Clutch and Brake
Air Counterbalances
Recirculating Lube System
T-Slotted Ram and Bolster
Palm Button
Motorized Adjustment
(1) Air Cushion in Bed
- Model C-28-6 sn/ 50197
- 6" Stroke
- 3.08 tons @ 10 PSI
This 250-ton Niagara Press can be seen under power in the S&G Press Warehouse Upon Completion of Rebuild
For A Full Scope of Mechanical Rebuild Work Performed Available For Review
Click Here For More 250-ton Mechanical Press Options
How to buy a 250-ton Gap Frame Press:
S&G Press offers rebuilt 250-ton Niagara Gap E-250 mechanical presses, meticulously restored to optimal performance. These presses undergo thorough inspections and component replacements, ensuring reliability and precision. Our rebuilding process enhances their longevity and efficiency, making them a cost-effective alternative to new press or a typical used "As Is" option. Niagara's sturdy gap frame design, coupled with our expert rebuilds, provides exceptional versatility for diverse stamping applications. The standard scope of work for a rebuilt press from S&G Press will consist of rebuilding the clutch and brake, air counterbalances, replacing the bearings when necessary and new wear strips on the gibs. S&G Press's commitment to quality ensures these rebuilt Niagara presses deliver consistent, high-quality output, maximizing your production capabilities.
