For Sale by Alma Machinery Co-Columbia TN
Surplus Record Dealer Since 1960
Ken King
615-36...> Show Seller's Phone Number 615-369-7788 Let the seller know you found their listing on Surplus Record!
Description

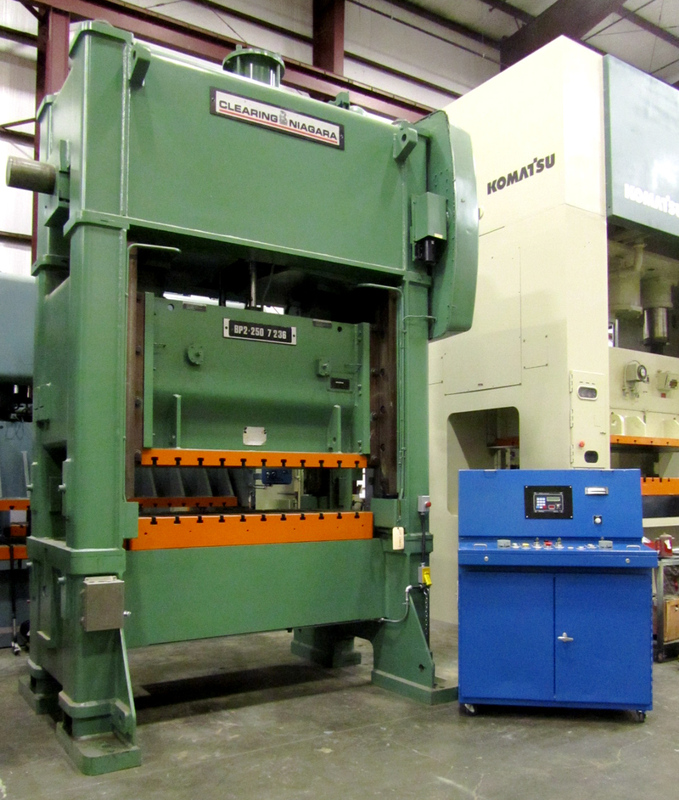

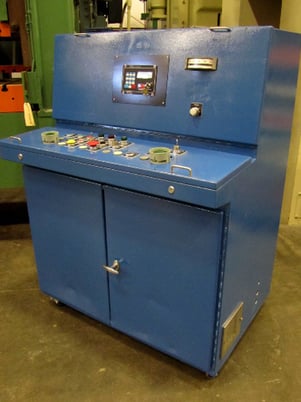

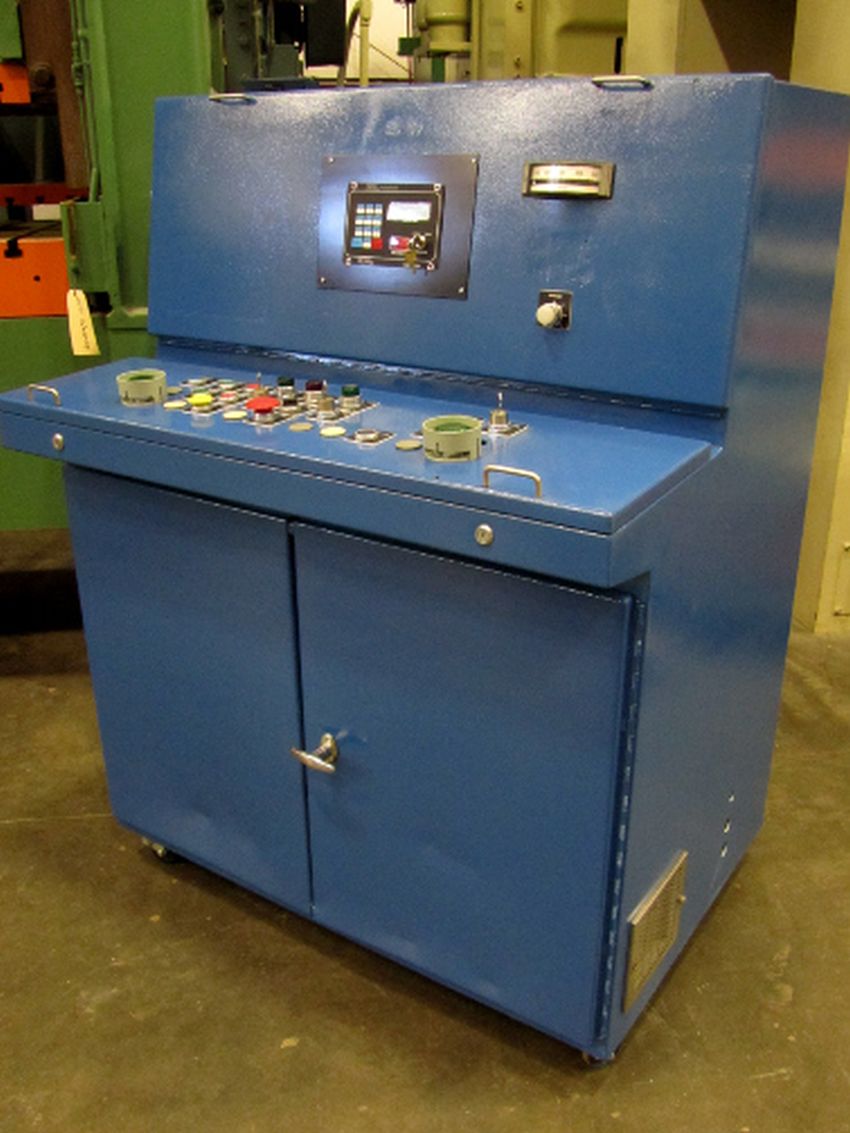

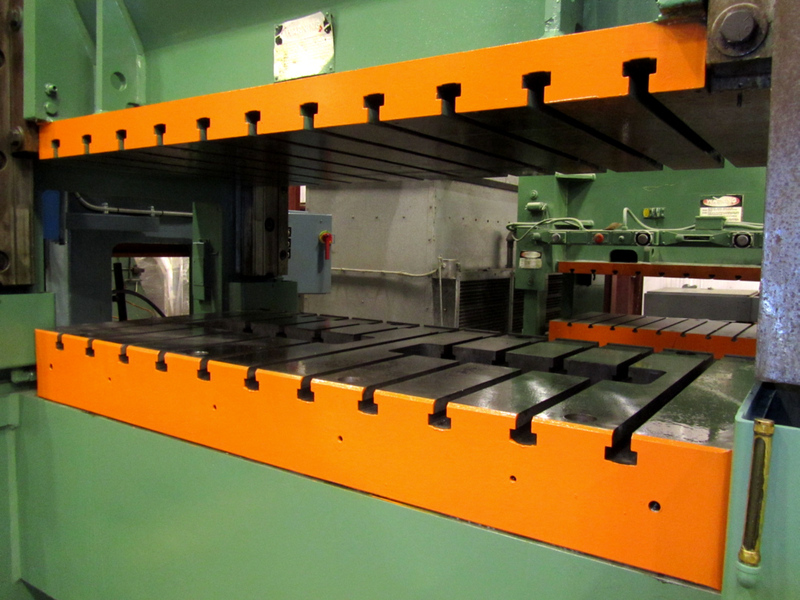

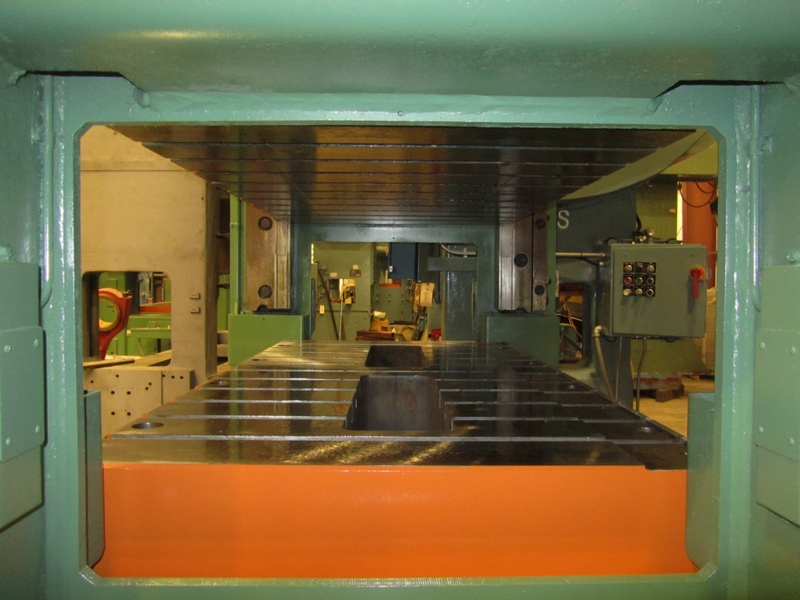

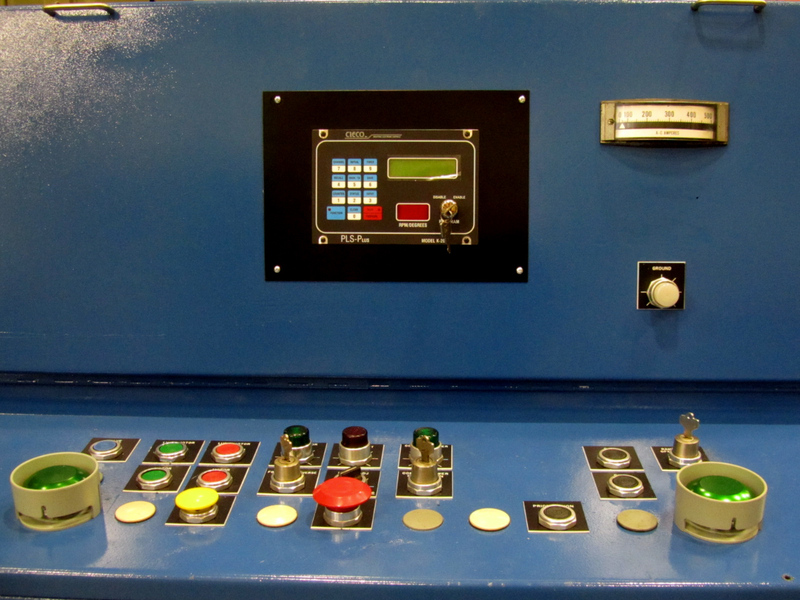

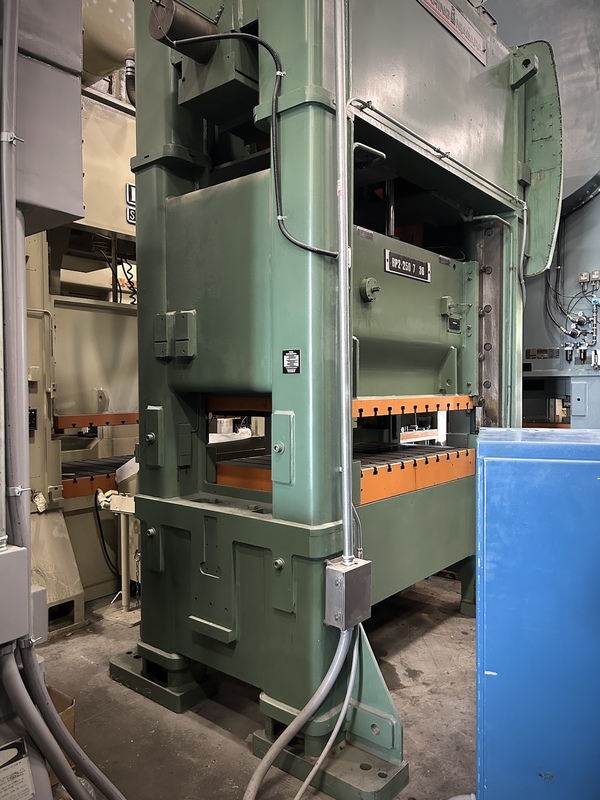

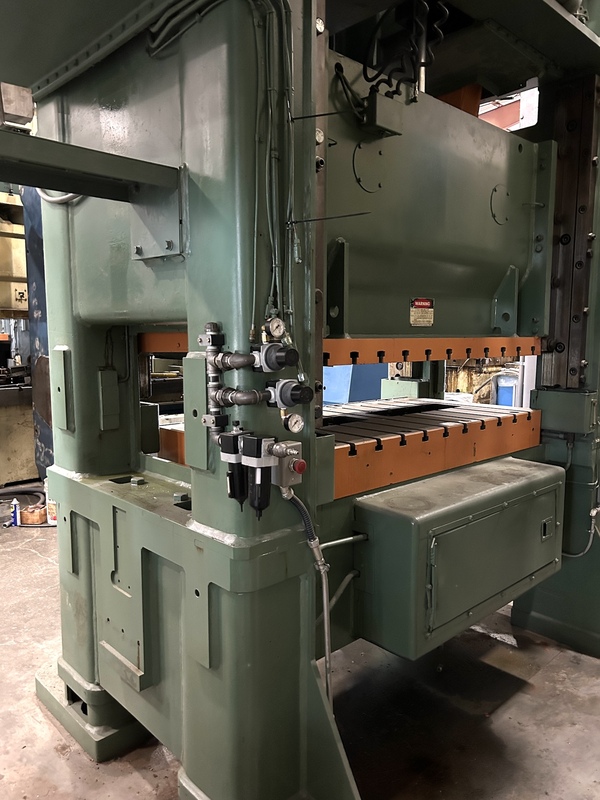

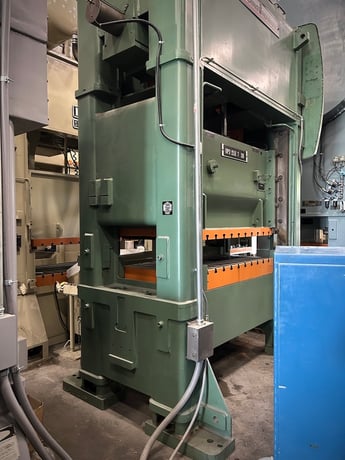

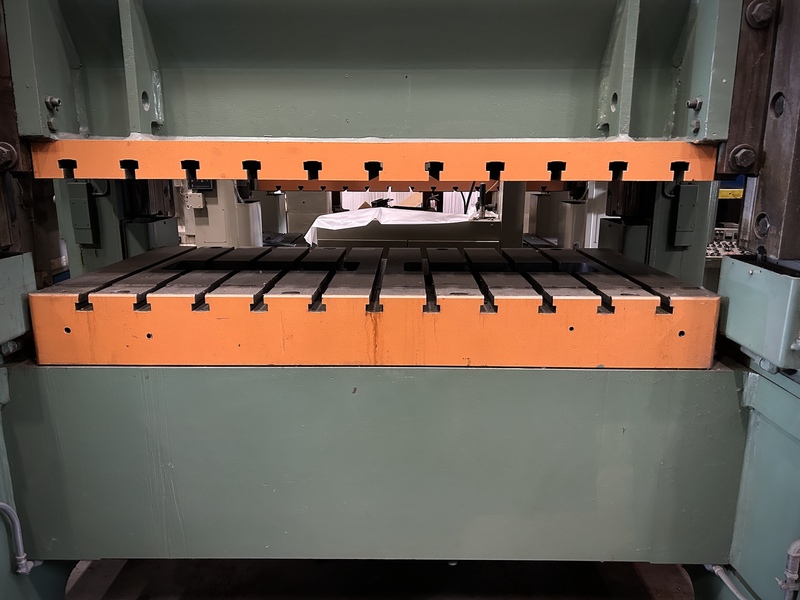

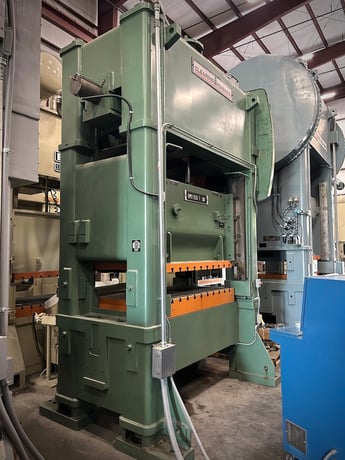

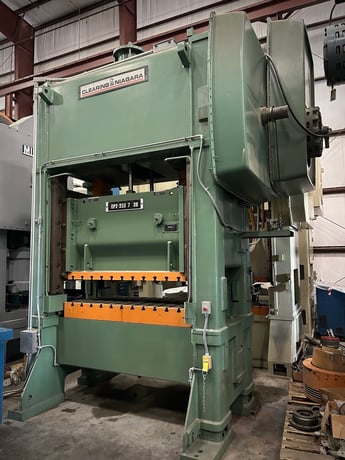

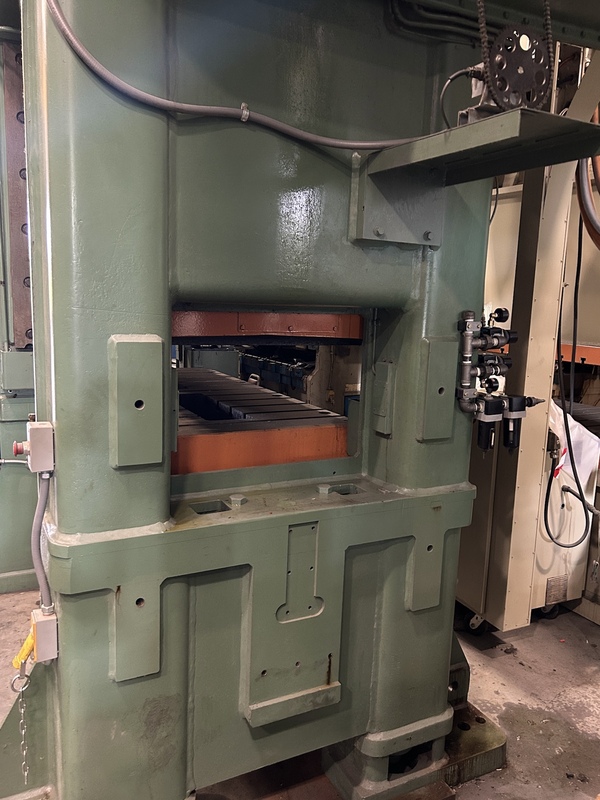

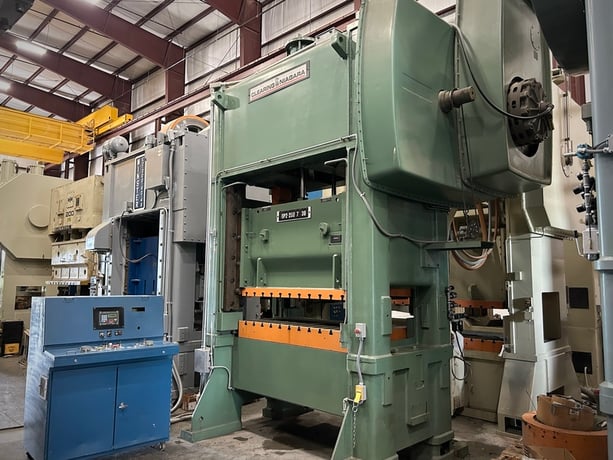

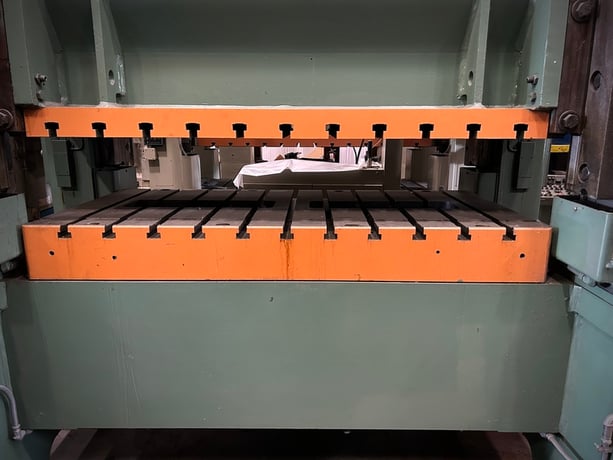

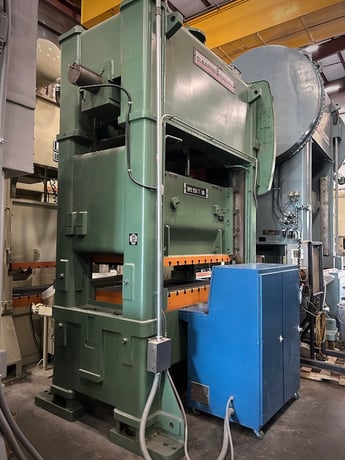

| CAPACITY | 275 US TONS | STROKE | 6" | MAX SHUT HEIGHT TO BED | 23.5" SDAU | BED AREA | 72" X 36" (RL X FB) | SPEED | 60 - 120 SPM | RAM ADJUSTMENT | 11" MOTORIZED | RAM AREA | 72" RL X 36" FB | BOLSTER PLATE | 8" H X 72" RL X 36" FB (T SLOTTED) | DIST UPRIGHTS / FLOOR TO BED | 72" / 44" | WINDOW SIZE | 27.5" W X 19.5" H | CLUTCH | NIAGARA AIR CLUTCH & BRAKE | ELECTRICS | 50 HP 1750 RPM 230/460V-3-60 EDDY CURRENT MOTOR & new cieco pls plus press control | APPROX DIMENSIONS | 15.5' H X 12.5' W X 9' FB | APPROX WEIGHT | 67,500 LBS | Equipped With | DUAL AIR COUNTERBALANCED RAM, RECIRCULATING LUBRICATION, TIE ROD FRAME CONSTRUCTION RECONDITIONING COMPLETED: NEW CIECO PLS PLUS PRESS CONTROL BLANCHARD GROUND BOLSTER PLATE REBUILT CLUTCH REBUILT COUNTER BALANCES | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
Get Your Price from Alma Machinery Co-Columbia TN!
