250 KVA 12470GY/7200 Primary, 240/120 Secondary, Giga Energy, Clam Shell Padmount Transformer, 1PH, 2024, (13 available)

FOB: Green Industrial, 281 Commerce St, Belgium, WI 53004

*250 KVA Pad Mount Single-Phase Transformer HV:12470GY/7200 LV 240V/120

CONDITION: NEW SURPLUS

Manufacturer: Giga Energy
YEAR: 2024
Serial#:Varies by Transformer
TYPE: Single-Phase Pad Mount Transformer
KVA: 250
Enclosure: Pad Mount Outdoor Rated
Phase: 1
Hertz: 60
Primary Voltage: 12470Y/7200
Secondary Voltage: 240V/120
Impedance: 2.56%
Degree Temp Rise: 65 Degree C Rise
Winding Material: Copper

Actual Transformer Dimensions:
Width: 40.5"
Length/Depth: 52"
Height: 34"
WEIGHT: 2550 lbs.

Shipping Dimensions & Weight:
Width: 48"
Length: 57"
Height: 42"
WEIGHT: 2850 lbs.

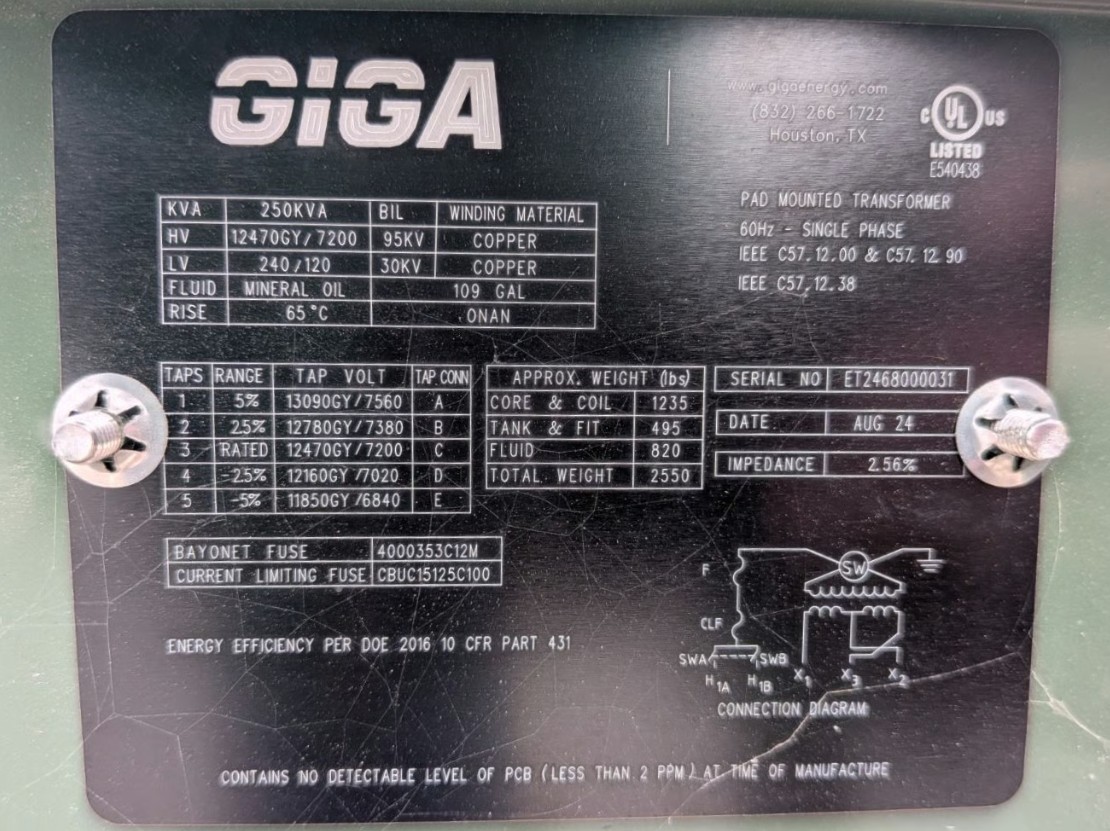

250 KVA, 1PH, 12470GY/7200 120/240V

-RATED CAPACITY: 250 KVA

-PHASE: 1 PHASE

-HIGH VOLTAGE: 12470GY/7200

-LOW VOLTAGE: 120/240

-BIL: HV 95KV; LV 30KV

-HV TAPS: 2 ABOVE, 2 BELOW @ 2.5% EACH

TAP TAP VOLT

A 13090GY/7560

B 12780GY/7380

C 12470GY/7200

D 12160GY/7020

E 11850GY/6840

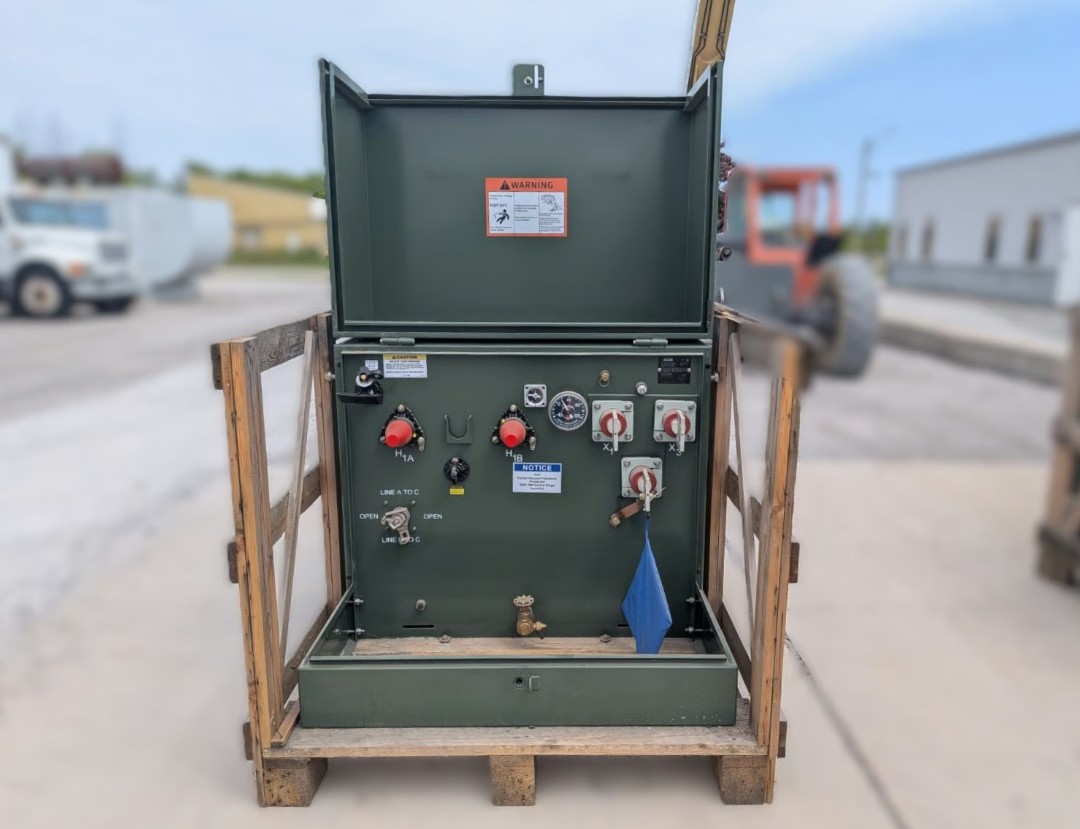

-HV BUSHINGS: (2) 200 A 25 KV LOADBREAK

- DEAD FRONT LOOP FEED

-LV BUSHINGS: (3) 8

-HOLE WITH SUPPORTS

-FLUID: MINERAL OIL

-COOLING CLASS: ONAN

-FREQUENCY: 60 HZ

-TEMPERATURE RISE: 65C

-WINDING MATERIAL: COPPER

-TANK MATERIAL: MILD STEEL

-FUSING: BAYONET W/ CLFS

-SWITCH: (1) 4

-POS. T

-BLADE LBOR

-LIQUID LEVEL GAUGE

-PRESSURE VACUUM GAUGE

-DIAL TYPE THERMOMETER

-DRAIN AND SAMPLE VALVE

-cUL LISTED

-IEEE C57.12.00 C57.12.90 C57.12.38

-LIQUID LEVEL INDICATION FOR 25°C

-LIFTING LUGS OR THREADED BOLT HOLES POSITIONED FOR AND CAPABLE OF LIFTING THE ENTIRE PAD MOUNT UNIT

GIBUYS #: GV0007
