Description
SPECIFICATIONS
EQUIPPED WITH

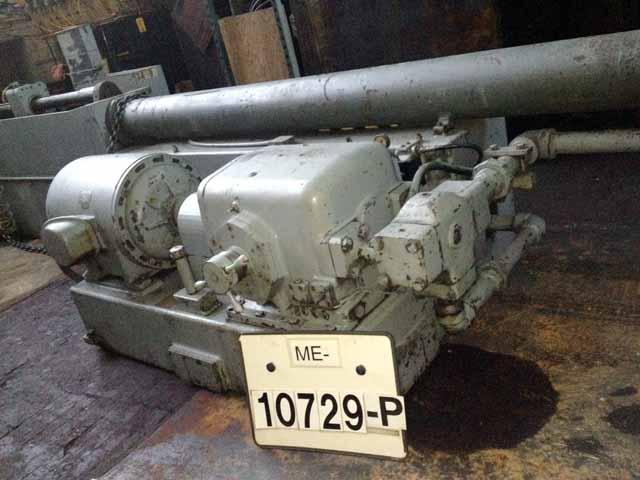

Variable Speed Cutting And Return Stroke. Variable Length Of Stroke. 11" Diameter Hole In Work Face Plate. Retriever/Follower Unit. Spiral Attachment for Rifling or Helical Broaching. Oilgear Hydraulic Pump. Lever Activation.
This machine is being offered cleaned and cycled. It can be inspected under power in the Detroit area at your convenience.

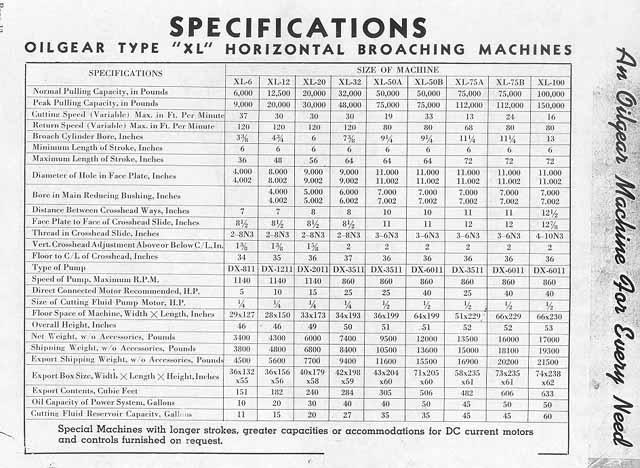

| Normal Pulling Capacity | 50000 pounds |
| Peak Pulling Capacity | 75000 pounds |
| Cutting Speed (Variable), Max. | 15-30 FPM |
| Return Speed (Variable), Max. | 80 FPM |
| Broach Cylinder Bore | 9-1/4" |
| Minimum Length of Stroke | 6" |
| Maximum Length of Stroke | 120" |

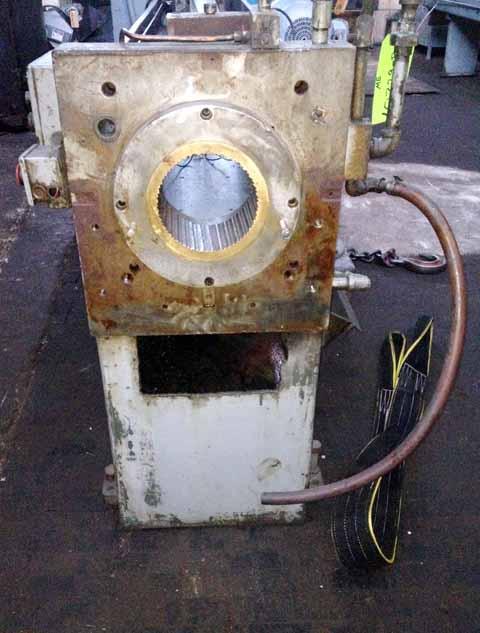

| Diameter of Hole in Face Plate | 11" |
| Bore in Main Reducing Bushing | 7" |
| Distance between Crosshead Ways | 10" |
| Face Plate to Face of Crosshead Slide | 11" |
| Vertical Crosshead Adjustment Above or Below C/L | 2" |
| Floor to C/L of Crosshead | 36" |
| Direct Connect Motor Recommended | 40 HP |
| Actual Dimensions without retriever | 306" x 70" x 78" |
| Actual Dimensions with retriever | 476" x 70" x 78" |
EQUIPPED WITH
Variable Speed Cutting And Return Stroke. Variable Length Of Stroke. 11" Diameter Hole In Work Face Plate. Retriever/Follower Unit. Spiral Attachment for Rifling or Helical Broaching. Oilgear Hydraulic Pump. Lever Activation.
This machine is being offered cleaned and cycled. It can be inspected under power in the Detroit area at your convenience.
