25 Ton, Press master #20x24, 4-post hydraulic press, pressure gauge / regulator, #153073

Manufacturer Press Master
Model 20X24
Ton 25.0
Stock # 153073

For Sale by Machinery Values Inc

Gold Level Dealer
Surplus Record Dealer Since 2011

Description

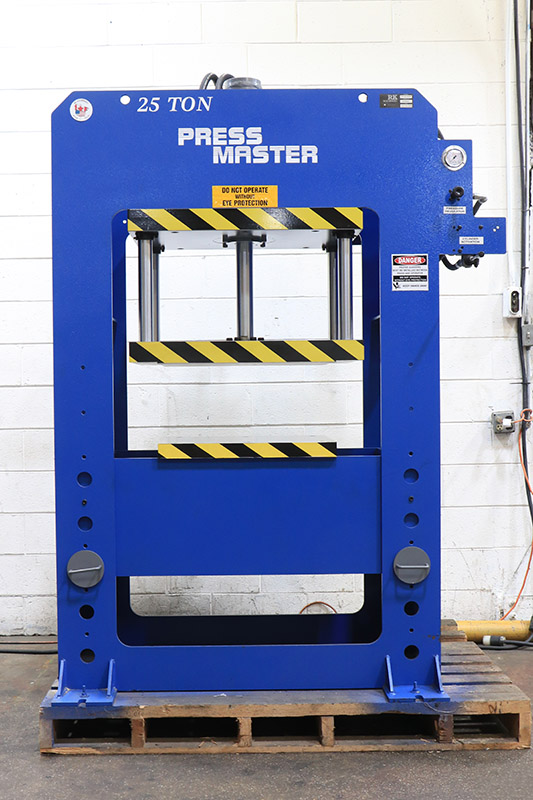

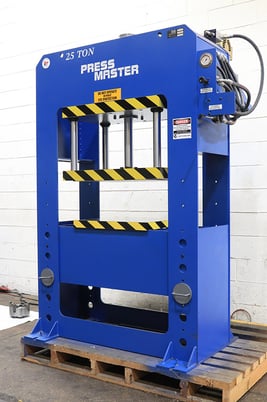

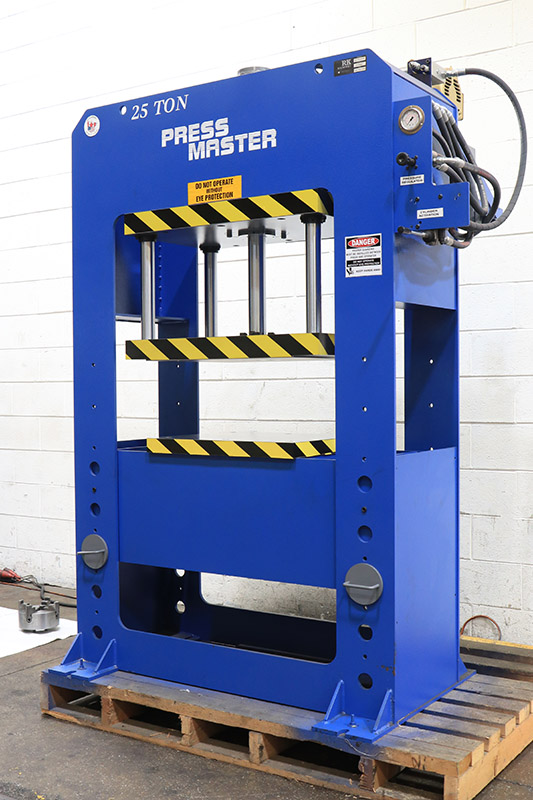

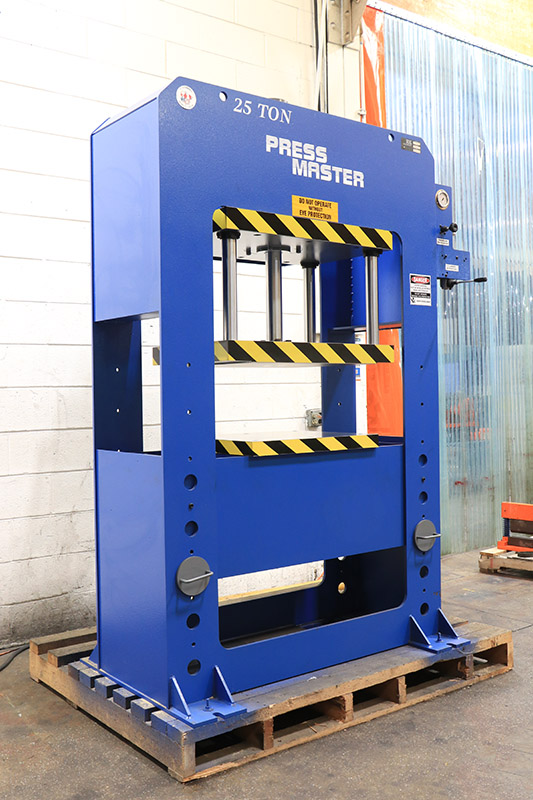

25 TON PRESSMASTER 4-POST HYDRAULIC PRESS


TONS OF FORCE ......(MAX).................... 25 TONS

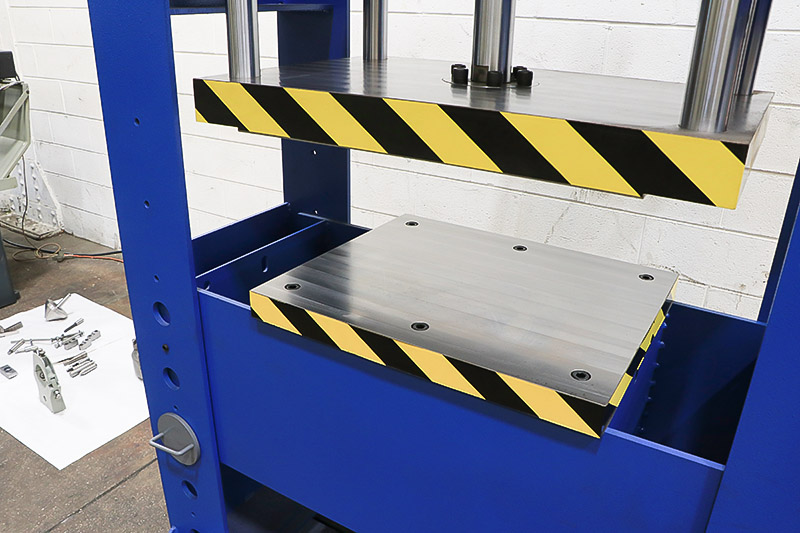

TABLE ..............(FB X LR)................ 20" X 24"

UPPER PLATEN .......(FB X LR)................ 20" X 24"

OVERALL DISTANCE BETWEEN POSTS (L-R)......... 36"

OVERALL DISTANCE BETWEEN POSTS (F-B)......... 18-3/4"

DAYLIGHT ADJUSTABLE FROM APPROX.............. 8"-32"

STROKE ...................................... 1"-12"

APPROACH SPEED .............................. 52 IPM

PRESS SPEED ................................. 24 IPM

RETURN SPEED ................................ 75 IPM

MOTOR HP .................................... 5 HP


VOLTAGE: 208-230 / 480 VOLT


STANDARD FEATURES:

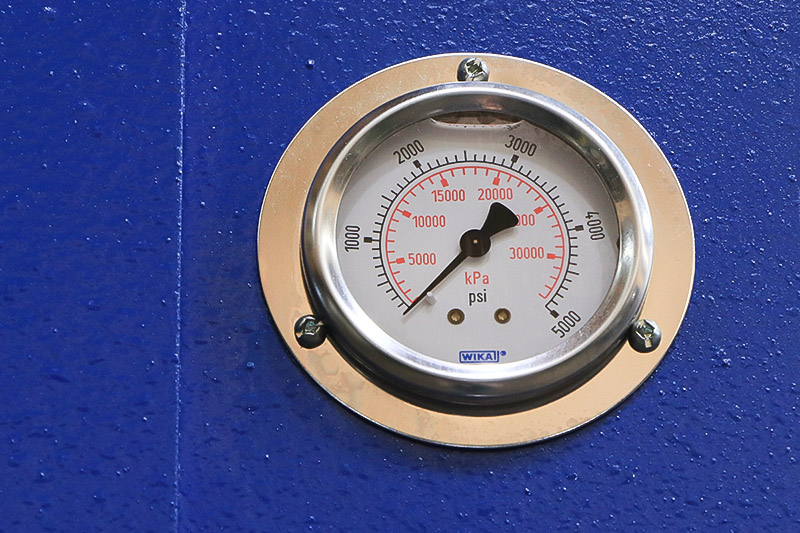

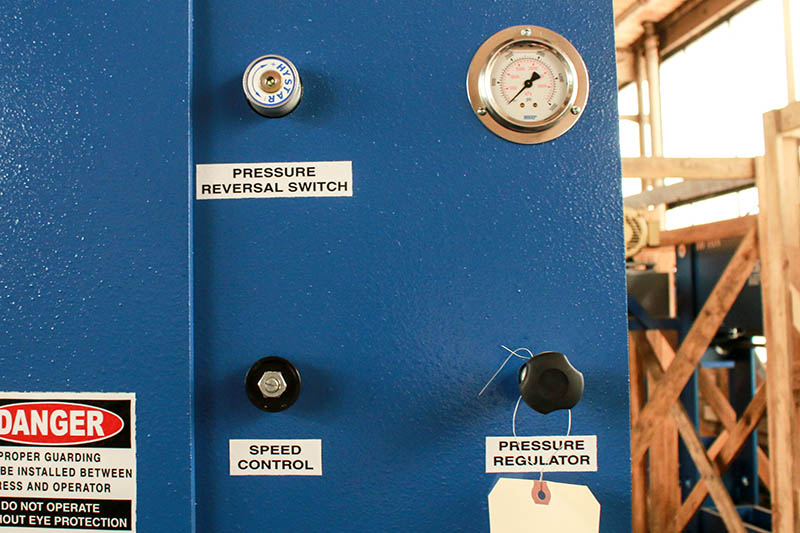

- PRESSURE GAUGE

- PRESSURE REGULATOR

- CYLINDER ACTIVATION IS FINGER TIP CONTROLLED, THE MORE THE HANDLEVER IS ENGAGED THE MORE THE RAM MOVEMENT INCREASES, ALLOWING THE OPERATOR TO USE THE PROPER SPEED FOR THE TASK.

- RAM TRAVEL IS GUIDED BY 4 PRECISION-GROUND CHROMED RODS

- QUALITY BALDOR MOTOR, LOW SPEED

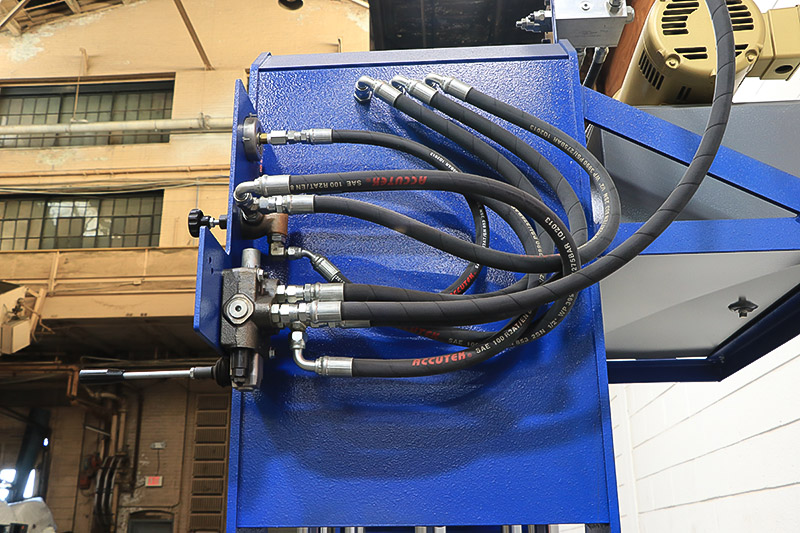

- ALL HYDRAULIC AND MECHANICAL PARTS ARE STANDARD IN THE INDUSTRY, AND AVAILABLE THROUGHOUT NORTH AMERICA


APPROX. WEIGHT ...................................... 4,000#

APPROX. SHIPPING DIMENSIONS ......................... " x " x "
