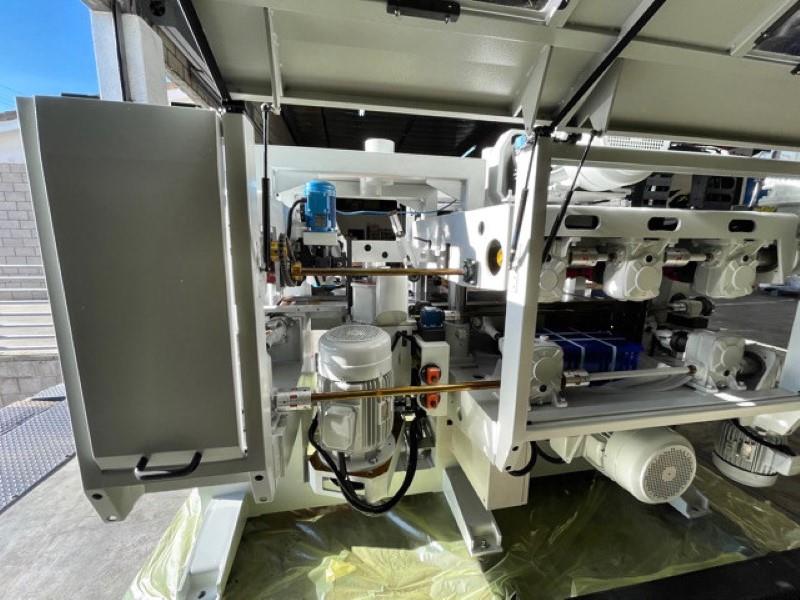

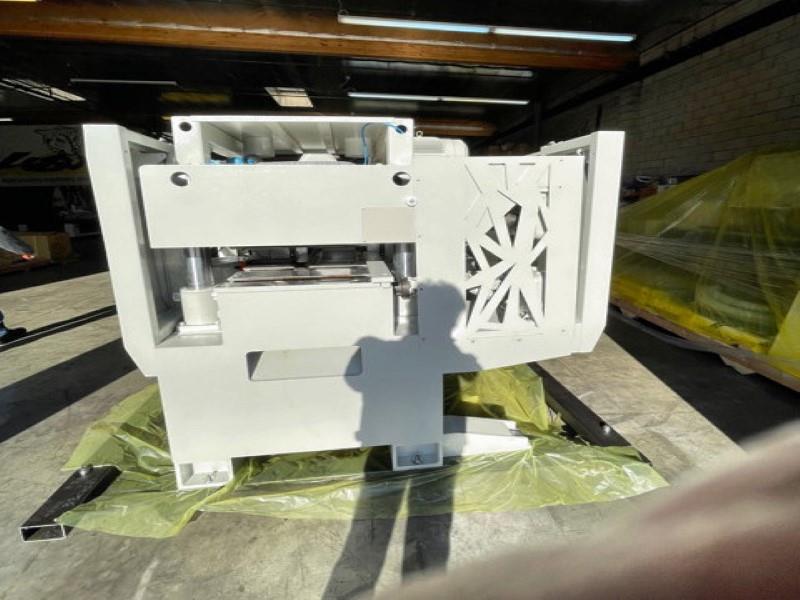

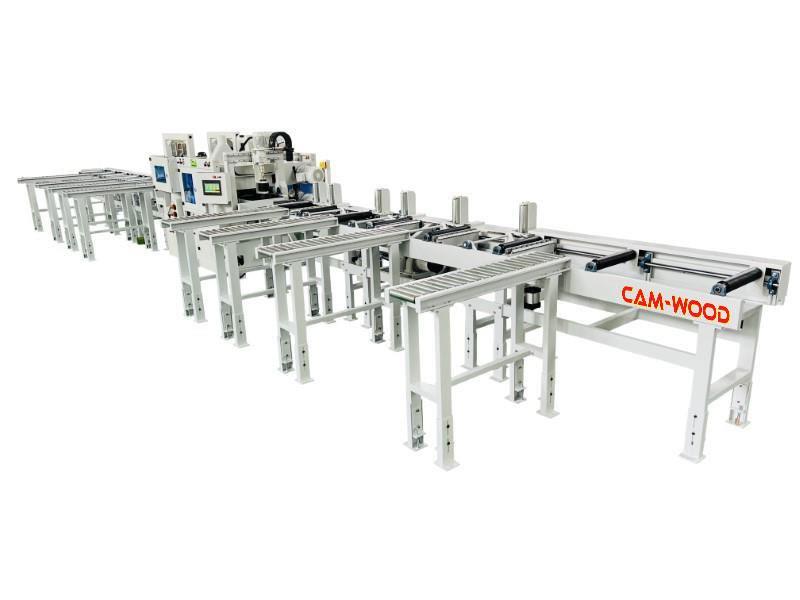

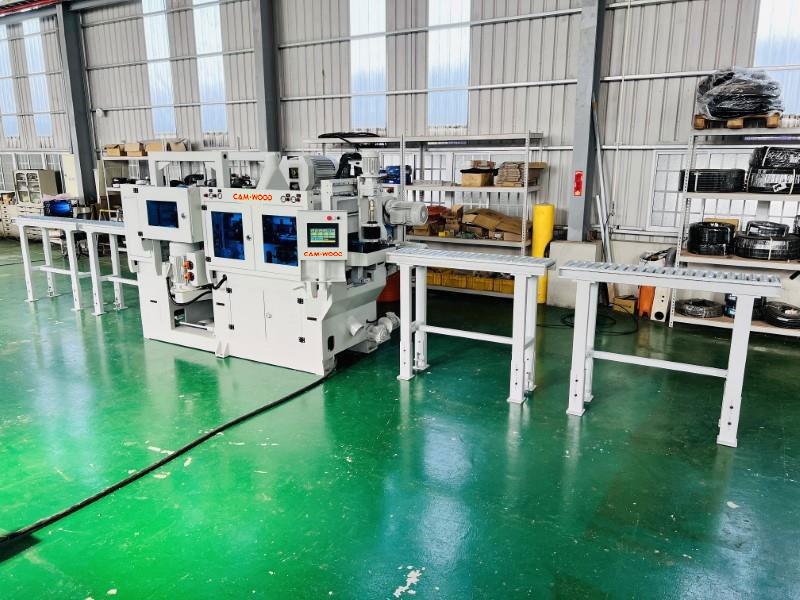

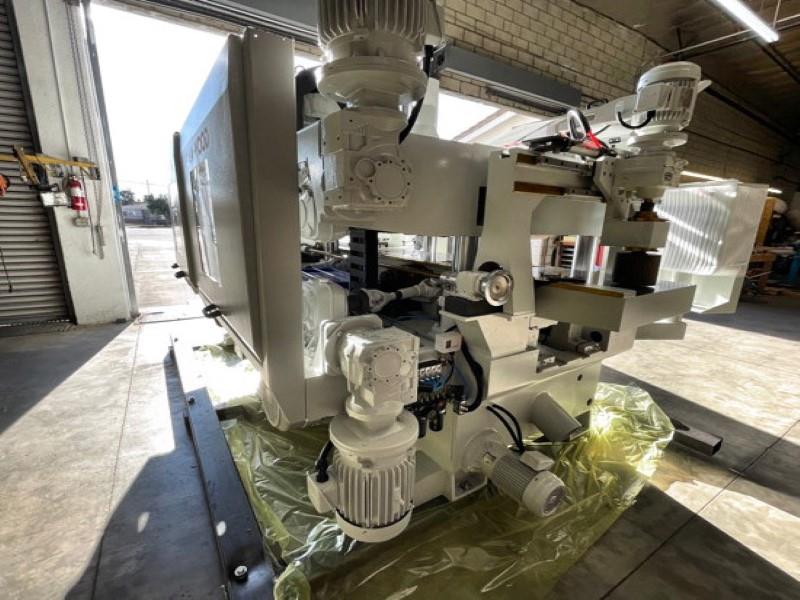

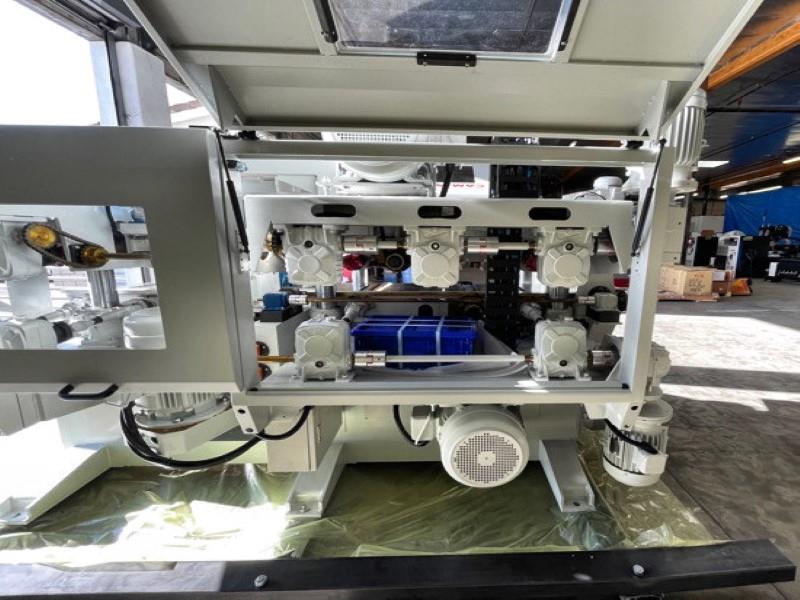

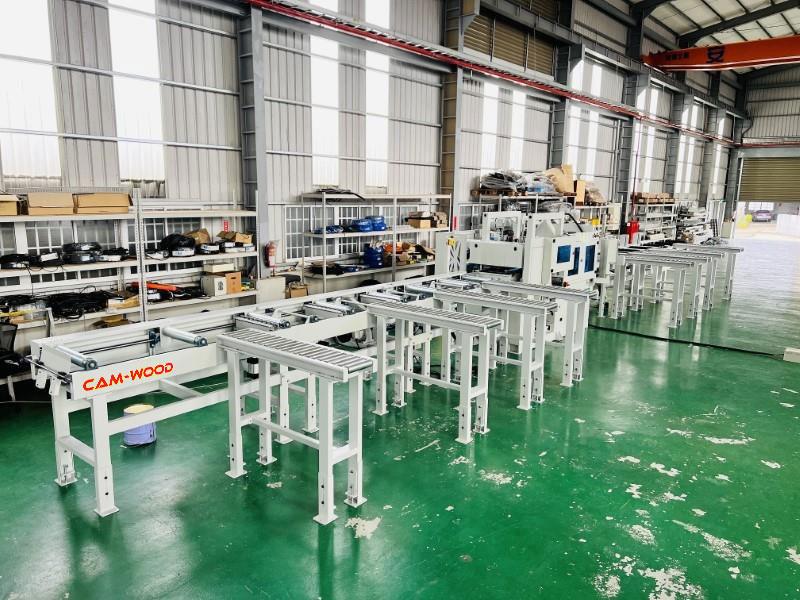

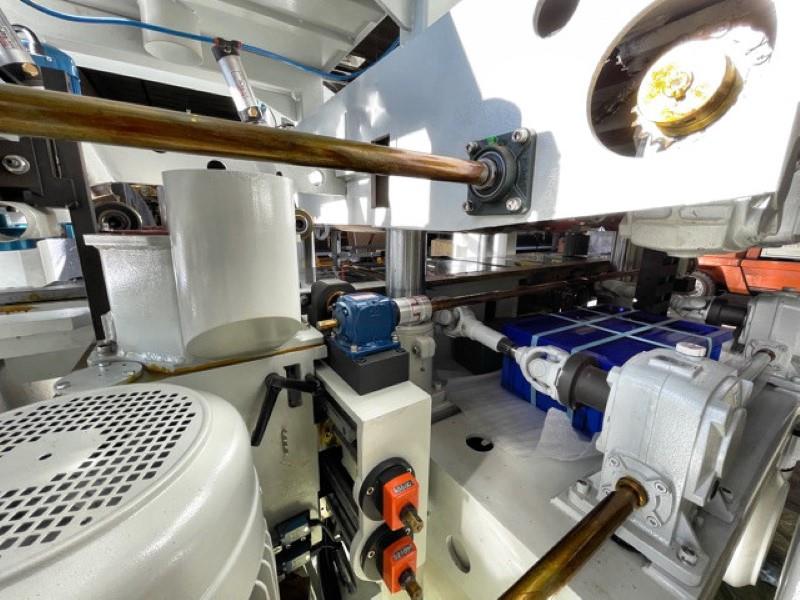

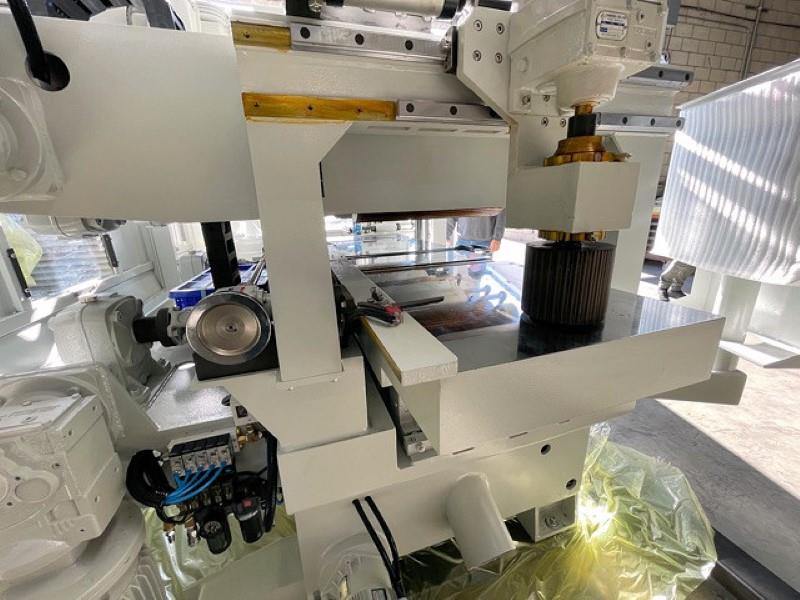

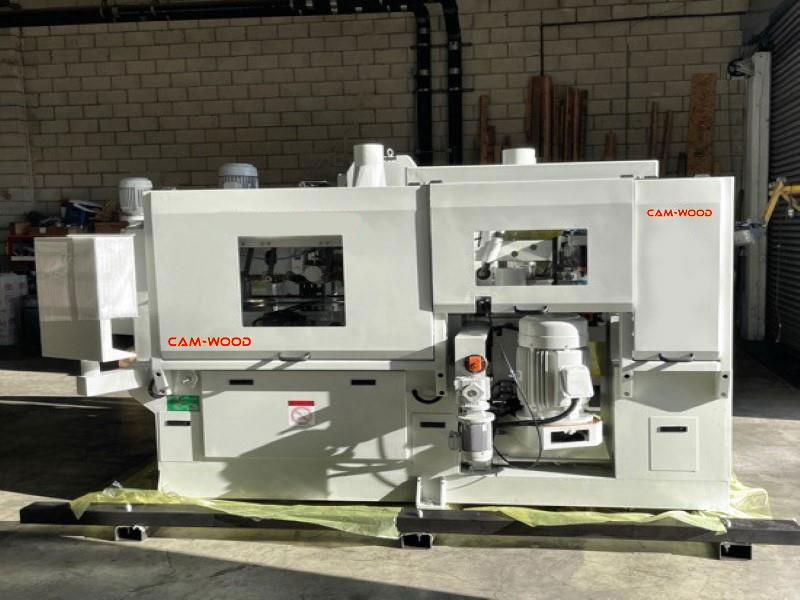

25" x 6" Cam-Wood #WP-4S-650 2CX, 4-Sided Beam Planer, 65 FPM, 15 HP top, 20 HP bottom, 5" or 6" cutter head diameter, 2026, new

$255,500 USD

Request Formal Quote

CAM-WOOD MODEL WP-4S 650 2C 25"-20 4-SIDED PLANER WITH MOULDING CAPABILITIES: Designed for heavy furniture, cabinet, flooring, intermittent planing millwork, and other industrial uses. Perfect Planer for S2S and S4S planing up to 16" high x 25" wide timbers, tongue & groove flooring, wall paneling, etc. up to approximately 75 FPM depending on depth of cuts and dimensions of parts.SPECIFICATIONS: -- Width capacity from 2-3/4"; to 25";. -- Thickness capacity from 3/4"; to 20";. -- Feed speeds variable from 18 to 65 FPM -- 30 HP Bottom head motor -- 30 HP Top head motor -- 20 HP Left (outside) spindle motor -- 20 HP Right (inside) spindle motor -- 1/2 HP motors on right & left champhering (top eased edge) spindles -- (2) X 7.5 HP feed motor -- 5"; dia. top and bottom cutterheads -- 5"; or 6"; dia. right & left cutterheads -- 60 mm (2.362";) dia. spindles on top and bottom heads -- 40 mm (1.574";) dia. spindles on top and bottom heads -- 30 mm (1.181") champhering spindles -- 15 x 15 x 2.5 mm insert knives -- (4) Dust outlets, each 6"; diameter -- Planer measurements: 110"; long x 91"; wide x 94"; high -- Planer weighs 19,500 Lbs. FEATURES: -- Compact construction with planing and moulding capabilities; provides flexible performance at an affordable price -- Equipped with a digital controller to set thickness & width automatically -- Rigidly mounted alloy steel spindle with outboard bearing support for accurate, vibration-free planing surfaces on horizontal spindles -- Spindle height adjustment by precision rack & pinion gear sets. -- Bedplates are precision ground, chrome-plated and polished to a mirror finish; provide a smooth, wear-resistant surface -- Variable speed inverter control for smooth feed speed adjustment depending on lumber hardness, depth of cut & width. Speed adjusts to provide the best finish and highest speed for best overall performance. -- Feed rolls are driven by geared transmission boxes and drive shafts with heavy-duty universal joints and drive shafts; provide smooth, even feeding for rough or finish planing -- Heavy fabricated steel plate frame, heated and stress relieved for vibration-free finishes, supports the worktable and helps dampen vibration for a superior finish. Ensures years of dependable service -- Industrial-grade, standard off-the-shelf motors for maximum cutting capacity and ease of service -- Bearings are precision, sealed, long-life bearings for durability and service life -- Removable cutterheads on all spindles, designed for convenient knife changing or rotating, including the bottom head. -- Changing or rotating knives on the top head only requires removal of the dust hood -- 4-Row spiral insert knife head design allows fast, accurate insert knife changes and minimum down time. Uses standard 15 x 15 x 2.5 mm insert knives -- Minimized setup time on top head when using the auto material thickness device -- All cutter heads are precision balanced to provide consistently smoo
