For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!
Description

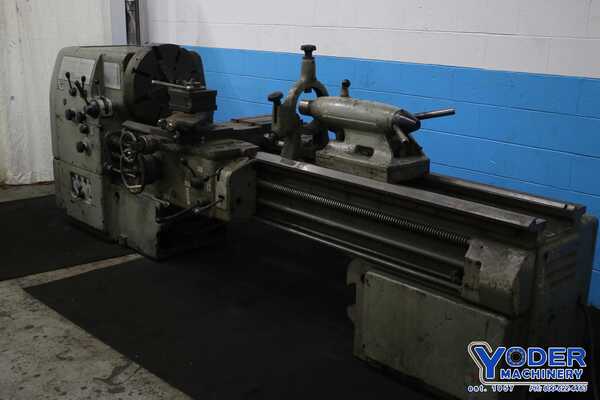

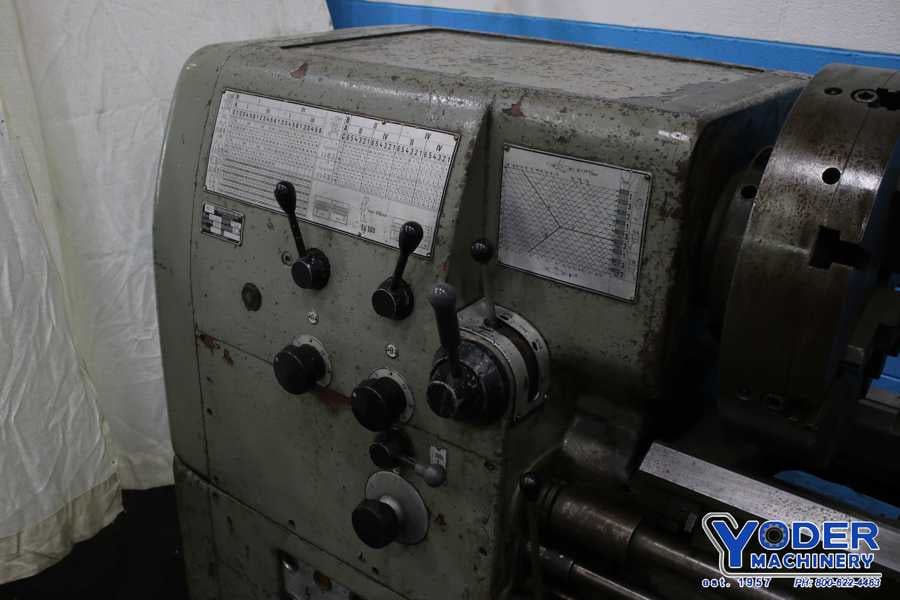

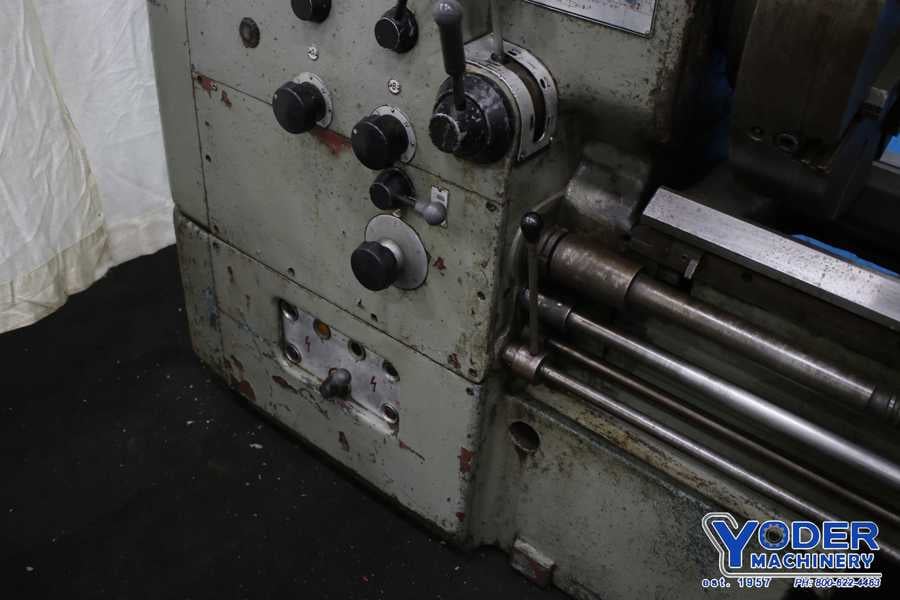

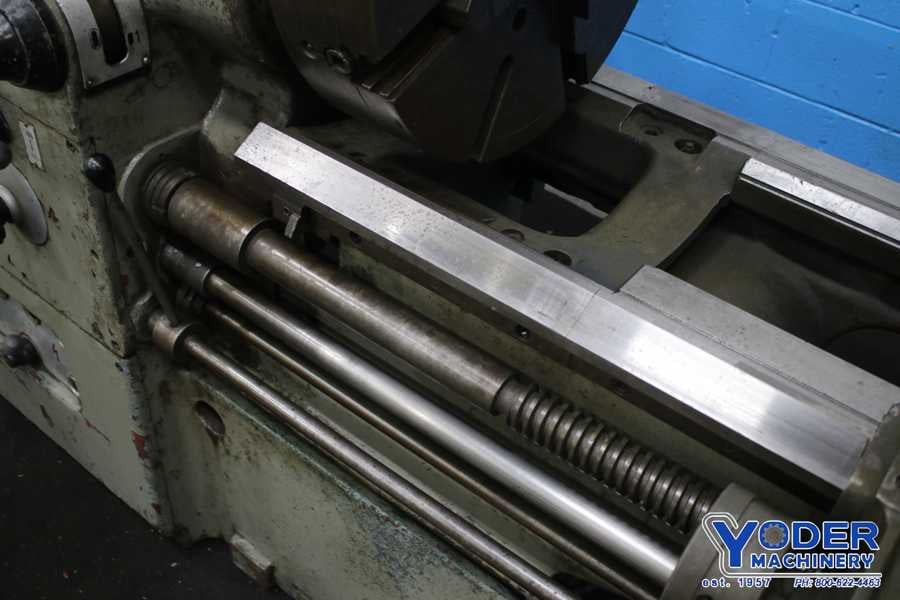

HUNGARIAN 24 X 72" MODEL EU500 ENGINE LATHE
SERIAL NUMBER ............................. 42157
SWING OVER THE BED WAYS ................... 24" DIA
SWING OVER THE CROSSFEED .................. 14" DIA
DISTANCE BETWEEN CENTERS .................. 72"
HOLE IN THE SPINDLE ....................... 2-7/8"

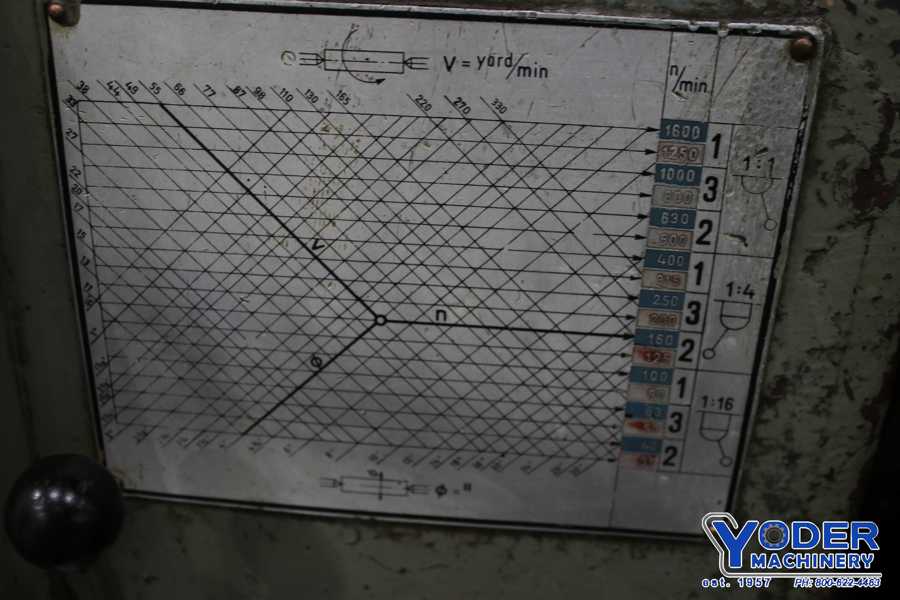

SPINDLE SPEEDS ............................ 18-31 TO 1600 RPM
CARRIAGE FEEDS ............................ 72-.0035MM TO .7880MM
CROSS FEEDS ............................... 72-.0014MM TO .3200MM

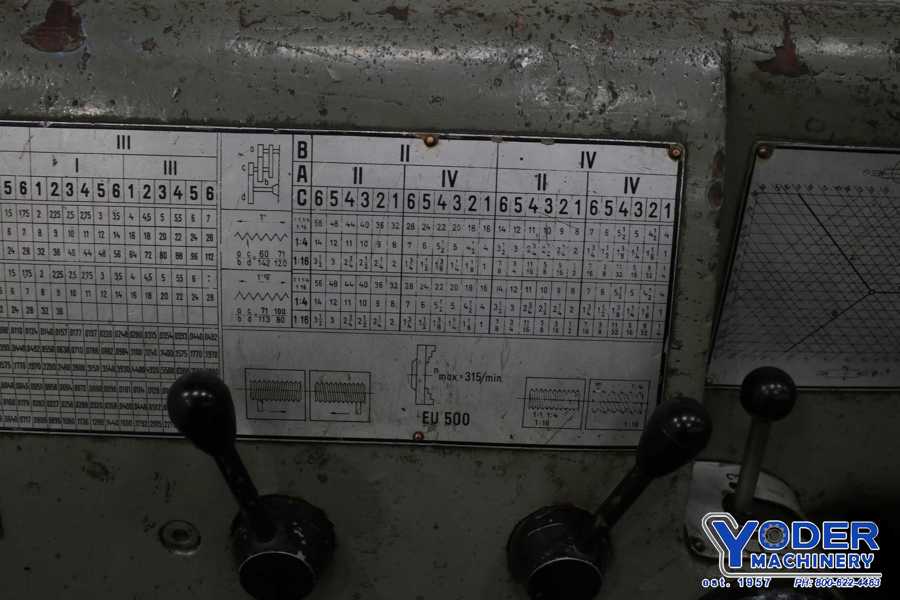

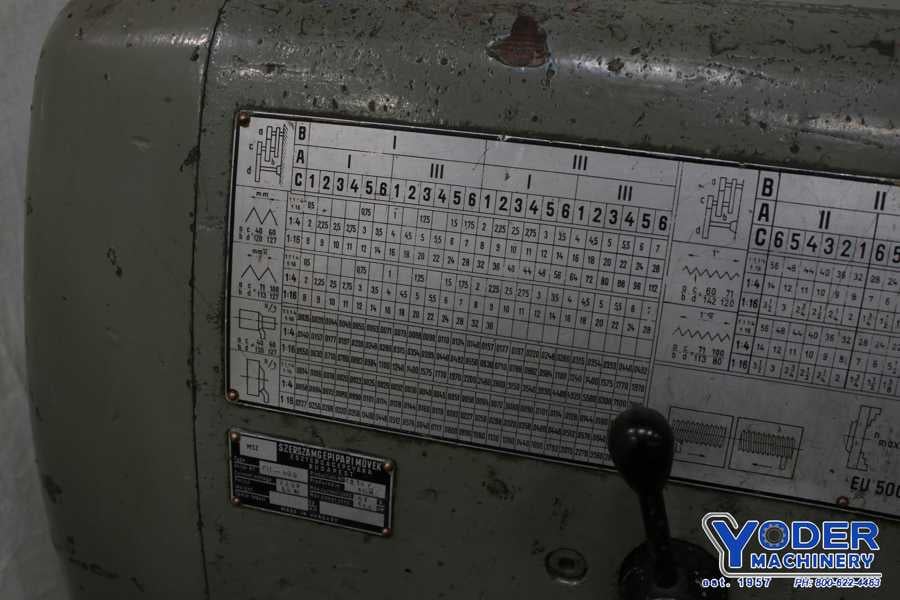

THREAD PITCHES ............................ 54- 56 1/4-56 TPI

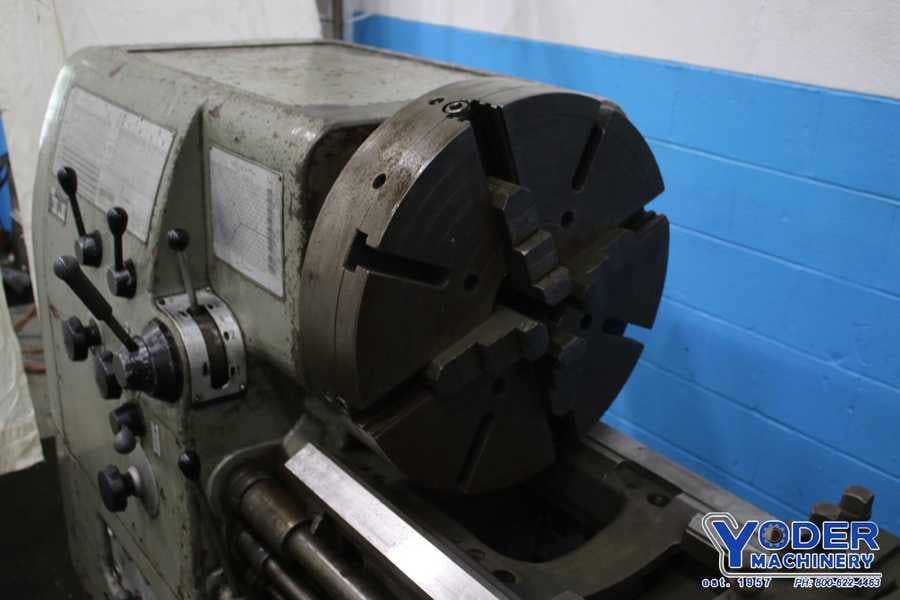

CHUCK ..................................... 20" FOUR JAW
TAPER ATTCHMENT ........................... YES

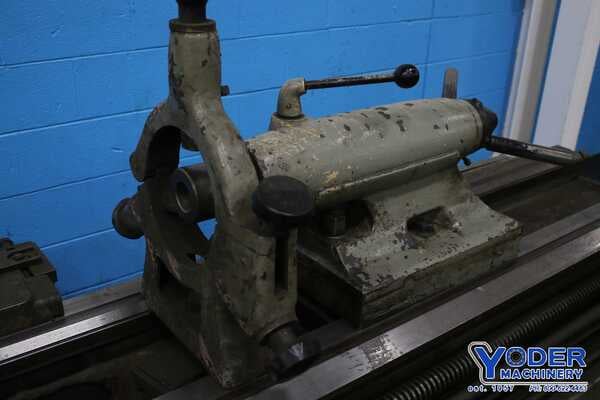

STEADY REST ............................... 2

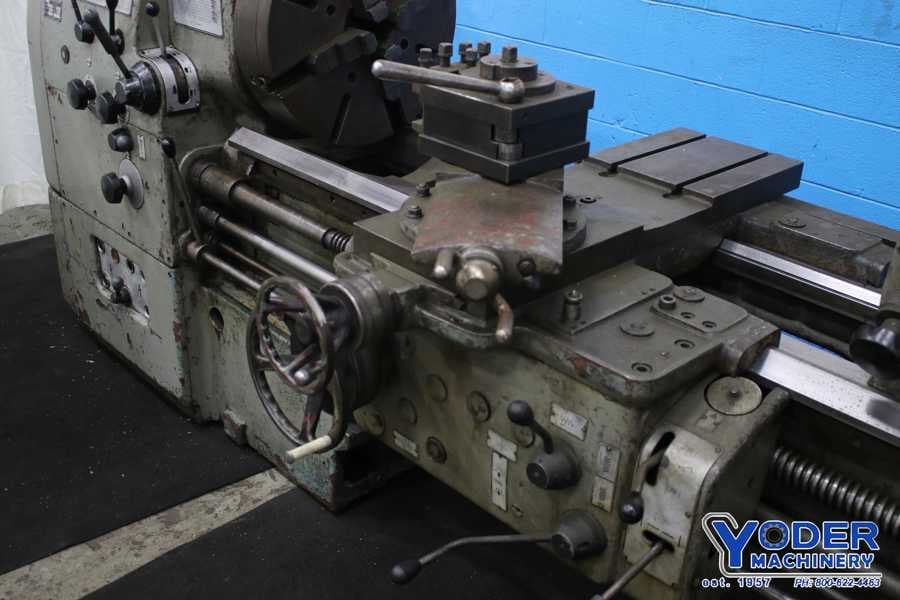

TOOL POST ................................. 4 WAY SQUARE
MOTOR ..................................... 15.6 KW
VOLTAGE ................................... 220/3/60HZ
SERIAL NUMBER ............................. 42157
SWING OVER THE BED WAYS ................... 24" DIA
SWING OVER THE CROSSFEED .................. 14" DIA
DISTANCE BETWEEN CENTERS .................. 72"
HOLE IN THE SPINDLE ....................... 2-7/8"
SPINDLE SPEEDS ............................ 18-31 TO 1600 RPM
CARRIAGE FEEDS ............................ 72-.0035MM TO .7880MM
CROSS FEEDS ............................... 72-.0014MM TO .3200MM
THREAD PITCHES ............................ 54- 56 1/4-56 TPI
CHUCK ..................................... 20" FOUR JAW
TAPER ATTCHMENT ........................... YES
STEADY REST ............................... 2
TOOL POST ................................. 4 WAY SQUARE
MOTOR ..................................... 15.6 KW
VOLTAGE ................................... 220/3/60HZ
Get Your Price from Yoder Machinery Sales!
