Manufacturer: Okamoto
Model: ACC-2460ST
Year: 2000
Width/Cross: 24.0
Length/Longit.: 60.0
Stock # 178787
1 / 6
Click to zoom in
1 / 6
For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

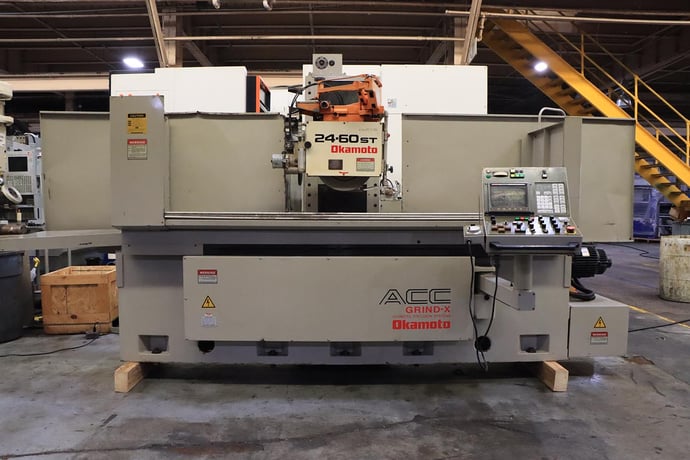

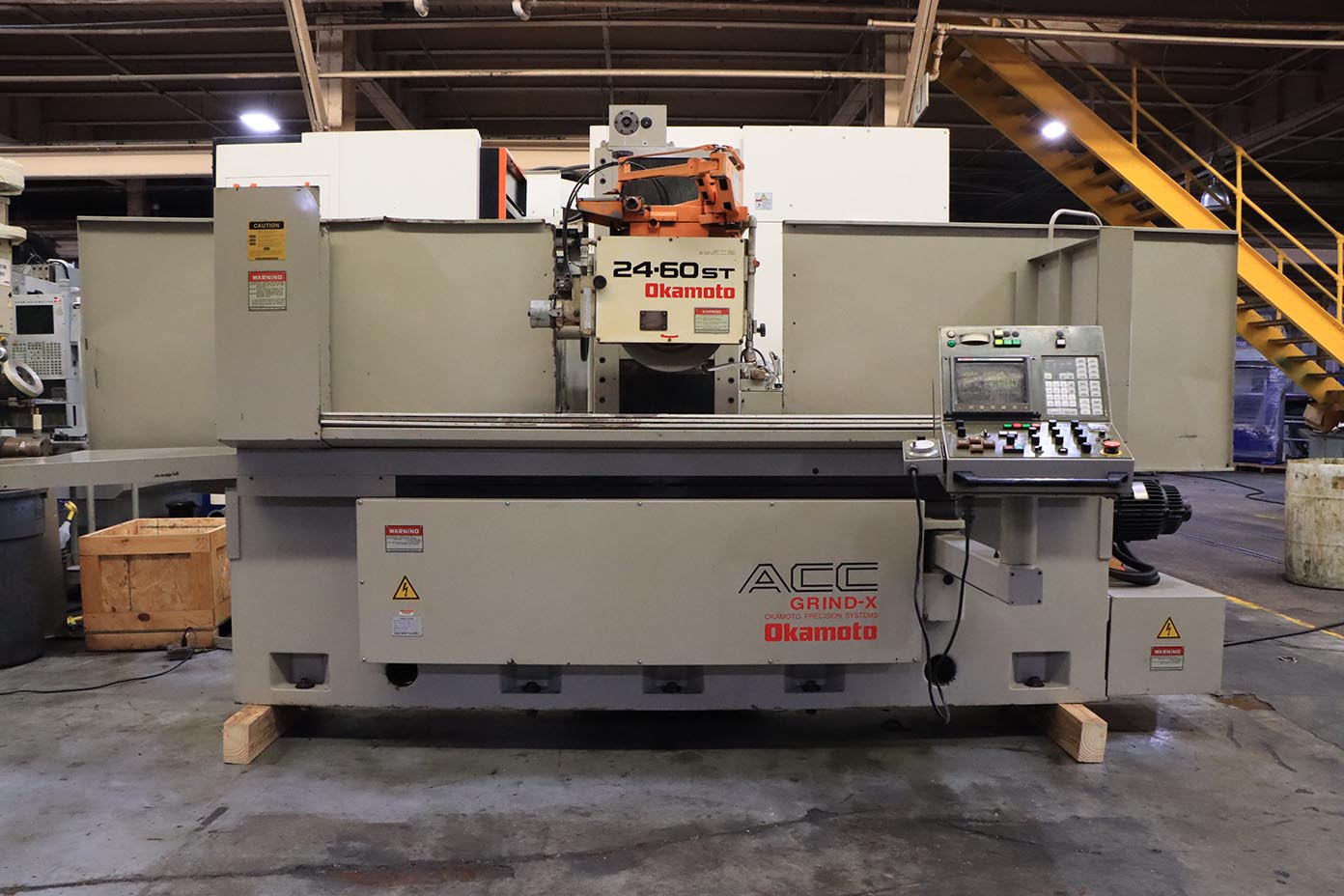

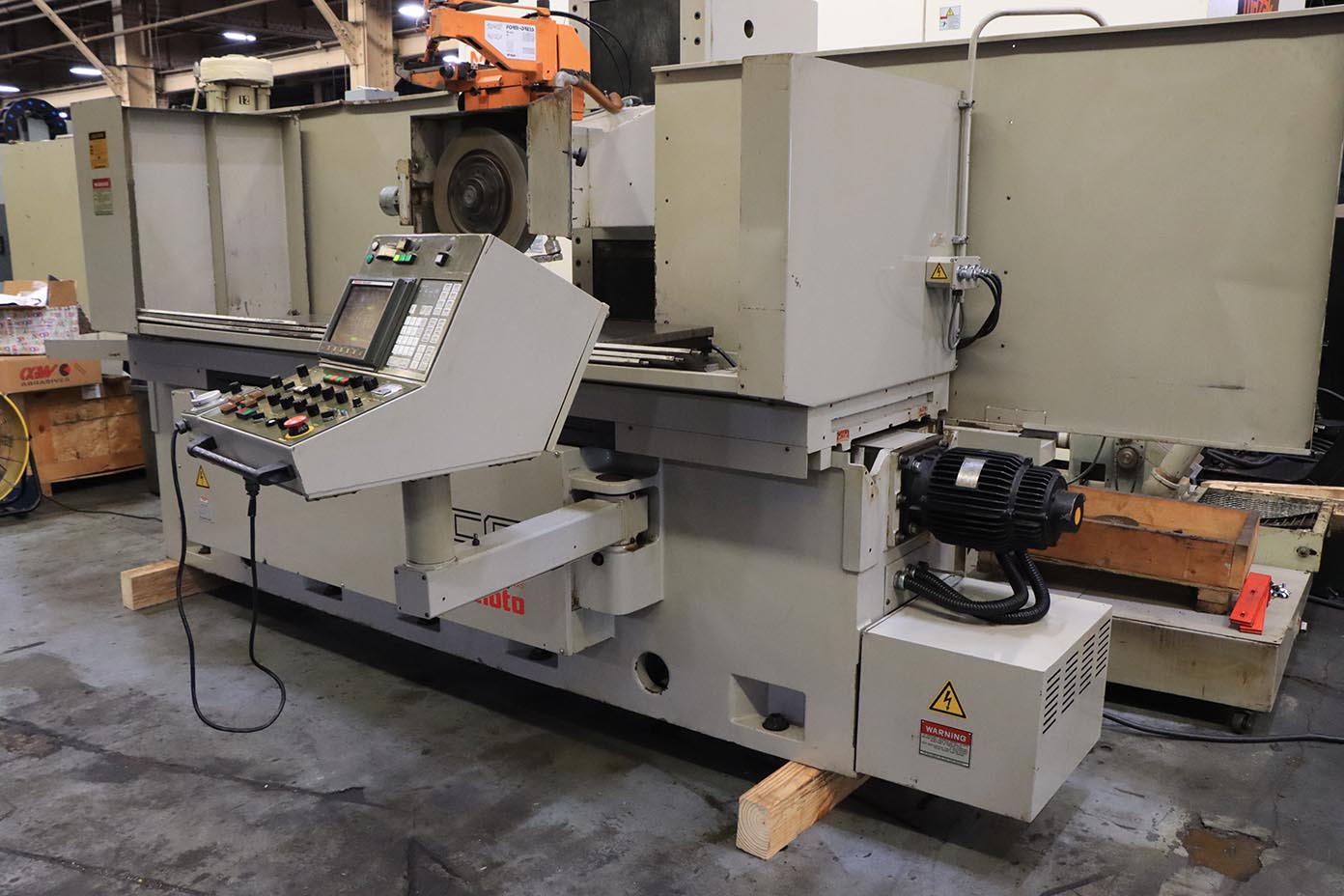

24" x 60" OKAMOTO (MADE IN JAPAN)
COLUMN TYPE SURFACE GRINDER
WITHFANUC 21-G PROGRAMMABLE CONTROL
** ALL THREE AXES ARE DRIVEN BY
SERVO MOTORS… BALLSCREWS **
MODEL: ACC-2460ST… S/N: 40017… NEW: 2000
SPECIFICATIONS:
MAX GRINDING SURFACE ............ 24" x 61"
MAX CAPACITY UNDER 20" WHEEL .... 23.6"
STANDARD CHUCK SIZE ............. 24" x 60" x 4.3"
MAX TABLE LOAD ..................″.300 LBS
LONGITUDINAL FEED:
MAX TRAVEL ...................... 65"
FEED RATE ....................... 6.6 - 82FT/MIN.
CROSSFEED:
MAX TRAVEL ...................... 26"
AUTO FEED TRAVEL ................ 26"
RAPID FEED RATE ................. 16.5 FT/MIN.
MANUAL FEED:
HAND FEED/REV(X1/X5/X20) ...... 0.01"/0.05"/0.2"
HAND WHEEL GRAD(X1/X5/X20) ... 0.0001/0.0005"/0.002"
AUTO FEED:
ROUGH INFEED .................... 0 - 0.0025"
FINE INFEED ..................... 0 - 0.0005"
FINE GRINDING ALLOWANCE ......... 0 - 0.002"
AIR-CUT FEED RATE(ROUGH/FINE) ... 0 - 999,99999
NUMBER OF SPARK OUTS ............ 0 - 5
GRINDING WHEEL INFO:
GRINDING WHEEL (D x W x B) ...... 20" x″" x 8"
SPINDLE SPEED ................... 1,100 RPM
MOTORS:
WHEEL SPINDLE ................... 20 HP
HYD OIL PUMP FOR DRESSER ........ 0.5/2HP
VERT FEED(AC SERVO MOTOR) ....... 1.2 HP
CROSSFEED(AC SERVO MOTOR) ....... 1.2HP
DIMENSIONS… WEIGHT:
FLOOR SPACE (W x D x H) ...... 214" x 107" x 99"
APPROXIMATE WEIGHT .............. 23,100 LBS.
EQUIPPED WITH:

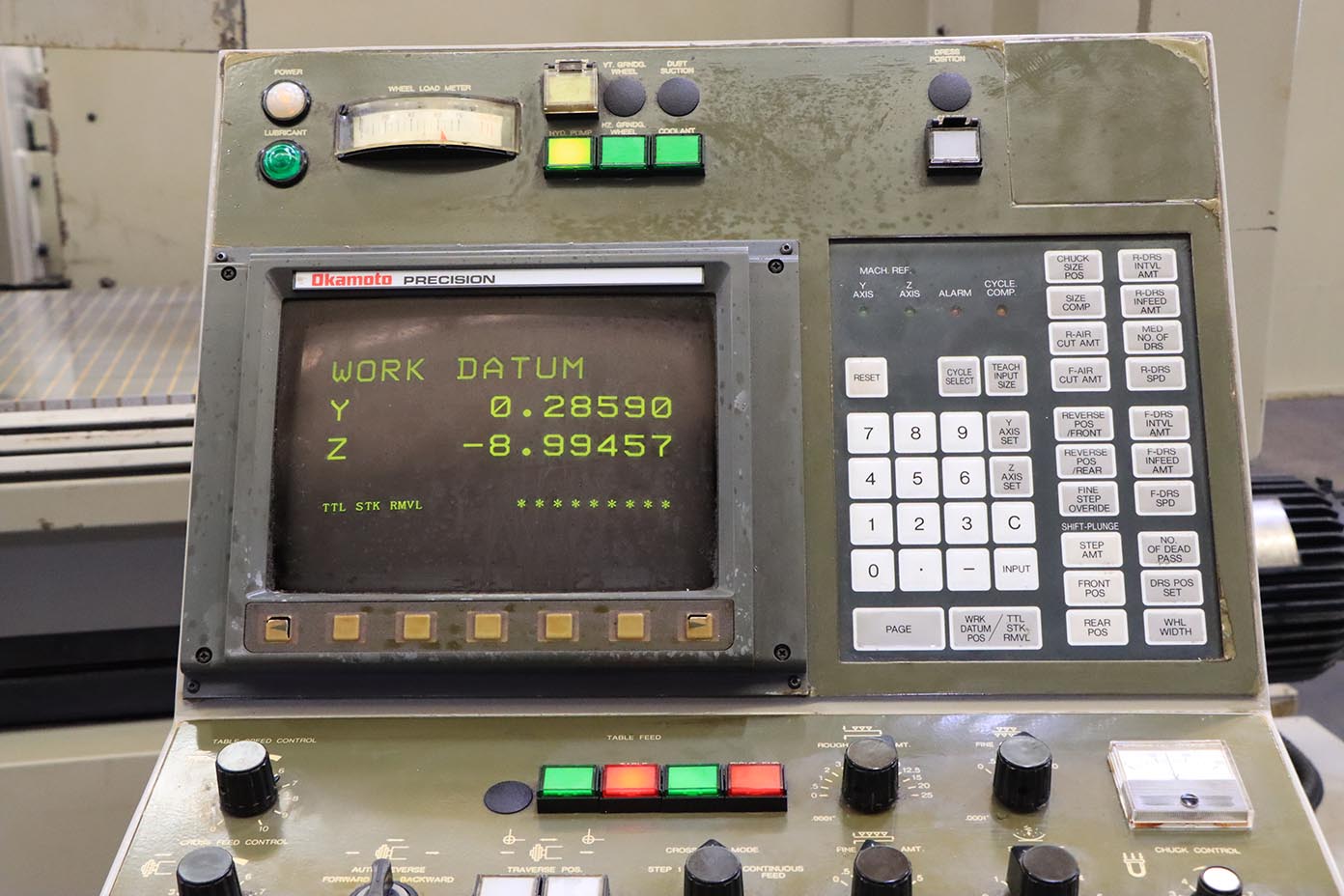

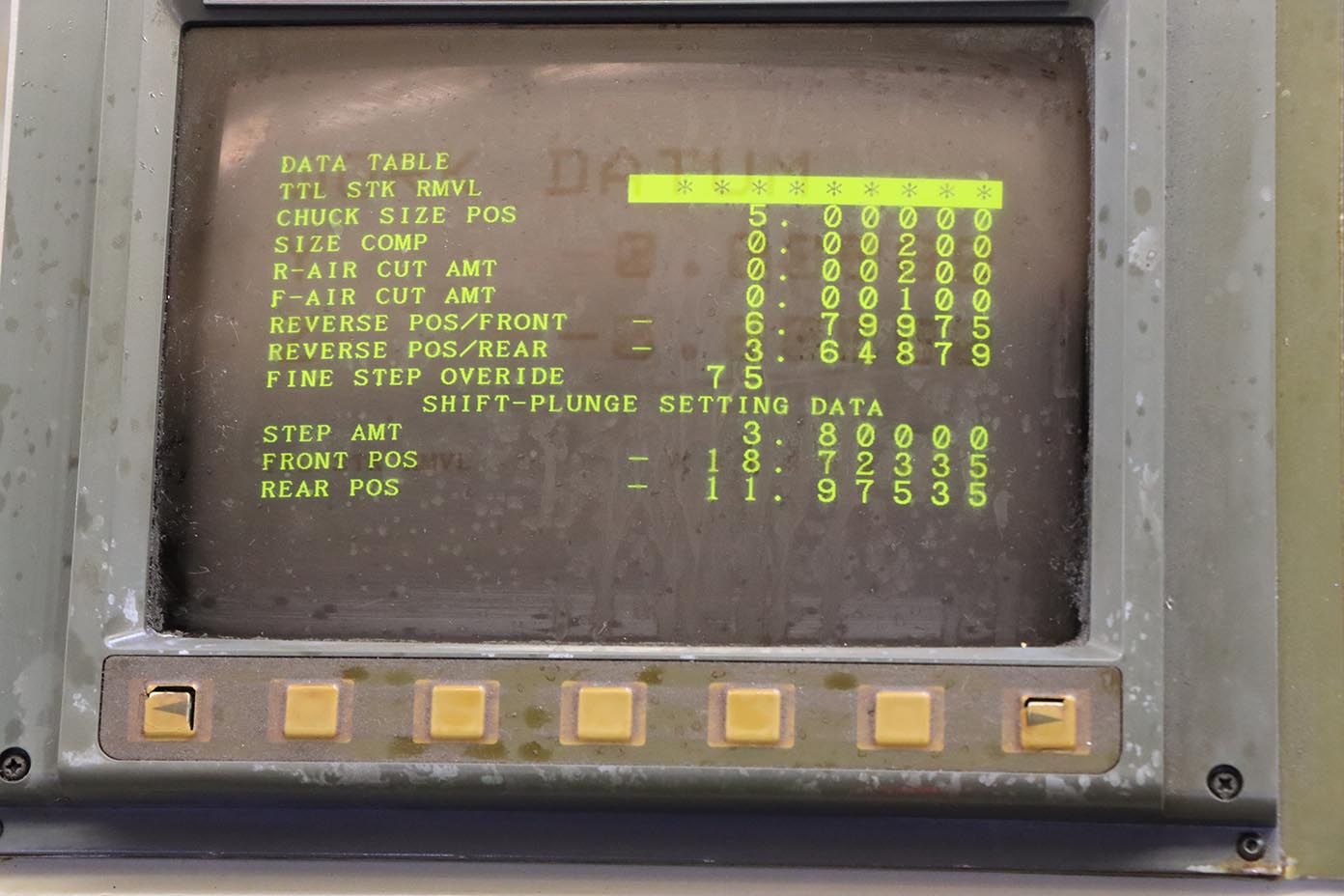

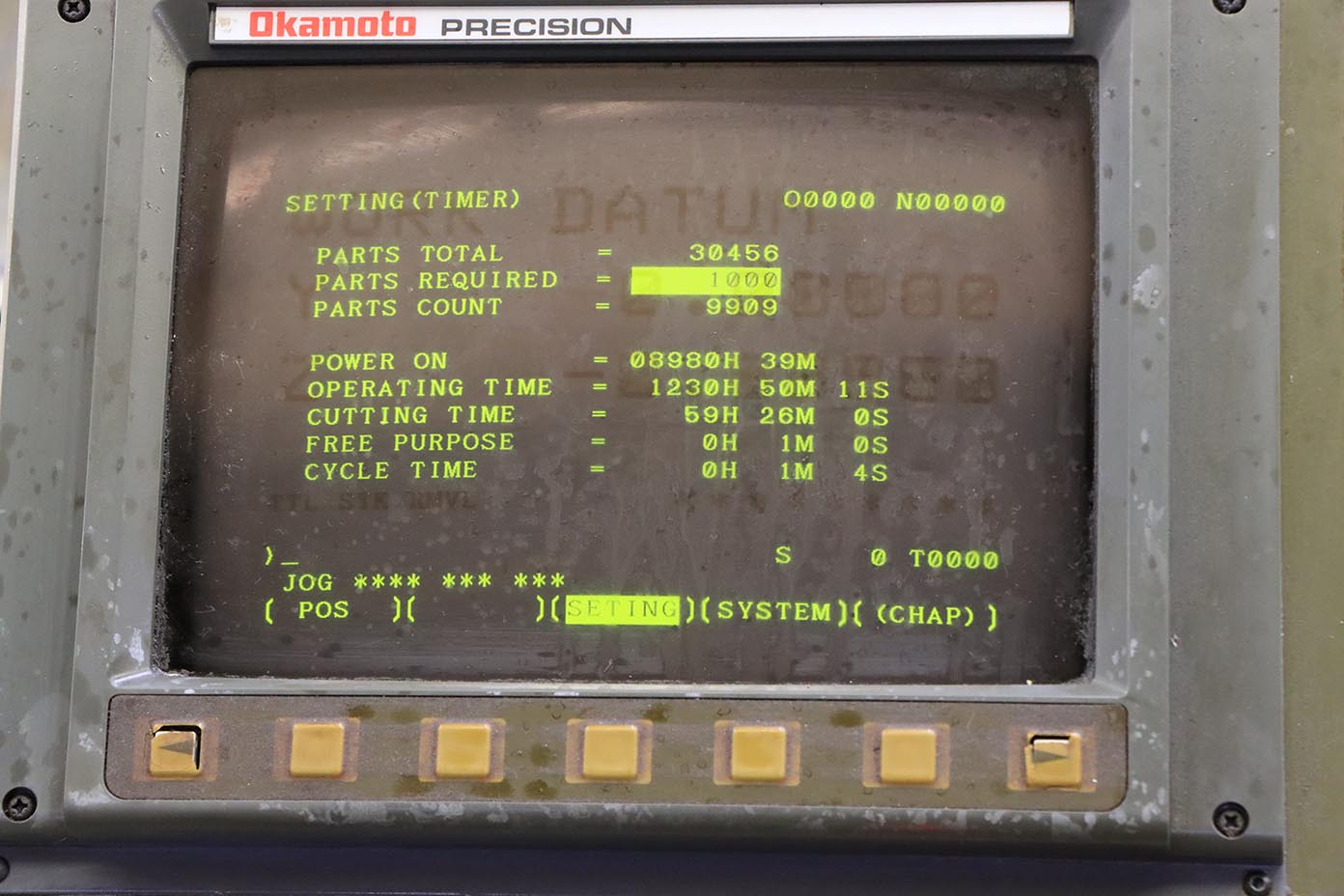

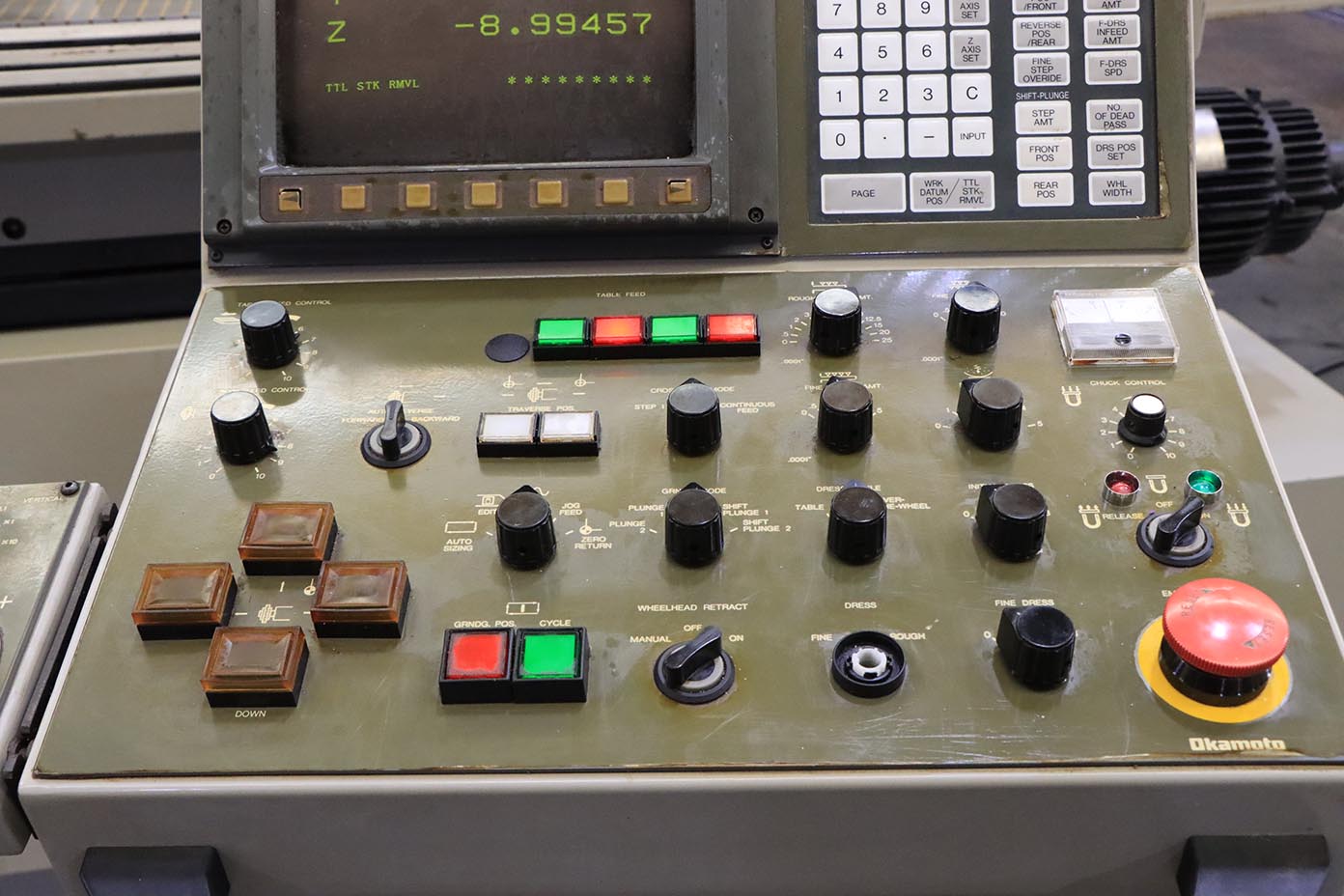

FANUC 21-G MDI CONTROL
ALL THREE AXES ARE DRIVEN BY SERVO NOTORS… BALLSCREWS
RAPID APPROACH… RETRACT TO START POSITION
VERTICAL… CROSS MANUAL PULSE GENERATOR
RAPID FEED UP& DOWN
ROUGH& FINE GRINDING CYCLES
TRAVERSE,PLUNGE,SHIFT PLUNGE GRINDING CYCLES
BALL SCREWS ON ALL THREE AXES
23- 5/8" (500mm) x 59-″/16" (800mm) ELECTRO MAGNETIC
CHUCK… CHUCK CONTROLLER
OVER-THE-WHEEL FORM DRESSER, MANUAL TYPE,
MADE IN SWITZERLAND
POWER WHEEL DRESSER, MOUNTED ON THE SIDE OF THE
GRINDING WHEEL HOUSING
LARGE COOLANT SYSTEM WITH PAPER FILTRATION
MACHINE IS PRESENTLY WIRED FOR″/60/480 VOLTS
** EXCELLENT CONDITION… APPEARANCE… **
** - ORIGINAL PAINT **
Link to video: https://youtu.be/R9WO2MAYqWY?si=cYPISrirICujqHwJ
** LOCATED IN OUR HARRISON, NJ WAREHOUSE **
** INSPECT UNDER POWER **
