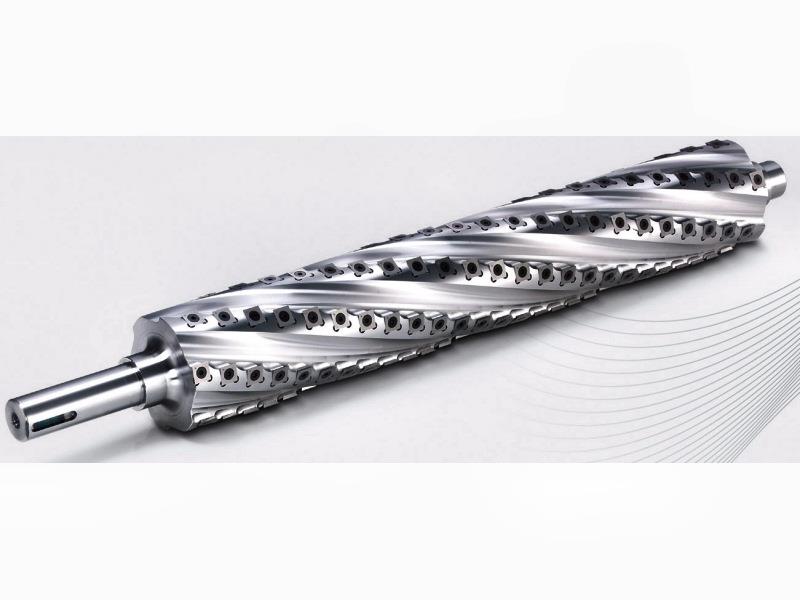

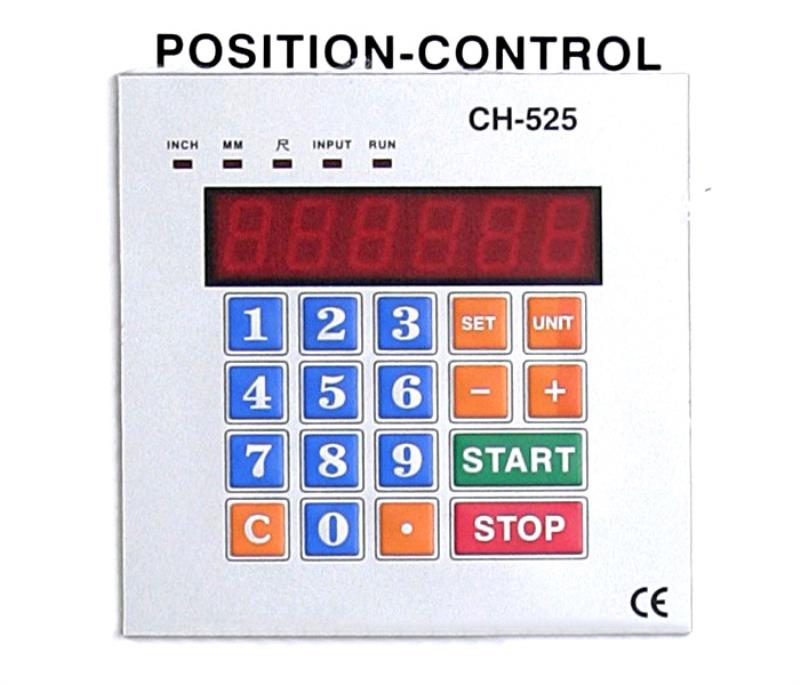

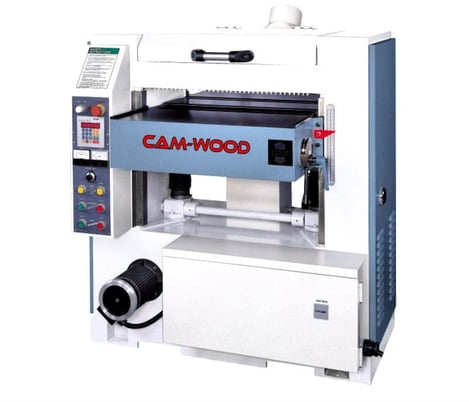

CAM-WOOD WP-610A Single-Sided Planer 10 HP - 24" Cap. Features: -- 24" Spiral cutter head provides precise, efficient planing with low noise levels. -- Automatic digital thickness controller for quick & accurate setting. -- Motorized worktable raises & lowers by separate motor for more efficient operation. -- Specially designed infinitely variable feed system is powered by a separate motor and allows adjustment to the optimal feed rate for planing to a precise smooth finish on both hard or softwoods. -- The sectional infeed roller & anti-kickback device & chip breaker gives the operator greater safety. -- Up to 8"; thickness large cutting capacity. -- Exhaust dust hood with 4"; dia. outlet for proper chip extraction. -- The motorized worktable includes twin quick adjustable bed rollers that can be adjusted for rough & finish planing on damp or dry lumber ensuring a consistently smooth planed finish. -- Precision sealed long-life ball bearing. -- Industrial motor for powerful cutting capacity. Heavy gauge sheet metal frame and base for maintenance-free service.Specifications: -- Table area 25" x 28". -- Max. planing width 24". -- Feed Speed (Var.) 15 ~ 60 FPM. -- Max thickness 8'' and min. Planing Thickness 1/8". -- Elevation Motor 0.5 HP. -- Cutterhead Speed 5,500 RPM. -- Cutter head diameter 4-3/4", Spiral. -- Knife insert dimensions 14 mm x 14 mm. -- Max. Cutting Depth 5/16";. -- Feed Motor 1 HP. -- Cutterhead Motor 10 HP. -- G.W. 1,850 LBS / 2,000 Lbs.

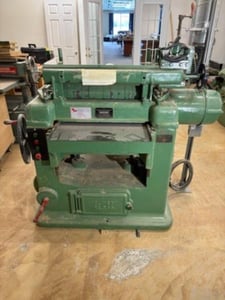

OLIVER 299 Single Surface Planer;24" Width x 8" thickness cap., Cabinet Planer; -- 5 HP Cutterhead motor,. -- 2 HP Gear box variable speed feed works with speeds of 15 - 60 FPM; sectional feed rolls, sectional chipbreakers. -- Complete with: -- Knife grinding attachment -- top dust hood, quick set adjustment on bed ...more
The 2003 Extend Light GY-610-S Double Side Planer is a heavy-duty industrial surfacer designed for high-precision, large-scale woodworking. Often branded as the #1 selling planer in its class, it is built to handle the demands of three-shift production lines while remaining affordable for one-shift operationsFor ...more
Oliver Model 2071 Straitoplane 24" Double Sided Surface Planer The Straitoplane will Finish Moderately Warped or Twisted Boards to Uniform Thickness & Flatness Capacity: 24" Wide x 1/2" to 8" Thick Shortest Stock: 12" Butted, 16" Single Stock is fed over the lower cutterhead by individually spring-loaded feed toes ...more
The seller has confirmed that this Pinheiro planer is in good working/running condition., - Double sided planer with side saw, - Complete package, - Manual, - no year.Motor HP 20 bottom, 10 top.
Oliver Model 299-D Single-Sided Planer Max Material Dimensions: 24"x8" Min. Material Length: 11" Cutter Head Motor: 7-1/2 HP Feed Motor: 1-1/2 HP Feed Speed: 25-100 FPM Table Size: 24"x35-1/2" Table Height Adjustment : Screw Dust Collection: 6" Port.
