2300 cfm Grizzly, Double Bag Style Woodworking Dust Collector, 16.7" Static Pressure, 12.75" Impeller, 7" Hose diameter, 3 HP, 220 V

Description

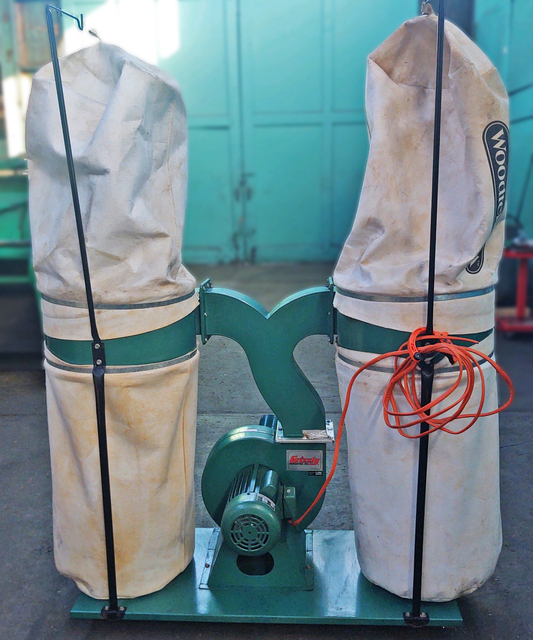

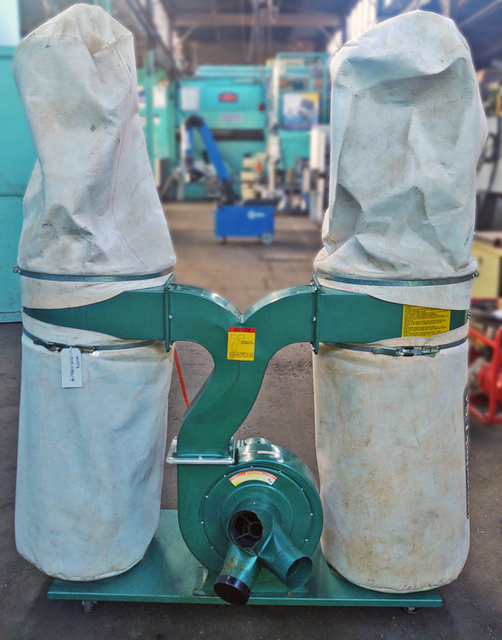

Grizzly 2,300 CFM Double Bag Style Woodworking Dust Collector

Inventory # 9020

S/N: 8852327

Description:

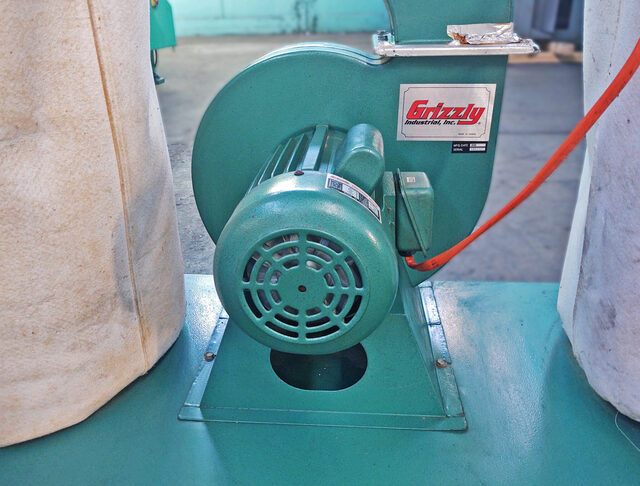

The Grizzly 3 HP dust collector is designed to capture fine dust particles and wood chips from up to three woodworking machines simultaneously. It can be operated as either a stationary or a mobile unit. The advantage of the mobile system is that it is more versatile and convenient for those running multiple machines that aren’t moved around. The Grizzly has an air suction capacity of 2,300 CFM and has a max. static pressure of 16.7″. Static pressure is produced by the 12 3/4″ cast aluminum impeller to move the wood chips into the dual collectors. The filtration of the Grizzly collects particles as small as 2.5 microns. It collects 11.4 cubic feet of dust and chips into the two upper and two lower collection bags

Specifications:

CFM: 2,300

Hose Diameter: 7″

Motor: 3 HP / 220v / 1ph

Mechanical Specifications:

Dimensions: 58″ x 33″ x 78″ H

Weight: approx. 160 lbs.

New Replacement Cost: $790.00

FOB Our Baltimore, MD Warehouse
