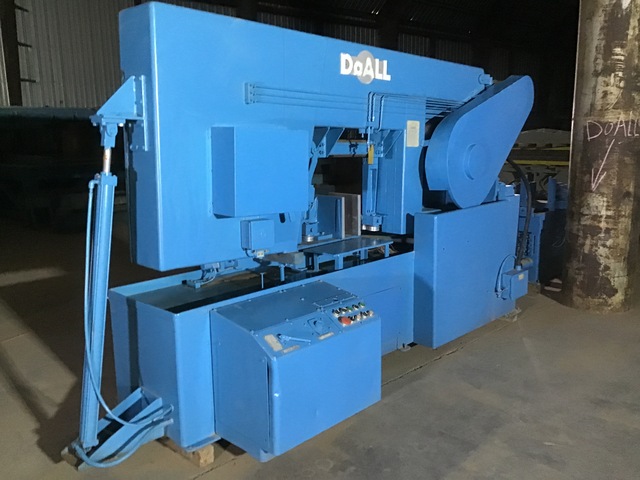

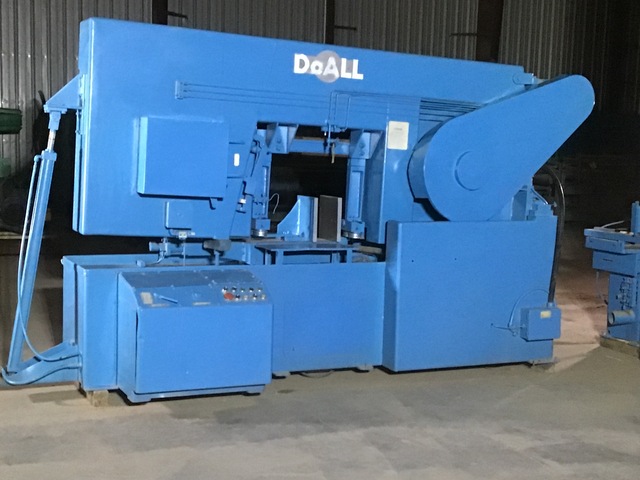

23" x 23" DoAll #C-21620, horizontal bandsaw, 60-300 FPM, 36" wheel diameter, adjustable hydraulic feed

Doall Horizontal Band Saw; mdl CZ-1620
SN#181-65109
Record Number: 3797
Asking Price:
(1) Used Horizontal Band Saw with hydraulic head raise
.
Specifications:
Throat Width..............................23” (max)
Throat Height.............................23”
Pass Line Height.........................33” (from floor)
Wheel Diameters(2)c .................36"
Blade Width................................1 1/2" (max)
Blade Length...............................268” (max)
Blade Speed...............................60-300FPM
Blade Tension.............................Hydraulic
Wheel Type.................................Steal
Down Feed Rate.........................unknown
Rapid Traverse Rate...................unknown.
Feed Motor Type.........................adjustable hydraulic feed
Main Drive Motor.........................15HP @ 1755 RPM
Electrical Characteristics .....................208 220/440 VAC / 3 Phase / 60 Cycle 26. amps
Equipped With:

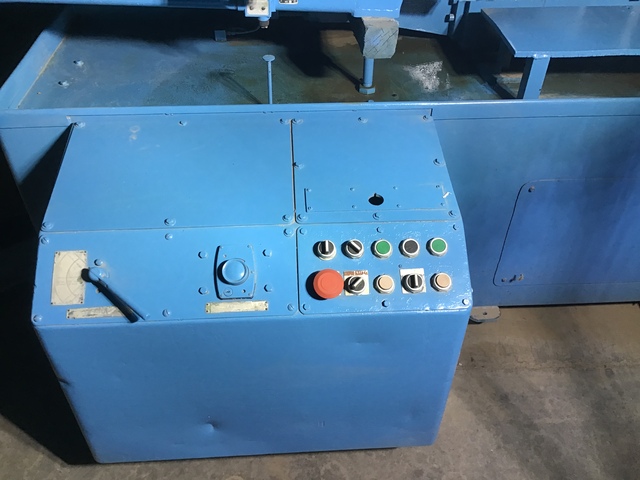

Operator Station

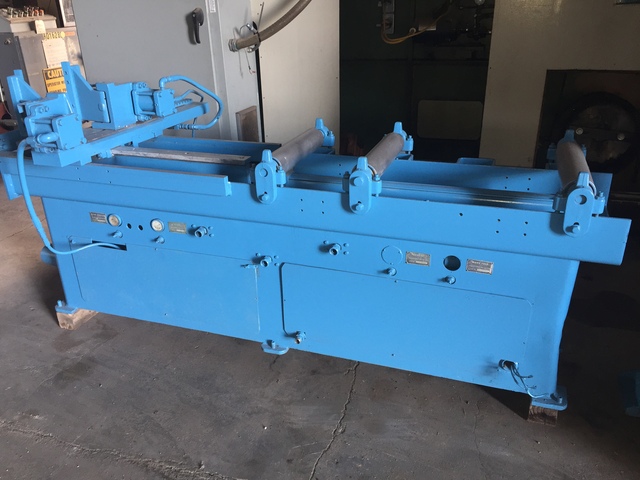

(1)20”x96” In-Feed/Out-Feed hydraulic Roller Conveyor Section with work holding vise
Overall Dimensions....................160in L-R x 4in F-B x 84inH
Weight................................5,000 lbs. (est.)
F.O.B.................................Casa Grande, Arizona
