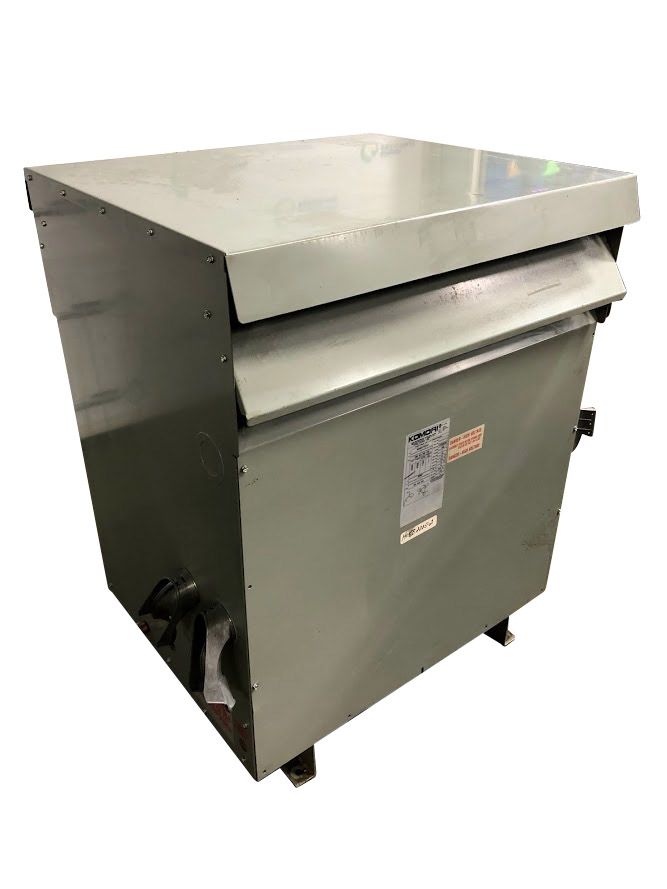

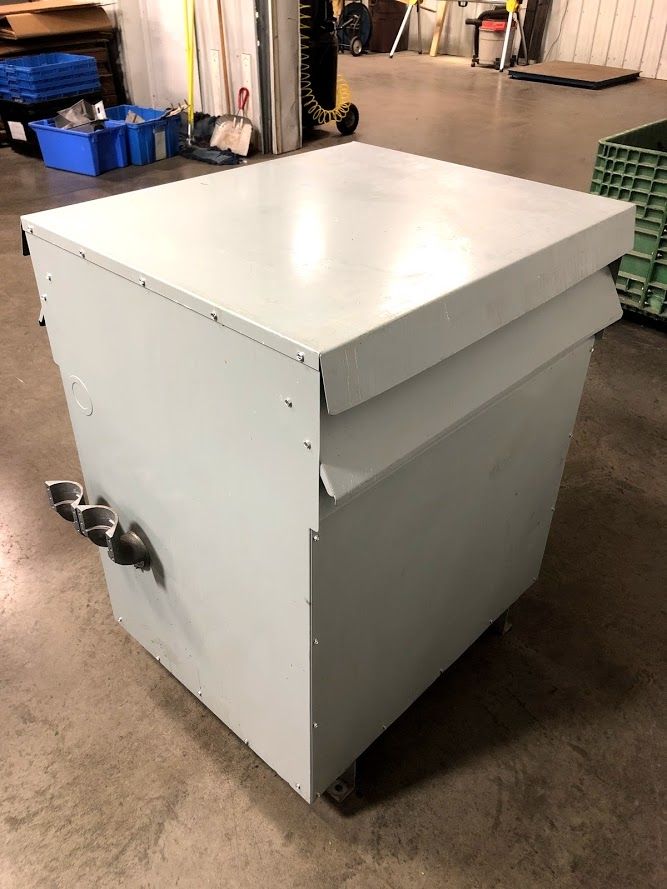

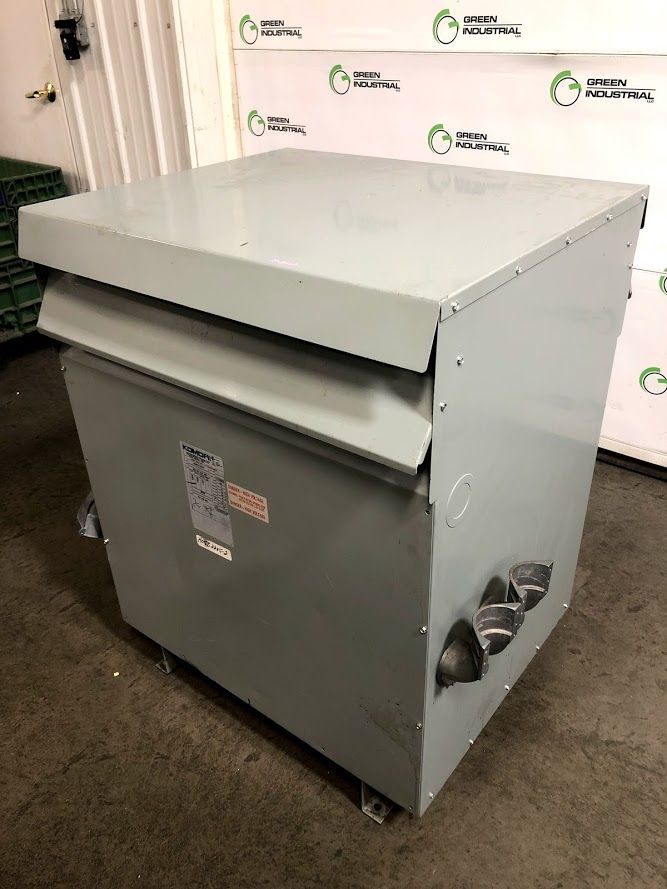

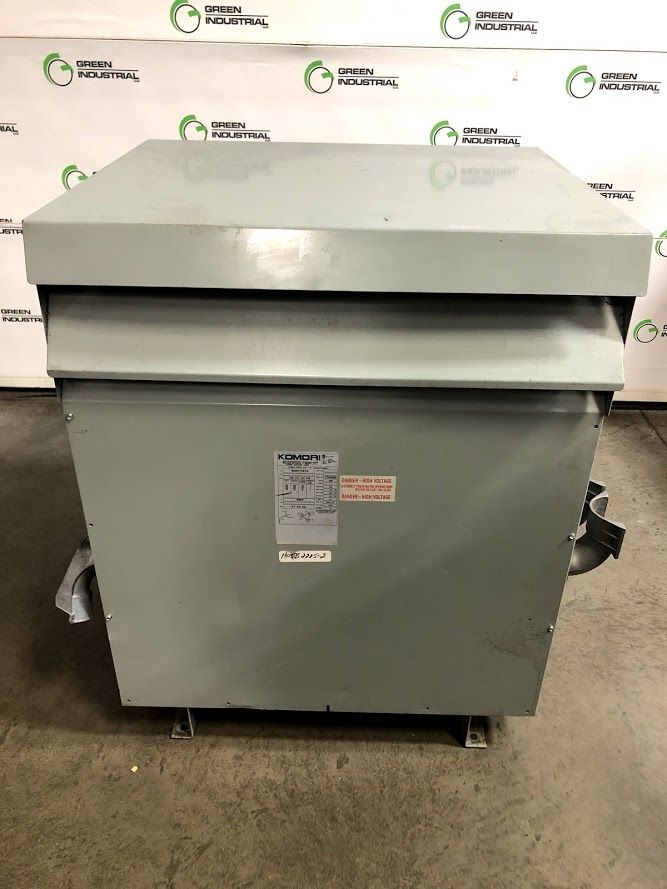

225 KVA 220Y/127 Primary, 208 Delta Secondary, Komori, dry type, 3R enclosure

$4,500 USD

Request Formal Quote

This is a tested / used dry type transformer for sale. It was removed from service in great working order and is now tested, cleaned and up for sale. We have hundreds of dry transformers in stock. With thousands of used transformers on the internet to choose from, why should you buy one from Green Industrial out of Belgium Wisconsin? Our professional cleaning, testing and packaging process makes sure you are 100% satisfied, saving you thousands in the process!
Jeff Herrick, Sales Manager, Green Industrial, 281 Commerce St, Belgium, WI 53004 / Scroll down for more information.
"SAVE THOUSANDS AND BUY USED FROM GREEN INDUSTRIAL TODAY!"

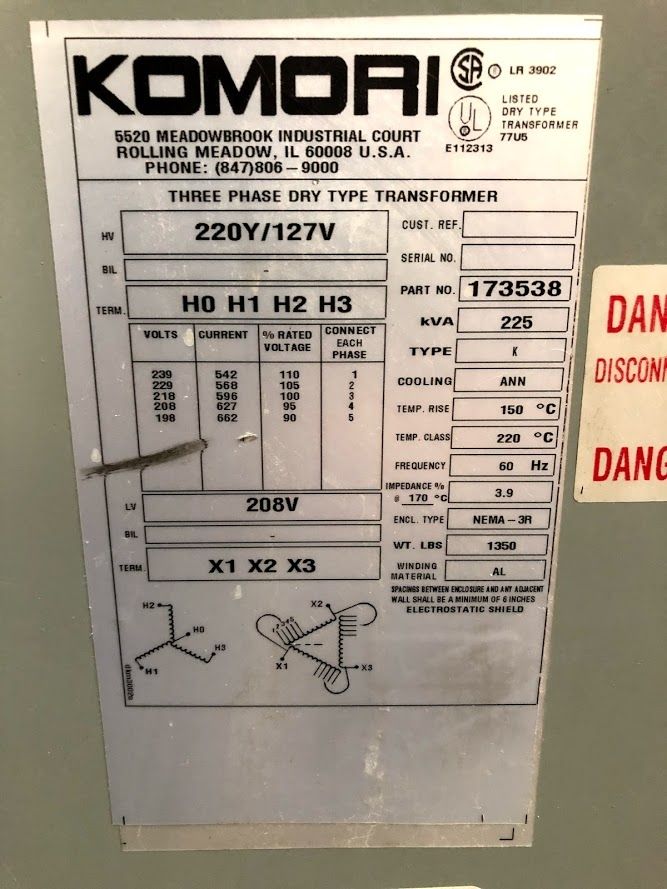

Manufacturer: Komori
Enclosure: Type 3R, Outdoor Rated
Catalog Number: 173538
KVA: 225
Phase: 3
Hertz: 60
Primary Voltage: 220Y/127 Volt, 4 Wire, 3 Phase
Primary Input Amps : 590 Amps
Secondary Voltage: 208 Volt Delta, 3 Wire, 3 Phase
Secondary Output Amps : 624 Amps of 208 VAC Delta
Impedance: 3.9%
Degree Temp Rise: 150 Deg C
Actual Transformer Weight: 1350 Pounds (Not Shipping Weight)
Actual Transformer Dimensions : 32 " x 30 " x 42 " Tall
Shipping Dimensions: 46" Long x 40" Wide x 52" Tall
Shipping Weight: 1450 Pounds, Includes Pallet, 2x4 Runners, Hardware and Transformer
GREEN INDUSTRIAL ITEM NUMBER: JH10706
Your transformer will go through the process below prior to shipping to ensure your satisfaction.
1. Transformer enclosure will be disassembled and the old hex sheet metal hardware discarded.
2. Cleaned thoroughly (inside and out).
3. Coils blown out with compressed air.
4. Tested for continuity.
5. Reassembled with all NEW zinc coated steel hex head / sheet metal hardware on the exterior. (structural assembly hardware)
6. Labeled as tested.
7. Installed onto a standard pallet with 2x4 runners under each of the transformer legs/feet/mounting plates. The 2x4's will be attached to the pallet via long torques head screws. The transformer will then be attached to those 2x4's with long 1/4", 5/16" or 3/8" zinc coated steel hardware, depending on its size. There will be four bolts holding the transformer down to the pallet giving it a professional look and making it extremely sturdy/durable and easy to remove upon delivery.
8. Plastic poly cover placed on the top.
9. Wrapped on our shrink wrap machine.
10. DO NOT DOUBLE STACK & FRAGILE stickers placed on all four sides on the exterior of the shrink wrap.
11. 12 inch tall, yellow corrugated DO NOT STACK safety cone installed on the top of the transformer to prevent anything from being placed on top during shipping.
12. Loaded on a truck and photographed at time of loading.
