22 Ton, Amada #Vipros 255, CNC Turret Punch, 50" x 100" Sheet Size, 340 HPM, 60 RPM, 80 PSI, GE Fanuc 18P Control, 1999

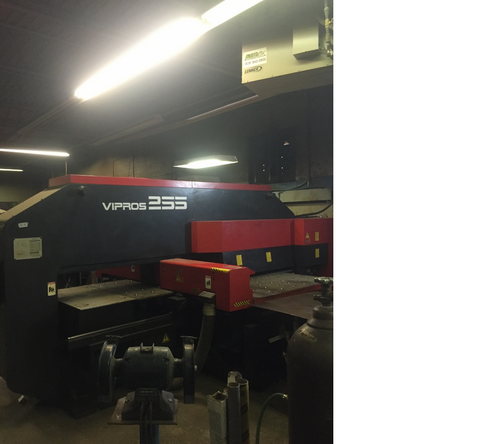

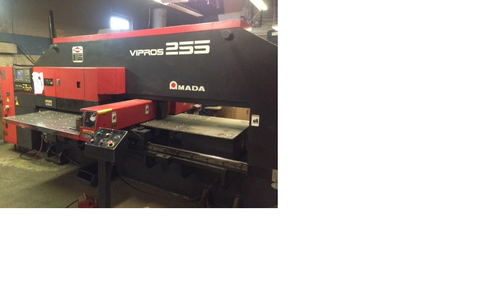

Pre Owned 1999 Amada Vipros 255 CNC Turret Punch
Serial Number 25510289
GENERAL SPECIFICATIONS
Press Capacity 22 Tons
Maximum Traverse 50” X 50”
Maximum Sheet Size (With Repositioning) 50” X 100”
Maximum Hits Per Minute on 1” Centers 340
Maximum Sheet Weight 110 LBS
Maximum Positioning Speed 2559 Inches Per Minute
Total Tool Stations in Turret 31
Turret Configuration- H-Type Thick Turret
19 @ 1/2" Dia
6 @ 1-1/4" Dia.
1 @ 2" Dia.
2 @ 3-1/2" Dia.
2 @ .Auto ndex (1-1/4" DIA.)
1 @ Auto ndex (2" DIA.)
auto index configuration
Angular Increment 0.01 Degree
Maximum Nibbling Angle 8 Degree
B—Directional Rotation
AC Servo Drive
60 RPM
Turret Speed 30 RPM
Air Requirement 80 PSI
Main Motor Horsepower 5.5 kW
EQUIPPED WITH

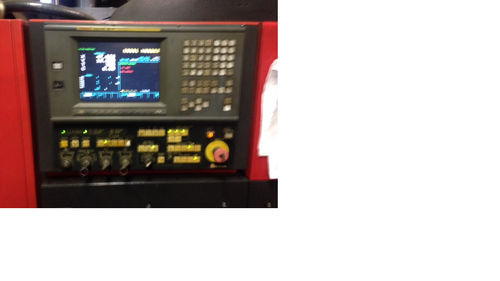

GE Fanuc 18P Control
Auto Repositioning
Ball Transfer TableApproximate Overall Dimensions 100” W X 81’H X 198’ L
Approximate Overall Weight 17,000 LBS
