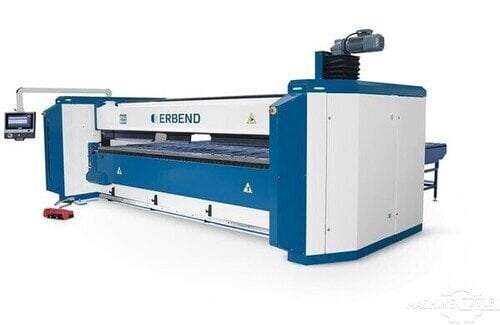

165" Erbend #MFA4225, 2021

Make Erbend

Model MFA4225

Year of MFG 2020

Working Length 4200mm (13.75’)

Capacity 12g

Upper Beam Stroke 135mm

Folding beam type Combi

Backgauge Depth U Shape

Closed Hem Capacity 20g

Electrics 3 phase,

Opening height (without tools) 250 mm

Motor Power (Servo) 2 X 3,5 kW

Transmission system Ballscrew spindle

Clamping speed 65 mm

Combi beam rotation (180°) time 10 sec

Folding Beam (Y axis) Folding angle 0 - 150°

Motor Power (Sew Eurodrive AC) 2 X 4 kW

Folding Speed 70°/sec

Folding Beam Height Adjustment

( A1-A2 axis) Adjustment height 0 to 80 mm

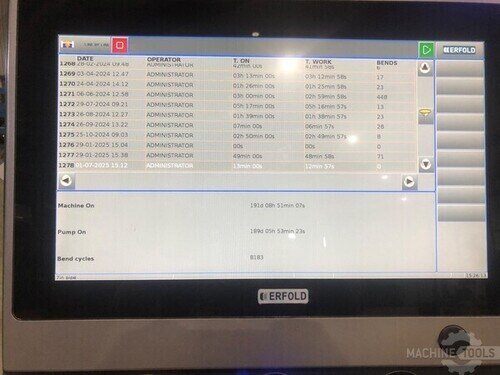

Control Manual

Back gauge system ( X axis)

Movement speed 300 mm /sec

Motor Power (Servo) 750 W

Positioning / repeatability accuracy +/- 0,1 mm
