Coil Weight
20000 pounds
Coil Width
30 inches
Coil Thickness
.125 inches

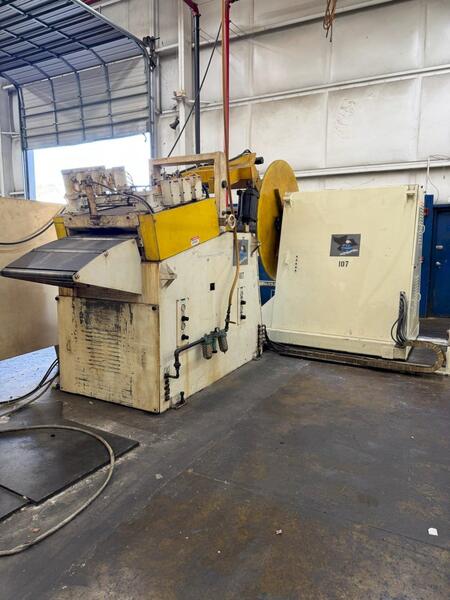

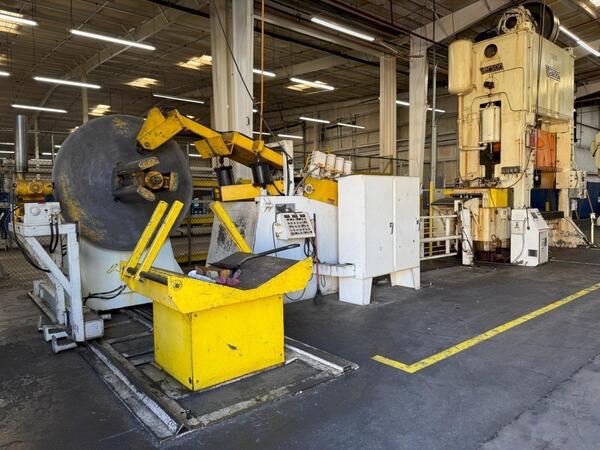

Coil Feed Line Specifications Coe Press Equipment "Conventional" Servo Coil Feed Line Coil Feed Line Models CPTR-PO-20030 / CPPS-PO-400-30 / CPRF-430
20,000 lbs. Maximum Coil Capacity 30" Maximum Coil Width .125" Thick Material at 30 Inch Wide Capacity .187" Maximum Coil Thickness at 18 inch Wide .280" Maximum Material at 8 inch Wide (H. S. L. A.) .020" Minimum Coil Capacity at Full Width 80 Feet Per Minute Payoff Rate Right to Left Feed Direction (Can be switched with order)

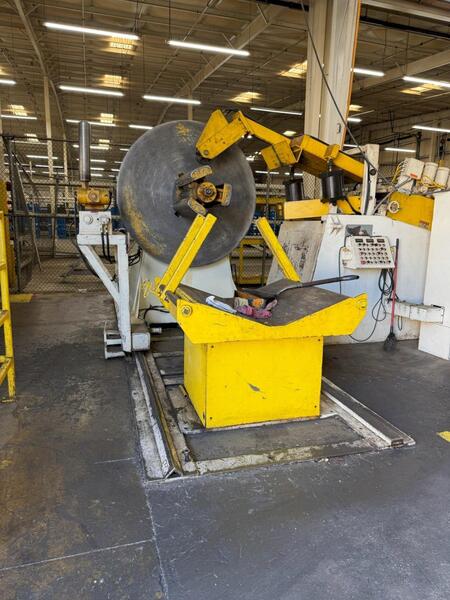

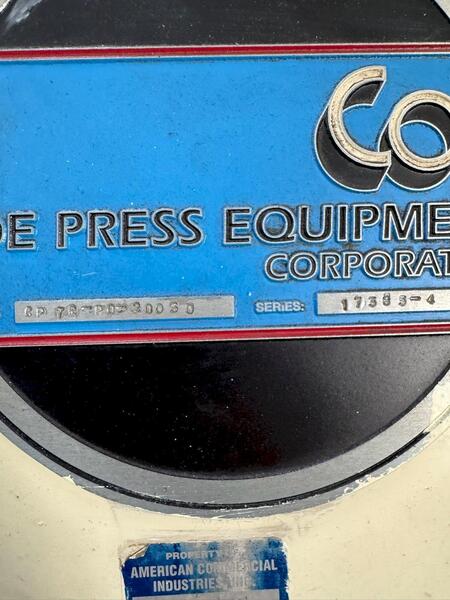

Coe Coil Feed Line Consisting of: Coe Press Equipment Traveling Coil Reel Model# CPTR-PO-20030 20,000 libs. Maximum Coil Weight 30" Maximum Coil Width 72" Maximum Coil O.D. 19.5" - 24.5" Mandrel Expansion Range
Full O.D. backplate 72" diameter
3 pad mandrel
One set of (3) coil keepers
Hydraulic threading drive
Hydraulic mandrel expansion
Air brake with pressure regulator and dual pressure circuitry
Jog forward and reverse
Remote reel jog control with coil cord
Pneumatic controls solenoid operated
Hydraulic controls solenoid operated
Stationary coil lift with hydraulic raise and lower
Air operated coil guide assembly with motorized side adjustment

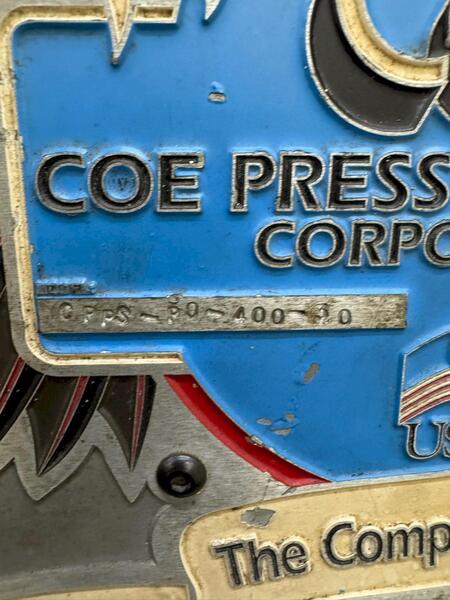

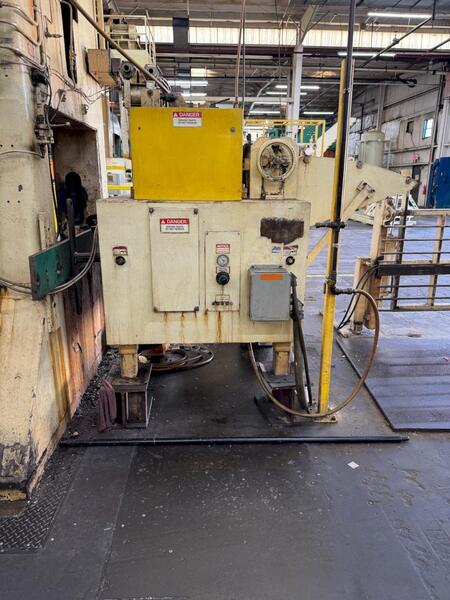

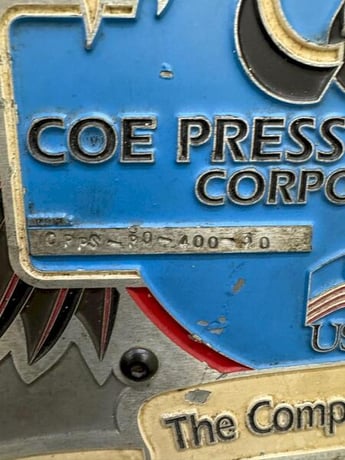

Coe Press Equipment Coil Straightener Model# CPPS-PO-400-30 Seven Straightening Rolls x 4 inch diameter rolls
Independently adjustable breaker rolls, raise and lower by means of 2 ½ ton screw jacks
Entrance and exit cluster gear driven pinch rolls
Air operated entrance pinch rolls raise and lower with 5" bore cylinders
Air operated exit pinch rolls raise and lower with 5" bore cylinders
Pressure regulators and flow controls on pinch roll cylinders
Crodon coated upper and lower entrance pinch rolls
3 roll exit catenary support section full side plate with funnel
20 HP DC variable speed drive
Jog forward and reverse
Remote jog with coil cord
Push button solenoid operated control valves
Fused electrical safety disconnect
Entrance edge guide with self centering hand crank adjustment 2 ¼ by 7.5 inch long rolls
Peeler/threader/hold down station with motorized end wheel 4 position stock peeler for hands free threading capabilities Ultra sonic loop control system
Reel/straightener tie in bracket
Automatic lube system with low level indicator light
Straightening rolls with motorized screw jacks and LED readout
P.C. monitored straightener and coil reel through SLC/504
Coe Press Equipment Air Operated Threading Table
Model No. CPTT-3020
Air raise and lower
Adjustable pass line
Single side construction
Based on an 20 foot loop
Coe Press Equipment Servo Roll feed Model# CPRF-530 (2) Feed Rolls x 5" Diameter - Solid Rolls
Close tolerance cluster geared upper and lower feed rolls
Air operated pilot release
Regulators for feed roll, raise & lower cylinders with flush mount regulator panel
Crodon coated upper and lower feed rolls
AC brushless servo drive
Motor shaft encoder
Drive ratio - standard
Master control station
10 foot cable set
Jog forward and reverse
Single cycle pushbutton
Emergency stop button
Electrical safety disconnect
Remote jog with coil cord
Heavy duty cabinet base with pass line adjustable +/-5" by means of 10,000 lbs. leg jacks
3 roll entrance catenary support section full side plate with funnel

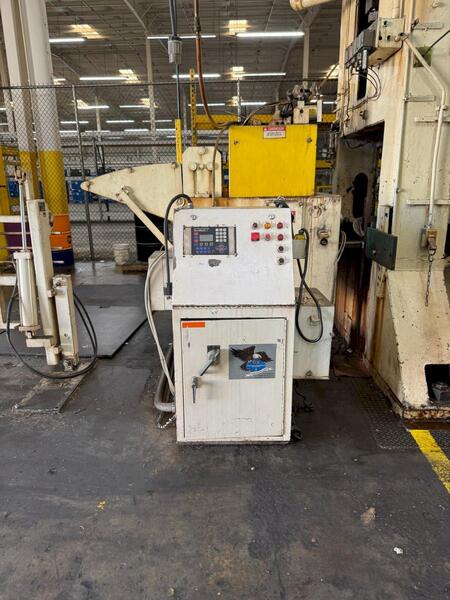

Existing C.P.E.C. Controller - BG-2
. Keypad length and speed input
. Alpha numeric control parameter diagnostics
. 200 job memory (alpha-numeric, 8 digit)
. Adjustable acceleration and deceleration rates
. Footage meter
. Programmable dwell for pilot release
. Batch counter
Entrance edge guide with self centering Independent hand crank adjustment with 2 ¼ diameter rolls
End of coil sensor
Special press mount to match press with motorized pass line height adjustment with
