2000 Ton, Clearing #H-2000-96-144, hydraulic press, 60" stroke, 28" SH

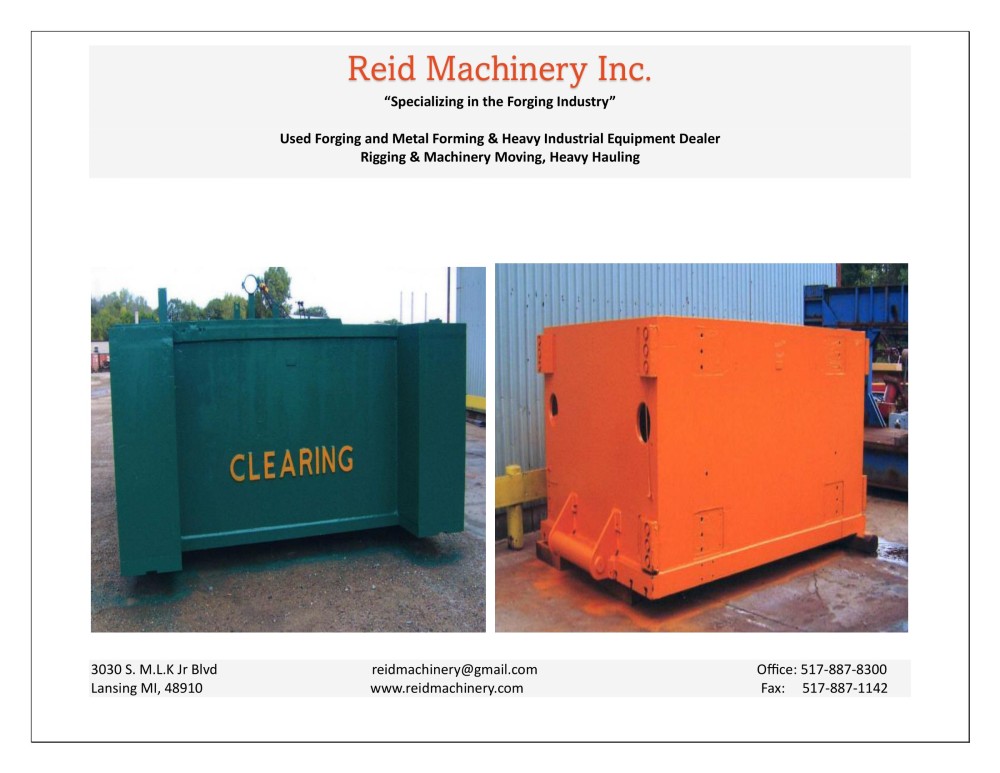

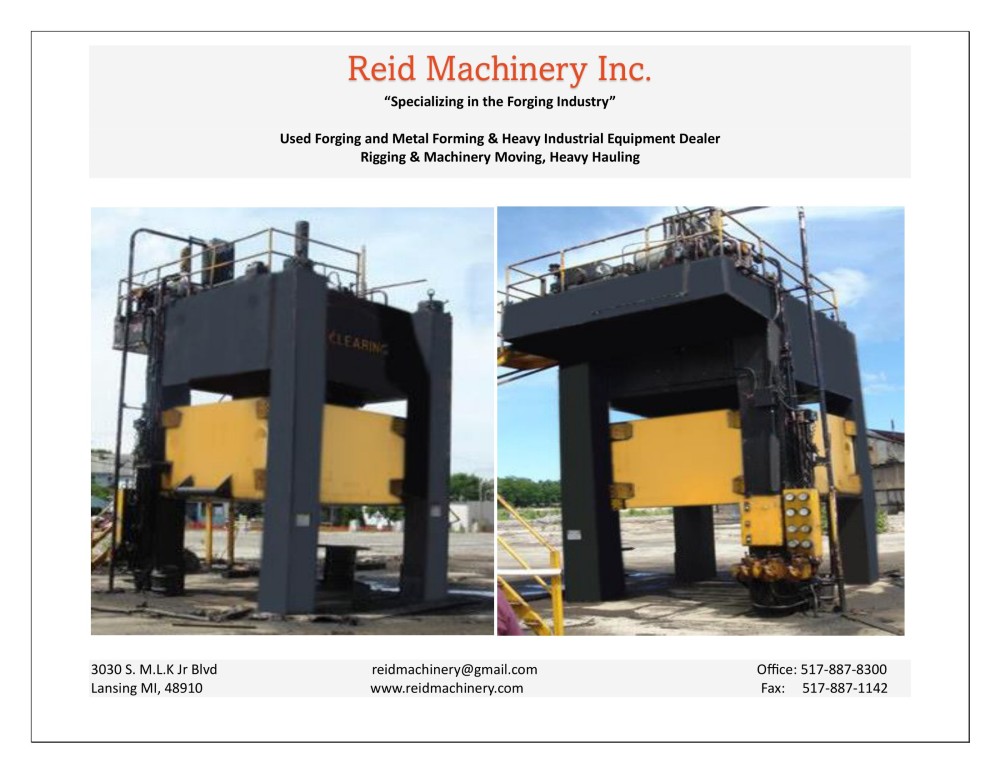

2000 Ton Clearing Hydraulic Press

Year: 1961

Model H-2000-96-144, S/N 11-1080

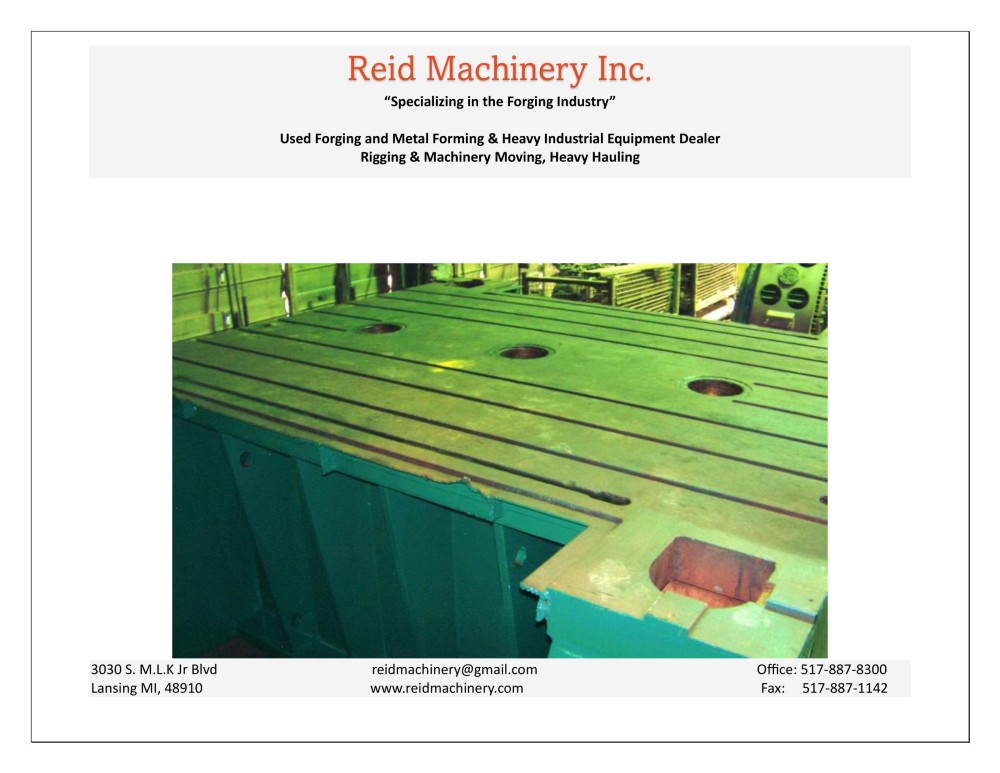

Bed Width: 98"

Bed Length Between Columns: 102 1/2" Bed Width Between Columns: 98"

(Stroke: 60") (Shut Height: 28")

Open Height: 88"

Ejector Rams: Three(3) 10” dia – 30” stroke 40 3/8” Center to Center Distance

(Capacity of Slide: 2000 Ton) (Lifting Capacity (Stripping) 90 Ton (Intermediate Pressing: 1000Ton)

(Fast Advance: 335IPM) (Intermediate Pressing: 36IPM) (Full Tonnage Pressing: 18IPM)

Main Pump Capacity: 108GPM @ 3000PSI

Pump Motor: 150hp-900 RPM-440v/3ph/60cycle

Overall Height: 427 ½” (35’ 7 ½”)

Above Floor: 294 ½” (24’ 6 ½”)

Approximate Weight: 350,000 lbs.

Specifications are correct to the best of our knowledge but are subject to correction upon inspection. All sales are subject to our “Standard Terms and Conditions of Sales" with the exception made only by Reid Machinery Inc and all parties involved in the transaction. Specifications of machine: (Subject to buyer verification)
