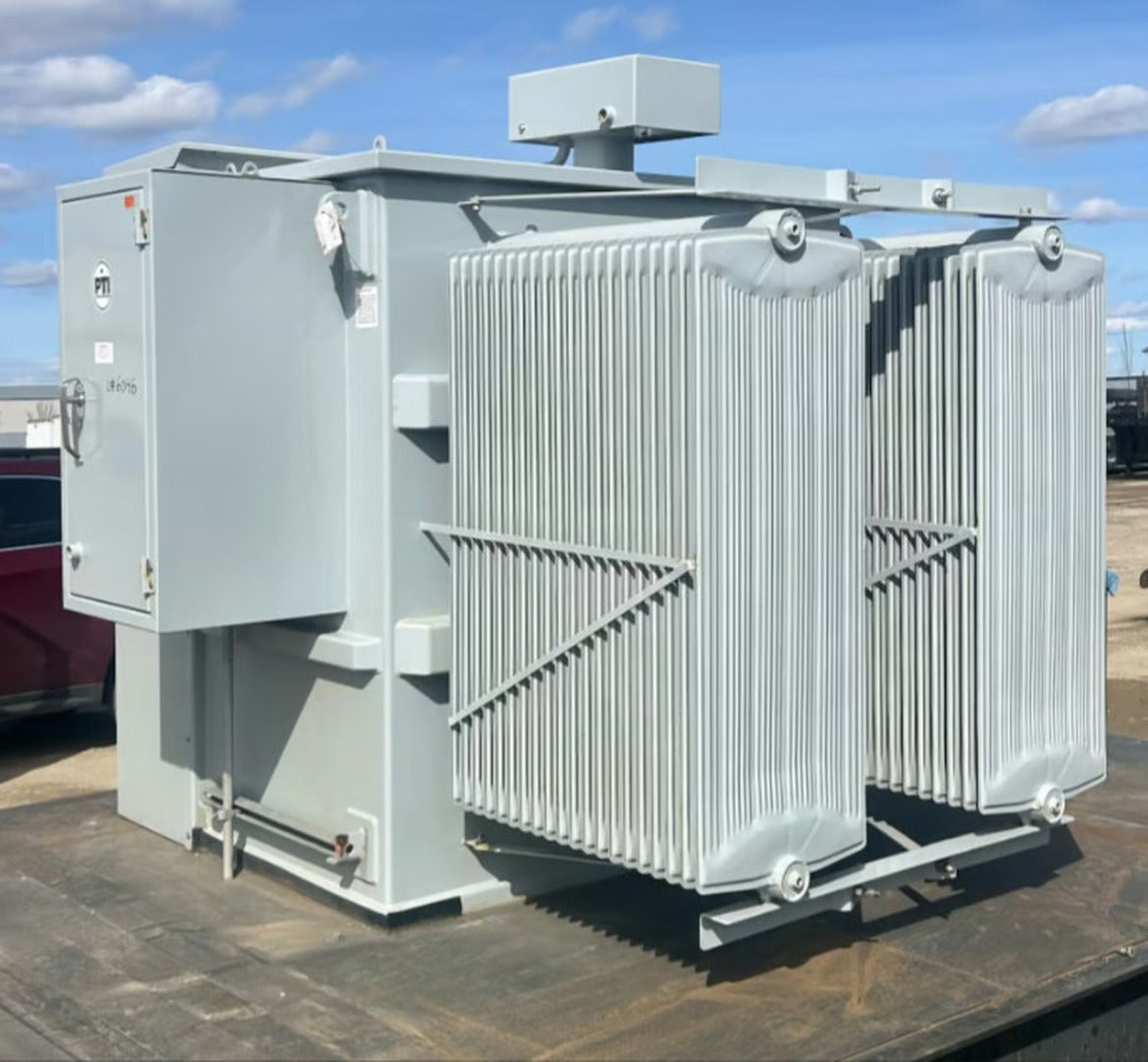

2000 KVA 13800 Primary, 600Y/347 Secondary, PTI Onan padmount transformer, new surplus, 2022

SKU: 141682
Model: ONAN
Year: 2022
Condition: Surplus New
S/N: N-20011-01
Electrical Specifications:
kVA: 2000 kVA
Primary Voltage: 13800 volts
Secondary Voltage: 600/347 volts
Phase: 3-phase
General Specifications:
Transformer Type: Power Transformer
Auto VS Isolation: Isolation
Oil vs Dry: Oil
Additional Description:
Transformer includes:
- 1) 16' Steel Skid
- 2) MegaResister Neutral Ground Resister (Model MR-200) 600V / 347V 5 A Unit
- 3) Control Panel 600 Amp, 15 KV 3-Phase
Transformer Specifications:
- Type: Deadfront Padmount Transformer
- Cooling: ONAN
- Phase: Three Phase
- Power Rating: 2000 kVA
- Frequency: 60 Hz
- Temperature Rise: 65C
- Impedance @ 85C: 6.46%
- HV BIL: 150 kV
- LV BIL: 30 kV
- HV Voltage: 13800 V
- LV Voltage: 600Y/347 V
- Tap Positions: 1 (105.0%), 2 (102.5%), 3 (100.0%), 4 (97.5%), 5 (95.0%)
- Tap Connections: A-B, B-C, C-D, D-E, E-F
- Cooling Medium: Mineral Oil
- Oil Volume: 2200 L
- Total Mass: 6300 kg
- PCB Content: < 1 ppm
- Max Elevation: < 1000 m
- F Fuse: 4000035317CM
- CL Fuse: CBUC15150D100 (x3)
- Current Transformer: Class: C10, Type: WTI 2410-5 Ratio: 1-2
- Connections: HV: Delta, LV: Wye, Diagram: See connection diagram on plate
- Efficiency: Per CAN/CSA-C802.1 @ 100% rated voltage
- Reference No: 20P0026044-1
- Spec No: C227.4-21 (as applicable)
