For Sale by Machinery Values Inc
Surplus Record Dealer Since 2011
Location: Harrison, NJ
Contact Rick Lazarus
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

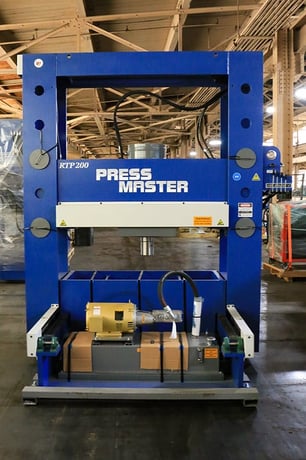

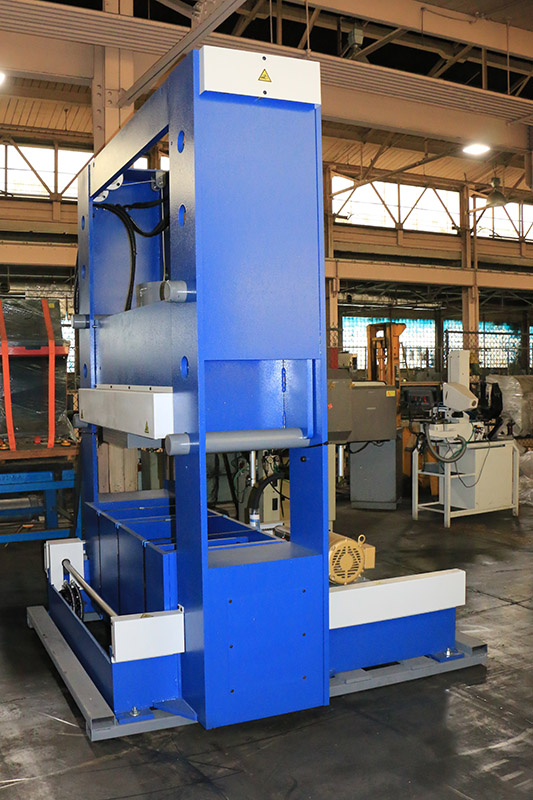

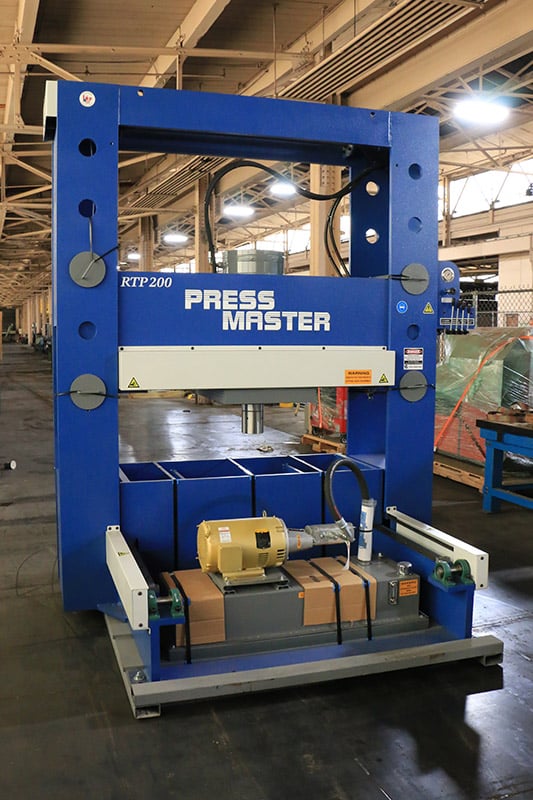

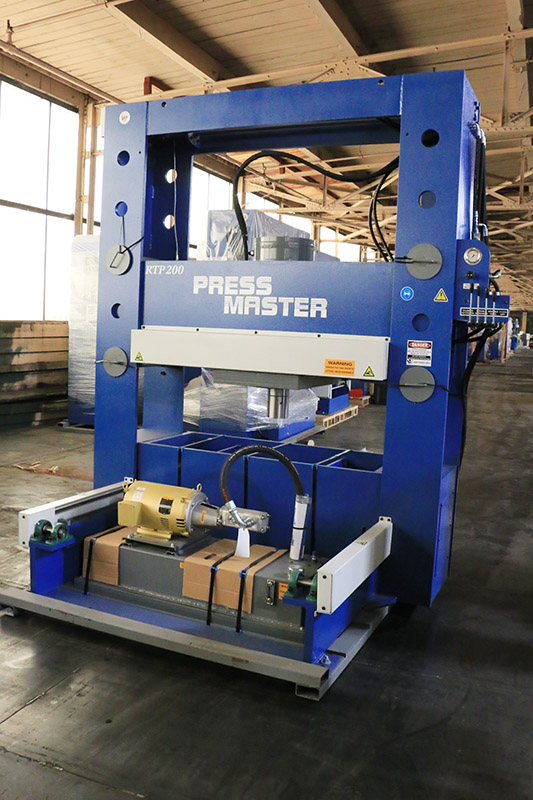

200 TON PRESSMASTER ROLL-IN TABLE
FULL 4 AXIS POWERED STRAIGHTENING PRESS
RATED CAPACITY ........................... 200 TONS
WIDTH BETWEEN UPRIGHTS ................... 60"
DEPTH BETWEEN POSTS ...................... 20-1/4"
MAXIMUM RAM TO TABLE .....................″2"
STROKE ................................... 20"
CYLINDER TRAVEL .......................... 27-3/4"
TABLE TRAVEL ............................. 28-1/4"
FLOOR TO TABLE TOP ....................... 26-3/4"
CYLINDER BORE SIZE ....................... 12"
PRESSING SPEED ........................... 6 INCH/MIN
ADVANCE SPEED ............................ 24 INCH/MIN
RETURN SPEED ............................. 29 INCH/MIN
WEIGHT ................................... 9,000#
SHIPPING DIMENSIONS:
LENGTH .................................. 80"
WIDTH ................................... 100"
HEIGHT .................................. 111"
MOTOR SPECS: 10 HP, 230/460 VOLT, THREE PHASE
(OTHER VOLTAGES AVAILABLE)
STANDARD FEATURES:
- POWERED MOVABLE TABLE FOR EASE OF LOADING… POSITIONING WORKPIECE UNDER CYLINDER
- POWERED MOVABLE WORKHEAD FOR OFF-CENTER WORK ALLOWS OPERATOR TO POSITION THE CYLINDER FROM LEFT TO RIGHT WITH THE TOUCH OF A LEVER
- HYDRAULIC POWER-LIFT FOR VERTICAL DISPLACEMENT OF HEAD ASSEMBLY

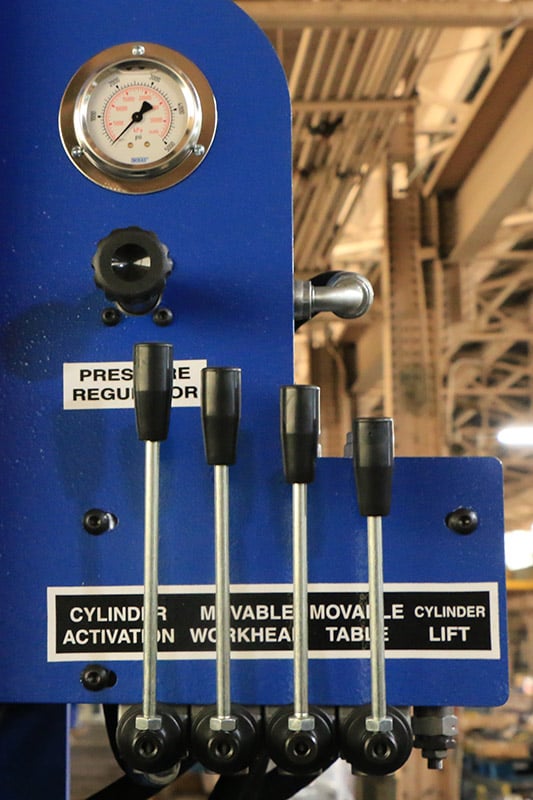

- CYLINDER ACTIVATION IS FINGERTIP CONTROLLED, THE MORE THE HAND LEVER IS ENGAGED THE MORE THE RAM MOVEMENT IS ACCELERATED, ALLOWING THE OPERATOR TO CONTROL THE PROPER SPEED FOR THE TASK

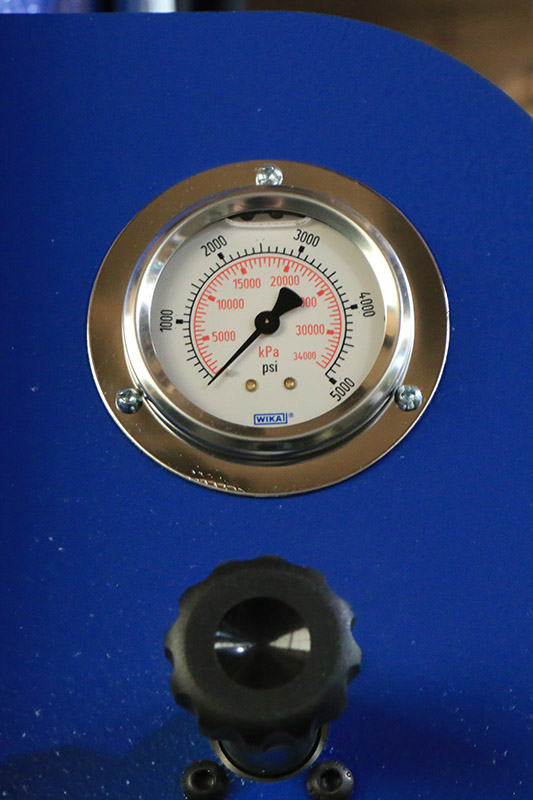

- PRESSURE REGULATOR TO LIMIT THE RAM PRESSURE
AVAILABLE OPTIONS:
- SET OF V-BLOCKS ............................ $1,700
- STOP / START… EMERGENCY STOP .............. $1,000
- FRONT OR BACK SAFETY GUARD .....(PER SIDE).. $1,000
- SIDE SAFETY GUARD ..............(PER SIDE).. $… 750
- FOOT PEDAL ................................. $4,500
- PRESS PLATE ................................ $4,600
- COMPREHENSIVE SAFETY PACKAGE WITH EMERGENCY STOPS AND
LEXAN GUARDING ............................... $9,500
- HANDHELD REMOTE CONTROL .................... $9,500
Get Your Price from Machinery Values Inc!
