Manufacturer: Niagara
Model: S2G-200-60-42
Ton: 200
Stroke: 8.00
Shut Height: 30.00
Air Clutch: Yes
Stock # 10559
1 / 4
Click to zoom in
1 / 4
For Sale by Universal Press & Machinery (UPM)
Surplus Record Dealer Since 1977
Location: Ferndale, MI
Contact Sales Dept.
Phone Number: 248...> Show Phone Number 248-268-1603
Let the seller know you found their listing on Surplus Record!
Description

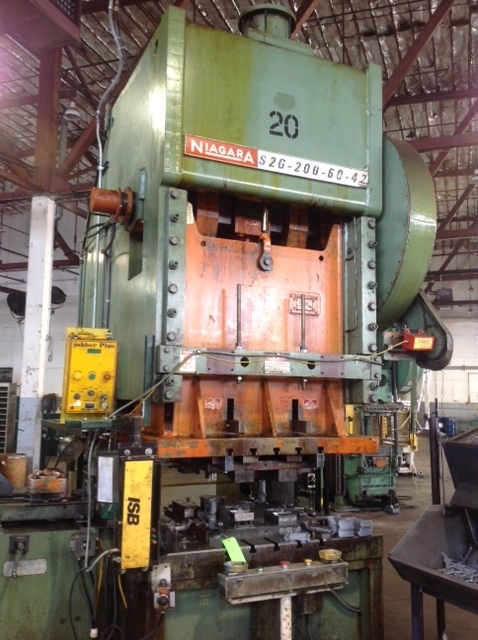

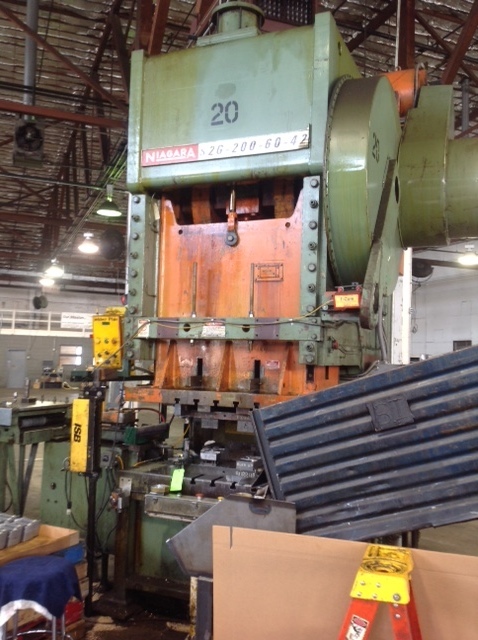

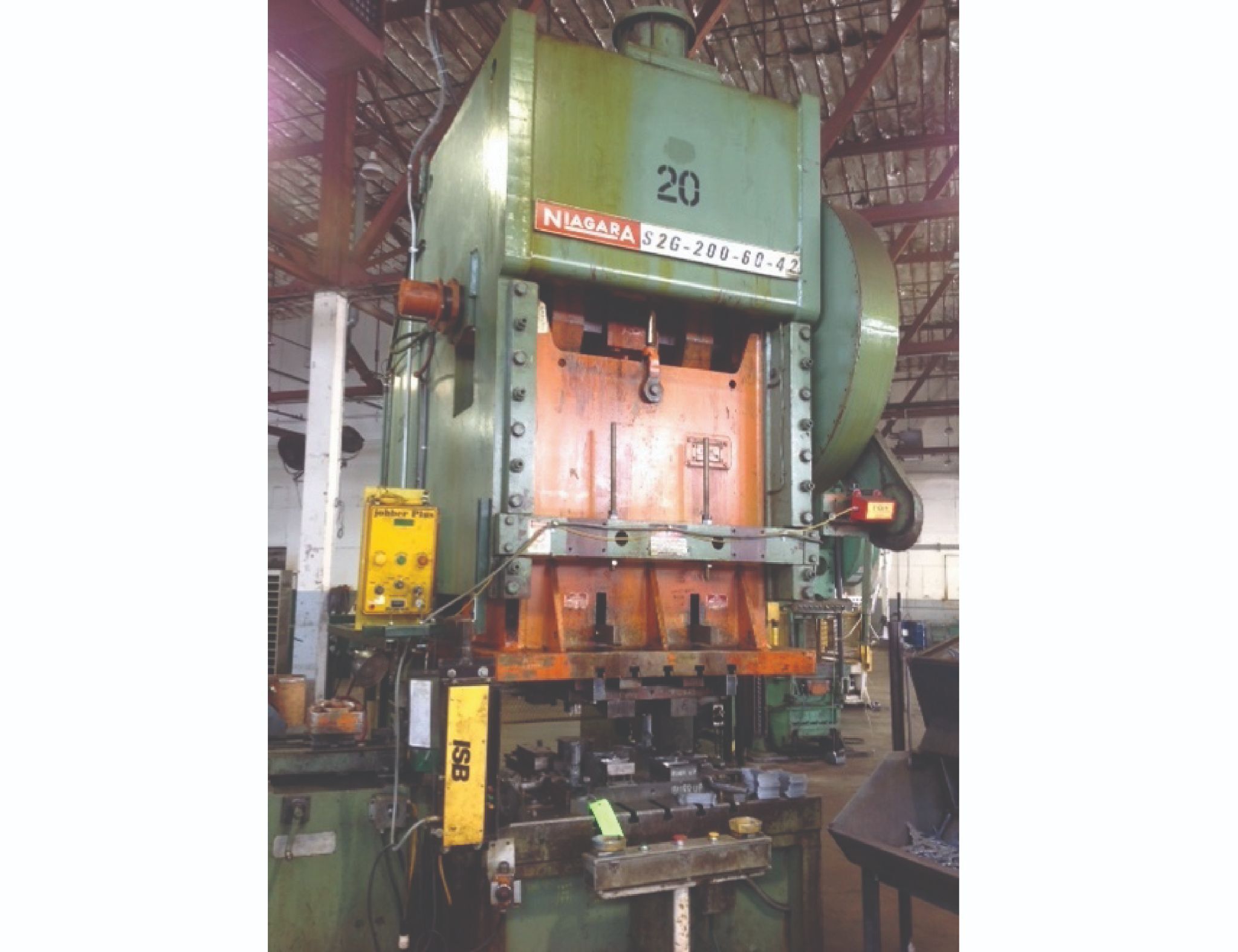

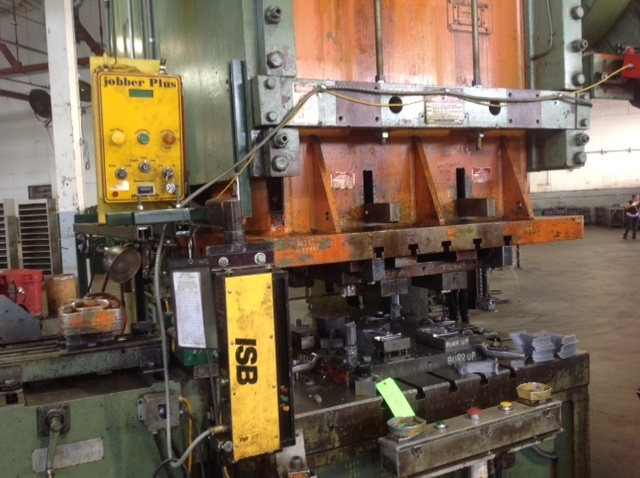

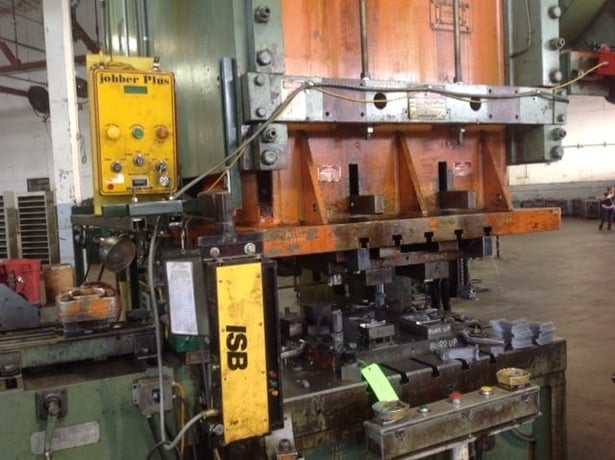

Used 200 Ton Niagara Double Crank Gap Press, model S2G-200-60-42, 1970. Features 60x42-inch bed, 200T capacity, 8-inch stroke, double crank, air clutch & brake, and T-slotted bolster/ram. Equipped with light curtains and pneumatic cushion. Catalog weight: 66,800 lbs.
Capacity: 200 Ton
Stroke: 8
Shut Height: 22.5, SDAU Over Bed
Slide Adjustment: 10
Speed: 30 - 60 SPM
Bed Area: 60 LR x x 42 FB
Bolster Thickness: 6
Ram Area: 60 LR x 42 FB
Equipped With:
6 T-Slotted Bolster / T-Slotted Ram
Air Clutch & Brake
Air Counterbalances
Palm Button Stand
Light Curtains
Pneumatic Cushion
Catalog Weight: 66,800#
GA Drawing upon request.
Capacity: 200 Ton
Stroke: 8
Shut Height: 22.5, SDAU Over Bed
Slide Adjustment: 10
Speed: 30 - 60 SPM
Bed Area: 60 LR x x 42 FB
Bolster Thickness: 6
Ram Area: 60 LR x 42 FB
Equipped With:
6 T-Slotted Bolster / T-Slotted Ram
Air Clutch & Brake
Air Counterbalances
Palm Button Stand
Light Curtains
Pneumatic Cushion
Catalog Weight: 66,800#
GA Drawing upon request.
Capacity: 200 Ton
Stroke: 8
Shut Height: 22.5, SDAU Over Bed
Slide Adjustment: 10
Speed: 30 - 60 SPM
Bed Area: 60 LR x x 42 FB
Bolster Thickness: 6
Ram Area: 60 LR x 42 FB
Equipped With:
6 T-Slotted Bolster / T-Slotted Ram
Air Clutch & Brake
Air Counterbalances
Palm Button Stand
Light Curtains
Pneumatic Cushion
Catalog Weight: 66,800#
GA Drawing upon request.
Capacity: 200 Ton
Stroke: 8
Shut Height: 22.5, SDAU Over Bed
Slide Adjustment: 10
Speed: 30 - 60 SPM
Bed Area: 60 LR x x 42 FB
Bolster Thickness: 6
Ram Area: 60 LR x 42 FB
Equipped With:
6 T-Slotted Bolster / T-Slotted Ram
Air Clutch & Brake
Air Counterbalances
Palm Button Stand
Light Curtains
Pneumatic Cushion
Catalog Weight: 66,800#
GA Drawing upon request.
Get Your Price from Universal Press & Machinery (UPM)!
