200 Ton, DongSung, hydraulic shell press, 4-post, 18" stroke, 21" daylight, 31.5" LR x 23.5" front back bed

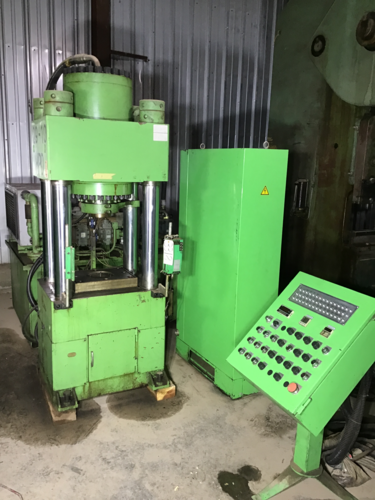

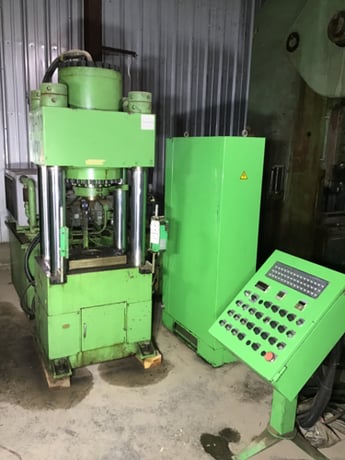

(1) Used 200 Ton Dongsung 4-Post Hydraulic Press
Specifications:
Capacity............................200 tons

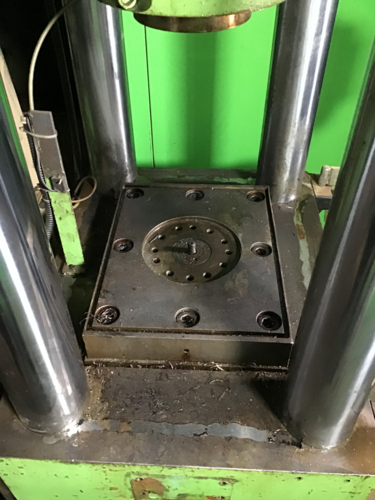

Bed Area............................31 1/2" L-R x 23 1/2" F-B
Ram Area............................6" diameter
Distance Between Posts..............19 1/4" L-R x 12" F-B
Stroke..............................18"
Daylight Opening....................21"
Distance Floor to Bed...............27"
Tie Rod Diameter....................4 3/4"

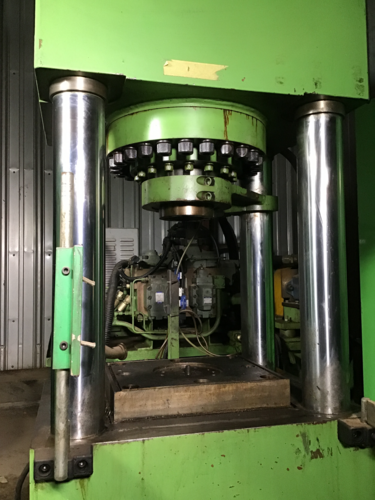

Number of Ram Cylinders.............1
Type of Ram Cylinders...............Double Acting
Diameter of Ram Cylinder............14" (nominal)
Ram (Slide) Speeds:
Pressing.......................
Advance........................
Return.........................
Hydraulic System:
Power..........................30 HP
Reservoir Capacity.............350 gallons (est.)
Electrical Characteristics..........440 VAC / 3 Phase / 60 Cycle
Equipped With:

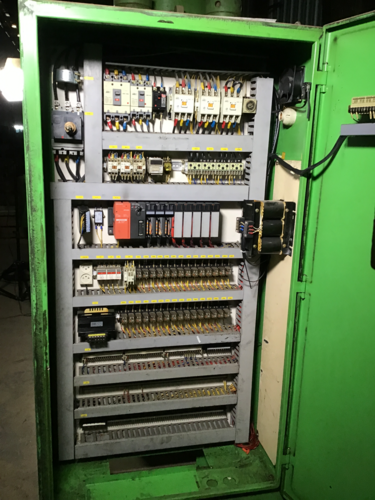

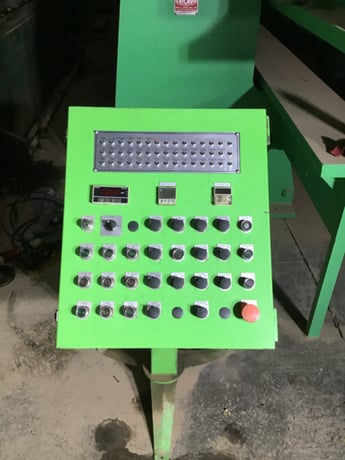

Electrical Controls
Ejector
DHR Hydraulic Cooling System
Approx. Overall Dimensions..........
Weight..............................
FOB.................................Casa Grande, AZ
