200 Amps, Fuji Electric, SGa202AY-T, Earth Leakage Circuit Breaker, 3-Pole, 460 VAC, 30mA, Adjustable Time Delay

Fuji Electric SGa202AY-T Earth Leakage Circuit Breaker
200A – 3-Pole – 460V AC 60 Hz – 30mA Earth Leakage Trip – Adjustable Timer 10–70 Cycles – 42kA Sym.

>> Qty 1 In Stock <<

>> Call for Price – FOB Pickering, Ontario <<

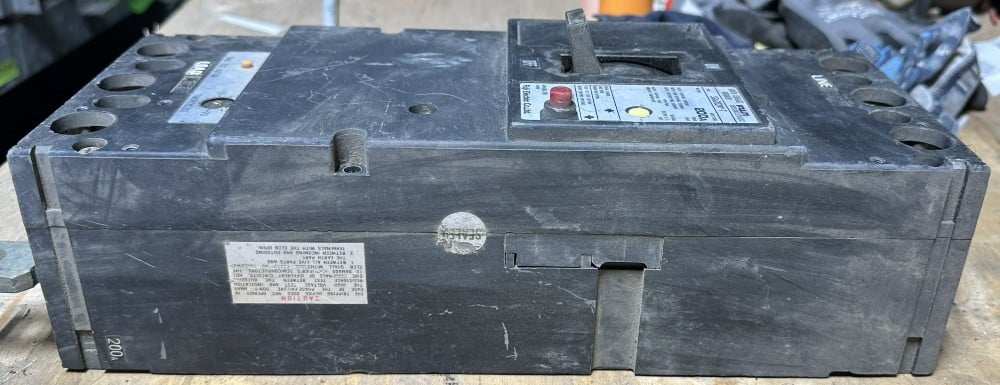

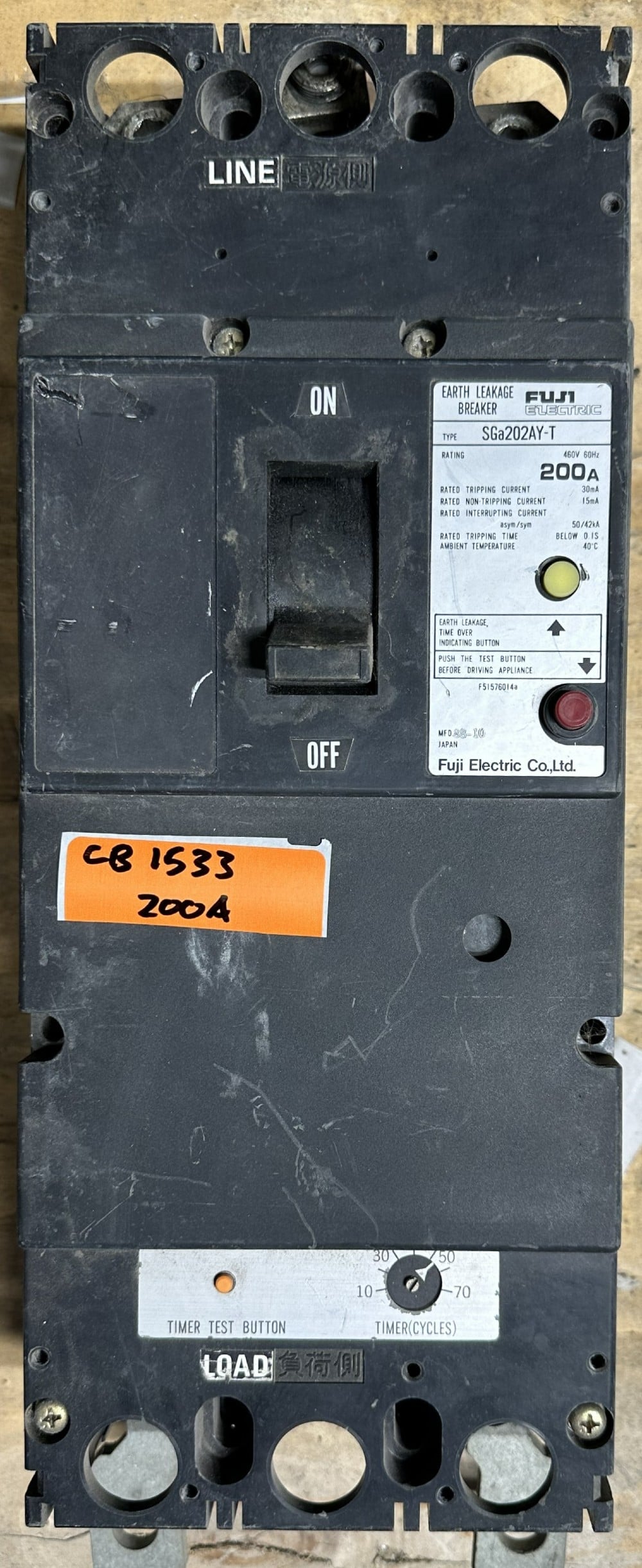

Fuji Electric (Made in Japan) SGa202AY-T earth leakage circuit breaker, rated 200A, 3-pole, 460V AC, 60 Hz. Rated tripping current 30mA (non-tripping 15mA) with tripping time below 0.1 s, and time delay adjustable from 10 to 70 cycles. Interrupting rating of 42kA symmetrical / 50kA asymmetrical. Equipped with test button, timer test button and earth leakage / time-over indicating button. Manufactured October 1988.

SPECIFICATIONS

Manufacturer: Fuji Electric Co., Ltd. (Made in Japan)
Type: SGa202AY-T Earth Leakage Circuit Breaker
Poles: 3
Current Rating: 200A
Voltage: 460V AC, 60 Hz
Rated Tripping Current: 30mA
Rated Non-Tripping Current: 15mA
Rated Tripping Time: Below 0.1 s
Timer: Adjustable 10–70 cycles, with timer test button
Interrupting Rating: 42kA symmetrical / 50kA asymmetrical
Features: Test button; earth leakage / time-over indicating button
Ambient Temperature: 40°C
Manufacture Date: 88-10 (October 1988)
Label #: F51576014a

CONDITION

Condition: Used – As-Is

TERMS

Price: Call for Price
Shipping: FOB Pickering, Ontario. Buyer arranges and pays all shipping, brokerage and duties.
Freight: Ships boxed or on pallet (LTL)
Stock #: CB-1533
