For Sale by Ex-Factory
Surplus Record Dealer Since 2022
Location: Charlotte, NC
Contact Sales Dept.
Phone Number: 704...> Show Phone Number 704-285-2223
Let the seller know you found their listing on Surplus Record!
Description

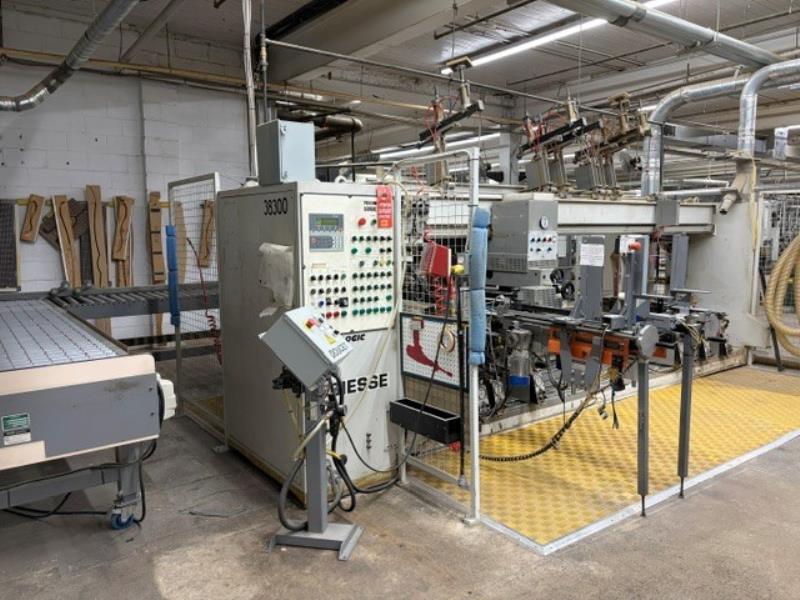

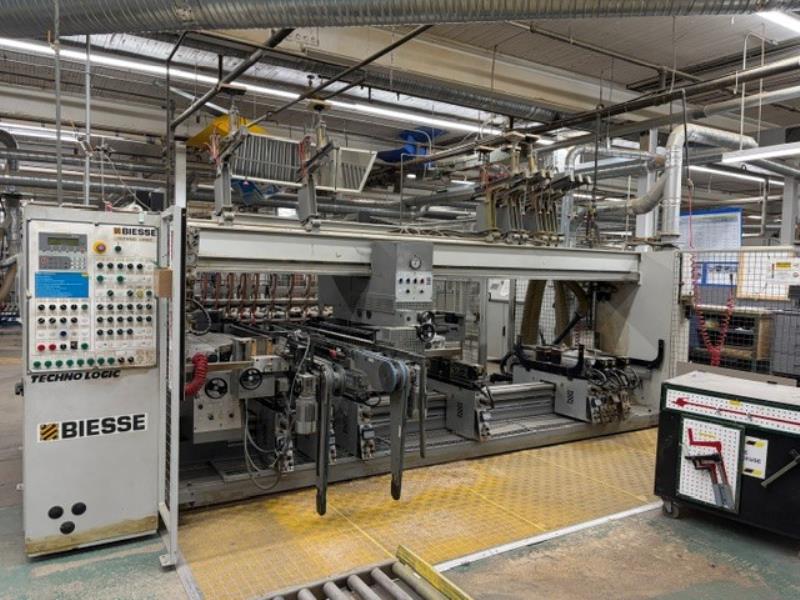

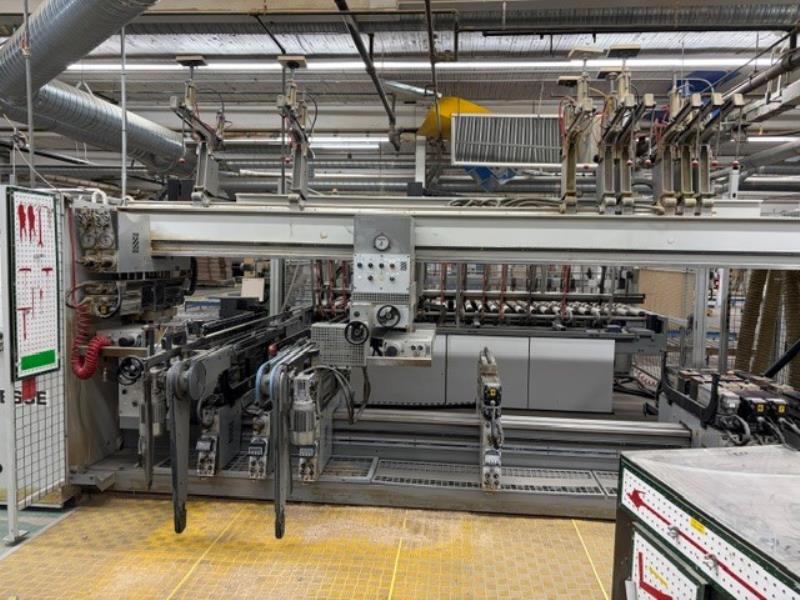

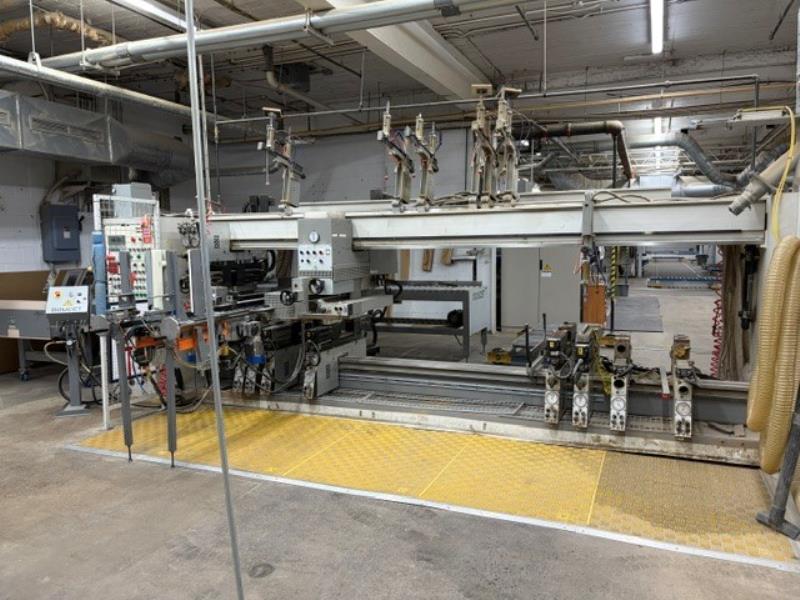

BIESSE - TECHNO-LOGIC: Feed Through Boring Machine Specifications -- 125.9" (3,200 mm) Max. opening cap.; 7" (180 mm) min. opening. -- Right & left horizontal boring unit with: (20) Spindles ea. (right unit motorized). -- (8) Bottom vertical supports; each support accommodates (2) Boring blocks driven by: (2) 1.8 HP Motors (2,800 RPM); all boring blocks: 96 mm wide; 0 - 90 swivel; pneumatic locking of the drill block. -- (2) Top vertical supports; each support accommodates:(2) Boring blocks driven by: (2) 1.8 HP Motors (2,800 RPM); all boring blocks: 96 mm wide; 0 - 90 swivel; pneumatic locking of the drill block. -- All supports equipped with MICRO-DIAL Indicator for: Positioning, pneumatic locking; individual adjustment for boring block: Distance; boring depth; hydraulic brakes.Equipped with: -- Double belt through feed Conveyor with: Pneumatic squaring. -- (2) Side pressure clamps; (6) top pressure clamps. NOTE: (2) Machines available!
Get Your Price from Ex-Factory!
