2" CSM #CNC50TSRJ, hydraulic multiple plane CNC tube bender, 2003

USED – CSM HYDRUALIC MULTIPLE PLANE CNC TUBE BENDER

With Extended Mandrel Length

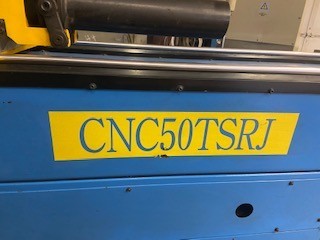

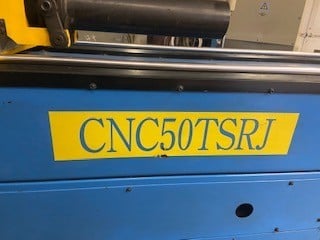

MODEL: CNC 50TSRJ
SERIAL: 001223

YEAR: 2000

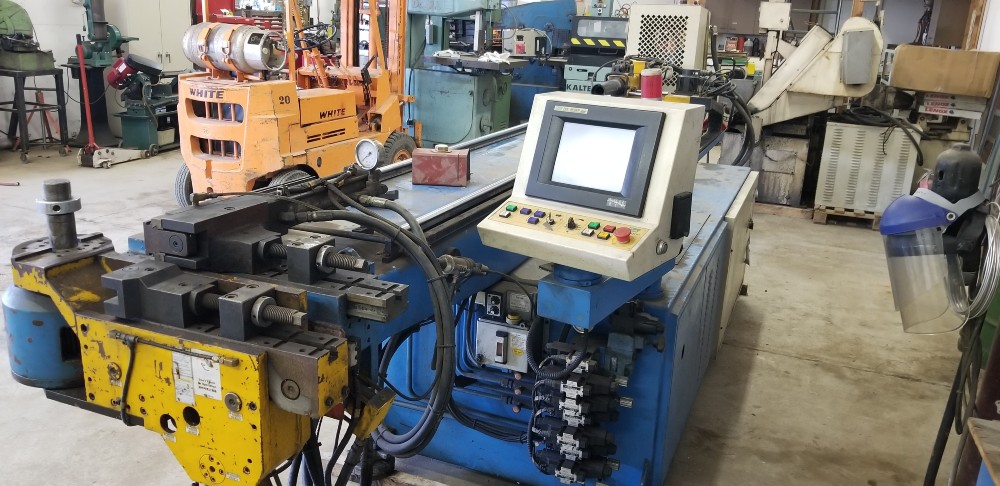

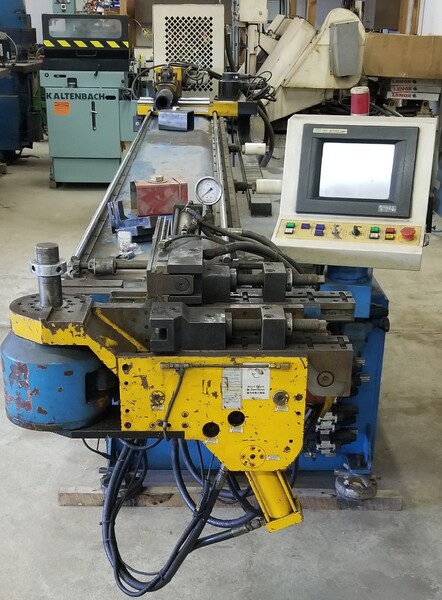

Automatic bender type TSRJ is intended for 3D bending of tubes by one bending tool. The bending arm (C axis) is controlled by a hydraulic drive as well as the clamping elements while the other drives are controlled by servo drive, Y axis (tube length position) and B axis (tube rotation and support shift). The machine is equipped with automatic mandrel retraction and mandrel lubrication and is operated from a control panel with touch display mounted on a portable stand.

Programable bender software allows for entering data for a complete bending cycle and saved data can be copied and edited while the memory card has storage for 100 products types.

Hydraulic Bend Arm (C) Axis Hydraulic Clamp Die Hydraulic Pressure Die
Servo driven Y & B Axis Automatic Mandrel Lube Anticipated Mandrel Retraction

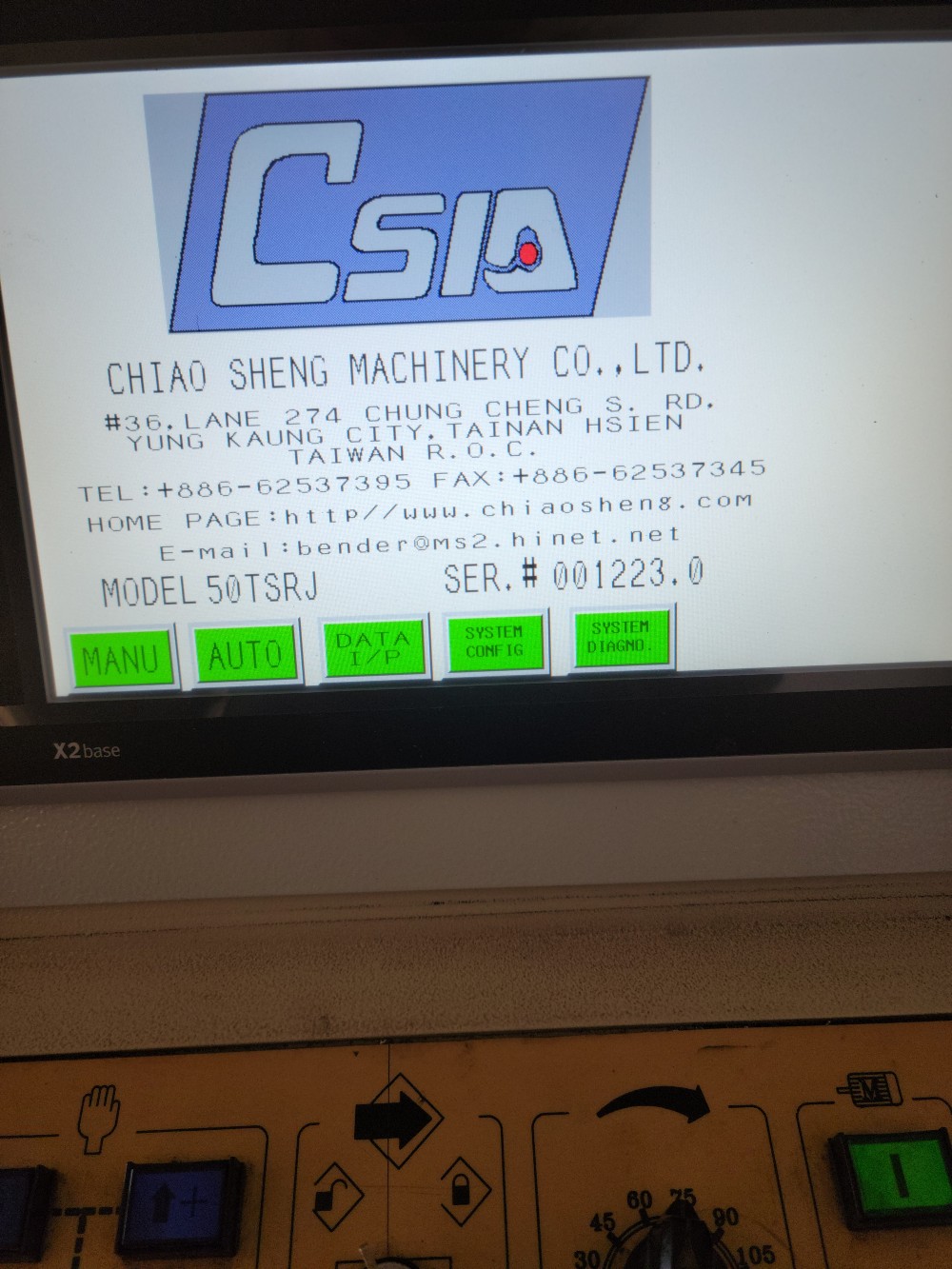

Remote Control Panel User Friendly Touch Screen HMI Data Storage for 100 jobs
Pressure Die Assist

SPECIFICATIONS:

Approximate Dimensions: 18’L x 4’W x 60”H

Approximate Weight : 5000 lbs

INCLUDED TOOLING:

Square 1-1/4” (1.25433mm) x 6.62 (168.27mm) Radius

Square 1-1/4” x 2.63” (66.67mm) Radius

Round 7/8” (.875195mm) x 1.75” (44.45mm) Radius

Round 1-1/4” (31.75mm) x 4” (101.6mm) Radius

(No Mandrels Included)

***Specifications subject to Verification
