2.5" x 4" Mino, Double Head 2-High Rolling Mill, Flat & Wire/Rod, HCCAS, 480 V.

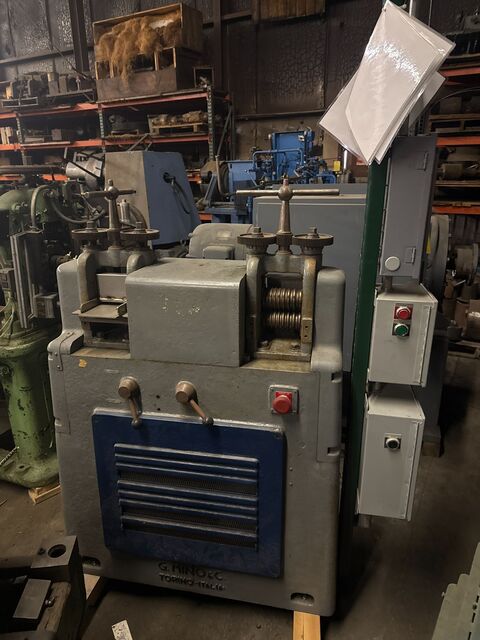

This Mino 2.5" x 4.75" Double Head 2-High Rolling Mill - Flat and Wire/Rod is a compact, versatile mill designed for precision rolling of flat strip and wire/rod materials. Manufactured by MINO, this mill is well-suited for laboratory, R&D, and light production environments where flexibility, control, and repeatability are critical.
Condition & Background:
The mill was removed from service from an R&D laboratory at a major industrial manufacturer, where it was previously used for rolling platinum strip and wire/rod. The unit was reported to be fully operational prior to removal from service and has been maintained in a controlled laboratory environment.

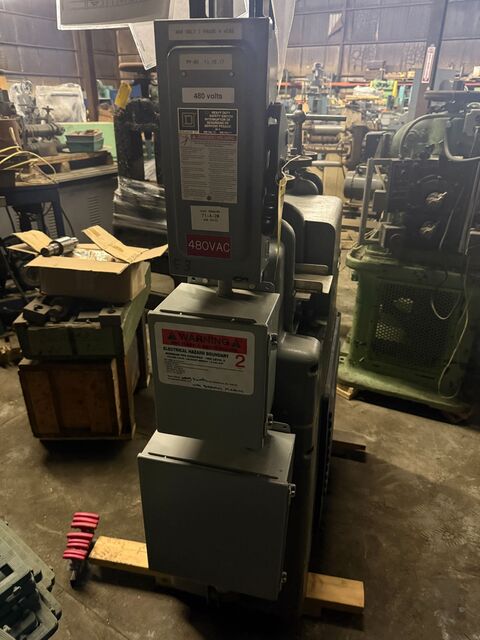

Drive & Controls Upgrade:
During its service life, the mill was upgraded with a new 3 HP drive motor and modern electrical controls, replacing the original MINO-supplied motor and electrical system. This upgrade provides improved reliability, serviceability, and overall operational performance compared to the original configuration.

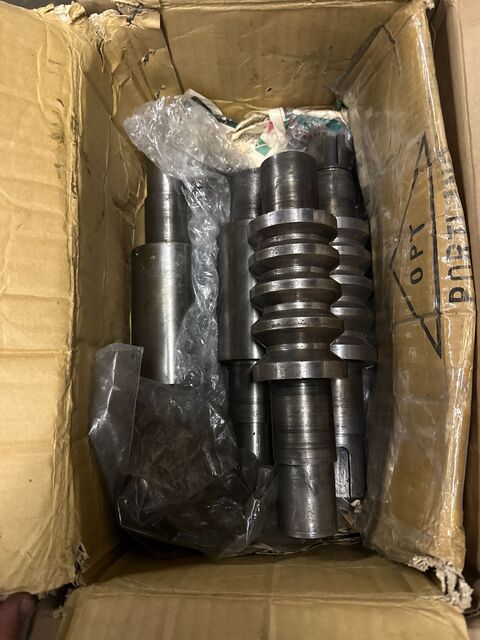

Roll Tooling Included:
Two sets of wire/rod rolls currently installed in the mill
One spare set of flat rolls included
One spare set of wire/rod rolls included
This tooling package allows for immediate setup flexibility across multiple rolling applications without additional tooling lead time.
Key Features:
2-High configuration for flat and wire/rod rolling
Compact, rigid mill housing suitable for precision rolling
Adjustable roll gap for controlled reductions
Upgraded drive and electrical system
Ideal for specialty alloys, precious metals, R&D trials, and small-batch production
Applications:
Material development and testing, research laboratories, precious metal processing, pilot production lines, and specialty alloy rolling.
MINO FLAT AND WIRE/ROD 2-HIGH ROLLING MILL
SPECIFICATIONS:
Roll Diameter......... 2.5"
Roll Width............ 4.75"
Roll Material......... High Carbon Chromium Alloy Steel
Roll Gap Adjustment... Adjustable Individually or Simultaneously
Mill Power............ 3 HP
Mill Voltage.......... 480V
Mill Phase............ 3-Phase
Mill Dimensions....... Approximately 48" L x 24" W x 72" H
Mill Weight........... Approximately 1,500 LBS
