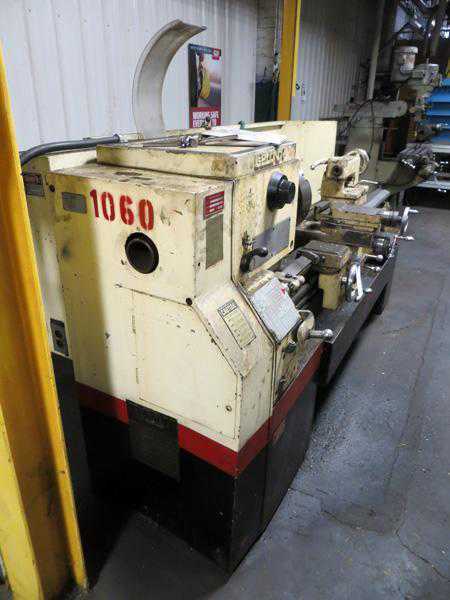

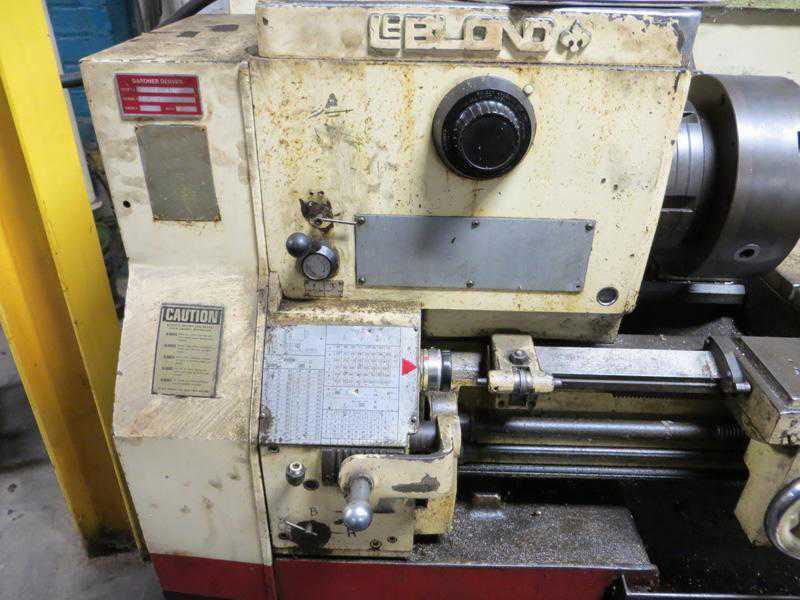

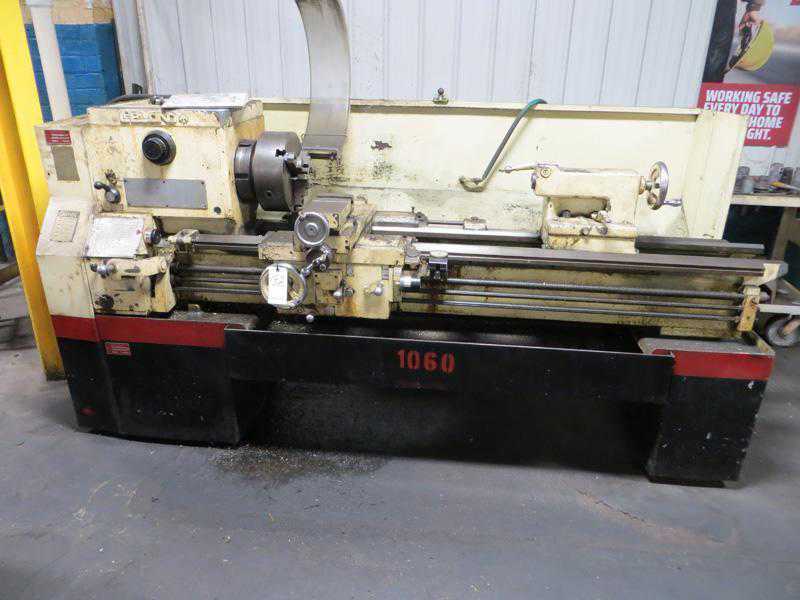

19" x 54" LeBlond #Regal, engine lathe, 12-1/4" swing over cross slide, 3-jaw 12" chuck, 10 HP, 1985

SERIAL ........................... 12E-562

MODEL ............................ REGAL

YEAR NEW ......................... 1985

SWING OVER BED ................... 19"

SWING OVER CROSS SLIDE ........... 12-1/4"

DISTANCE BETWEEN CENTERS ......... 54"

HOLE THRU SPINDLE ................ 3"

SPINDLE SPEEDS ................... (24) 40 TO 1600 RPM

FEEDS ............................ (66) .0018 TO .104 IPR

THREADS .......................... (66) 2 TO 112 TPI

METRIC THREADING ................. YES

METRIC FEEDS ..................... YES

STEADY REST 3 POINT ROLLER ....... 6"

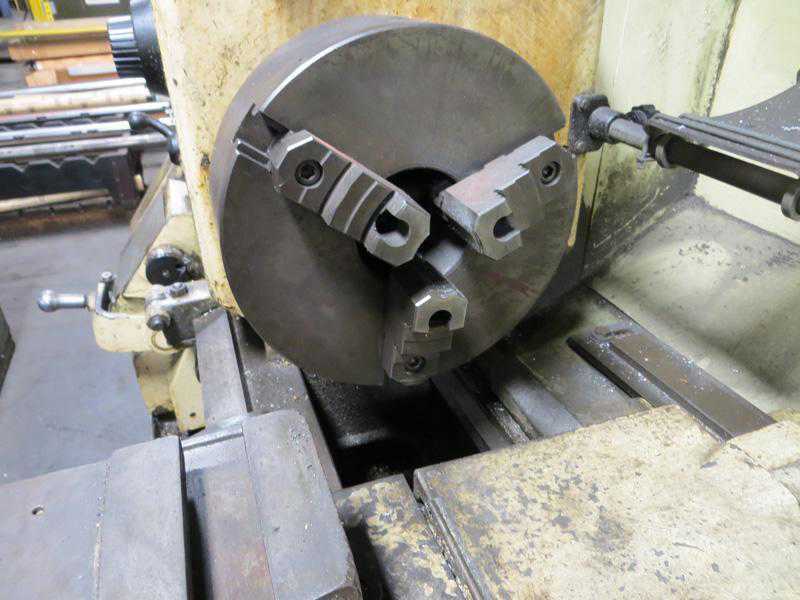

CHUCK 3 JAW ............................ 12"

TAPER ATTACHMENT ................. YES

HARDENED REPLACEABLE WAYS ........ YES

TREAD DIAL ....................... YES

CHIP PAN WITH COOLANT ............ YES

SPINDLE MOTOR .................... 10 HORSEPOWER
