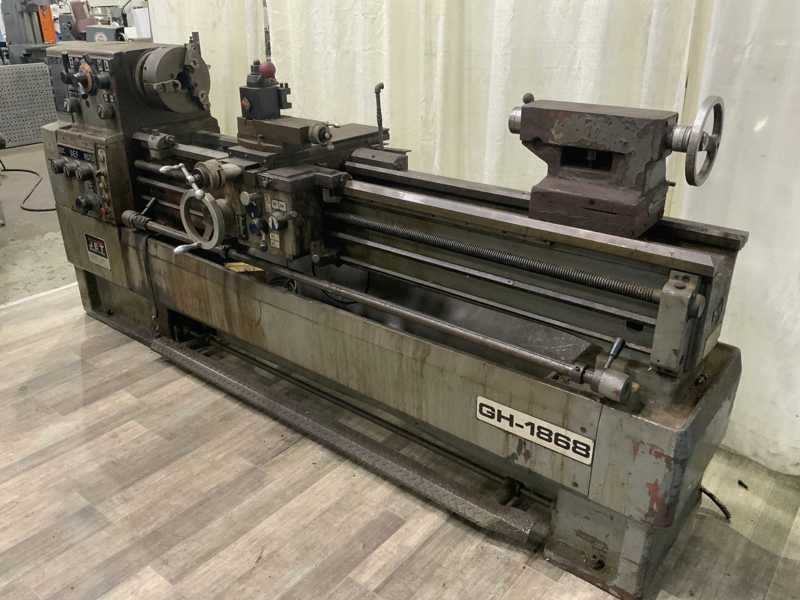

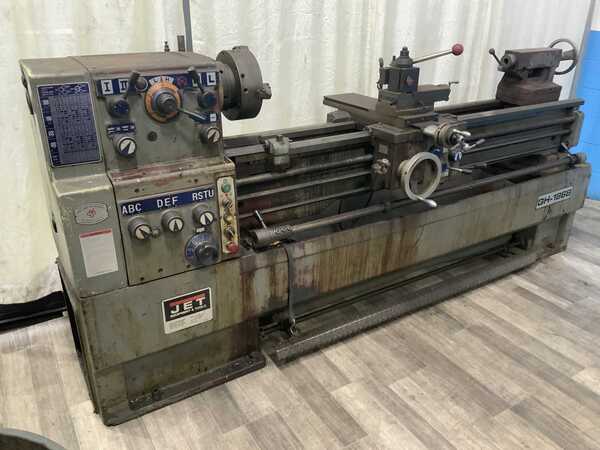

18" x 68" Jet #GH-1868, gap bed engine lathe, 11" swing over cross slide, inch/metric, 3-jaw 12" chuck, foot brake

SERIAL .......................

MODEL ........................ GH-1868 GH

SWING OVER WAYS .............. 18"

SWING IN GAP ................. 27-1/2"

LENGTH OF GAP ................ 12-1/4"

SWING OVER CROSS SLIDE ....... 11"

DISTANCE BETWEEN CENTERS ..... 68"

SPINDLE SPEEDS ............... (12) 25 TO 1800

DIAMETER OF SPINDLE HOLE...... 3-1/8"

ENGLISH THREADS .............. (61) 1-5/8 TO 72 TPI

METRIC THREADS ............... (24) 0.5 TO 20 TPMM

FEEDS LONGITUDINAL ........... (122) 0.0015 TO 0.0913 IPR

FEED CROSS ................... (122) 0.0006 TO 0.0365 IPR

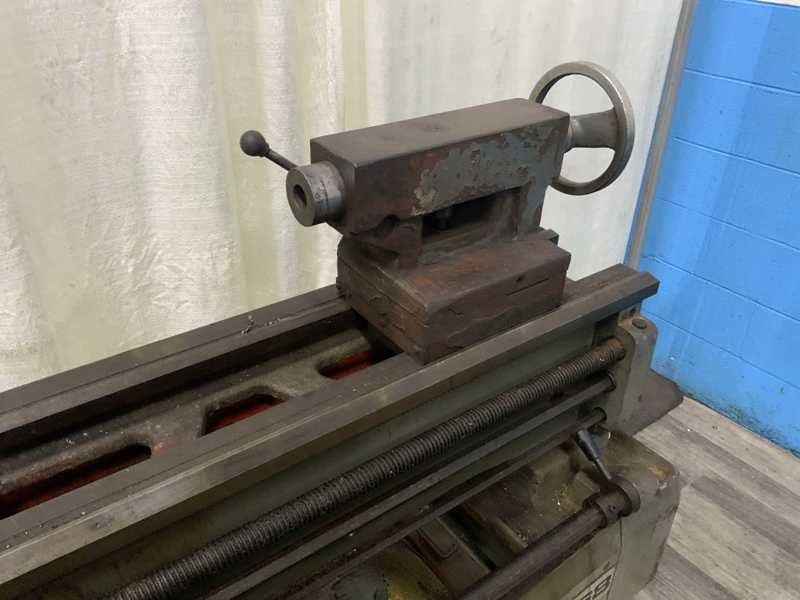

TAPER IN TAILSTOCK ........... #5 MT

CHIP PAN ..................... YES

HARDEN WAYS .................. YES

FOOT BRAKE ................... YES

CHUCKS 3 JAW ............. 12"

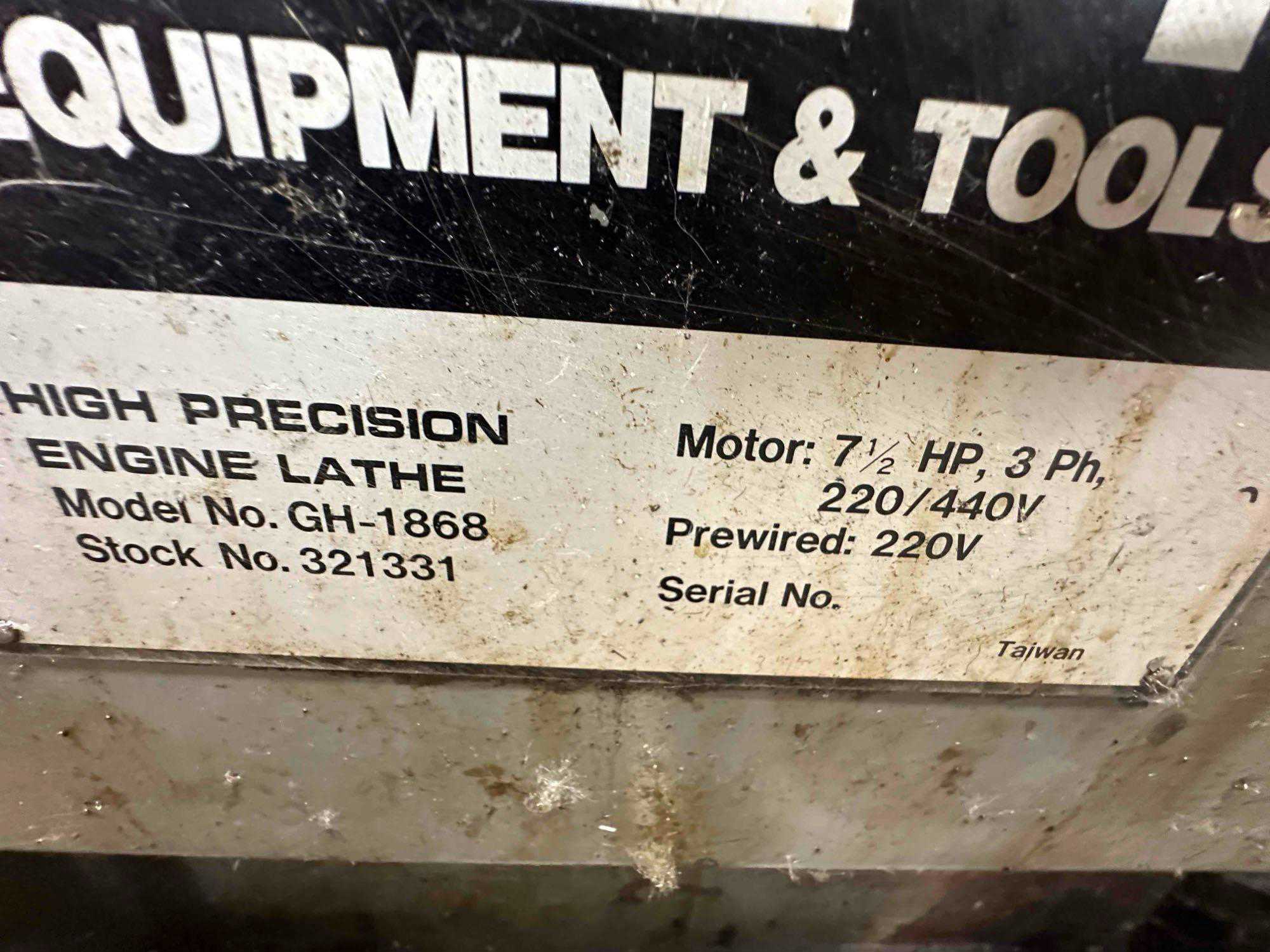

MOTOR ........................ 7-1/2 HORSEPOWER
