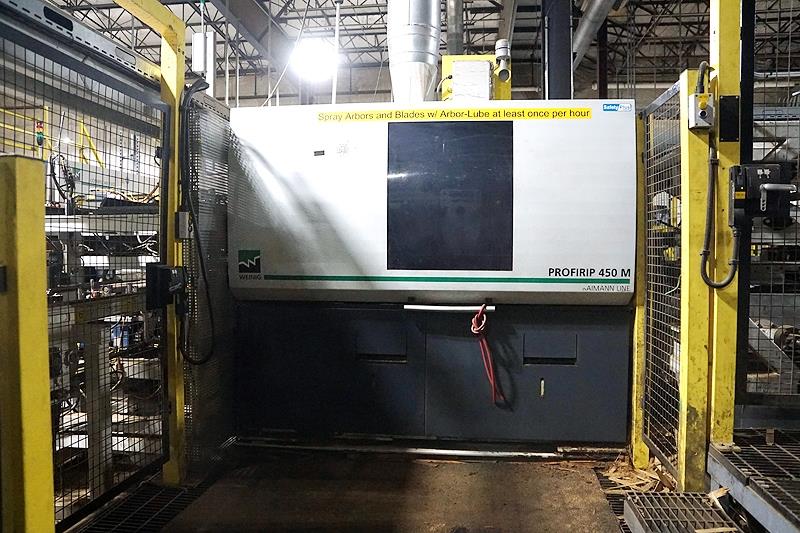

17.7" Weinig/Raimann #Profirip-450M, gang rip saw, Combi Scan EVO lumber scanner, 60 HP saw drive, 5.4 HP feed, 2018

Estimated monthly payment valid upon approved credit.

Request Formal Quote

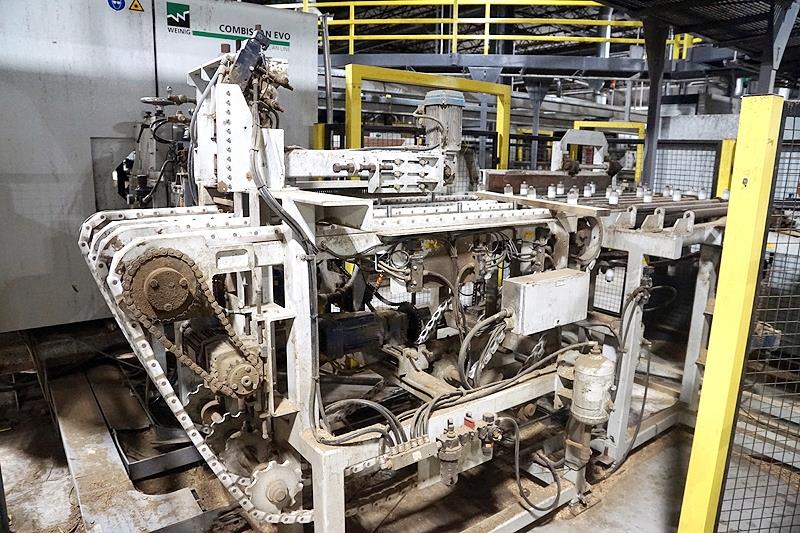

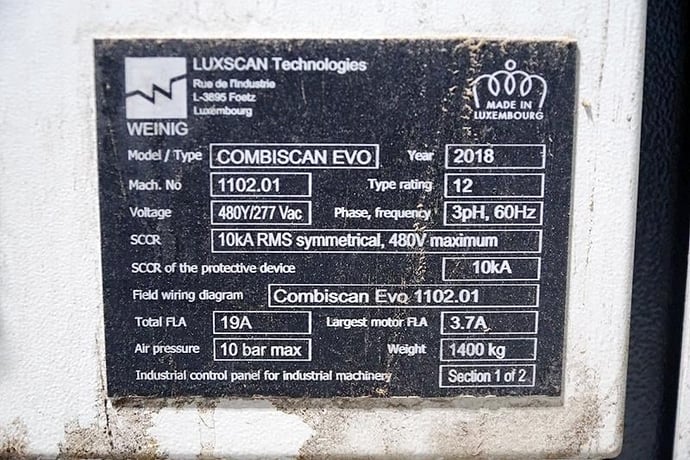

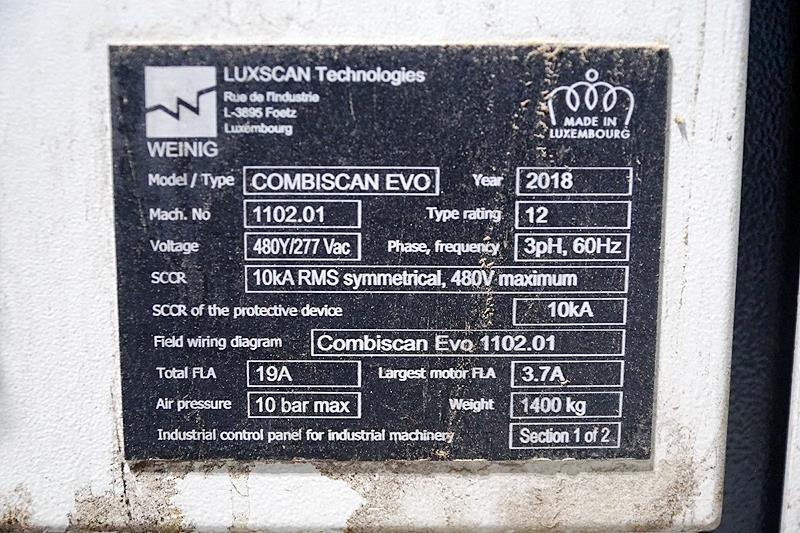

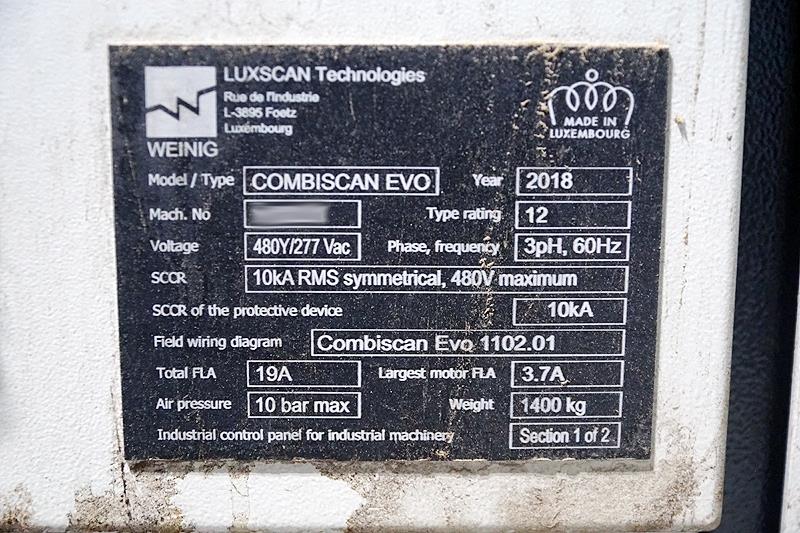

WEINIG RAIMAN PROFIRIP 450M And Combiscan EVO Luxscan Lumber Scanner SystemThe system is complete with: -- (1) Weinig lateral lumber feeder table to scanner head -- 12" wide rubber belted infeed -- Roller/Sweep type lateral conveyor with sequencing and buffer to scanner infeed -- (1) Weinig CombiScan EVO Luxscan Line Feed through lumber scanner -- Model CombiScan EVO -- Max width 310 mm (12.2") -- Min width 25 mm (0.984") -- Max length 6500 mm (255.9")Min length 900 mm (35.4") -- Max thickness 100 mm (3.93") -- Min thickness 12 mm (0.472") -- Speed range 80 to 300 M/min (up to 250 boards/min) -- Max throughput 200 m/min -- Luxscan combiscan EVo R with two cameras top-bottom (2 side detection laser cameras, 2 side detection color defect high resolution cameras, 2 side detection with dot laser, 2 side line scatter , angle crack detection 2 side) -- Freestanding operator computer control station -- Flat screen color display with keyboard -- Opticore direct controls -- Freestanding electrical and computer control cabinet -- Freestanding chiller unit for laser system -- Scanner infeed and outfeed table system -- Safety guards with access doors around the scanner and rip line machines -- Includes the machine operators manuals -- (1) Weinig sweep type lateral conveyor table from scanner to the rip sequencer table -- Chain deck type sequencing and spacing conveyor table -- Infeed rip saw board flipper with servo fence system to rip sw -- (1) Weinig Raimann ProfiRip 450M Gang Rip Saw With (2) Movable blade -- 51 kw, 460 volt three phase 60 hz -- Max cutting width 450 mm (17.7") -- Max cutting height (with 450 mm diameter blade and without pressure board) 150 mm (5.9") -- Max cutting height (with 450 mm diameter blade and with pressure board) 135 mm (5.31") -- Min cutting thickness 15 mm (0.59") -- Min cutting length 780 mm (30.7") -- Chain width 470 mm (18.5") -- Diameter of saw arbor 65 mm (2.55") -- Min blade diameter 300 mm (11.8") -- Max blade diameter 450 mm (17.7") -- Saw blade bore 80 mm (3.14") -- Arbor speed 3900 rpm -- Feed speed range 15 to 120 m/min -- Machine weight 4500 Kg (9920 Lbs) -- Saw drive motor 45 Kw, 460 volt three phase -- Feed motor 4 Kw, 460 volt three phase -- (1) fixed and (2) movable saw blade design -- Edging removal system -- Sound and safety machine enclosure -- Front access door with inspection window and safety interlock -- Freestanding operator computer control station -- Pro-Face color touch screen display -- Joystick movable blade controls -- Freestanding electrical control cabinet -- Includes the machine operators manuals -- (1) Weinig rip saw outfeed table with lateral feeder to chop saw station -- Outfeed roller/sweep type conveyor -- Cross conveyor table with servo accelerator -- Freestanding operator conveyor system controls (zone ripping)Note: System installed new in 2019
